Product overview：
WQ3KM5803 is an outdoor wireless network bridge designed for video surveillance in elevators, pendants, communities, schools, factories, orchards, breeding plants, planting greenhouses, scenic spots and other scenes; it is a dual Gigabit high-speed wireless network that can provide ultra-high speed Transmission, both 2.4GHz and 5GHz support the new generation WiFi 6 (802.11ax) technology, with dual-band concurrent rates up to 2976Mbps (2.4GHz: 574Mbps, 5GHz: 2402Mbps); high-performance dual-core processor, comprehensively improves network load capacity, faster data forwarding, and more stable long-term operation; using OFDMA and MU-MIMO technology, the transmission efficiency is significantly improved, and the delay is greatly improved Reduce; multi-network port design easily solves the problem of additional switches and power supply in multiple camera usage scenarios.
Product features：
l Comply with IEEE802.11ax/ac/a/n 5GHz, IEEE 802.11ax/b/g/n 2.4GHz standard protocol
l Comply with IEEE802.3, IEEE802.3u, IEEE802.3ab standard protocols
l Dual-band wireless concurrent rate 2976Mbps
l Dual-core, high-performance master chip processor
l Support WPA-PSK, WPA2-PSK, WPA-PSK+WPA2-PSK, WPA3-SAE encryption
l 5×10/100/1000Mbps Adaptive network port
|
Hardware specifications |
|
|
CPU |
MT7981BA+7976CN+7531AE CPU dual-core 1.3GHz |
|
FLASH |
16MMB |
|
DDR |
256MB |
|
Network interface |
5×10/100/1000M Adaptive LAN port（Auto MDI/MDIX） |
|
Cable standard |
IEEE802.3,IEEE802.3u,IEEE802.3ab |
|
Antenna |
Built-in bipolarization directional antenna |
|
Button |
Reset Button *1 |
|
DC power input |
DC input 12V/1.5A |
|

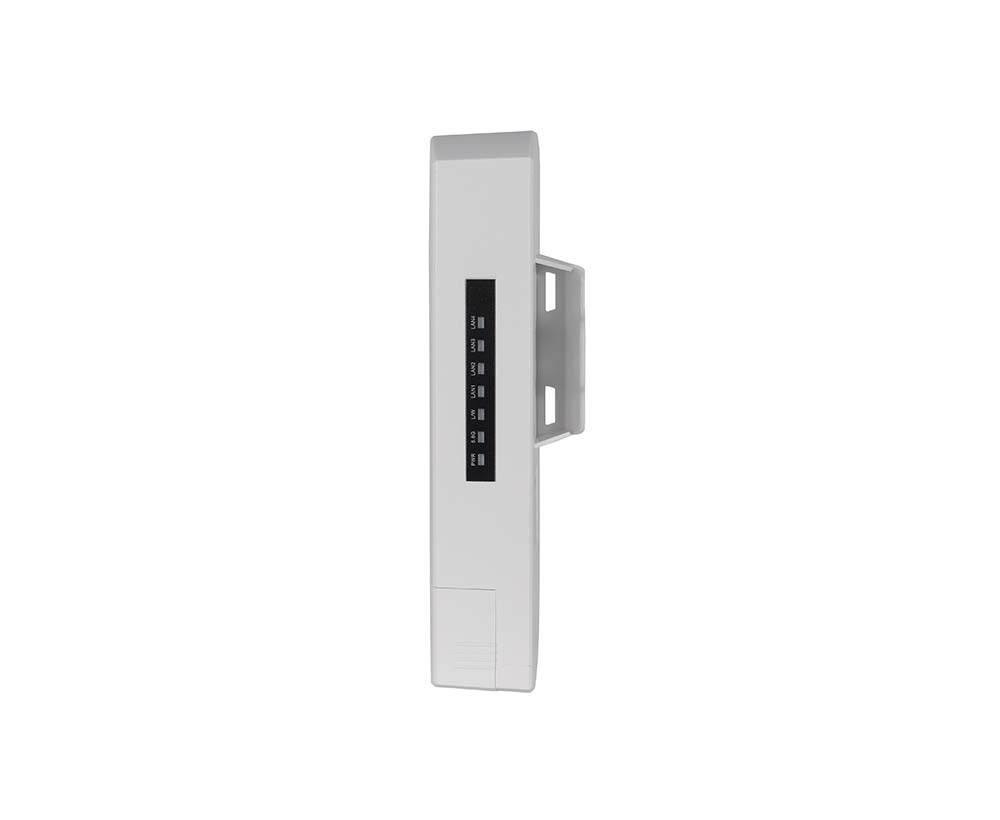

Panel indicator light |
LED*8( PWR、2.4G、5.8G、LAN1~LAN5) |
|
Dimension |
205*105*55mm |
|
Net/Gross Weight |
<0.34kg*2 / <0.90kg |
|
Working temperature |
-10°C~55°C |
|
Operating humidity |
10%~95% RH |
|
Storage temperature |
-40~+80°C |
|
Storage humidity |
10%~95% RH |
|
Wireless specifications |
|
|
Wireless standards |
IEEE 802.11b/g/n/a/ac/ax |
|
Wireless band |
2.4GHz、5GHz |
|
Wireless rate |
2.4GHz：574Mbps、5GHz： 2402Mbps |
|
Wireless encryption |
WPA-PSK，WPA2-PSK，WPA-PSK+WPA2-PSK，WPA2-PSK/WPA3-SAE |

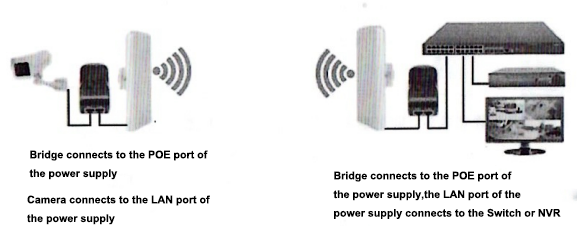

1、A Schematic diagram of the point-to-point connection：
2、Schematic of point-to-multiple connections：
