Product Model

XAP3000GE

Hardware Specifications

CPU

MT7981BA+7976CN+EN8801   CPU dual core 1.3GHz

DDR3

256MB

FLASH

NORFLASH  16MB

Wireless Protocol Standards

2.4G：support IEEE 802.11 b/g/n/ac/ax

5G：support IEEE 802.11 a/ n/ac/ax

Wireless Working Frequency Band

2.4GHz：2.412GHz–2.472GHz

5GHz：5.180GHz～5.825GHz

Wireless Maximum Rate

2.4G provides a maximum access rate of 600Mbps

5G provides a maximum access rate of 2402Mbps

2.4G EVM

802.11b；≤-10dB；802.11g；≤-25dB；802.11n；≤-28dB；802.11ax；≤-35dB

5G EVM

802.11a；≤-25dB；802.11n；≤-28dB；802.11ac；≤-32dB；802.11ax；≤-35dB

Frequency

offset（ppm）

±20 ppm

2.4G antenna

2 built-in antennas, gain: 4dBi

5G antenna

2 built-in antennas, gain: 4dBi

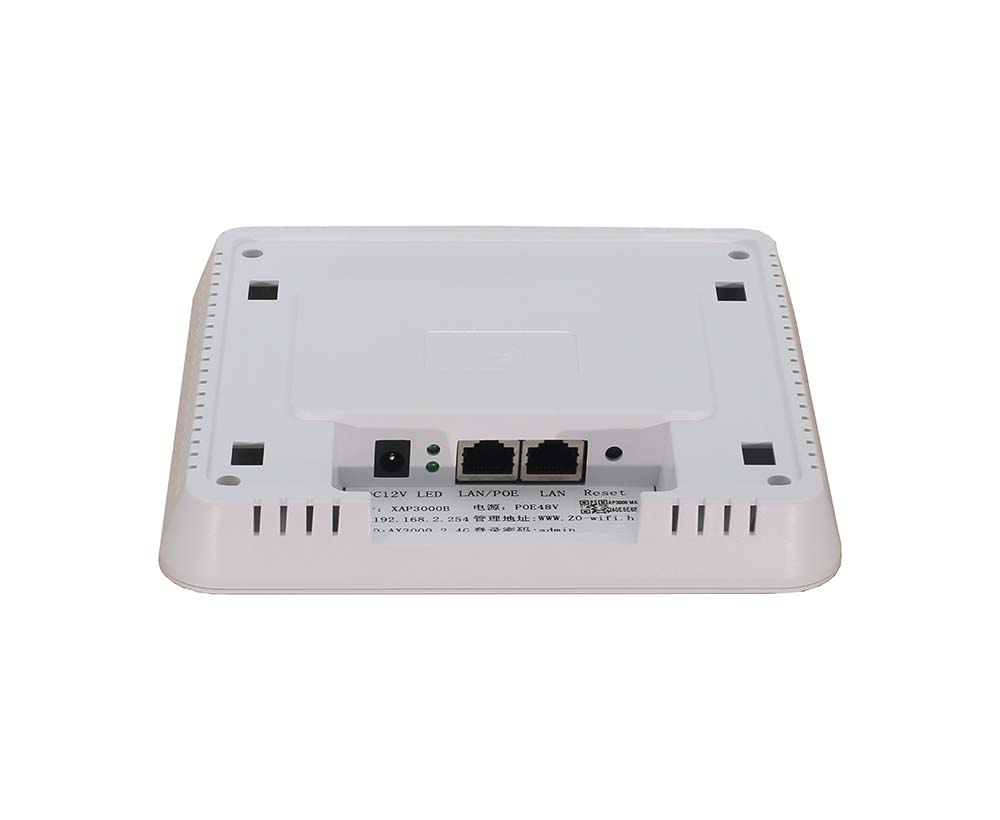

Network Interface

Two 10/100/1000Mself-adaption RJ45 interface, one of which supports 48V POE power supply

Reset switch

1 RESET button (press and hold for 10-15 seconds to restore to default factory settings)

Indicator Lights

POWER indicator light, LAN port indicator light;

Three-color light (three different colors represent: SYS-red, 2.4G/WIFI-green, 5.8G/WIFI-blue)

Power

Supply Mode

Standard POE power supply, supporting 802.3at protocol;

DC 12V 1.5A。

Maximum Power Consumption

of the Whole

Machine

﹤15W

Product Size

168*168*25mm

Net/Gross Weight

<0.3kg / <0.45kg

Appearance Material

Imported high-quality high-temperature resistant PC material

Appearance Color

White

degree of

protection

IP31

Installation method

Ceiling installation

Product Accessories

AX3000 WIFI6dual-band ceiling wireless AP *1

Quick installation guide *1, warranty card *1, certificate *1

Usage Environment

Working temperature：-10℃～55℃

Working temperature：-40℃～70℃

Working humidity：10%～90%RH non-condensing

Storage humidity：5%～95%RH non-condensing

Software Specifications

Working Mode

Integrates FIT AP and FAT AP,

FIT AP mode(FIT AP): managed by wireless controller (AC)

FAT AP mode(FAT AP): managed by independent web page

AC Unified

Management

Support

Wireless Functions

SSID Broadcast

Support

SSID Hidden

Support

the Chinese Language SSID

Support

Multiple SSID

Support

SSID Merger

Support 2.4GHz and 5.8GHz frequency bands combined into one common SSID

Wireless Encryption

WPA、WPA2、WPA-PSK、WPA2-PSK

User Isolation

Isolation between wireless networks, AP Internal Isolation

Blacklist and Whitelist Management

Support MAC address blacklist and whitelist management

Transmit Power Setting

Support 1dBm linear adjustment

VLAN Settings

Support SSID and VLAN binding

Wireless Client-side Number Limit

Support

Seamless Roaming

Support

Maximum Number of Connected users

2.4G

120

5G

120

System Management

Device Management

Full Chinese web management

System Log

Support

Configuration delivery

Support

Remote Reboot

Support AC remote reboot

Restore factory settings

Support

Backup Configuration

Support

Import Configuration

Support

Software Upgrade

Support
