Product Overview:

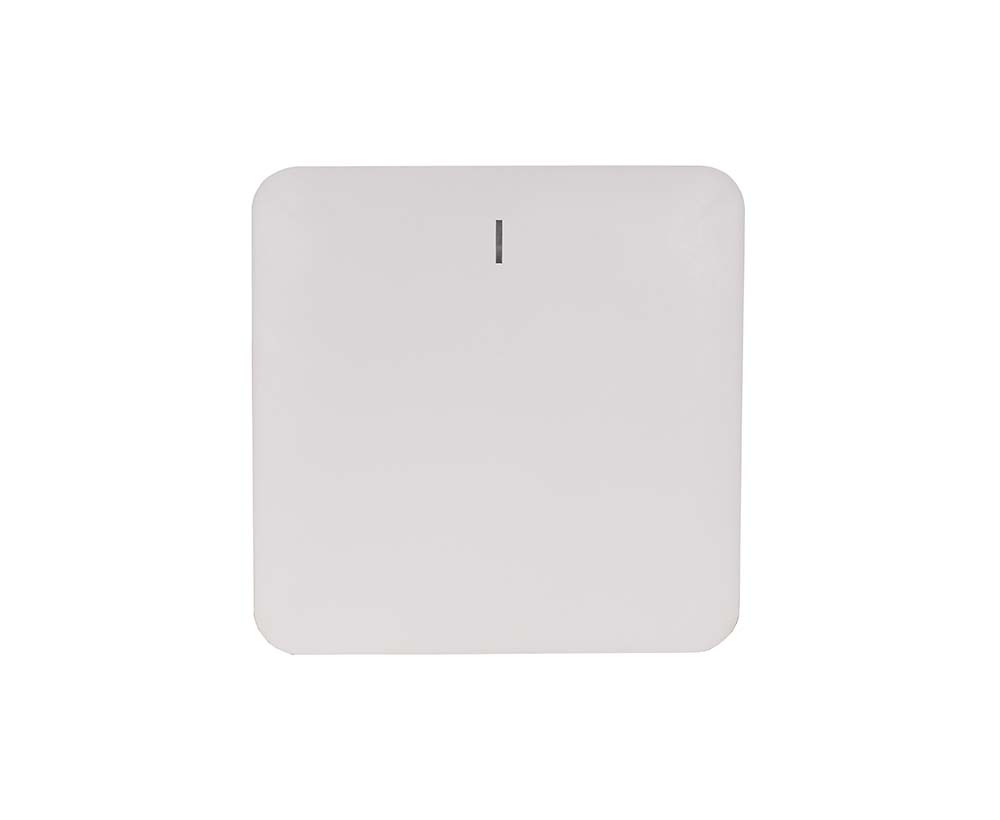

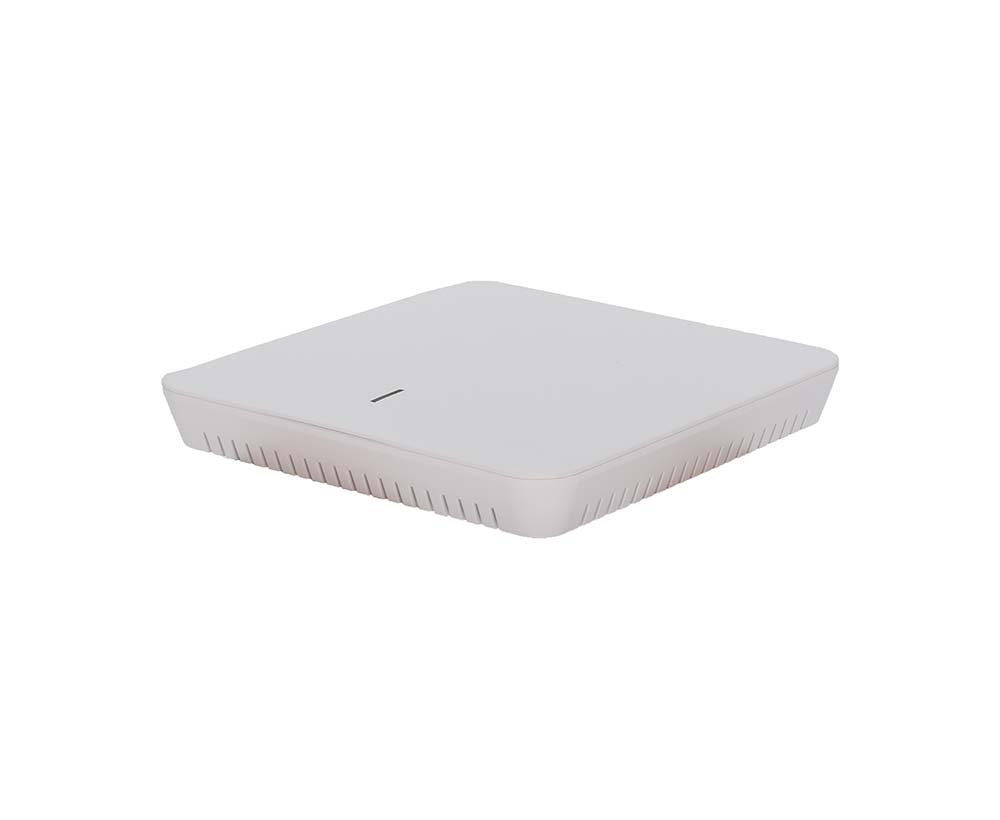

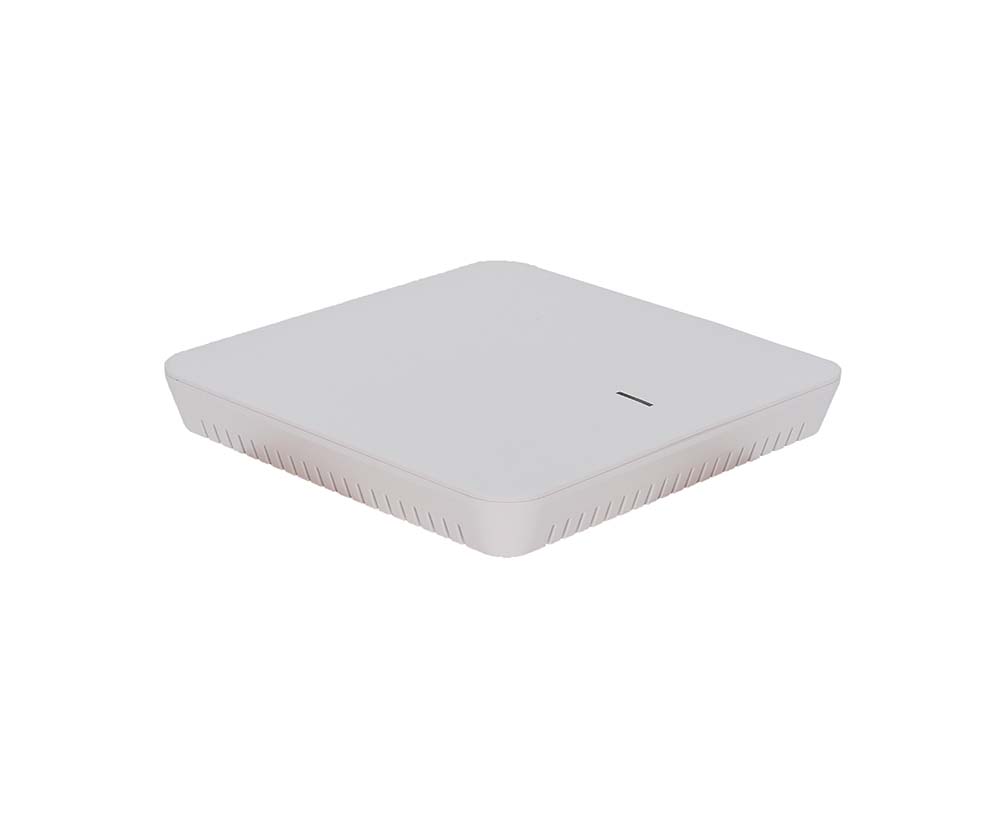

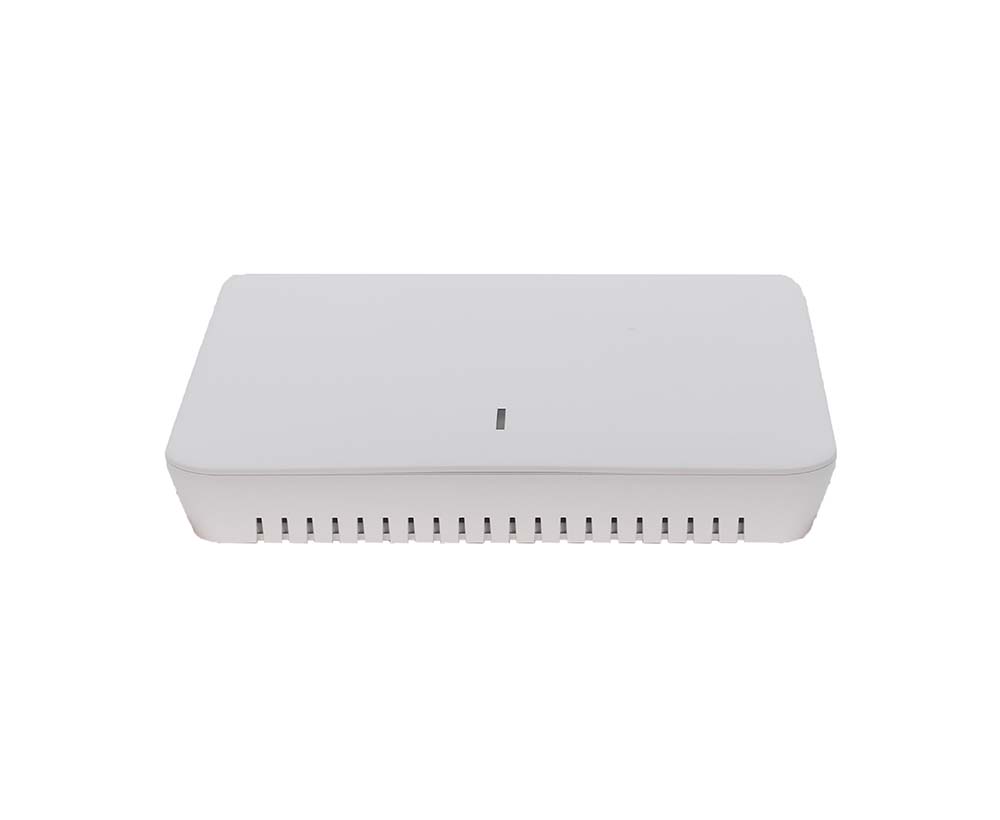

XAP1500GE is a high-performance, high-speed 11ax indoor dual-band ceiling mounted AP that can provide 2.4G and 5GHz dual-band wireless high-speed access services. 2.4G can provide a maximum access rate of 300Mbps, and 5G can provide a maximum access rate of 1202Mbps. It is suitable for various crowded scenarios, such as: high-speed railway stations, subway stations, air-terminal, hotels, hospitals, schools, scenic spots, docks, shopping malls and other application scenarios.
Product Features:
WiFi6 ceiling mounted AP, 1500Mbps high power
Adopting the new generation WiFi6 standard, supporting 1500Mbps wireless rate，2.4GHz&5.8GHz dual band concurrency, automatic optimization,and selecting frequency bands with higher network speed and less interference for users to access the internet; Provide users with fast, comprehensive, and stable indoor wireless networks.
It adopts a powerful intelligent three-chip solution with guaranteed performance. This chip solution has undergone rigorous market testing and screening, and can well ensure the stability of the equipment. The product quality is trustworthy.
The 48V standard POE power supply makes the project more convenient and users do not have to worry about power supply problems. At the same time, the carefully designed hidden structure of the network cable port hides the tangled and exposed network cables, keeping the overall environment grand, simple and beautiful.
Wide coverage, multi-scenario application
Full Gigabit network ports provide stronger signals, no fear of multiple wall obstructions, extended signals without attenuation, wider coverage, and 360° all-round elimination of WiFi dead spots.Widely applicable scenarios, it can build fast and efficient wireless networks for shopping malls, supermarkets, enterprises, schools, conference rooms, restaurants and other places, providing stable, high-speed and large-scale wireless coverage.
|
Product Name |
AX1500 WIFI6 Dual-Band Gigabit Wireless Ceiling |
|||||
|
Product Model |
XAP1500GE |
|||||
|
Hardware Specifications |
||||||
|
CPU |
RTL8197H+RTL8832BR +RTL8367RB |
|||||
|
DDR3 |
128MB |
|||||
|
FLASH |
NORFLASH 16MB |
|||||
|
Wireless Protocol Standards |
2.4G：support IEEE 802.11 b/g/n/ac/ax 5G：support IEEE 802.11 a/ n/ac/ax |
|||||
|
Wireless Working Frequency Band |
2.4GHz：2.412GHz–2.472GHz 5GHz：5.180GHz～5.825GHz |
|||||
|
Wireless Maximum Rate |
2.4G provides a maximum access rate of 300Mbps 5G provides a maximum access rate of 1201Mbps |
|||||
|
2.4G EVM |
802.11b；≤-10dB；802.11g；≤-25dB；802.11n；≤-28dB；802.11ax；≤-35dB |
|||||
|
5G EVM |
802.11a；≤-25dB；802.11n；≤-28dB；802.11ac；≤-32dB；802.11ax；≤-35dB |
|||||
|
Frequency offset（ppm） |
±20 ppm |
|||||
|
2.4G antenna |
2 built-in antennas, gain: 4dBi |
|||||
|
5G antenna |
2 built-in antennas, gain: 4dBi |
|||||
|

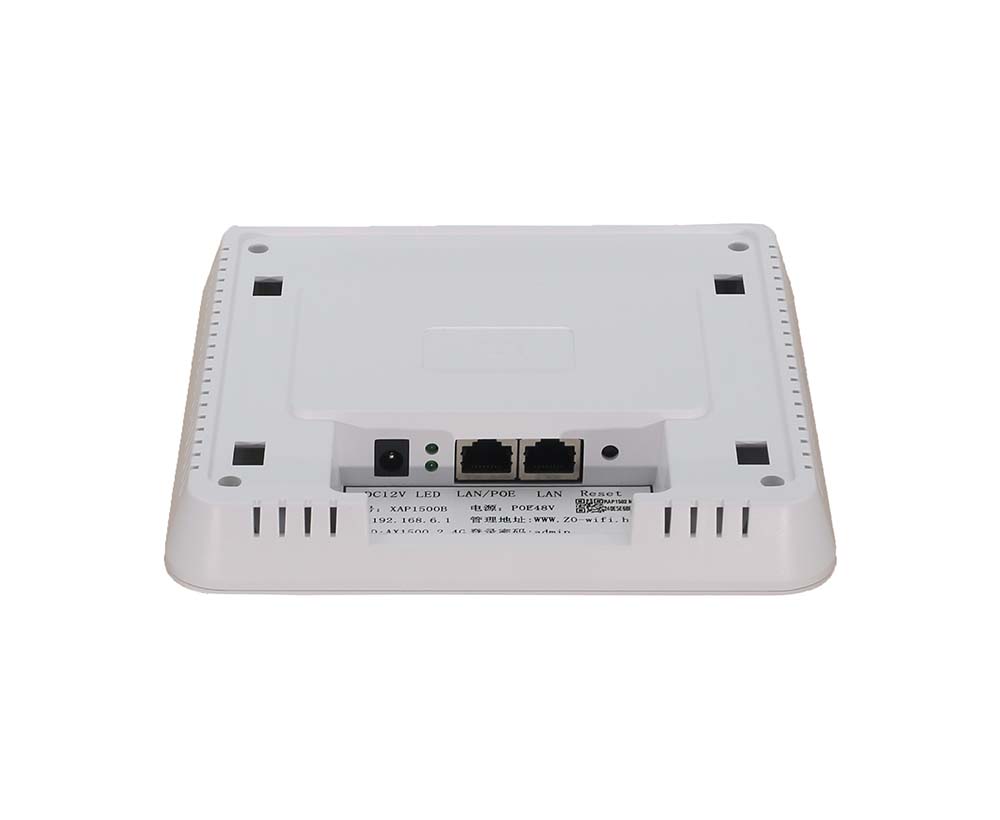

Network Interface |
Two 10/100/1000Mself-adaption RJ45 interface, one of which supports 48V POE power supply |
|||||
|
Reset switch |
1 RESET button (press and hold for 10-15 seconds to restore to default factory settings) |
|||||
|
Indicator Lights |
POWER indicator light, LAN port indicator light; Three-color light (three different colors represent: SYS-red, 2.4G/WIFI-green, 5.8G/WIFI-blue) |
|||||
|
Power Supply Mode |
Standard POE power supply, supporting 802.3at protocol; DC 12V 1.5A。 |
|||||
|
Maximum Power Consumption of the Whole Machine |
﹤15W |
|||||
|
Product Size |
168*168*25mm |
|||||
|
Net/Gross Weight |
<0.3kg / <0.45kg |
|||||
|
Appearance Material |
Imported high-quality high-temperature resistant PC material |
|||||
|
Appearance Color |
White |
|||||
|
degree of protection |
IP31 |
|||||
|
Installation method |
Ceiling installation |
|||||
|
Product Accessories |
AX1500 WIFI6 dual-band ceiling wireless AP *1 Quick installation guide *1, warranty card *1, certificate *1 |
|||||
|
Usage Environment |
Working temperature：-10℃～55℃ Working temperature：-40℃～70℃ Working humidity：10%～90%RH non-condensing Storage humidity：5%～95%RH non-condensing |
|||||
|
Software Specifications |
||||||
|
Working Mode |
FIT AP mode(FIT AP): managed by wireless controller (AC) FAT AP mode(FAT AP): managed by independent web page |
|||||
|
AC Unified Management |
Support |
|||||
|
Wireless Functions |
SSID Broadcast |
Support |
||||
|
SSID Hidden |
Support |
|||||
|
the Chinese Language SSID |
Support |
|||||
|
Multiple SSID |
Support |
|||||
|
SSID Merger |
Support 2.4GHz and 5.8GHz frequency bands combined into one common SSID |
|||||
|
Wireless Encryption |
WPA、WPA2、WPA-PSK、WPA2-PSK |
|||||
|
User Isolation |
Isolation between wireless networks, AP Internal Isolation |
|||||
|
Blacklist and Whitelist Management |
Support MAC address blacklist and whitelist management |
|||||
|
Transmit Power Setting |
Support 1dBm linear adjustment |
|||||
|
VLAN Settings |
Support SSID and VLAN binding |
|||||
|
Wireless Client-side Number Limit |
Support |
|||||
|
Seamless Roaming |
Support |
|||||
|
Maximum Number of Connected users |
2.4G |
80 |
||||
|
5G |
80 |
|||||
|
System Management |
Device Management |
Full Chinese web management |
||||
|
System Log |
Support |
|||||
|
Configuration delivery |
Support |
|||||
|
Remote Reboot |
Support AC remote reboot |
|||||
|
Restore factory settings |
Support |
|||||
|
Backup Configuration |
Support |
|||||
|
Import Configuration |
Support |
|||||
|
Software Upgrade |
Support |
|||||
