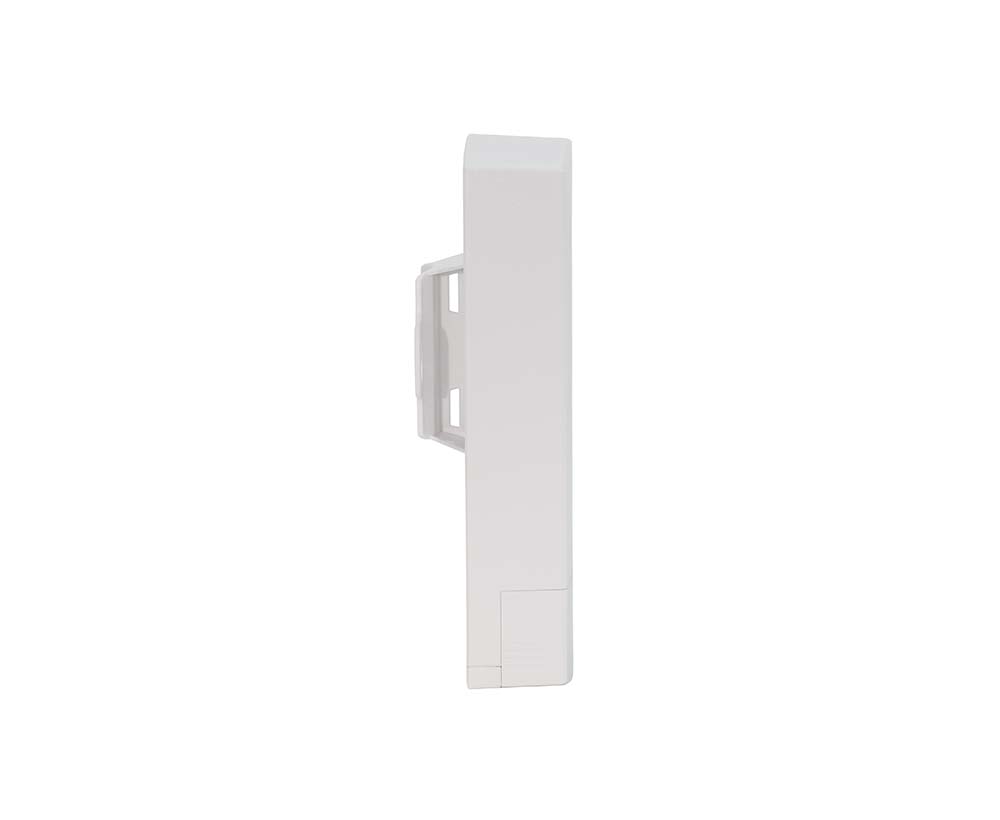

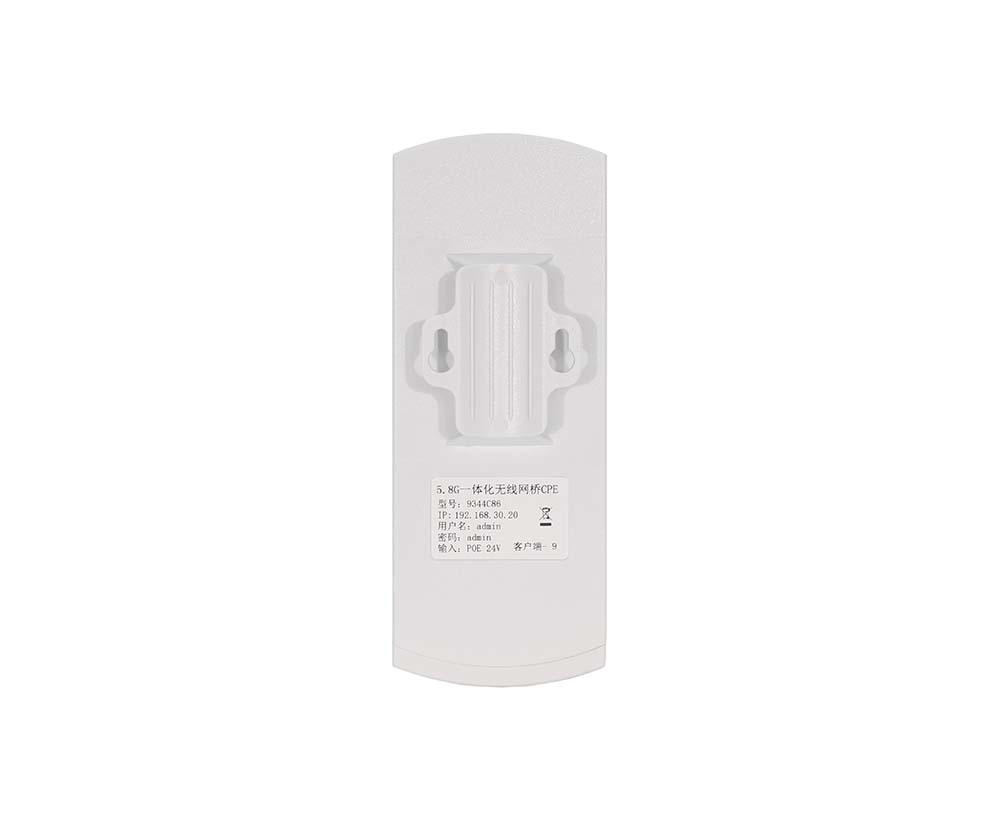

Product overview：
WQ300M5803 is a 5G_11AN high-performance, high-speed outdoor long-distance wireless bridge. It has the characteristics of long transmission distance, strong penetration ability, and strong anti-interference ability. It supports a transmission distance of 3 kilometers and a wireless transmission rate of 300Mbps. It is suitable for wireless transmission of monitoring projects in outdoor scenic spots, ports, oil fields, construction sites, etc.
Product features：
l Qualcomm AR9342 CPU solution greatly improves the data processing performance of the product
l 8M flash memory + 64M high-speed memory
l 5.8GHz frequency band, the no-interference signal is continuously stable
l 300MbpsSupport intelligent channel analysis, automatic optimal channel selection, the maximum rate of 300Mbps
l 14 dBi directional antenna, can achieve point-to-point, point-to-point outdoor coverage and application
l 3 km long-distance HD stable transmission
l Digital display, fast set the IP address and channel
l Support 24 V PoE and DC 12V power supply modes
l 6KV lightning protection
l IP65 protection grade, sunscreen, waterproof and antifreeze
l Comply with IEEE802.11a/n standard
l Outdoor installation is convenient, easy to dismantle and easy to use
Product superiority:
3 km for long-distance transmission
WQ300M5803 adopts Qualcomm chip scheme with stable and reliable performance. At the same time, it is equipped with PA power amplifier and LNA low-noise amplifier, and the test transmission distance can reach about 3 kilometers in an open environment, which is suitable for the application of long-distance monitoring and transmission.
5.8GHz anti-interference
The 2.4GHz frequency band has more interference, which is prone to the problem of signal congestion. WQ300M5803 works in the 5.8GHz frequency band, with the characteristics of stable operation, high transmission rate, high reception sensitivity, long coverage distance, and adaptation to various environments.
Built-in large-area gain antenna
WQ300M5803 has a built-in large area directional antenna, the maximum gain of 14 dBi, to ensure the bridge transmission picture quality high definition, no delay, no lag, users easily do the project.
6KV lightning protection
Built-in 6KV lightning protection circuit, with a stronger lightning protection and surge protection.
High-performance, large memory, and large throughput
|
Specification Parameters |
|
|
Model |
WQ300M5803 |
|
CPU |
AR9342 |
|
Flash |
8MB |
|
DDR |
64MB |
|
5G Working frequency band |
5.150GHz～5.850GHz |
|
5G WIFI transmission protocol |
802.11 a / n |
|
Top Speed |
300Mbps |
|
Antenna |
Plate directional antenna gain: 14 dBi |
|
Maximum wireless access support |
50+ |
|
Transmitting power |
< 21dBm |
|
Interface (WAN) |
1×10 / 100M adaptive WAN / LAN port with 24 V PoE power supply |
|
DC |
12V |
|
PoE |
24V |
|
Nixie light |
1, can show 0-9 A-F total 16 species |
|
Digital buttons |
1, short press, can change the digital tube display, quickly set the IP address and channel (Note: press 5 seconds to restore factory default) |
|
Dial switch |
1×2-bit dial switch, can be fast and convenient configuration bridge mode |
|

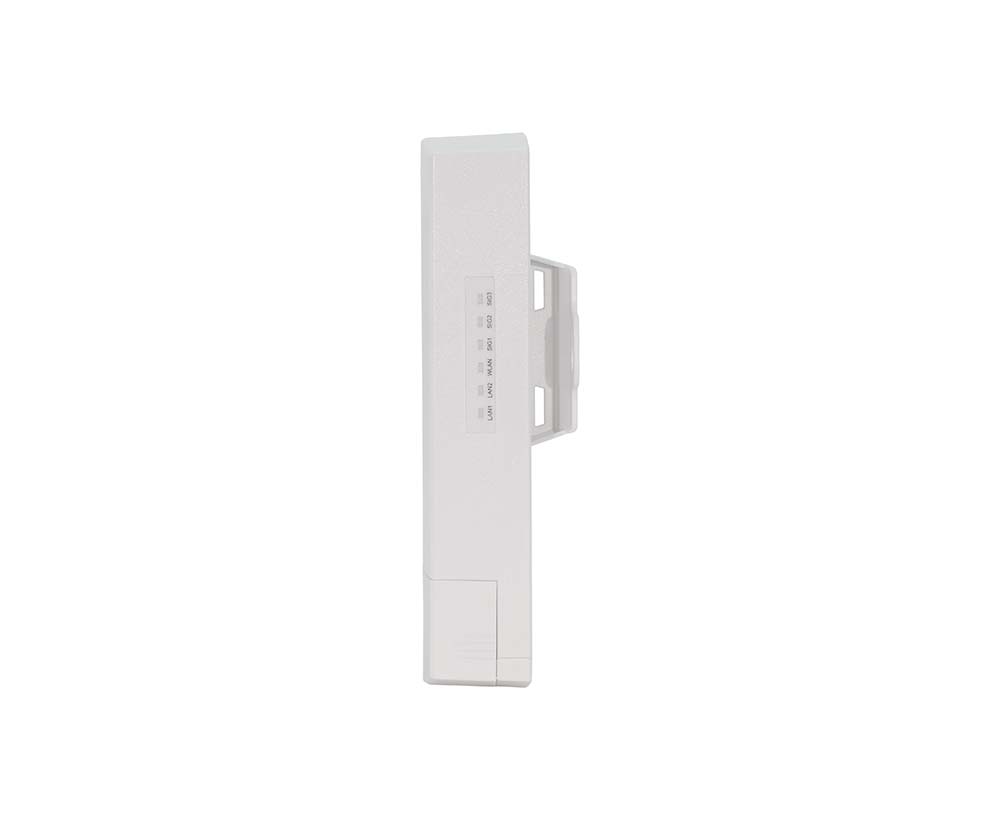

Status indicator light |
Power power indicator, LAN port indicator, two RSSI0 RSSI1 signal lights |
|
ESD test-I |
Contact discharge ± 6KV and air discharge ± 15KV |
|
The Surge Test-I |
Poor touch: ± 2KV |
|
maximum power dissipation |
< 8W |
|
levels of protection |
IP65 |
|
Dimension (L*W*H) |
202mm*78mm*56mm |
|
Net /Gross Weight |
<0.23kg*2 / <0.62kg |
|
Work environment |
Normal operating temperature: -30 C to 55 C; Extreme operating temperature: -40 C to 70 C; Storage temperature: -40 C to 70 C; Humidity: 5%~95% (no condensation) |
|
Basic Settings |
Wireless working mode: AP Client Bridge AP Router |
|
WDS pattern |
|
|
Search SSID |
|
|
Lock the AP terminal MAC |
|
|
Country code |
|
|
802.11a/n pattern |
|
|
Channel bandwidth ：5/8/10/20/25/30MHZ,Auto 20/40MHZ |
|
|
Output power control |
|
|
Wireless security: WPA-AES, WPA 2-AES encryption |
|
|
|
RTS threshold |
|
Automatically adjust the transmission distance |
|
|
polymerization |
|
|
Multibroadcast data |
|
|
Install the EIRP control |
|
|
Accept the door limit |
|
|
TDMA set up |
|
|
Select Chains |
|
|
Network mode |
Bridge router SOHO Router |
|
Configuration mode |
Simple advanced |
|
Management Settings |
Management interface: BRIDGE0 |
|
Management IP address: DHCP static |
|
|
IP address, subnet mask gateway IP master DNS IP alternate DNS IP automatic IP alias |
|
|
Interface |
Bridge 0 MTU set up |
|
LAN0 MTU set up |
|
|
WLAN0 MTU set up |
|
|
IP alias |
The IP address of the Bbridg0, add and comment of the subnet masks |
|
VLAN Set up |
Adding and commenting VLAN IDs of LAN0 and WLAN0 |
|
QOS |
Bandwidth start |
|
Service |
Ping watchdog |
|
SNMP agent |
|
|
NTP client |
|
|
System log |
|
|
Change password |
Modify the device login password |
|
Firmware upgrade |
Software updates are available on the WEB page |
|
Equipment restart |
Device restart can be performed on the WEB page |
|
Configuration management |
Backup the configuration, and upload the configuration to restore the factory settings |
|
Close: The Ethernet port connection is disconnected |
|
|
Light on: Ethernet connection is normal, two RSSI0 RSSI1 signal intensity indicators (client mode) |
|
|
Client: the two signal lights are always on, the pair is successfully connected, the two lights are shining, the AP terminal is scanning, the state is not connected, the AP terminal will always be on. |

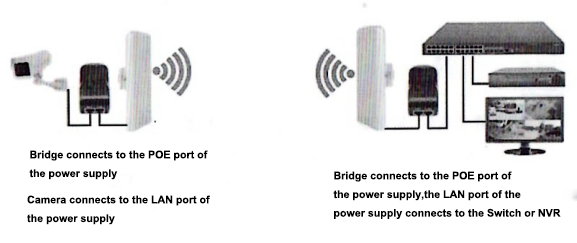

1、A Schematic diagram of the point-to-point connection：

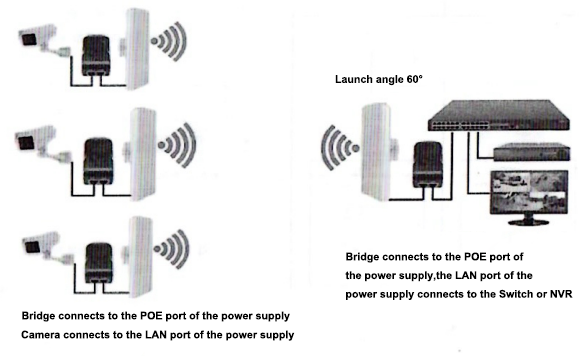

2、Schematic of point-to-multiple connections：
