Product overview：
MAP3000GE is a dual-frequency gigabit 3000M panel AP, providing 2.4&5.8GHz wireless signal transmission in two different frequency bands, dual-band intelligent switching, easy and seamless roaming, can cope with the high quality network requirements of various complex scenes, is very suitable for star hotels, hotels, enterprises, enterprises, schools, dormitories, businesses and other room intensive places.
Product features：
The new generation of Wi-Fi 6 wireless technology, stronger performance, better experience
New OFDMA, MU-MIMO and other wireless technologies, product performance is stronger, better user experience.

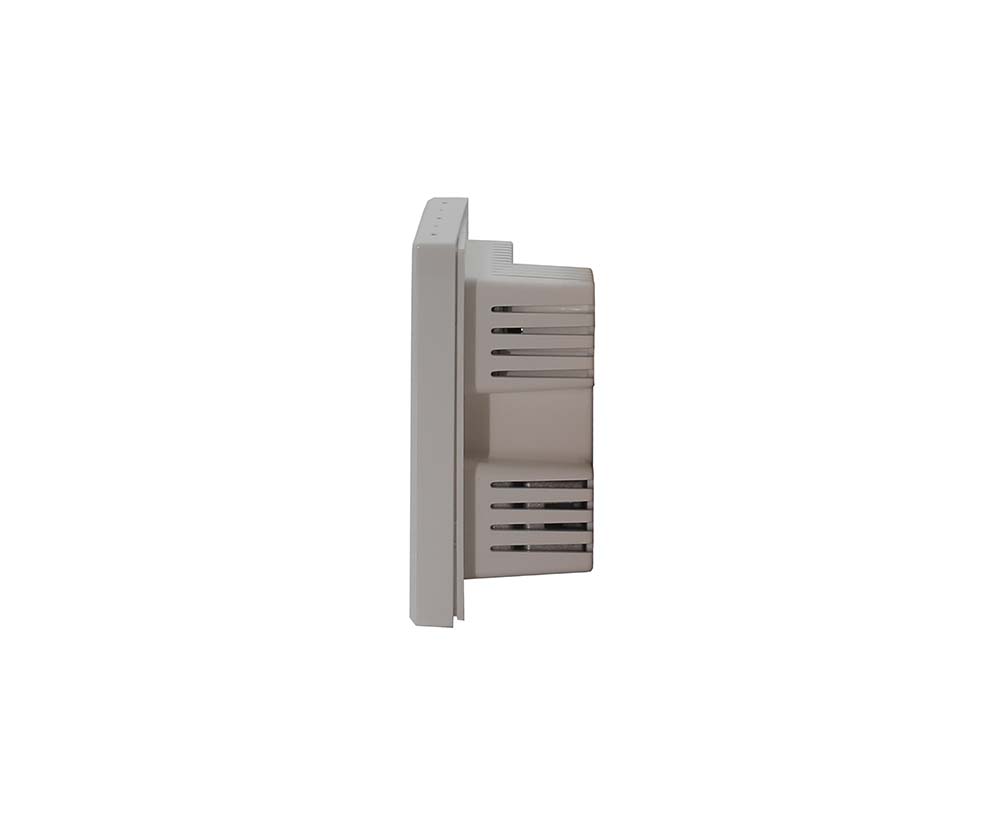

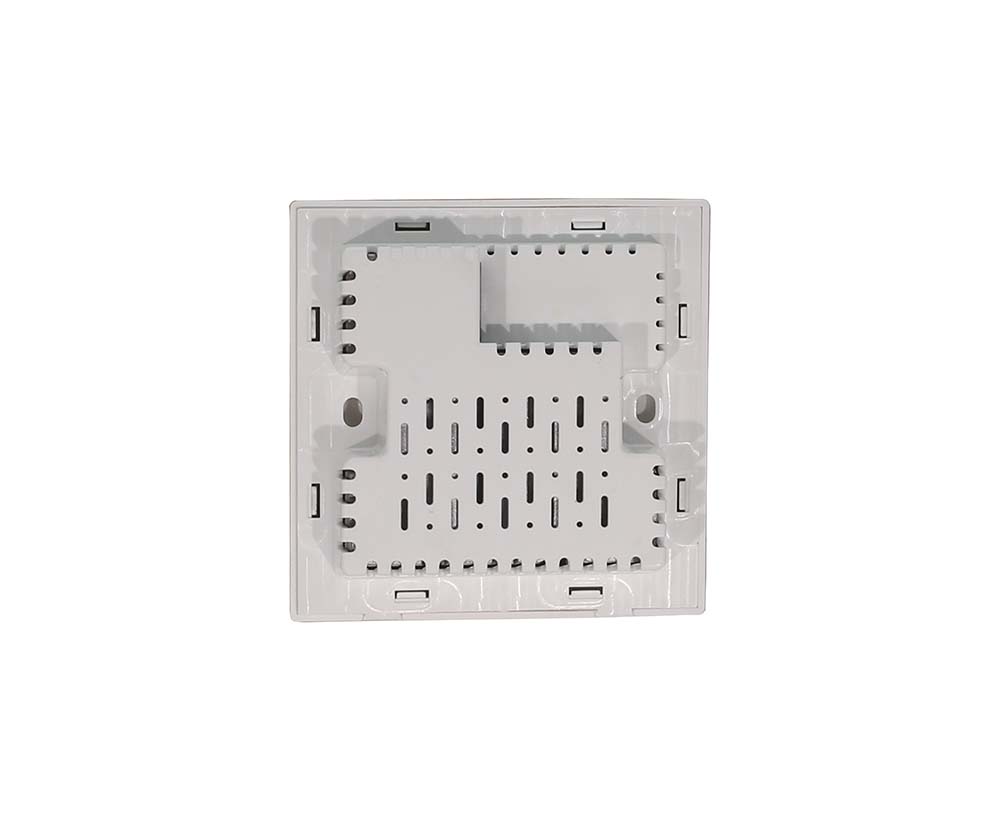

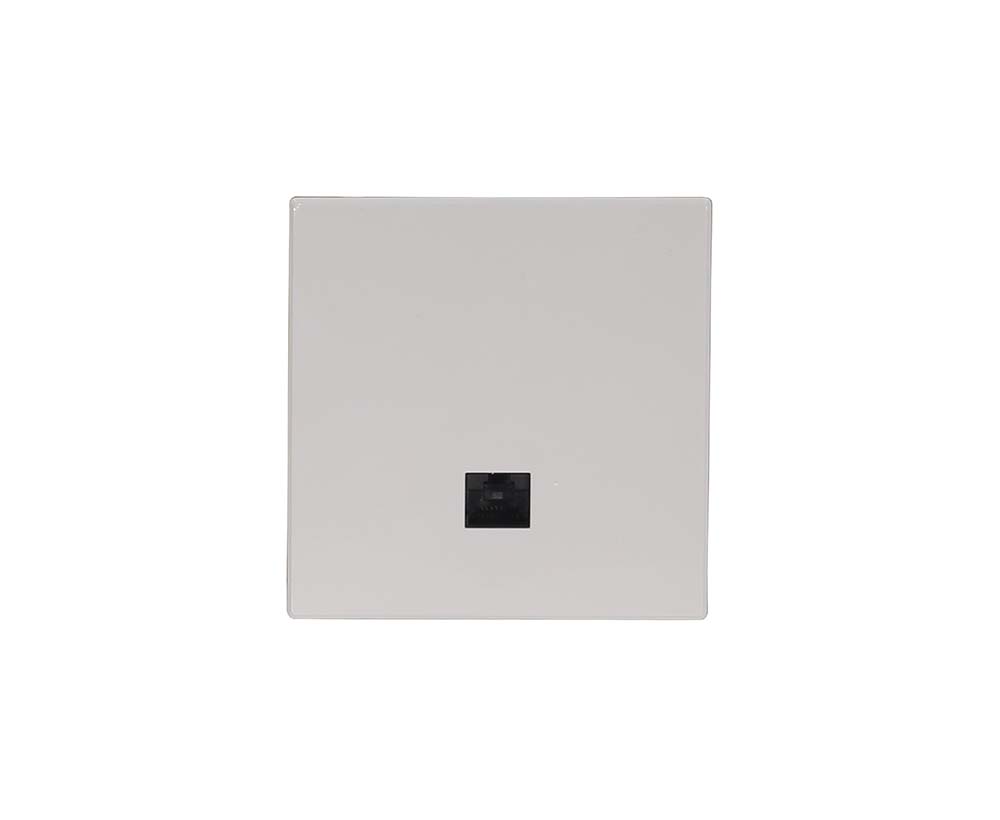

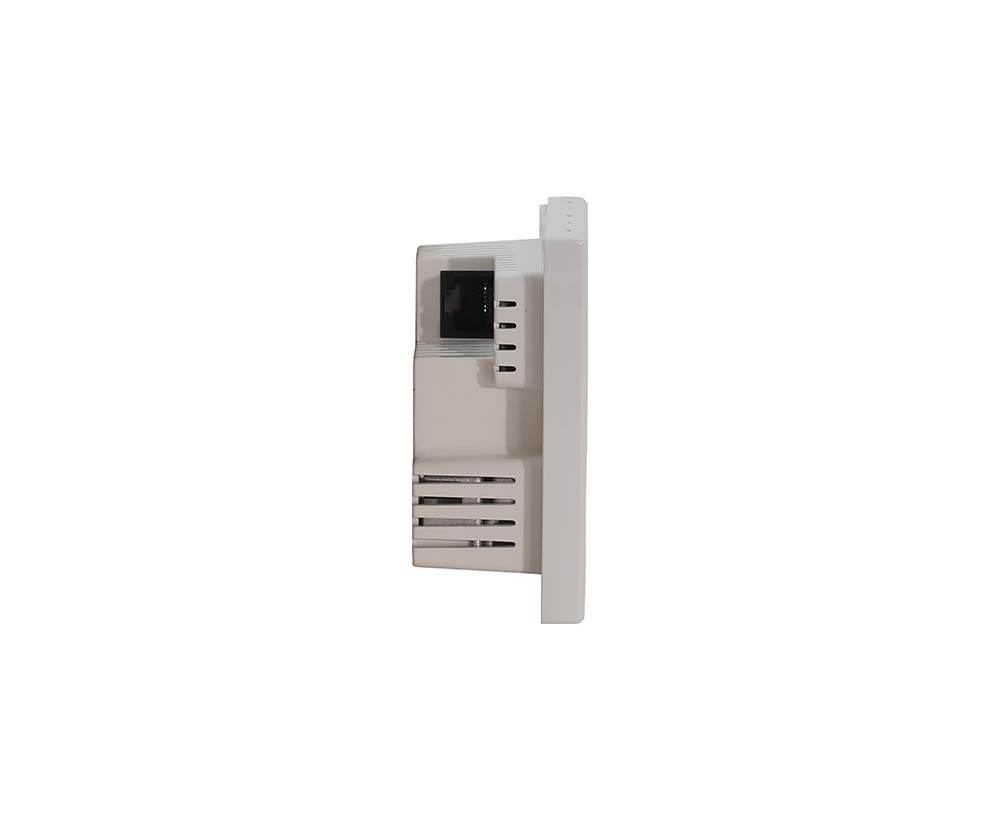

Type 86 panel design, PoE power supply, convenient construction, simple management, maintenance worry
National standard type 86 panel design, can directly replace the original network panel, without rewiring, do not destroy the original wiring. Support the standard PoE network cable power supply, each AP only needs one network cable, is not constrained by the power access conditions, the construction is convenient.
Automatic selection of the appropriate channel, with a smooth and stable network
According to the wireless channel usage in the AP environment, the appropriate channel is automatically selected to avoid interference at the same frequency, and ensure wireless stability.
Different sizes of wireless networks can be efficiently managed
Fat AP mode (suitable for small-area wireless coverage): No need to use a wireless controller, the AP can work independently, and the cost is low;
Fit AP mode (suitable for large-area wireless coverage): It needs to be used with a wireless controller. The AP in the network can be managed uniformly through the AC, reducing the difficulty of wireless management.
Support intelligent roaming to improve the terminal experience
Using intelligent roaming technology based on the 802.11kvr protocol, in multi-AP scenarios such as hotels, apartments, dormitories, villas, etc., it helps mobile phones, Pads, computers and other terminal devices automatically access the AP with the best signal quality, effectively improving each user's Usage experience and overall performance of the wireless network.
|
Hardware Specifications |
|
|
|
CPU |
|
MT7981BA+7976CN+EN8801 CPU Dual-core 1.3GHz |
|
Memory |
|
Flash：16MB |
|
|
|
DDR：256MB |
|
Cable standard |
|
IEEE802.3,IEEE802.3u,IEEE802.3ab |
|
Ethernet interface |
|
2×10/100/1000Mbps rate-adaptive WAN / LAN adaptive ports |
|
Antenna |
|
built-in 2.4G*2;5.8G*3 |
|
Button |
|
1×Reset Button |
|
Power supply method |
|
POE 48V |
|
Panel indicator light |
|
2×Network port indicator light |
|
Dimension (L*W*H) |
|
86*86*40mm |
|
Net /Gross Weight |
|
<0.2kg / <0.25kg |
|
Software Specifications |
|
|
|
MESH networking |
|
Support |
|
Micro AC function |
|
Support (when there is no AC in the network, AP can be set to micro AC, and you can view and manage all AP in the network) |
|
SSID number |
|
4（2.4GHz）+4（5GHz） |
|
Wireless encryption |
|
Support for encryption / no encryption / hiding |
|
User isolation |
|
Terminal isolation |
|
Wireless MAC address filtering |
|
Support for black and white lists |
|
VLAN setting |
|
Support |
|
Emission power setting |
|
Support |
|
Frequency width setting |
|
Support |
|
Channel setting |
|
Support (support for automatic optimization of the best channel) |
|
Limited number of wireless clients |
|
Support |
|
Device management |
|
WEB management in Chinese and English |
|
System log |
|
Support |
|
Factory reset |
|
Support |
|
Backup configuration |
|
Support |
|
Import configuration |
|
Support |
|
Software upgrading |
|
Support |
|
Network Tomography |
|
Support |
|
Wireless Specifications |
|
|
|
Wireless standards |
|
IEEE 802.11b/g/n/a/ac/ax |
|
Wireless rate |
|
2.4G ：574Mbps、5G ： 2402Mbps |
|
Wireless band |
|
2.4GHz & 5.8GHz |
|
Wireless encryption |
|
WPA-PSK,WPA2-PSK,WPA-PSK/WPA2-PSK |
|
Other Specifications |
|
|
|
application environment |
|
Operating temperature: -10℃ ~55℃ |
|
|
|
Working humidity: 10% ~ 90% RH has no condensation |
|
|
|
Storage temperature: -40℃ ~80℃ |
|
|
|
Storage humidity: 5% ~ 90% RH without condensation |
