Product overview：
WQ300M2401 is an outdoor wireless network bridge designed for video surveillance in elevators, hanging towers, communities, learning, factories, orchards, breeding plants, planting greenhouses, scenic spots and other scenes; the equipment works in the 2.4GHz frequency band and can provide up to 300Mbps wireless data According to the transmission rate; Built-in 8dBi high-gain directional antenna, stronger signal penetration, outdoor point-to-point bridging distance up to 1000 meters; Pole wall-mounted compatible design, can be directly installed on walls or poles, beautiful and elegant; It can work in various outdoor environments such as wind, rain, snow and so on.
Product features：
★ 2.4GHz: Wireless rate of 300Mbps
★ The 8 dBi high-gain directional antenna is used
★ Protection grade IP65 is waterproof and dustproof
★ Two optional power supply modes: network port supports POE input 24V, and DC interface supports input 12V
|
Hardware specifications |
|
|
|
|
CPU |
|
MT7628 |
|
|
Memory |
|
Flash：2MB ；DDR：8MB |
|
|
Cable standard |
|
IEEE802.3,IEEE802.3u |
|
|
Ethernet interface |
|
10/100Mbps LAN port*2 |
|
|
Antenna |
|
Built-in 8 dBi directional antenna |
|
|
Button |
|
Reset Button *1 |
|
|
Power supply mode |
|
POE 24V or DC 12V |
|
|

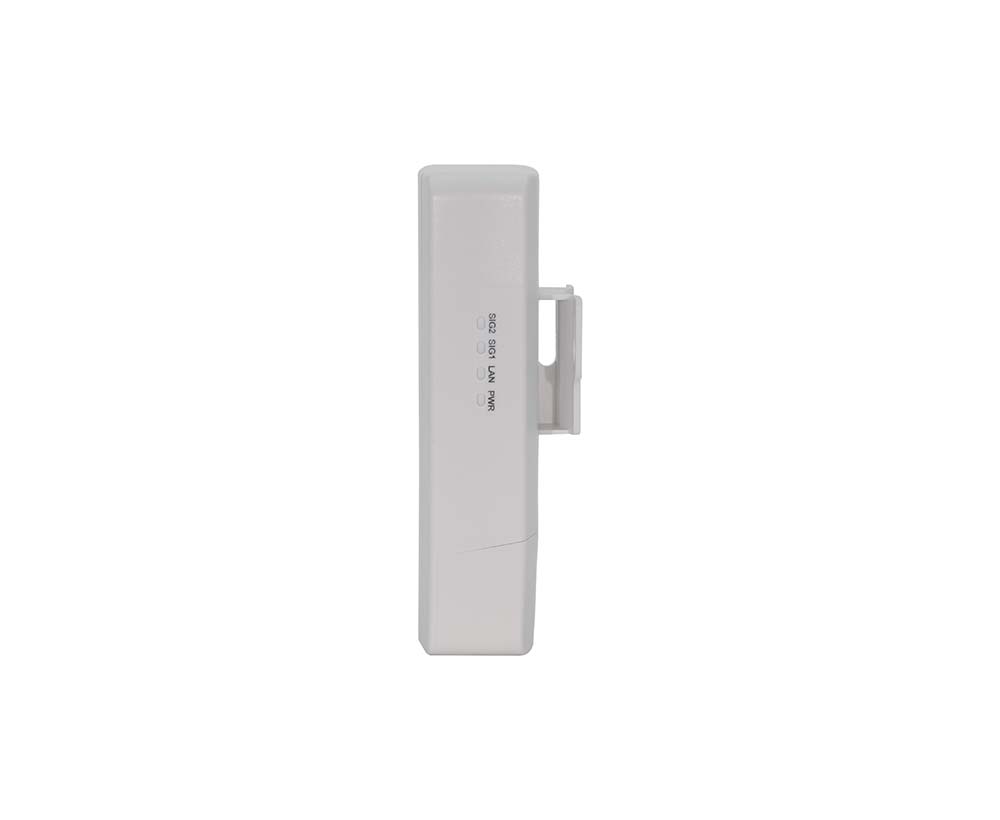

Panel indicator light |
|
LED*4( POWER、LAN、SIG1、SIG2(signal intensity) ) |
|
|
Software specifications |
|
|
|
|
Work pattern |
|
Main network bridge end (AP mode) |
|
|
|
|
Subnet bridge end (Client mode) |
|
|
|
|
Subnet bridge end (AP + Client mode) |
|
|
Wireless settings |
|
Basic Settings: wireless name, encryption mode, wireless password, wireless mode |
|
|
|
|
Advanced Settings: BG protection mode, and Wi-Fi Multimedia (WMM) is disabled |
|
|
Network settings |
|
LAN set up |
|
|
|
|
DHCP server settings |
|
|
system management |
|
Administrator Settings |
|
|
|
|
Firmware upgrade |
|
|
|
|
System configuration |
|
|
|
|
Language setting |
|
|
|
|
Automatic system cleaning |
|
|
Wireless specifications |
|
|
|
|
Wireless standards |
|
IEEE 802.11b/g/n |
|
|
Wireless rate |
|
300Mbps |
|
|
Wireless power |
|
20dBm |
|
|
Wireless reception sensitivity |
|
-89dBm |
|
|
Wireless band |
|
2.4GHz |
|
|
Other specifications |
|
|
|
|
application environment |
|
Operating temperature: -10℃ ~55℃ |
|
|
|
|
Working humidity: 10% ~ 90% RH has no condensation |
|
|
|
|
Storage temperature: -40℃ ~80℃ |
|
|
|
|
Storage humidity: 5% ~ 90% RH without condensation |
|
|
Dimension |
|
153*78*50mm |
|
|
Net /Gross Weight |
|
<0.16kg*2 / <0.42kg |
|
|
Install |
|
Hold the pole, wall hanging |
|

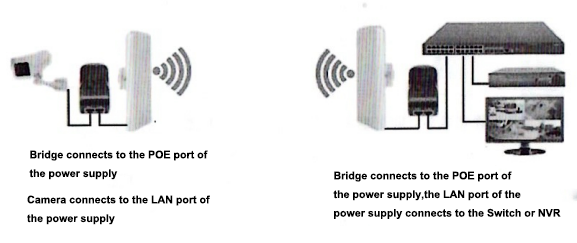

1、A Schematic diagram of the point-to-point connection：

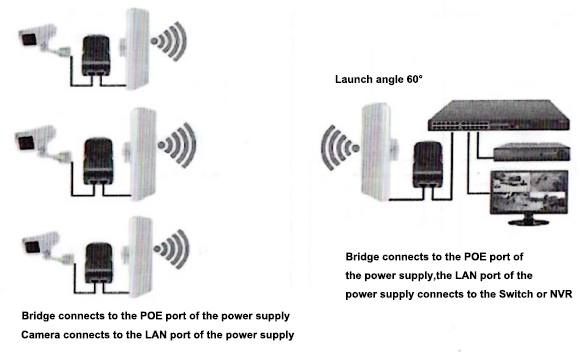

2、Schematic of point-to-multiple connections：
