Product overview：

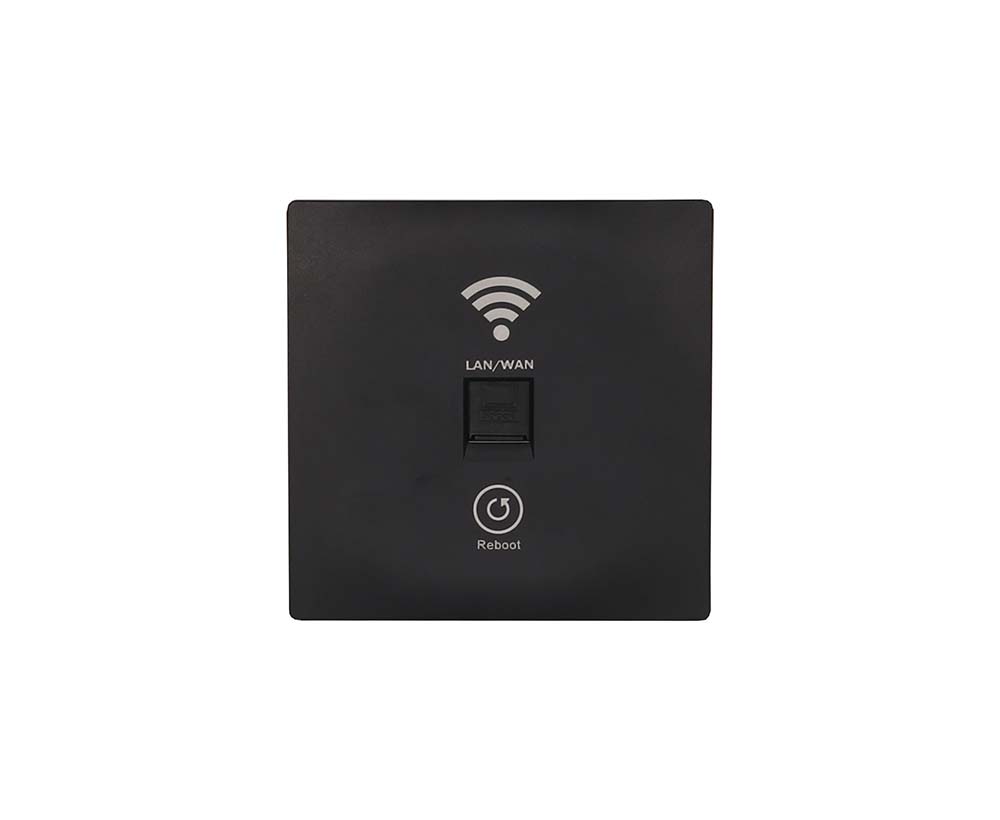

MAP300E is a single-frequency 2.4G 300M panel AP with strong 2.4GHz frequency band compatibility and long transmission distance, which can meet the wireless Internet needs of hotels, apartments, and dormitories.
Product features：
l Equipped with mature and stable MT7628D chips
l The 3W low power is suitable for intensive deployment
l 300Mbps transmission rate 580MHz main frequency
l Support for AC centralized management
l External network cable interface / power switch
l 18dBM 100mW signal power covers 100 square meters of 2 guest rooms
l Support seamless roaming,support automatic cleaning of cache garbage
l Support the access of up to 32 terminal devices
AP management router login address and password:
l Default IP address : 6.6.6.6, password : admin
Product Specifications: Hardware
l MT7628 300Mbps Wireless AP professional chip
l Wireless technology 802.11N, 2T2R 300M MIMO

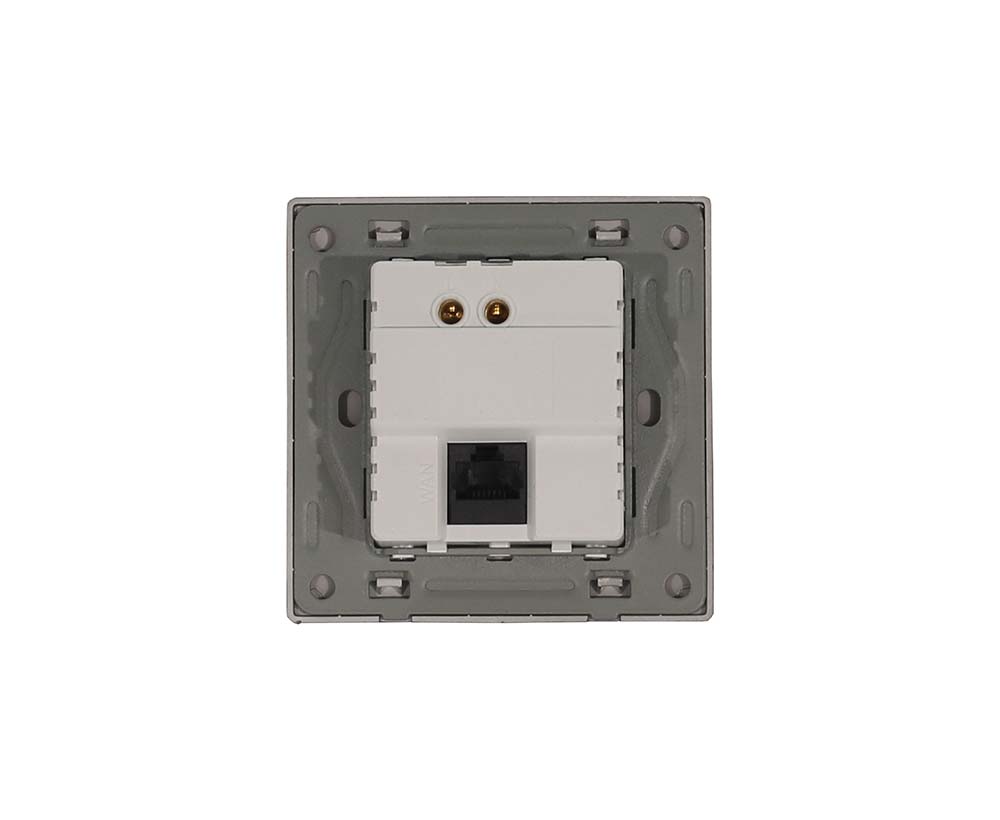

l Device interface: 2×100M adaptive wired network ports, 1 reset button, 1 power restart switch
l Antenna 2.4G MIMO omnidirectional high-gain 3DBI smart antenna

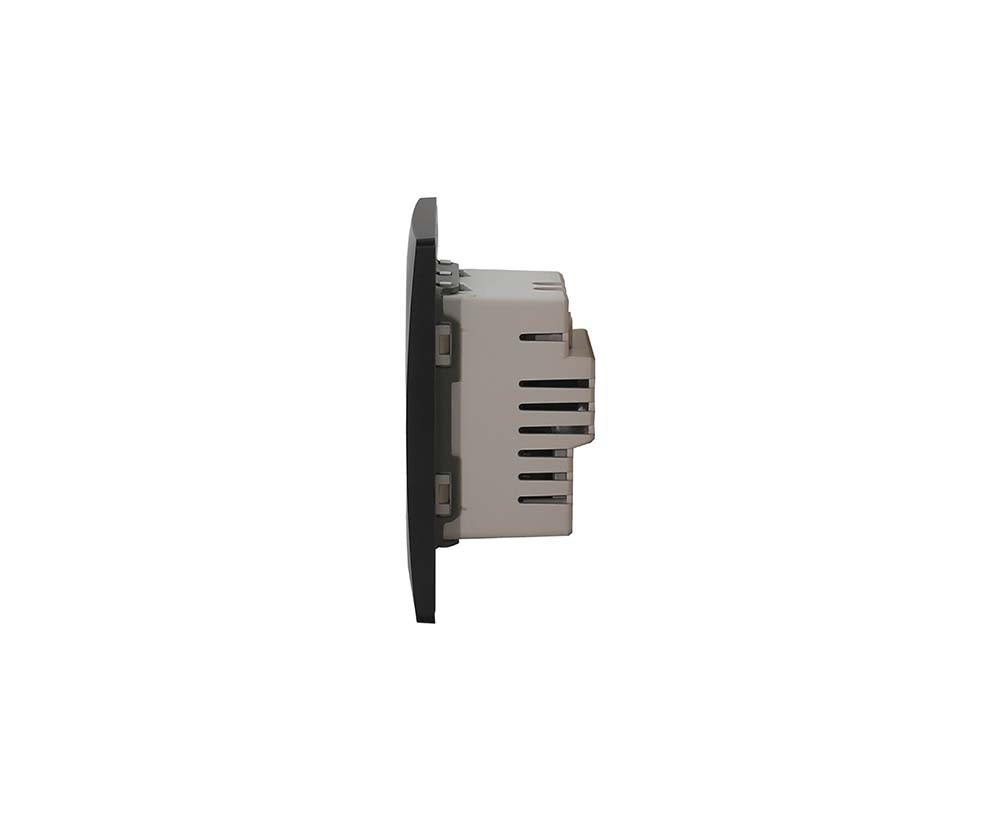

l Product Dimension 86mm×86mm×42.5mm
l Packing Dimension 100mm×100mm×50mm
l Weight Gross weight: 0.18kg Net weight: 0.12kg
RF parameters：
l RF characteristics: 802.11b/g/n 2.4~2.4835GHz Korea, ETSI, FCC communication channels are optional
l Modulation mode OFDM = BPSK,QPSK, 16-QAM, 64-QAM DSSS = DBPSK, DQPSK, CCK
l Transmission speed 300 Mbps
l Receiving sensitivity 11n：-70dBm@10%PER 11b：-70dBm@10%PER 11b：-85dBm@8%PER
l Transmitting power 802.11n：15dBm for OFDM 802.11g：17dBm for OFDM mode 802.11b：20dBm for CCK mode
Software features：
l Working mode: AP mode
l Communication standards IEEE 802.3(Ethernet) IEEE 802.3u(Fast Ethernet) IEEE 802.11b/g/n(2.4G WLAN)
l Wireless settings, automatic channel selection, distance control, 802.1x ACK time output, multiple SSIDs, up to 4 configurable (supports Chinese SSID) BSSID wireless security, WEP security mechanism, supports 64/128/152-bit WEP security password, WPA/WPA2 security mechanism (WPA-PSK) Using TKIP or AES) WPA/WPA2 security (WPA-EAP using TKIP) Hide SSID security mechanism
l System settings WEB configuration (HTTP/remote login) Software upgrade WEB web page or TFTP to upgrade software
l User Management configures users and passwords
l The system monitoring equipment and network status statistics logs provide local logs, host logs, and file transfer logs
l Restore Settings the production default settings can be restored
l The backup function can backup the system configuration and restore various user configurations when needed
Physical characteristics ：
Working temperature : 0°C~55°C
Storage temperature: -20°C to 75°C 5%~95% (typical)
Storage humidity：5%~95% (typical)
product list
1. One set of MAP300E; 2. Manual + 1 certificate; 3. 2 screws
