Product overview：

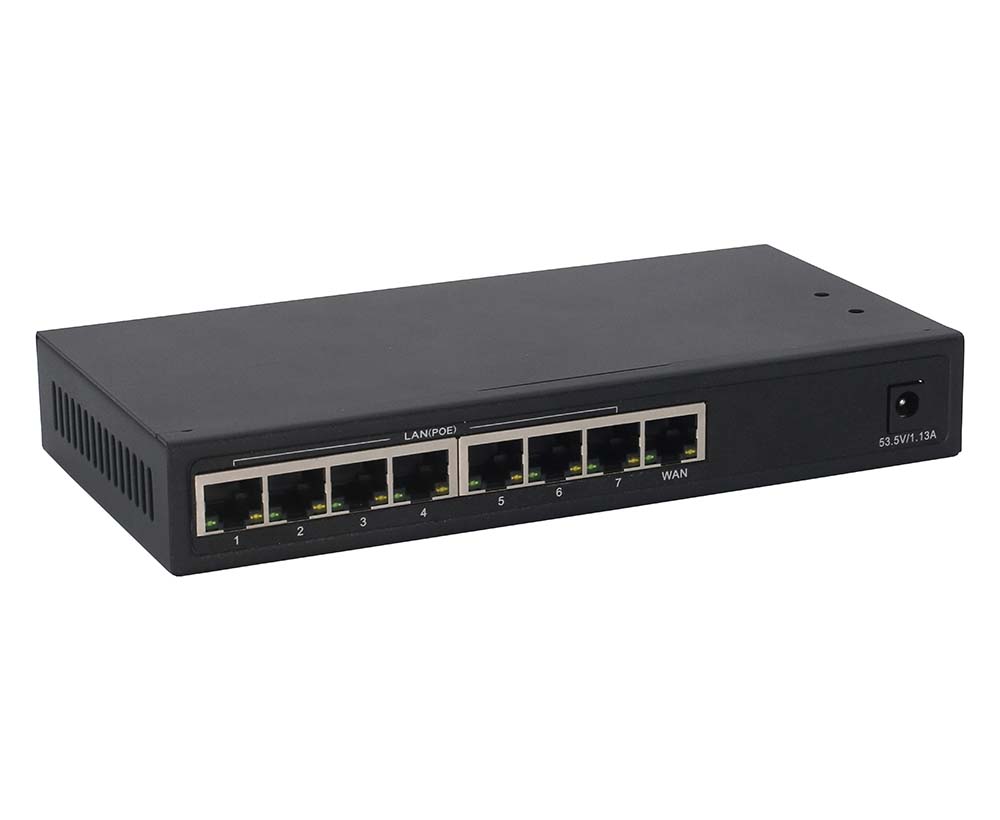

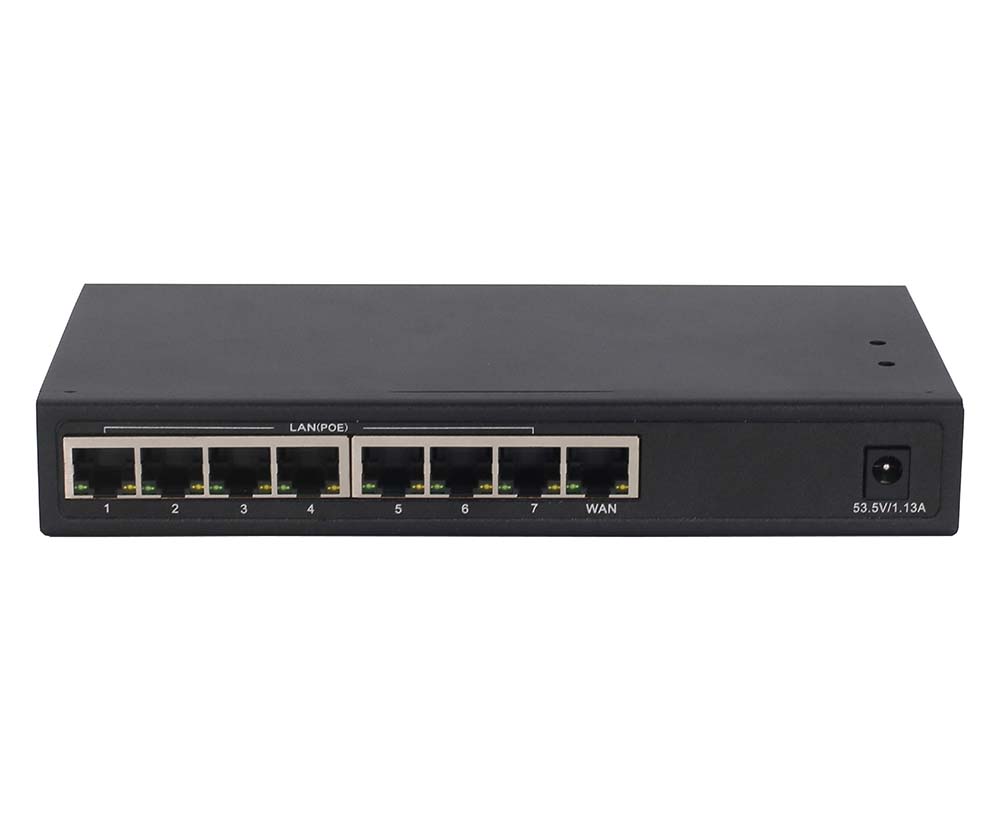

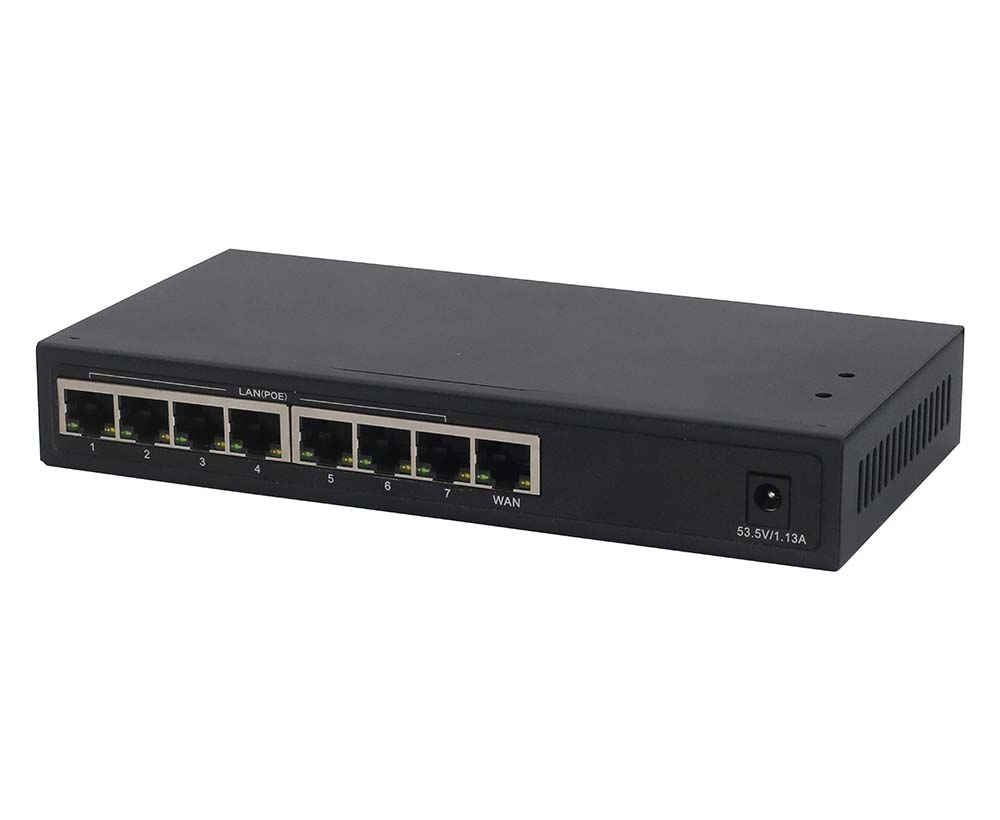

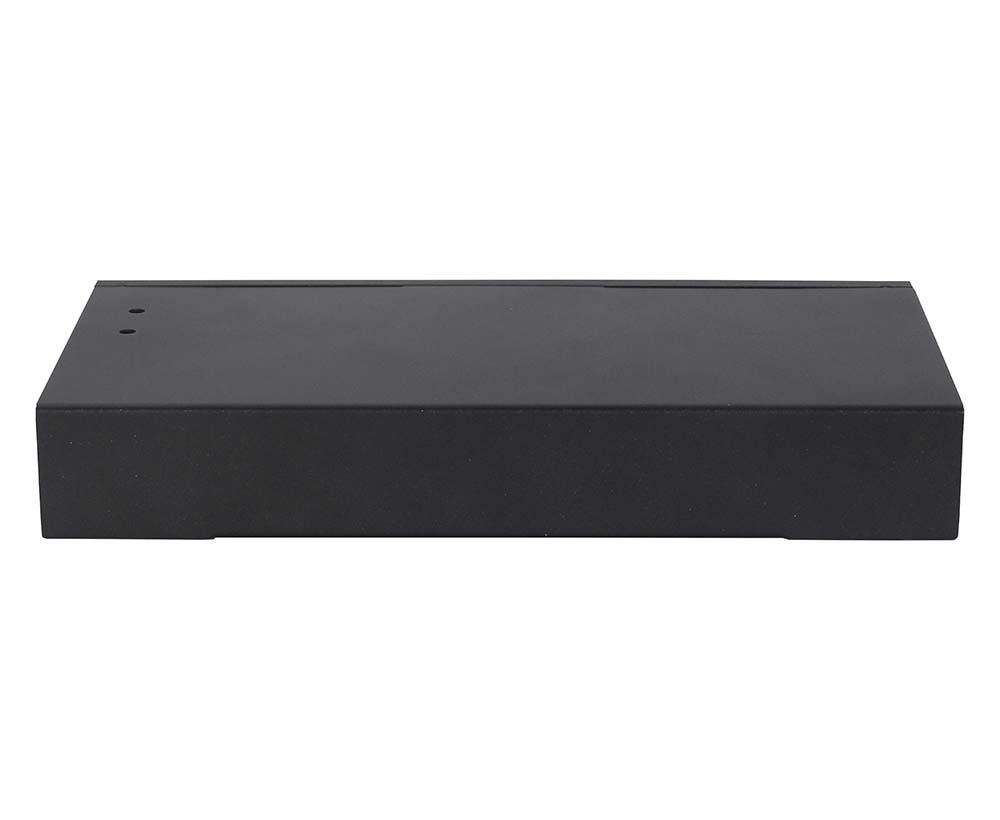

AC807GE is a full Gigabit high-performance smart wifi certified gateway. It has three-in-one functions of AC management, gateway, and POE power supply. It can realize unified configuration and management of wireless APs and meet the export gateway needs of small and medium-sized enterprises. It is an ideal choice for hotel chains. , enterprises, schools, shopping malls, restaurants, etc. wireless The network solution achieves optimal layout and simple configuration. The product also supports intelligent flow control function. It intelligently selects priorities according to application types and easily solves the problem of network bandwidth occupied by various P2P programs. It has high performance, high reliability, easy installation, The easy maintenance feature greatly saves manpower and material costs in network layout.
Product features：
|
Hardware specifications |
|
|
Model |
AC807GE |
|
CPU |
MTK MT7621 |
|
Flash |
16MB |
|
Memory |
256MB |
|
Maximum number of managed AP's supported |
80 |
|
Recommended maximum number of users |
120 |
|
Interface |
1×10 / 100 / 1000M Adaptive Ethernet WAN port 7×10 / 100 / 1000M Adaptive Ethernet LAN ports 1 reset bond 1 DC 52V 1.5A Support POE power supply: maximum 30W Support a variety of authentication methods Support PPPoE |
|
Reset |
reset（Press and hold for 10 seconds to restore factory default configuration ） |
|
Status light |
WAN port lamp, LAN port lamp, |
|
Operating power |
﹤80W |
|
Dimension (L*W*H) |
190*95*30mm |
|
Net/Gross Weight |
<0.45kg / <0.76kg |
|
Work environment |
Working temperature: -40°C～65°C Storage temperature: -40°C～70°C Humidity: 5% ~ 95% (no condensation) |
