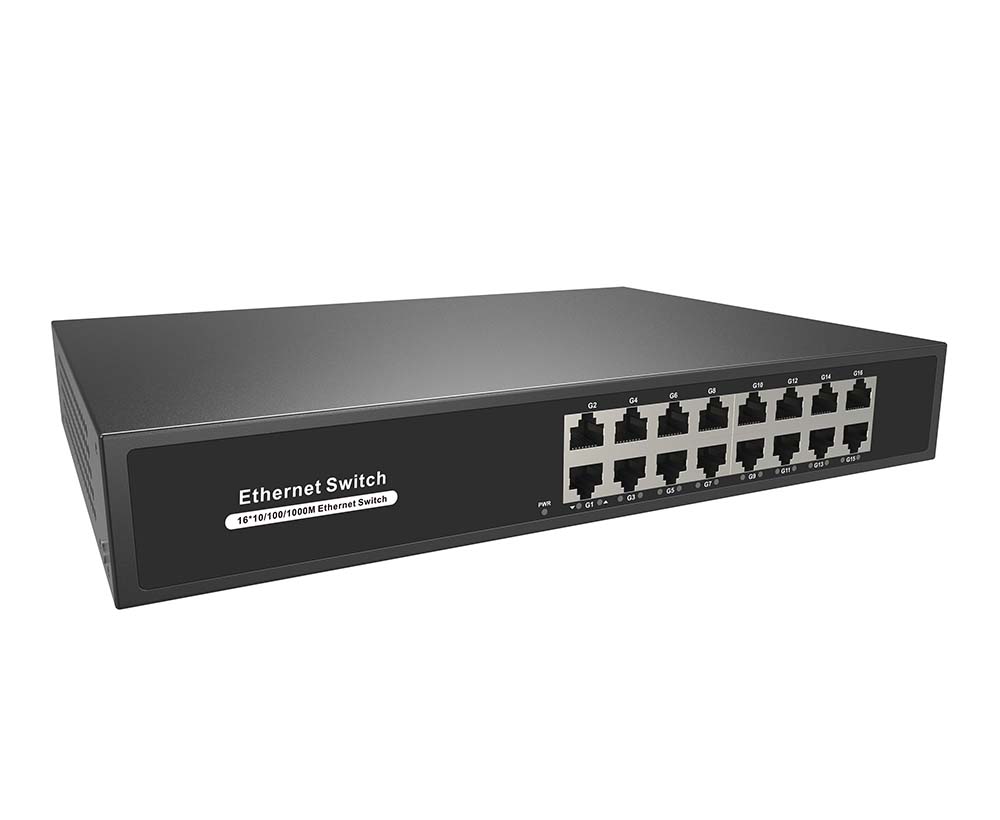

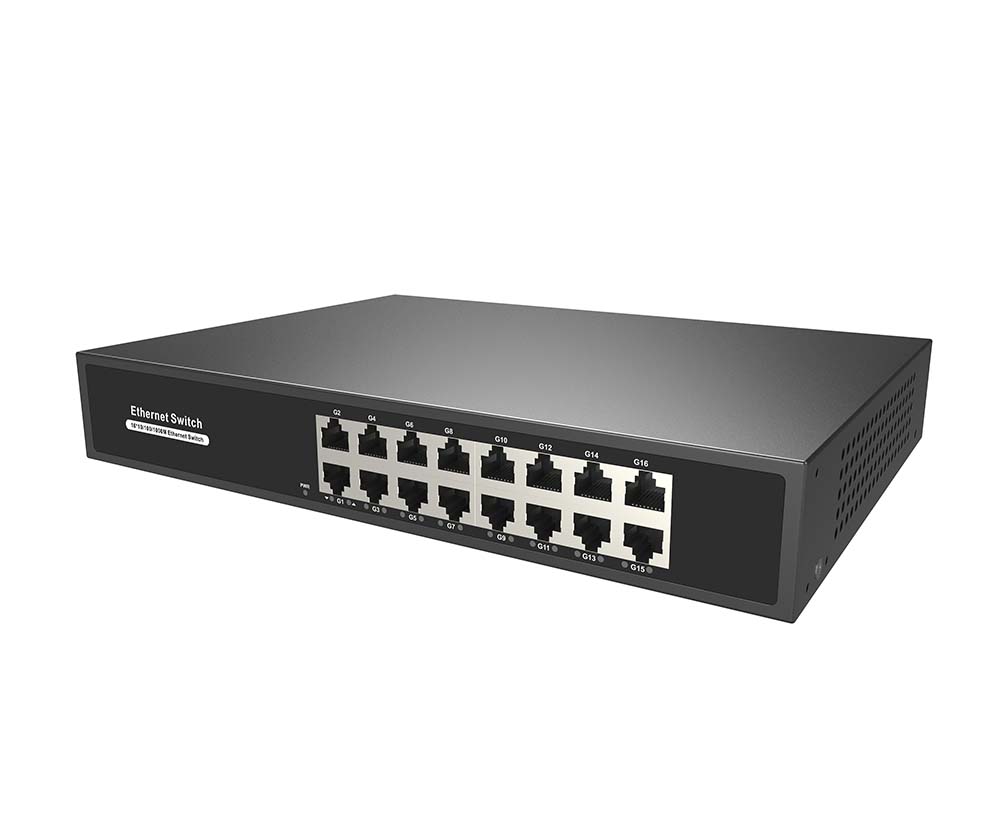

OVERVIEW
The GWS-H3016 is a high-performance and easy-to-maintain high-speed forwarding unmanaged Ethernet switch. It is suitable for hotels, banks, campuses, factory dormitories, and small and medium-sized enterprises.
The GWS-H3016 has 16*10/100/1000M adaptive RJ45 ports. The bidirectional transmission rate is up to 2000Mbps, which realizes the convenient connection and expansion of the network. Each port support full line-speed forwarding. 4M large-capacity cache to ensure timely transmission of large files and stable video streaming. 7*24 hours of stability, and no disconnection effectively solving problems such as video freezes and picture loss in high-definition surveillance environments. The switch adopts an all-steel shell. Simple, stylish, and durable. Support desktop, wall-mounted, and 1U rack-mounted. Plug and play, no configuration, simple and convenient to use.
FEATURE
n Full gigabit rate, high-speed transmission
◇ Support non-blocking wire-speed forwarding.
◇ Support full-duplex based on IEEE802.3x and half-duplex based on Backpressure.
◇ Support 10/100/1000M adaptive RJ45 port, plug and play, to meet the networking needs of various scenarios.
n Stable and reliable
◇ CE, FCC, RoHS.
◇ Low power consumption, metal casing.
◇ Self-developed power supply, high redundancy design, providing a long term and stable power output.
n Easy to operate
◇ Plug and play, no configuration, simple and convenient.

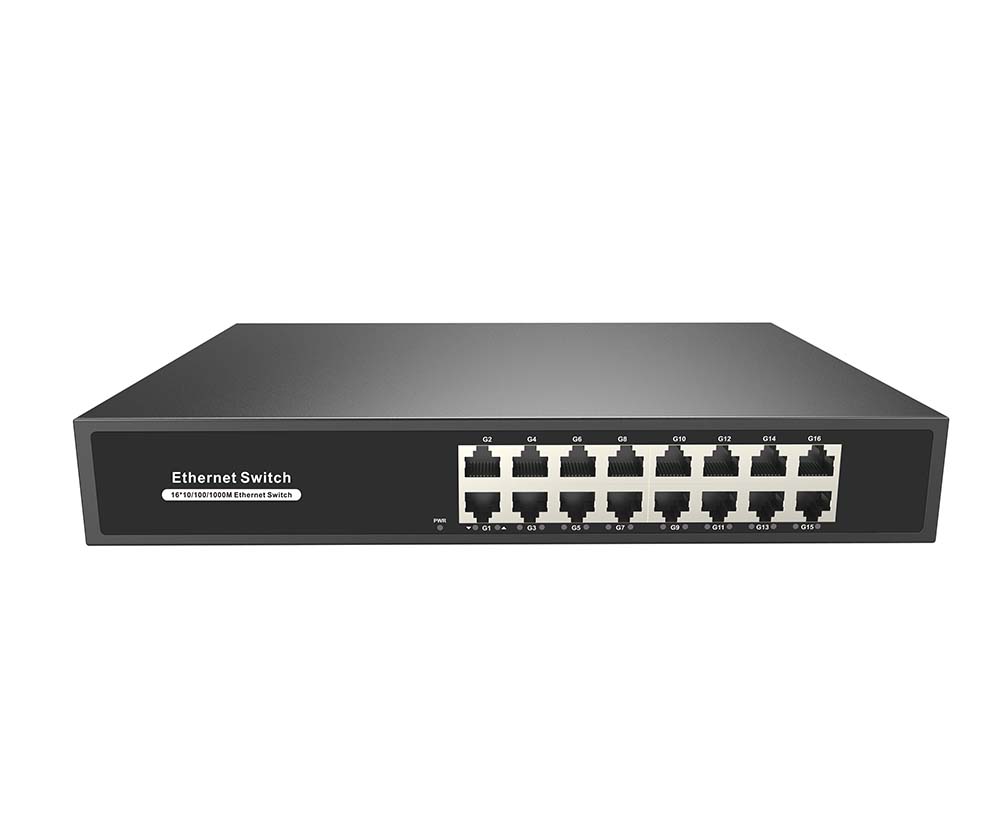

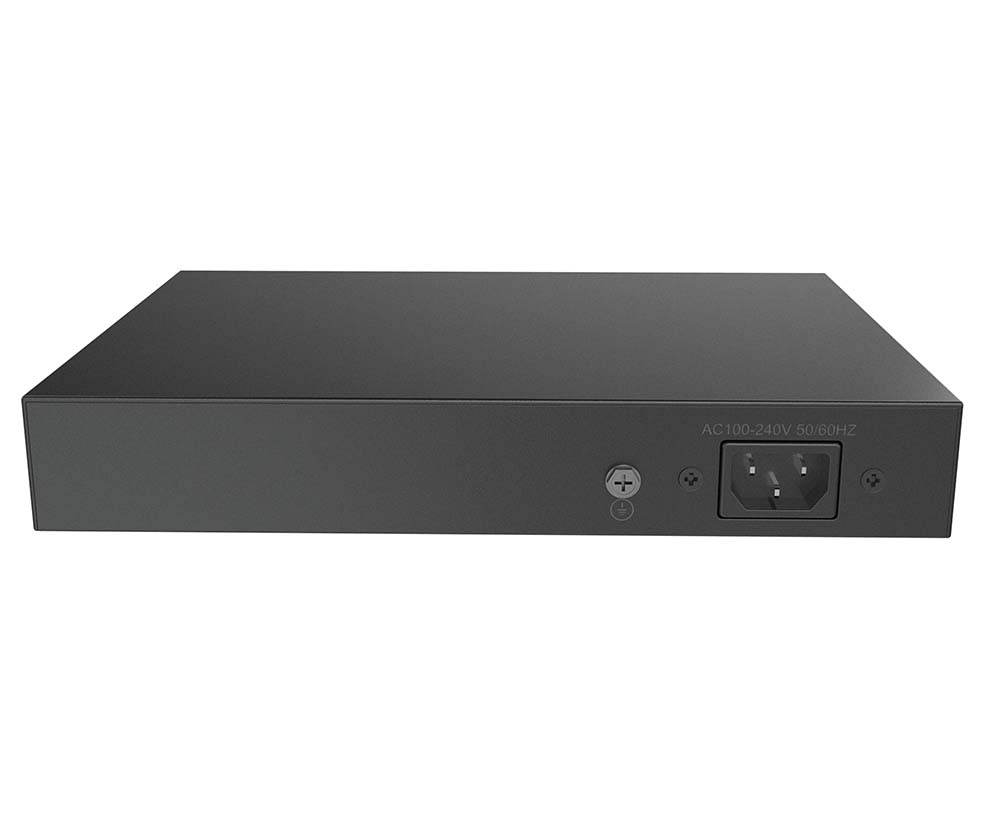

◇ The user-friendly panel, it can show the device status through the LED indicator of PWR, Link.

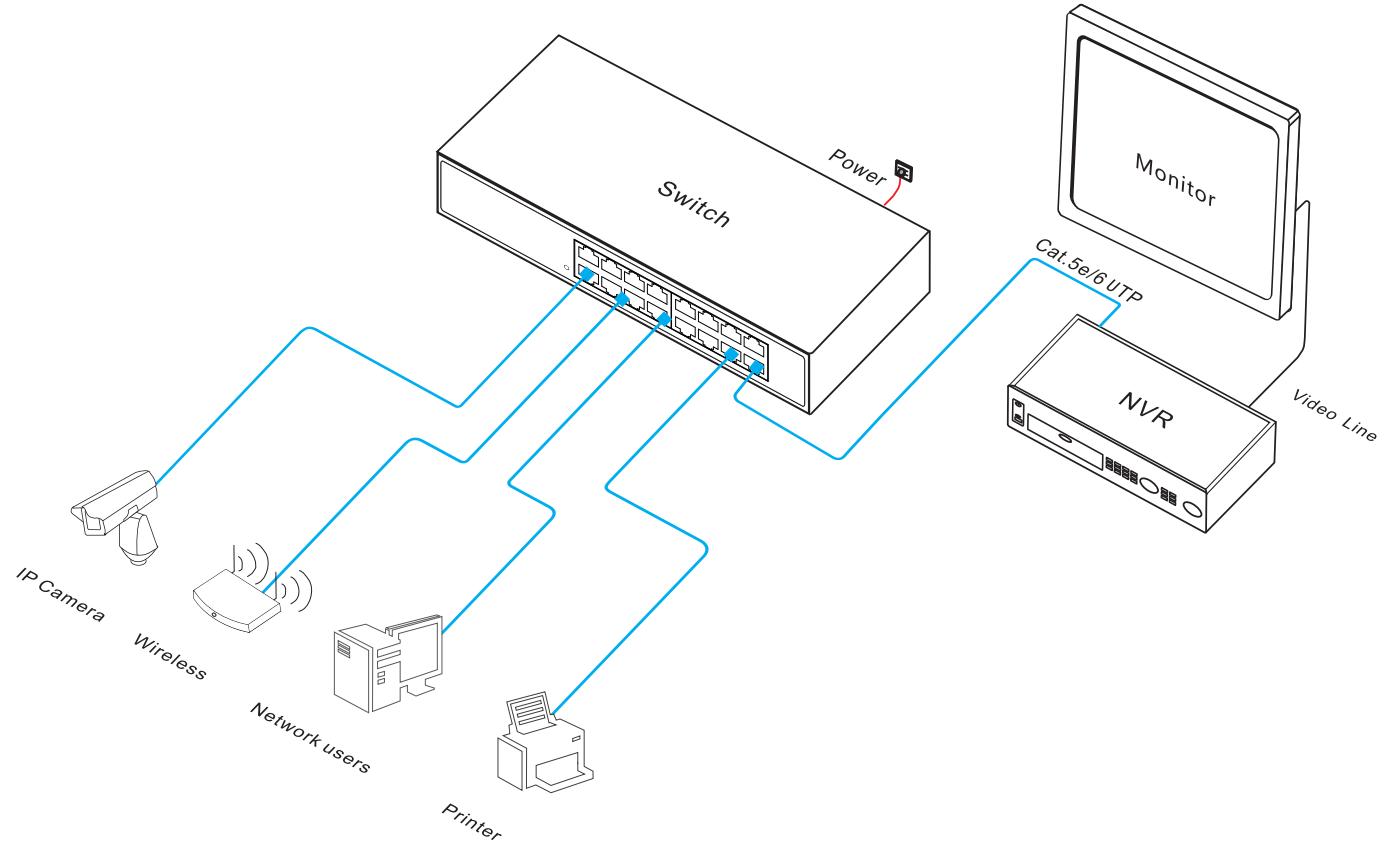

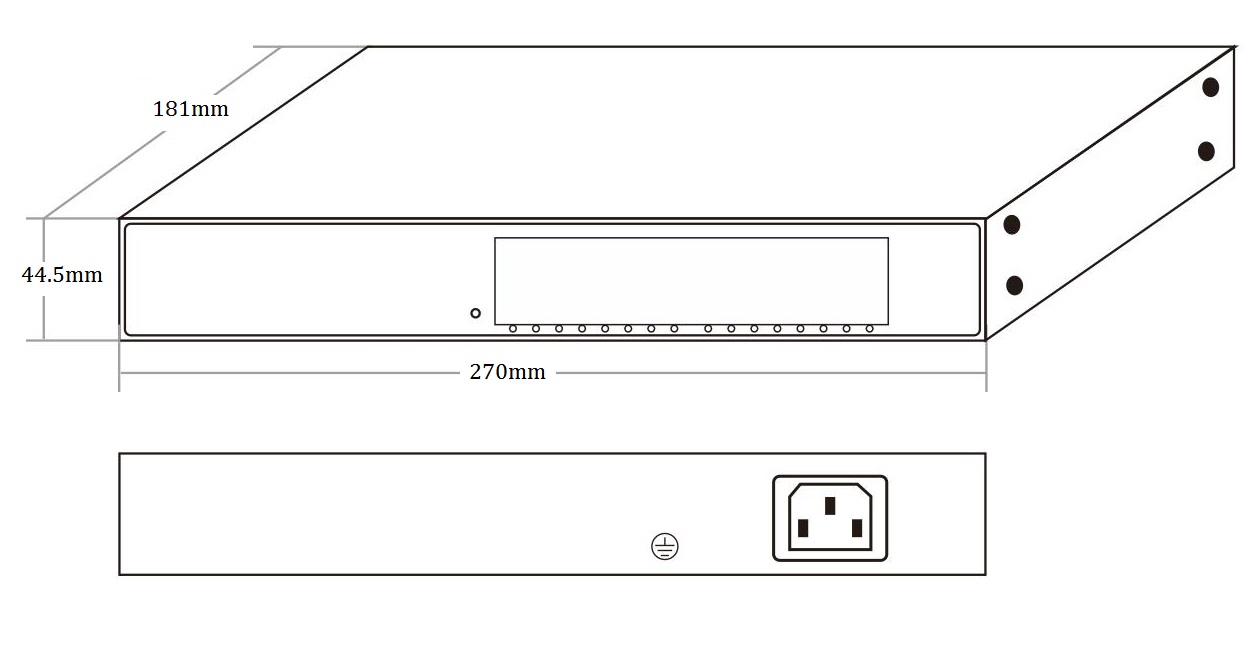

DIMENSION
ORDERING INFORMATION
|
Model |
Description |
Configure Power Supply |
|
GWS-H3016 |
Unmanaged Ethernet switch with 16*10/100/1000M RJ45 ports. Built-in power supply. Support 1U/19 inch rack installation. |
20W |
|
GWS-H3024 |
Unmanaged Ethernet switch with 24*10/100/1000M RJ45 ports. Built-in power supply. Support 1U/19 inch rack installation. |
PACKING LIST
|
PACKING LIST |
CONTENT |
QTY |
UNIT |
|
16-port gigabit Ethernet switch |
1 |
SET |
|
|
AC Power Cable |
1 |
PC |
|
|
Mounting Kits |
1 |
SET |
|
|
User Guide |
1 |
PC |
|
|
Warranty Card |
1 |
PC |
RELATED PRODUCT
|
Model |
Description |
|
GWS-H1005S |
Mini unmanaged Ethernet switch with 5*10/100M RJ45 ports. External power supply. Plastic shell. |
|
GWS-H1008S |
Mini unmanaged Ethernet switch with 8*10/100M RJ45 ports. External power supply.Plastic shell. |
|
GWS-H3005S |
Mini unmanaged Ethernet switch with 5*10/100/1000M RJ45 ports. External power supply. Plastic shell. |
|
GWS-H3008S |
Mini unmanaged Ethernet switch with 8*10/100/1000M RJ45 ports. External power supply. Plastic shell. |
|
GWS-H1016 |
Unmanaged Ethernet switch with 16*10/100M RJ45 ports. Built-in power supply. Support 1U/19 inch rack installation. Metal shell. |
|
GWS-H1024 |
Unmanaged Ethernet switch with 24*10/100M RJ45 ports. Built-in power supply. Support 1U/19 inch rack installation. Metal shell. |
|
Model |
GWS-H3016 |
GWS-H3024 |
|
Interface Characteristics |
||
|
Fixed Port |
16*10/100/1000Base-T RJ45 ports (Data) |
24*10/100/1000Base-T RJ45 ports (Data) |
|
Ethernet Port |
10/100/1000Base-T auto-sensing, full/half duplex MDI/MDI-X self-adaption. |
|
|
Twisted Pair Transmission |
10BASE-T: Cat3,4,5 UTP(≤100 meter) 100BASE-TX: Cat5 or later UTP(≤100 meter) 1000BASE-T: Cat5e or later UTP(≤100 meter) |
|
|
Chip Parameter |
||
|
Network Protocol |
IEEE802.3 10BASE-T, IEEE802.3i 10Base-T, IEEE802.3u 100Base-TX IEEE802.3ab 1000Base-TX, IEEE802.3x |
|
|
Forwarding Mode |
Store and Forward(Full Wire Speed) |
|
|
Switching Capacity |
32Gbps (Non-blocking) |
48Gbps (Non-blocking) |
|
Forwarding Rate@64byte |
23.81Mpps
|
35.71Mpps |
|
MAC |
8K |
|
|
Buffer Memory |
4.1M |
|
|
LED Indicator |
Power: PWR (Green), Network: Link(Green) |
|
|
Power Supply |
||
|
Total PWR / Input Voltage |
<13W (AC100-240V) |
<16W (AC100-240V) |
|
Power Consumption |
Standby<9W, Full Load<13W |
Standby<10W, Full Load<16W |
|
Power Supply |
Built-in power supply, AC100~240V 50-60Hz 0.56A |
|
|
Physical Parameter |
||
|
Operation TEMP / Humidity |
-20~+55°C, 5%~90% RH Non condensing |
|
|
Storage TEMP / Humidity |
-40~+75°C, 5%~95% RH Non condensing |
|
|
Dimension (L*W*H) |
270*181*44.5mm |
330*204*44mm |
|
Net /Gross Weight |
<1.25kg /<1.6kg |
<2.0kg /<2.4kg |
|
Installation |
Desktop, Wall-mounted, 1U/19 inch |
|
|
Certification & Warranty |
||
|
Lightning Protection |
Lightning protection: 4KV 8/20us; Protection level: IP30 |
|
|
Certification |
CCC, CE mark, commercial, CE/LVD EN62368-1, FCC Part 15 Class B, RoHS |
|
|
Warranty |
1 year, lifelong maintenance. |
|
