OVERVIEW

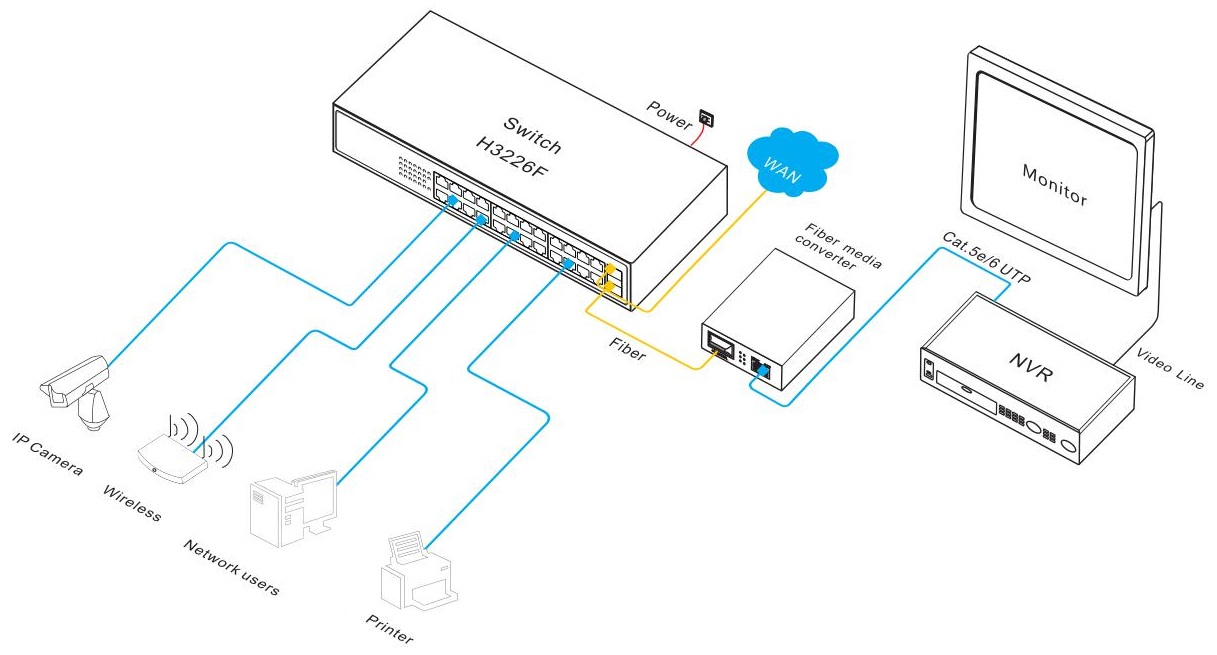

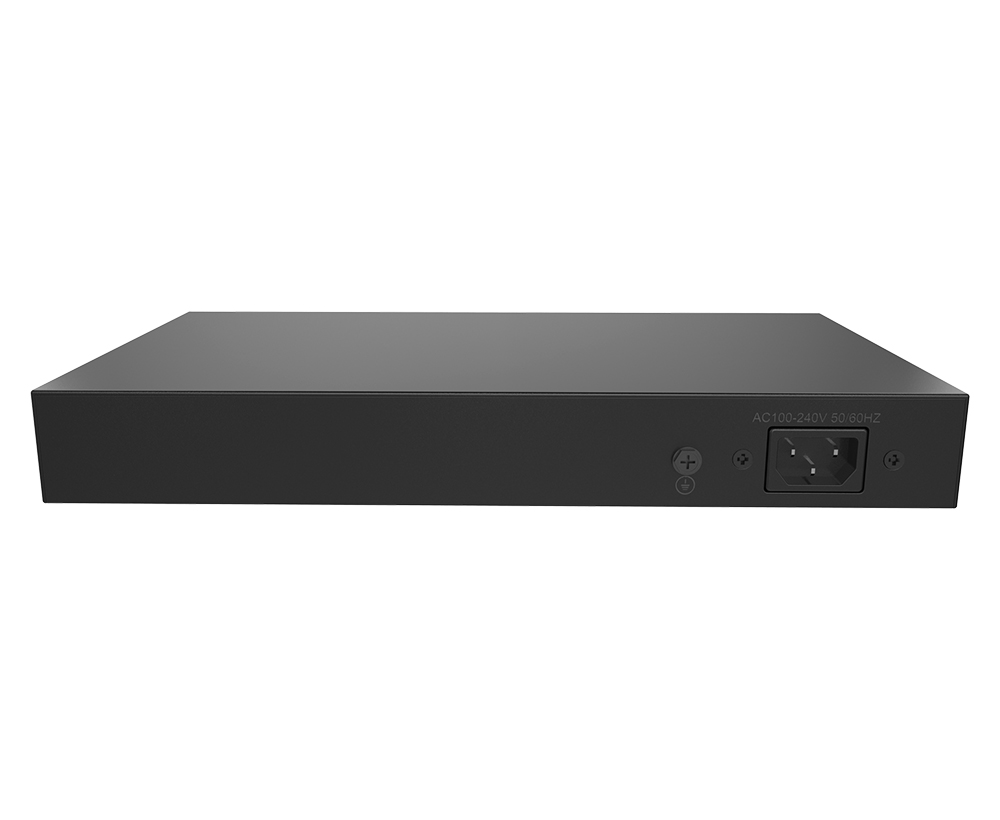

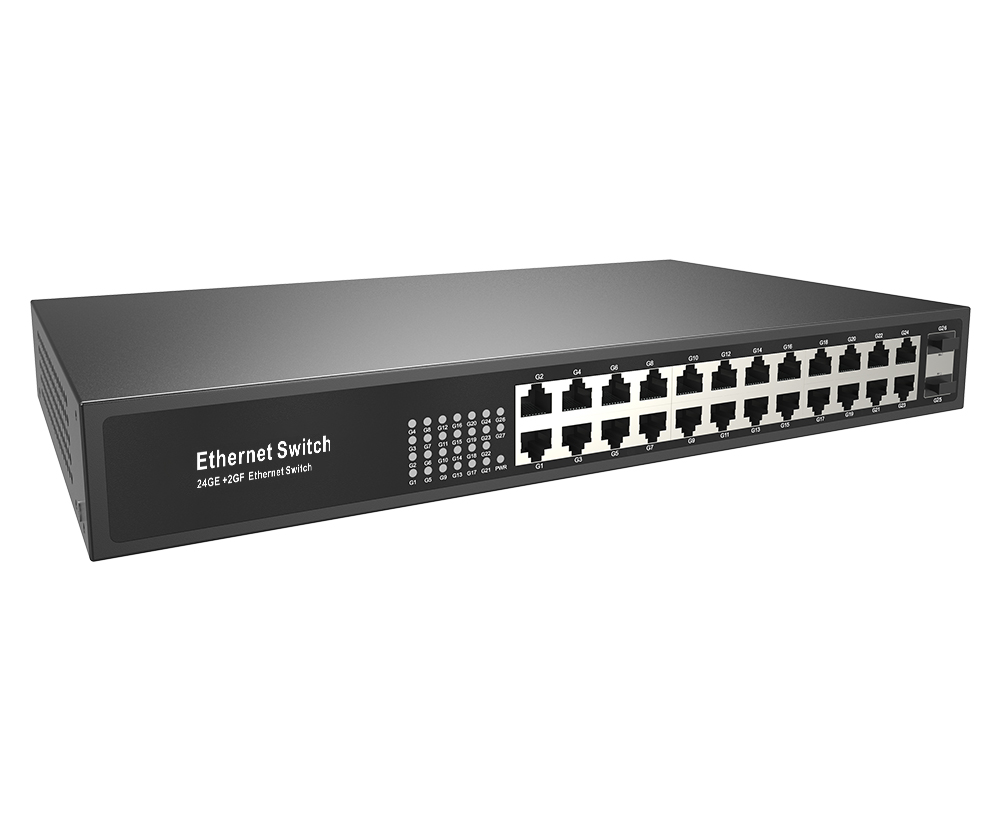

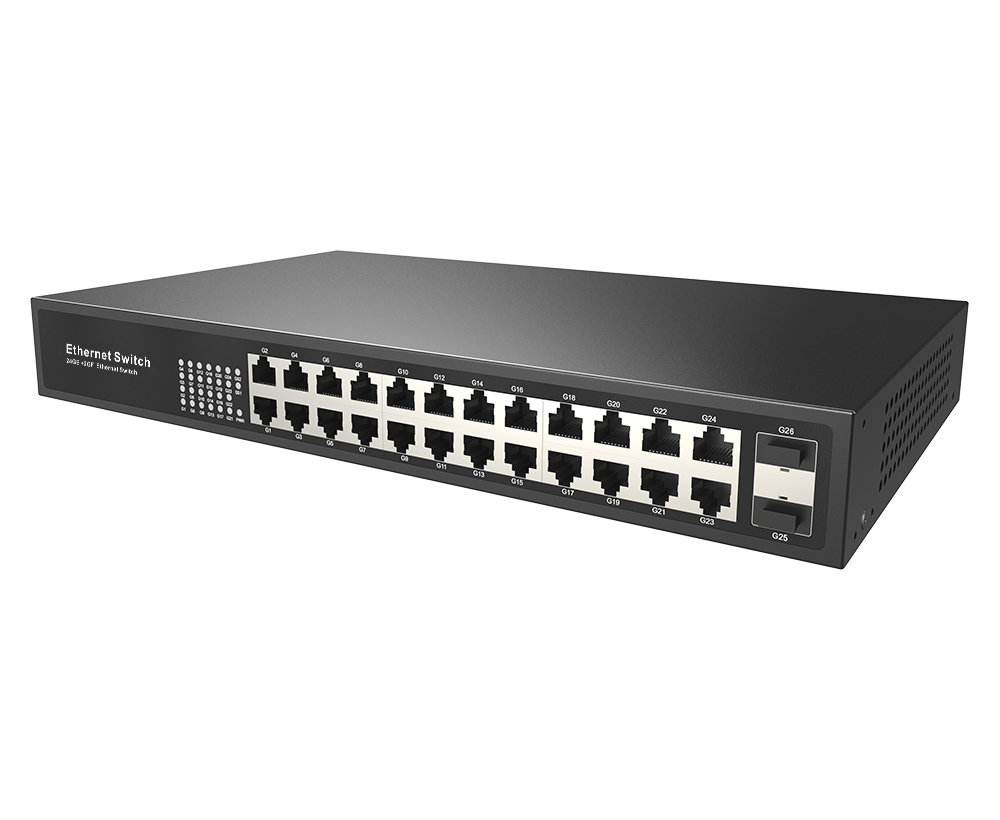

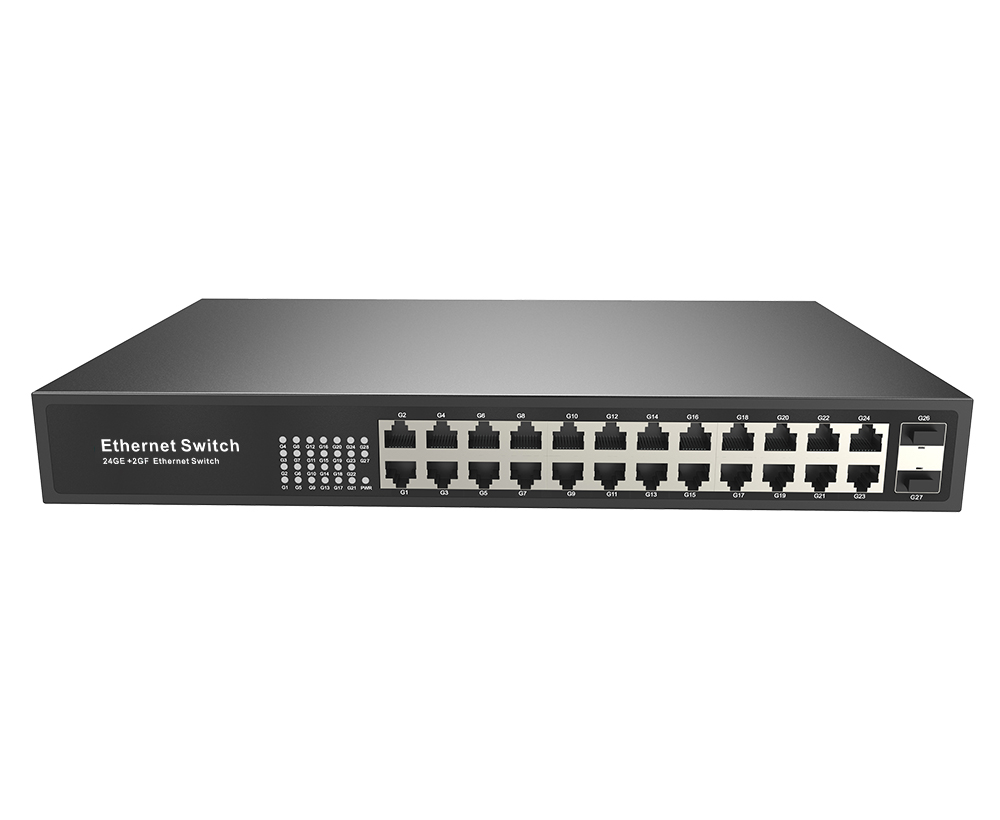

The GWS-H3226F is an unmanaged gigabit Ethernet fiber switch. It has 24*10/100/1000M RJ45 ports and 2*1000M SFP ports. The RJ45 and SFP combined interface can be unaffected by the transmission medium, realizing convenient connection and expansion of the network. The scheme of the large backplane and large cache switching chip is preferred to improve the forwarding rate of large files and effectively solve the problems of video freeze and picture loss in the high-definition surveillance environment. It is suitable for hotels, banks, campuses, factory quarters, and small and medium-sized enterprises to establish a cost-effective network. Unmanaged mode, plug and play, no configuration, simple and convenient to use.
FEATURE
n Full gigabit rate, high-speed transmission
◇ Support non-blocking wire-speed forwarding.
◇ Support full-duplex based on IEEE802.3x and half-duplex based on Backpressure.
◇ A combination of Gigabit Ethernet port and Gigabit SFP port to meet the networking requirements of various scenarios.
n Stable and reliable, easy to operate
◇ CE, FCC, RoHS.
◇ Low power consumption, metal casing, with fan.
◇ Plug and play, no configuration, simple and convenient.
◇ The user-friendly panel, it can show the device status through the LED indicator of Link/Act, PWR.
◇ Self-developed power supply, high redundancy design, providing a long term and stable power output.
DIMENSION

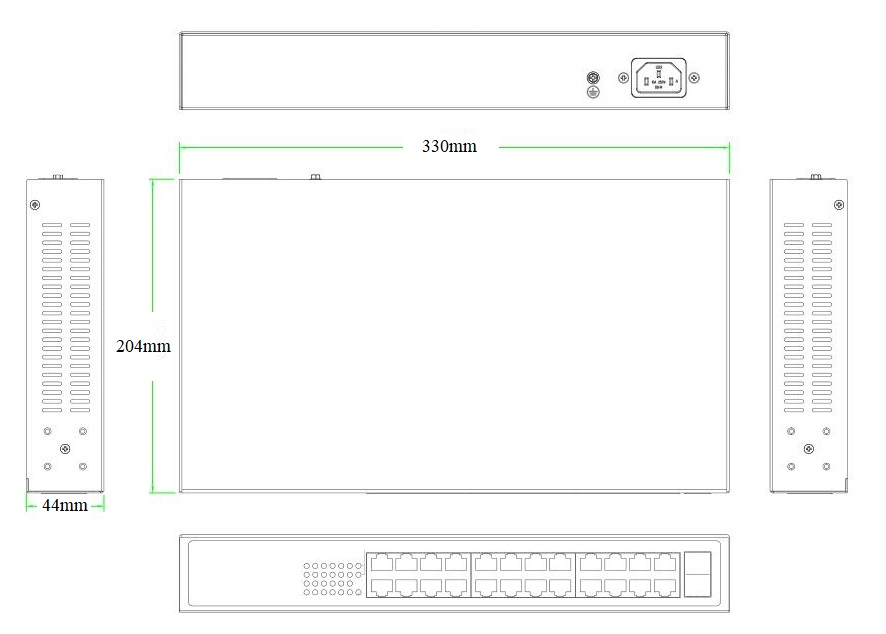

ORDERING INFORMATION
|
Model |
Description |
|
GWS-H3218F |
Unmanaged Ethernet switch with 16*10/100/1000M RJ45 ports and 2*1000M SFP fiber ports. Built-in 30W power adapter. compatible with 1U 19 inch cabinet installation. |
|
GWS-H3226F |
Unmanaged Ethernet switch with 24*10/100/1000M RJ45 ports and 2*1000M SFP fiber ports. Built-in 30W power adapter. compatible with 1U 19 inch cabinet installation. |
|
GWS-H3226FU |
Unmanaged Ethernet switch with 24*10/100/1000M RJ45 ports and 2*1000M SFP fiber ports. Built-in 30W power adapter. standard 1U 19 inch cabinet installation. |
PACKING LIST
|
Packing List |
Content |
Qty |
Unit |
|
26-port gigabit Ethernet fiber switch |
1 |
SET |
|
|
AC Power Cable |
1 |
PC |
|
|
Mounting Kits |
1 |
SET |
|
|
User Guide |
1 |
PC |
|
|
Warranty Card |
1 |
PC |
OPTICAL MODULE
|
Product |
Model |
Description |
Unit |
|
1.25G Optical Module
|
2630 |
SFP optical module, 1.25G, multi-mode dual fiber 850nm, transmission distance: 550m, LC interface, support DDM, hot plug and pull. |
PC |
|
2632 |
SFP optical module, 1.25G, single-mode dual fiber 1310nm, transmission distance: 20km, LC interface, support DDM, hot plug and pull. |
PC |
|
|
2612-T |
SFP optical module, 1.25G, single-mode single fiber TX1310nm/ RX1550nm, transmission distance: 20km, LC interface, support DDM, hot plug and pull. |
PC |
|
|
2613-R |
SFP optical module, 1.25G, single-mode single fiber TX1550nm/ RX1310nm, transmission distance: 20km, LC interface, support DDM, hot plug and pull. |
PC |
|
|
2612-T-SC |
SFP optical module, 1.25G, single-mode single fiber TX1310nm/ RX1550nm, transmission distance: 20km, SC interface, support DDM, hot plug and pull. |
PC |
|
|
2613-R-SC |
SFP optical module, 1.25G, single-mode single fiber TX1550nm/ RX1310nm, transmission distance: 20km, SC interface, support DDM, hot plug and pull. |
PC |
|
|
Power Module |
2633 |
1.25G SFP optical module transfers to 10/100/1000M RJ45 port. |
PC |
|
Model |
GWS-H3218F |
GWS-H3226F |
|
Interface Characteristics |
||
|
Fixed Port |
16*10/100/1000Base-T RJ45 ports (Data) 2*1000Base-X uplink SFP ports (Data) |
24*10/100/1000Base-T RJ45 ports (Data) 2*1000Base-X uplink SFP ports (Data) |
|
Ethernet Port |
Port 1-16/ 1-24 support 10/100/1000Base-T auto-sensing, full/ half duplex MDI/ MDI-X self-adaption. |
|
|
Fiber Port |
Gigabit SFP optical interface, default no include optical modules (optional single-mode/ multi-mode, single fiber / dual fiber optical module. LC) |
|
|
Optical Cable/ Distance |
Multi-mode: 850nm /0-550m Single-mode: 1310nm/ 0-40km, 1550nm /0-120km. |
|
|
Twisted Pair Transmission |
10BASE-T: Cat3,4,5 UTP(≤100 meters) 100BASE-TX: Cat5 or later UTP(≤100 meters) 1000BASE-T: Cat5e or later UTP(≤100 meters) |
|
|
Chip Parameter |
||
|
Network Protocol |
IEEE802.3 10BASE-T, IEEE802.3i 10Base-T, IEEE802.3u 100Base-TX IEEE802.3ab 1000Base-TX, IEEE802.3z 1000Base-X, IEEE802.3x |
|
|
Forwarding Mode |
Store and Forward (Full Wire Speed) |
|
|
Switching Capacity |
48Gbps (Non-blocking) |
52Gbps (Non-blocking) |
|
Forwarding Rate@64byte |
26.78Mpps |
38.69Mpps |
|
MAC |
8K |
|
|
Buffer Memory |
4M |
|
|
LED Indicator |
Power: PWR (Green), Network: Link/Act (Green) |
|
|
Power Supply |
||
|
Total PWR / Input Voltage |
30W (100-240V) |
|
|
Power Consumption |
Standby<7W, Full Load<16W |
Standby<8W, Full Load<20W |
|
Power Supply |
Built-in power supply, AC100~240V 50-60Hz 0.56A |
|
|
Physical Parameter |
||
|
Operation TEMP / Humidity |
-20°C~+55°C, 5%~90% RH Non condensing |
|
|
Storage TEMP / Humidity |
-40°C~+75°C, 5%~95% RH Non condensing |
|
|
Dimension (L*W*H) |
270*180*44.5mm |
330*204*44mm |
|
Net /Gross Weight |
<1.2kg /<1.8kg |
<2.1kg /<2.8kg |
|
Installation |
Desktop, wall mount |
|
|
Certification & Warranty |
||
|
Lightning Protection |
Lightning protection: 4KV 8/20us, Protection level: IP30 |
|
|
Certification |
CCC, CE mark, commercial, CE/LVD EN62368-1, FCC Part 15 Class B, RoHS |
|
|
Warranty |
1 year, lifelong maintenance. |
|
