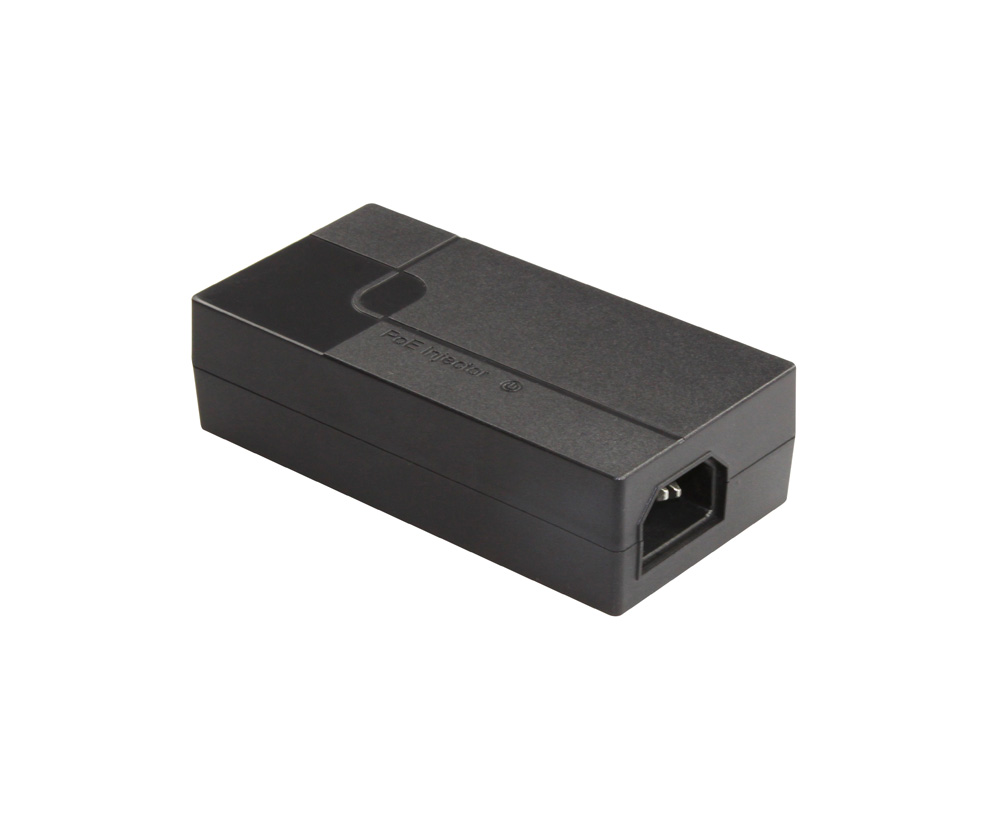

OVERVIEW
PoE injector is also called Power over Ethernet midspan equipment. Centralized PoE injector are also called PoE power supply modules. PSE1101AC-60 is an unmanaged PoE injector. It has 1*10/100M PoE port, can support non-standard PoE power supply. single-port PoE power of 60W. It can provide stable, safe and reliable power output and data transmission for terminals such as PTZ network cameras, high-power wireless APs, high-power network multimedia speakers, and high-power POE lighting through network cables.
Unmanaged mode, plug and play, no need to configure, easy to use. PoE injector provide simple, economical, high-performance, intelligent Ethernet PoE power supply and data communication solutions. With the characteristics of simple use, convenient installation, superior performance and high cost performance, it is an ideal choice for customers to improve project quality. Under the condition that the remote power cannot be provided, expand the traditional power line network, reduce the use of power lines, and effectively reduce the construction cost and maintenance cost.
FEATURE
n 1 Ethernet in and 1 Ethernet out, easy to connect
◇ Support non-blocking wire-speed forwarding.
◇ Using 1 Ethernet in and 1 Ethernet out connection mode, 2*10/100Mbps RJ45 port convenient connection, and simple maintenance.
n Smart PoE power supply function
◇ 1*10/100Base-TX RJ45 port can support non-standard PoE power supply to meet the network power supply requirements of security monitoring, PoE lighting, wireless base stations, high-power network terminals and other scenarios.
n Stable and reliable
◇ CCC, CE, FCC, RoHS.
◇ Plug and play, no configuration, simple and convenient.

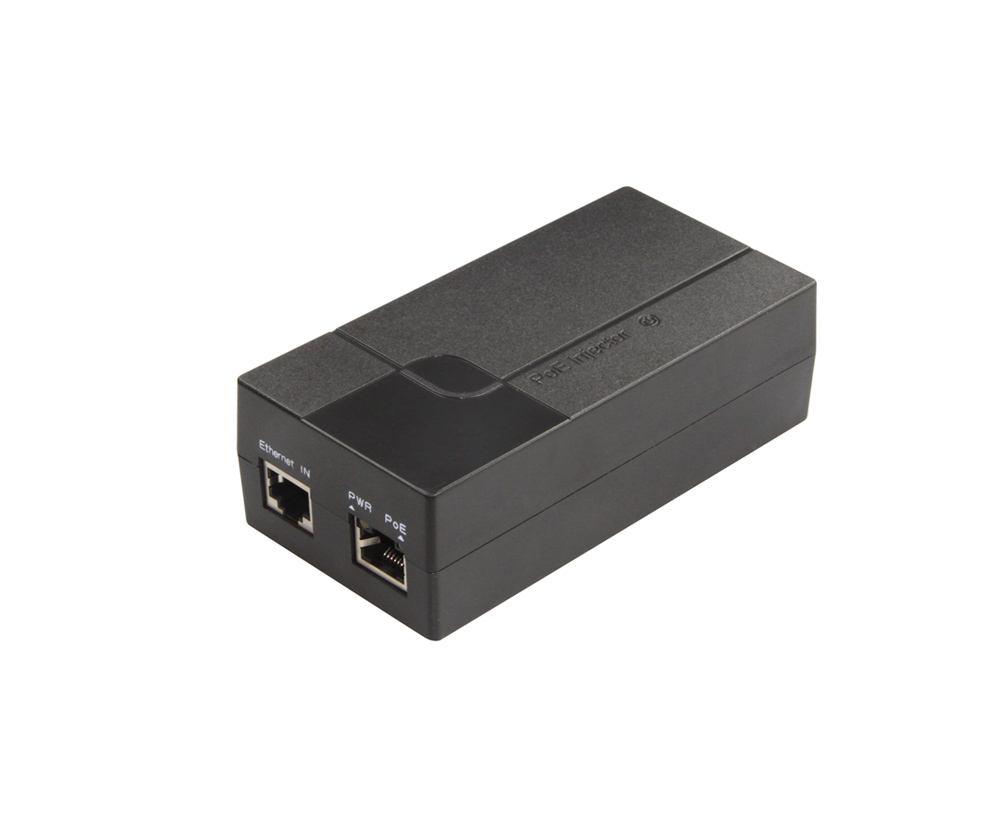

◇ The user-friendly panel can show the device status through the LED indicator of PWR, PoE.
◇ Self-developed power supply, high redundancy design, providing a long term and stable PoE power output.
◇ Low power consumption, No fan, advanced ABS and PC flame-retardant plastic shell is exquisite and beautiful.

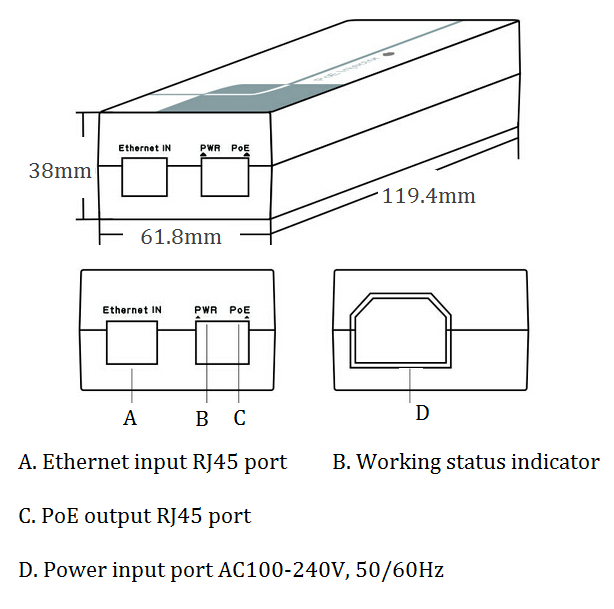

DIMENSION
ORDERING INFORMATION
|
Model |
Description |
|
PSE1101AC-60 |
Unmanaged AC input PoE injector with 1*10/100M PoE port and 1*10/100M uplink RJ45 port. POE output power up to 60W. Built-in 65W power supply. |
|
PSE1301AC-60 |
Unmanaged AC input PoE injector with 1*10/100/1000M PoE port and 1*10/100/1000M uplink RJ45 port. POE output power up to 60W. Built-in 65W power supply. |
PACKING LIST
|
Packing List |
Content |
Qty |
Unit |
|
Single-port 10/100M non-standard PoE injector |
1 |
SET |
|
|
AC power Line |
1 |
PC |
|
|
User Guide |
1 |
PC |
|
|
Warranty Card |
1 |
PC |
|
Model |
PSE1101AC-60 |
PSE1301AC-60 |
|
Interface Characteristics |
||
|
Fixed Port |
1*10/100M PoE port (Data/Power) 1*10/100M uplink RJ45 port (Data) |
1*10/100/1000M PoE port (Data/Power) 1*10/100/1000M uplink RJ45 port (Data) |
|
Ethernet Port |
10/100Base-TX auto-sensing, full/half duplex MDI/MDI-X self-adaption |
10/100/1000Base-T auto-sensing, full/half duplex MDI/MDI-X self-adaption |
|
Twisted Pair Transmission |
10BASE-T: Cat3,4,5 UTP(≤100 meters) 100BASE-TX: Cat5 or later UTP(≤100 meters) 1000BASE-T: Cat5e or later UTP(≤100 meters) (PSE1101AC-60 support) |
|
|
Network Protocol and Indicator |
||
|
Network Protocol |
IEEE802.3 10BASE-T, IEEE802.3i 10Base-T IEEE802.3u 100Base-TX, IEEE802.3x IEEE802.3ab1000Base-T(PSE1101AC-60 support) |
|
|
LED Indicator |
Power: PWR (Green), POE: PoE (Green) |
|
|
PoE & Power Supply |
||
|
PoE Port |
Support non-standard 60W PoE power supply |
|
|
Power Supply Pin |
1/2(+)3/6(- )&4/5(+) 7/8(-) |
|
|
Max Power Per Port |
60W |
|
|
Total PWR / Input Voltage |
65W(AC100-240V) |
|
|
Power Consumption |
Standby<3W, Full load<65W |
|
|
Physical Parameter |
||
|
Operation TEMP / Humidity |
-20~+55°C, 5%~90% RH Non condensing |
|
|
Storage TEMP / Humidity |
-40~+80°C, 5%~95% RH Non condensing |
|
|
Dimension |
119.4*61.8*38mm |
|
|
Net /Gross Weight |
<0.18kg /<0.2kg |
|
|
Installation |
Desktop |
|
|
Certification & Warranty |
||
|
Lightning Protection |
Port lightning protection: 4KV 8/20us, Protection level: IP30 |
|
|
Certification |
CCC, CE mark, commercial, CE/LVD EN62368-1, FCC Part 15 Class B, RoHS |
|
|
Warranty |
1 year, lifelong maintenance. |
|
