OVERVIEW

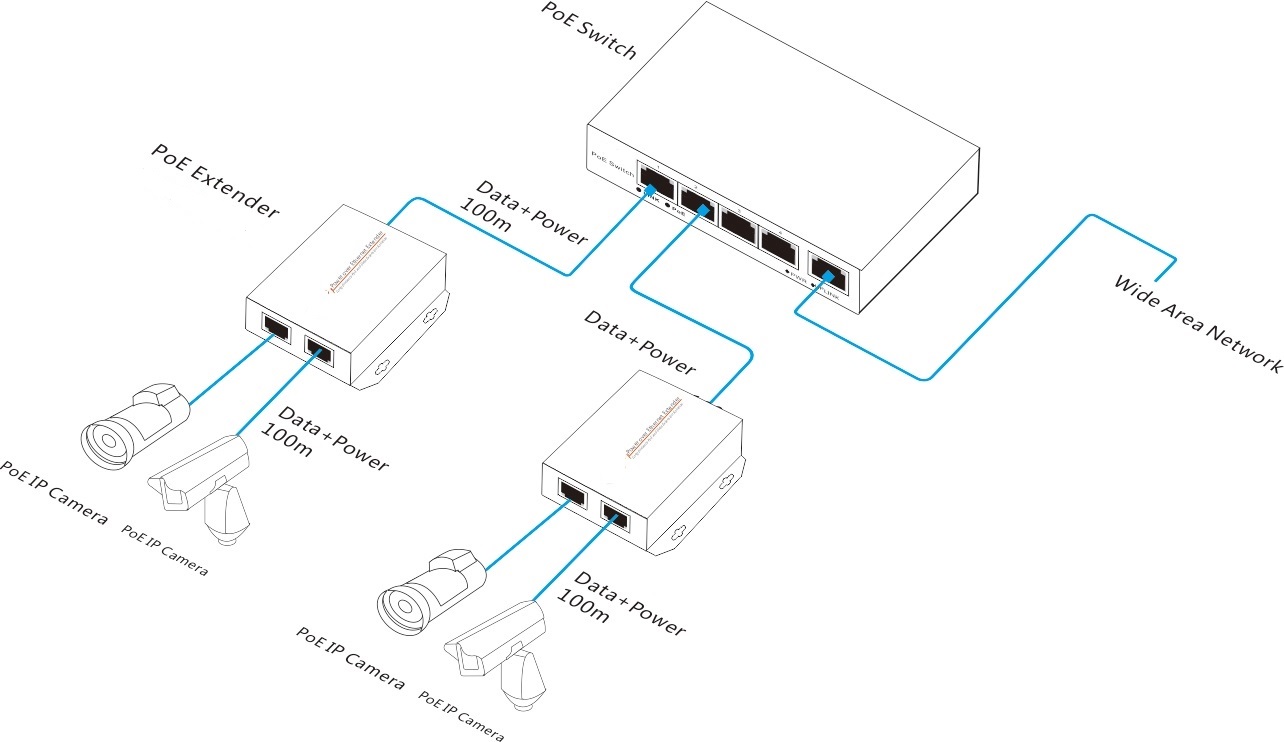

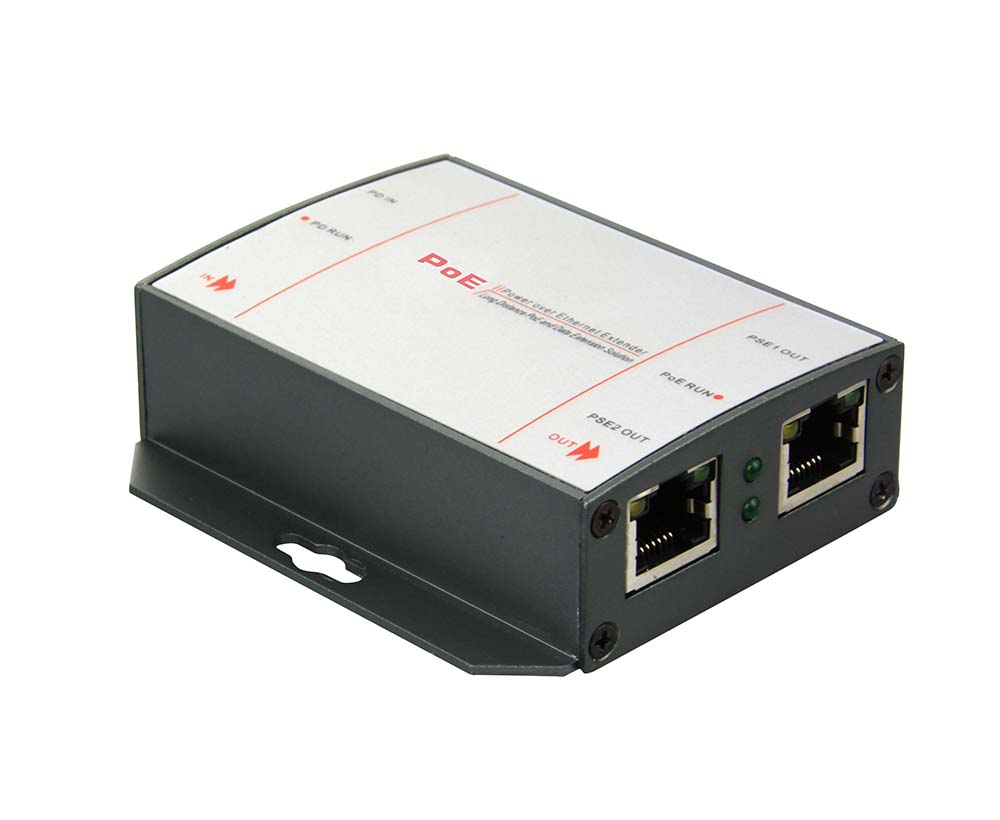

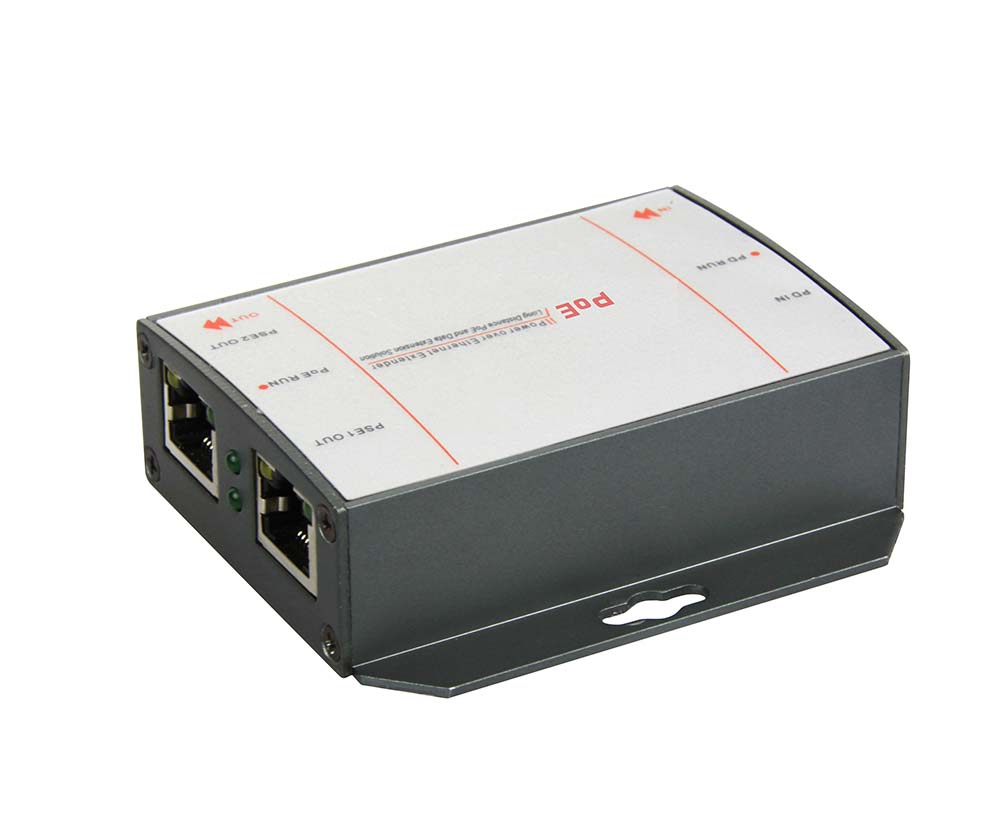

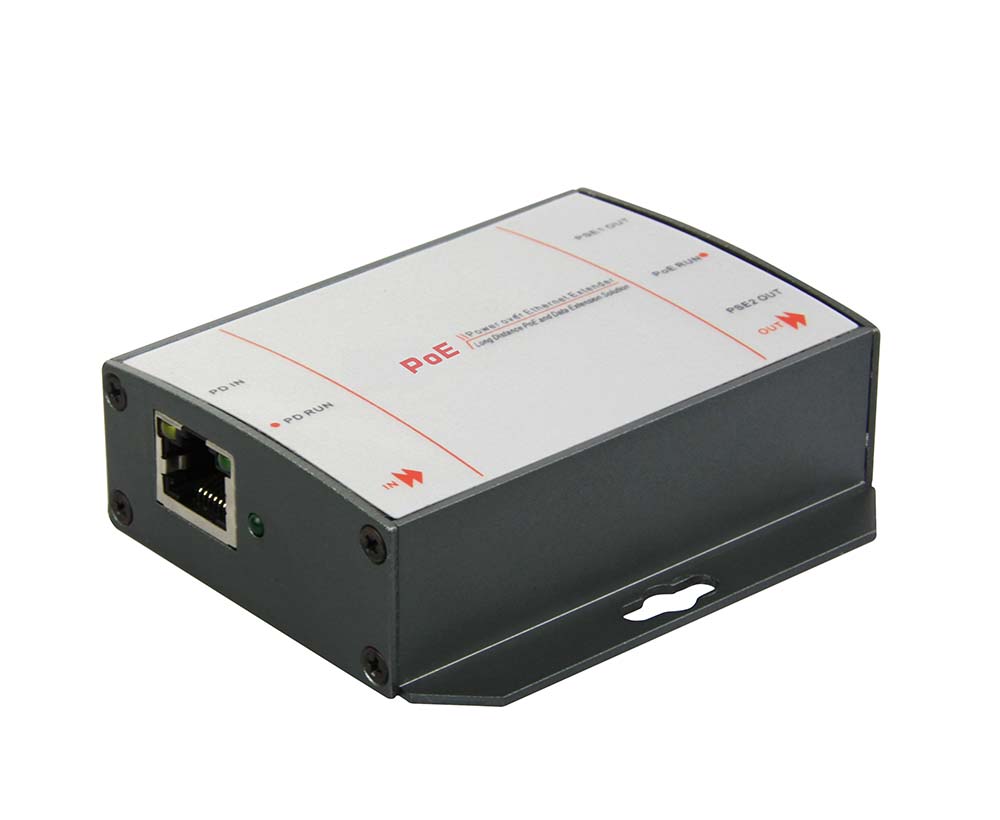

PSE-PD3102 is a simple device which can extend the 100m standard data transmission to 200m through CAT5e/6 UTP cable, by just plug and play but no additional power supply or set up required. It offers you great flexibility to extend the distance of PoE network to triple, quadruple further in length or more. And this device supports forwards both Ethernet data and PoE power to remote devices
For the cost saving and power management purpose, the PSE-PD3102 can be widely used for City intelligent traffic monitoring system (ITS), safe city, and wireless city; large industrial factory& enterprise security surveillance system; Highway surveillance system, electronic road surveillance, snapshot system; Remote multimedia teaching & campus surveillance, video conferencing systems; Building intercom, wireless communications, video surveillance.
FEATURE
u Supply power to IP network cameras through Cat5e cables (PoE)
u Compatible with IEEE 802.3af PSE devices
u Support 10/100M data transmission through RJ45 port
u Auto-negotiation and auto-MDIX fast Ethernet RJ45 port
u Both mid-span ( 4/5+, 7/8- ) and end-span ( 1/2+, 3/6- )
u IEEE802.3af; IEEE 802.3i; IEEE 802.3u; IEEE 802.3x Flow Control; IEEE 802.3af DTE Power via MDI
u 100Base-TX : Cat5 UTP(≤100 meters)
u Store-And-Forward architecture
u 2x RJ45 PoE ports; maximum 15.4W for single PoE port
u Front-end receiving and Back-end supply power

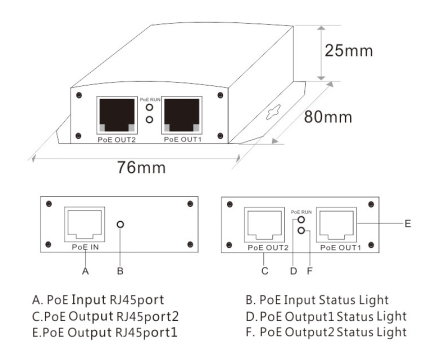

DIMENSION
ORDERING INFORMATION
|
Model |
Description |
|
PSE-PD3102 |
10/100M PoE extender with 1x RJ45 input port and 2x RJ45 PoE output port. 15.4W(IEEE802.3af), Extends the data transmission from 100m to 200m. |
|
Note: Mid-span (4/5+, 7/8- ), end-span (1/2+, 3/6-), can be customized |
|
PACKING LIST
|
PACKING LIST |
CONTENT |
QTY |
UNIT |
|
3-port 10/100M PoE Extender |
1 |
SET |
|
|
User Guide |
1 |
PC |
|
|
Warranty Card |
1 |
PC |
|
Model |
PSE-PD3102 |
|
Description |
10/100M PoE extender, extends the data transmission from 100m to 200m |
|
Network Protocols and Standards |
IEEE 802.3i 10BASET
IEEE 802.3x Flow Control |
|
Network Medium |
Cat5 or more UTP(≤100 meter) |
|
Switching Capacity |
1.6Gbps |
|
Forwarding Way |
Store-And-Forward architecture |
|
MAC Address Table |
1K |
|
Port Description |
1x RJ45 PoE input port; 2x RJ45 PoE output ports |
|
PoE standard |
IEEE802.3af/at |
|
PoE Port Power |
15.4W |
|
Power Supply Pin |
Mid-span(4/5+, 7/8- ), end-span(1/2+, 3/6-) |
|
LED Indicator Status |
Power; Network; PoE working status |
|
Dimension |
80X76X25mm |
|
Environment |
Operating temperature: -20 to 55° C Storage temperature: -20 to 75°C Working Humidity: 10%～90%, non-condensing |
|
Safety |
CE Mark ,commercial, FCC Class, RoHS |
|
Warranty |
3 years warranty |
