OVERVIEW
The GWS-H3008FO is a full gigabit Ethernet fiber switch. It is a network environment specially designed for hotels, banks, campuses, attractions, commercial supermarkets, factories, parks, governments and SMB small and medium enterprises that require high-speed forwarding. And designed a high performance, easy to maintain Ethernet switch. It has 2*10/100/1000M RJ45 ports and 8*1000M SFP fiber ports. Each port can support wire-speed forwarding. It is not affected by the transmission medium and realizes a convenient connection and expansion of the network. 2M large-capacity packet forwarding buffer, ensuring timely transmission of large files and stable video streaming, stable 7*24 hours without dropping, effectively solving problems such as video stuttering and picture loss in high-definition monitoring environments. The GWS-H3008FO switch adopts a high-strength all-steel housing, which is simple and stylish, exquisite and beautiful.
Unmanaged model, plug and play, no configuration, easy to use.
FEATURE
n Gigabit SFP fiber port access, gigabit RJ45 ports uplink
◇ Support non-blocking wire-speed forwarding.
◇ Support full-duplex based on IEEE802.3x and half-duplex based on Backpressure.
◇ Support 10/100/1000M Ethernet port and Gigabit SFP fiber port combination, which enables users to flexibly build networking to meet the needs of various scenarios.
n Stable and reliable, easy to use
◇ CCC, CE, FCC, RoHS.
◇ Plug and play, no setup, simple and convenient to use.
◇ Low power consumption, no fan, galvanized steel metal casing.
◇ The user-friendly panel can show the device status through the LED indicator of PWR, Link.
◇ Self-developed power supply, high redundancy design, providing a long term and stable power output.

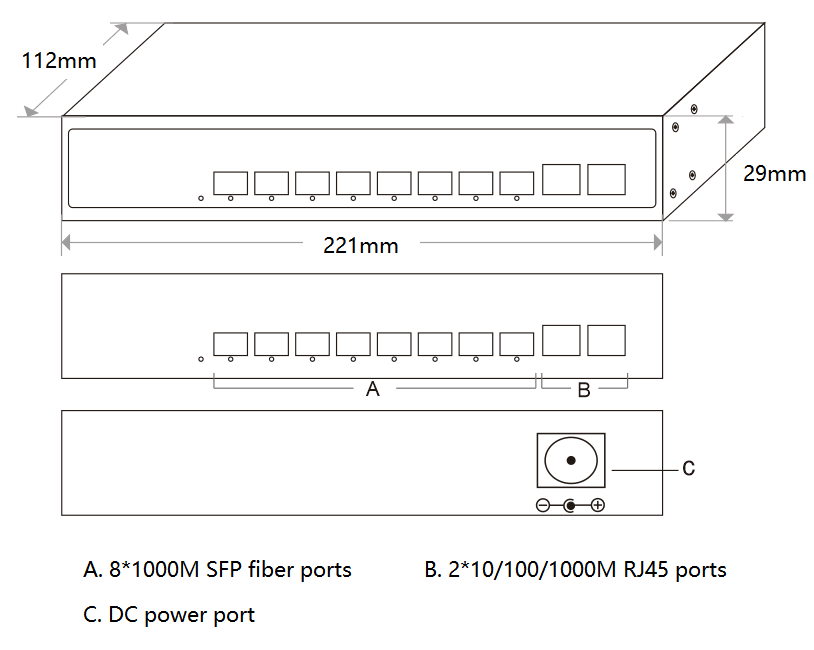

DIMENSION
ORDERING INFORMATION
|
Model |
Description |
Configure Power Adapter |
|
GWS-H3008FO |
Unmanaged Ethernet fiber switch with 2*10/100/1000M RJ45 ports and 8*1000M uplink SFP ports. External power adapter. |
12W |
|
Note: The Ethernet switch no include SFP optical module. and needs to be purchased separately. |
||
PACKING LIST
|
Packing List |
Content |
Qty |
Unit |
|
10-port full gigabit Ethernet fiber switch |
1 |
SET |
|
|
DC12V Power Adapter |
1 |
PC |
|
|
Mounting Kits (Hanging Ears) |
1 |
SET |
|
|
User Guide |
1 |
PC |
|
|
Warranty Card |
1 |
PC |
OPTICAL MODULE
|
Product |
Model |
Description |
Unit |
|
1.25G Optical module
|
2630 |
SFP optical module, 1.25G, multi-mode dual fiber 850nm, transmission distance: 550m, LC interface, support DDM function, support hot plug and pull. |
PC |
|
2632 |
SFP optical module, 1.25G, single-mode dual fiber 1310nm, transmission distance: 20km, LC interface, support DDM function, support hot plug and pull. |
PC |
|
|
2612-T |
SFP optical module, 1.25G, single-mode single fiber TX1310nm/RX1550nm, transmission distance: 20km, LC interface, support DDM function, support hot plug and pull. |
PC |
|
|
2613-R |
SFP optical module, 1.25G, single-mode single fiber TX1550nm/RX1310nm, transmission distance: 20km, LC interface, support DDM function, support hot plug and pull. |
PC |
|
|
2612-T-SC |
SFP optical module, 1.25G, single-mode single fiber TX1310nm/RX1550nm, transmission distance: 20km, SC interface, support DDM function, support hot plug and pull. |
PC |
|
|
2613-R-SC |
SFP optical module, 1.25G, single-mode single fiber TX1550nm/RX1310nm, transmission distance: 20km, SC interface, support DDM function, support hot plug and pull. |
PC |
|
|
Power Module |
2633 |
1.25G SFP optical module transfers to 10/100/1000M RJ45 port. |
PC |
|
Model |
GWS-H3008FO |
|
Interface Characteristics |
|
|
Fixed Port |
8*1000Base-X SFP slot ports(Data) 2*10/100/1000Base-T uplink RJ45 ports (Data) |
|
Ethernet Port |
Port 9-10 support 10/100/1000Base-T automatic detection, full / half duplex MDI/MDI-X adaptive |
|
Twisted Pair Transmission |
10BASE-T: Cat3,4,5 UTP(≤100 meters) 100BASE-TX: Cat5 or later UTP(≤100 meters) 1000BASE-T: Cat5e or later UTP(≤100 meters) |
|
SFP Slot Port |
Gigabit SFP optical fiber interface, default no include optical modules (optional order single-mode /multi-mode, single fiber /dual fiber optical module. LC) |
|
Optical Cable/ Distance |
Multi-mode: 850nm/ 0-500M, Single-mode: 1310nm/ 0- 40KM, 1550nm/ 0-120KM. |
|
Chip Parameter |
|
|
Network Protocol |
IEEE802.3 10BASE-T, IEEE802.3i 10Base-T,IEEE802.3u 100Base-TX IEEE802.3ab 1000Base-T, IEEE802.3z 1000Base-X, IEEE802.3x |
|
Forwarding Mode |
Store and Forward(Full Wire Speed) |
|
Switching Capacity |
20Gbps |
|
Forwarding Rate@64byte |
14.88Mpps |
|
MAC |
8K |
|
Buffer Memory |
2Mbit |
|
Jumbo Frame |
10000bytes |
|
LED Indicator |
Power: PWR (Green), Network: Link (Yellow), Speed: 100/1000M (Green) |
|
Power Supply |
|
|
Total PWR / Input Voltage |
10W/DC12V |
|
Power Consumption |
Standby<6W, Full load<10W |
|
Power Supply |
External power adapter, AC100 -240V 50-60Hz 0.35A |
|
Physical Parameter |
|
|
Operation TEMP/ Humidity |
-20~+55°C, 5%~90% RH Non condensing |
|
Storage TEMP/ Humidity |
-40~+75°C, 5%~95% RH Non condensing |
|
Dimension (L*W*H) |
221*112*29mm |
|
Net /Gross Weight |
<0.7kg / <1.0kg |
|
Installation |
Desktop, Wall-mounted |
|
Certification & Warranty |
|
|
Lightning Protection |
Lightning protection: 4KV 8/20us, Protection level: IP30 |
|
Certification |
CCC, CE mark, commercial, CE/LVD EN62368-1,FCC Part 15 Class B, RoHS |
|
Warranty |
1-year, lifelong maintenance. |
