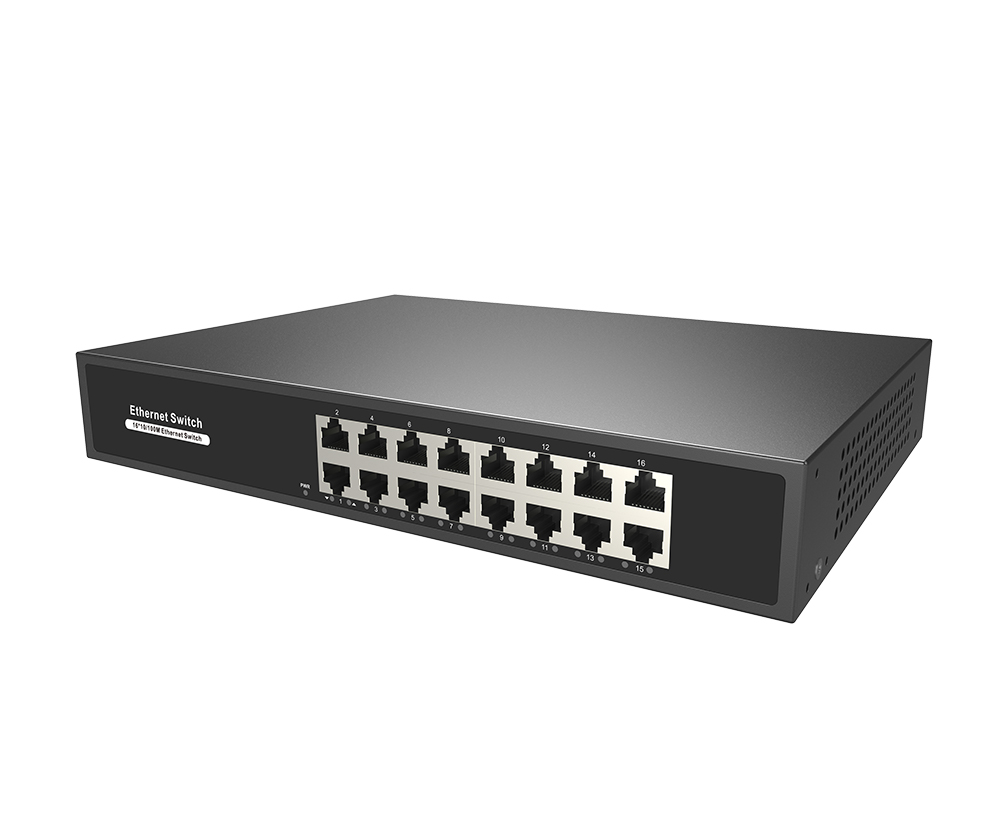

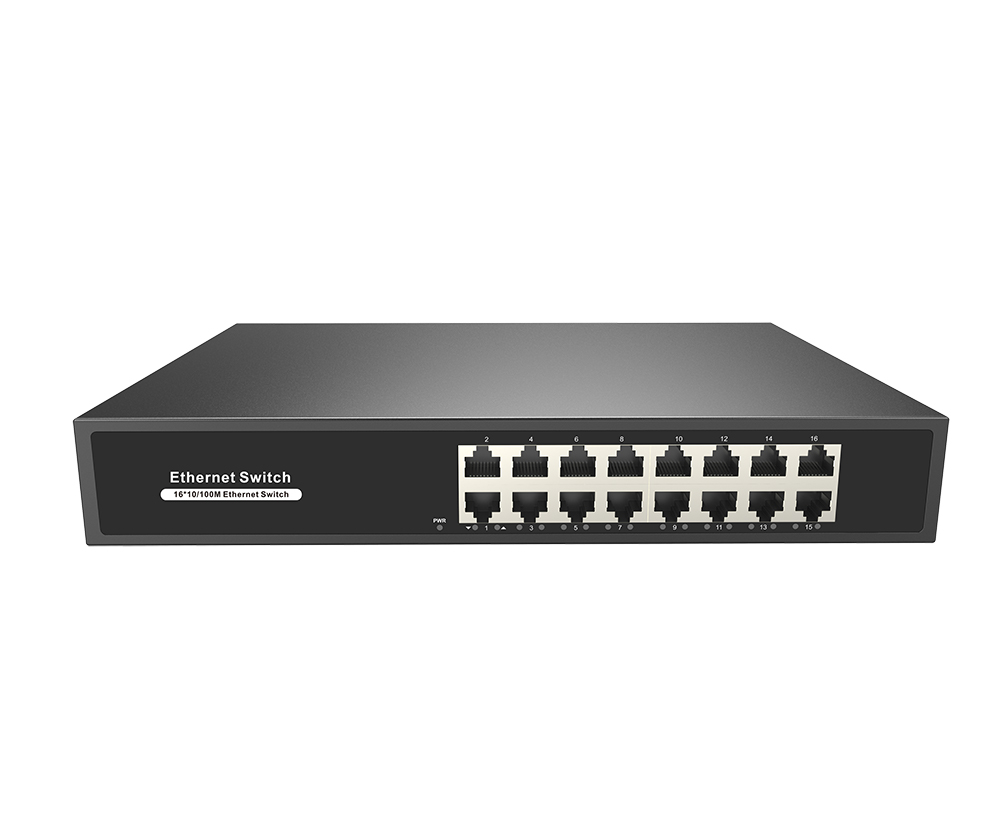

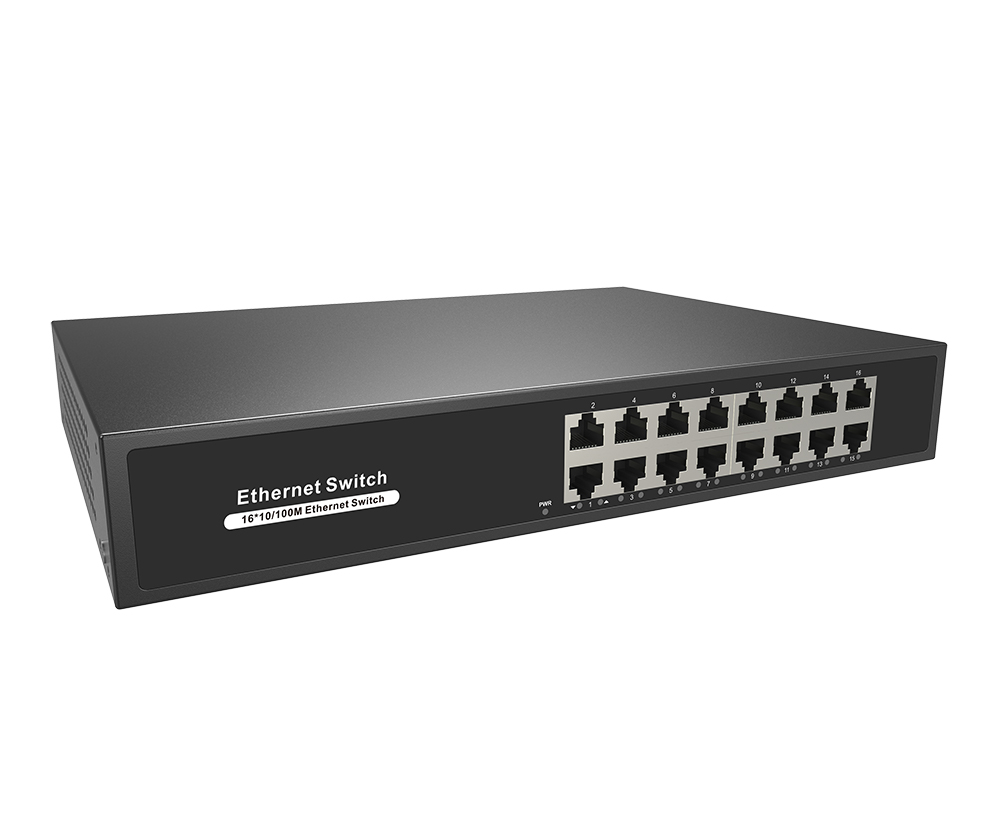

OVERVIEW
The GWS-H1016 is a high performance and easy-to-maintain high speed forwarding unmanaged fast Ethernet switch. It is suitable for hotels, banks, campuses, factory dormitories, and small and medium-sized enterprises.
The GWS-H1016 has 16*10/100M adaptive RJ45 ports. The bidirectional transmission rate is up to 200Mbps, which realizes the convenient connection and expansion of the network. Each port support full line-speed forwarding. 4M large-capacity cache to ensure timely transmission of large files and stable video streaming. 7*24 hours of stability, and no disconnection effectively solving problems such as video freezes and picture loss in high-definition surveillance environments. The switch adopts an all-steel shell. Simple, stylish, and durable. It support desktop, wall-mounted, and 1U rack-mounted. Plug and play, no configuration, simple and convenient to use.
FEATURE
n 10/100M access, full line-speed forwarding
◇ Support non-blocking wire-speed forwarding.
◇ Support full-duplex based on IEEE802.3x and half-duplex based on Backpressure.
◇ Support 10/100M adaptive RJ45 port, plug and play, to meet the networking needs of various scenarios.
n Stable and reliable, easy to operate
◇ CCC, CE, FCC, RoHS.
◇ Low power consumption, no fan, metal shell.
◇ Plug and play, no configuration, simple and convenient.
◇ The user-friendly panel can show the device status through the LED indicator of PWR, Link.
◇ Adopt high stability power supply, high redundancy design to provide long-term stable power output.

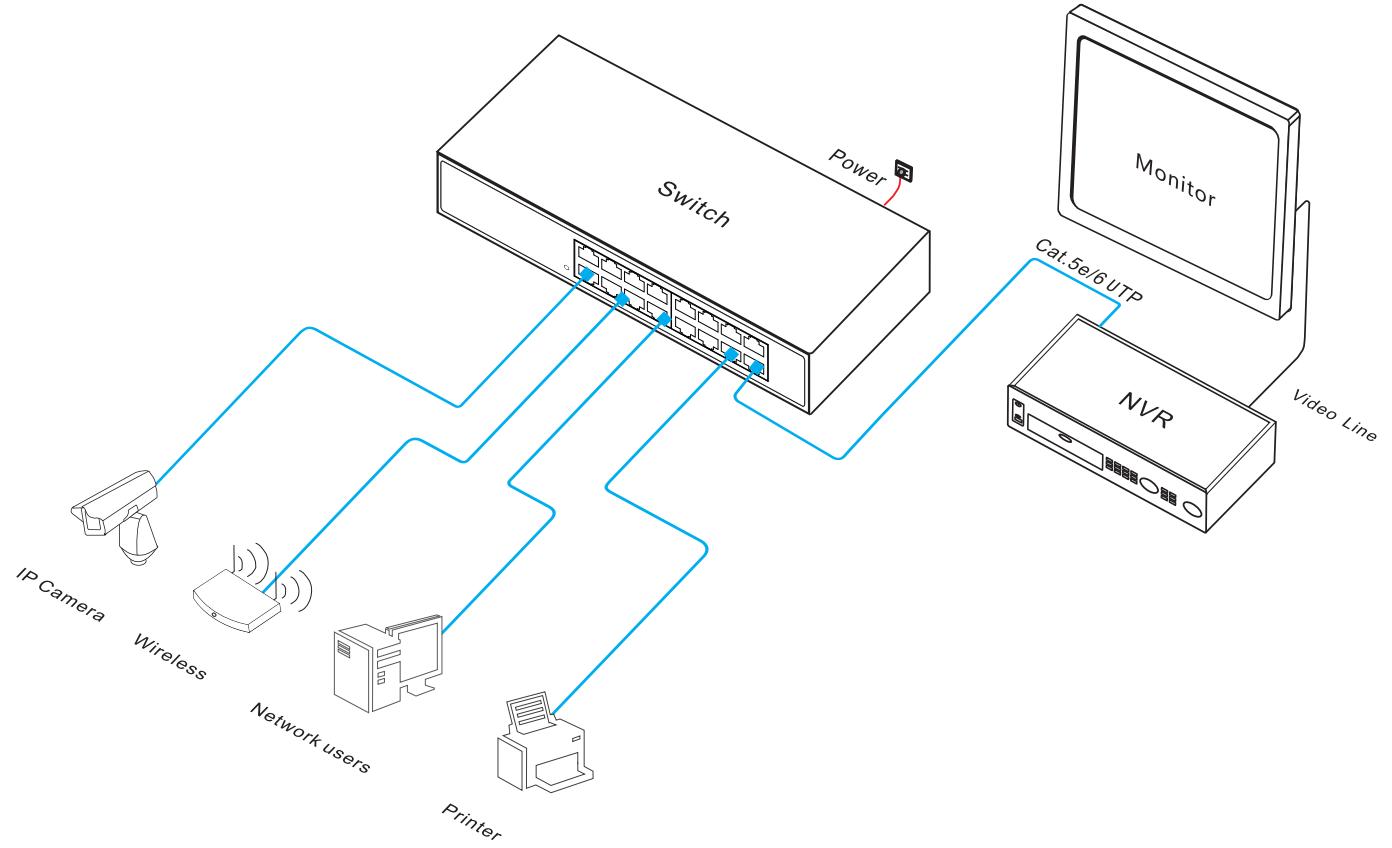

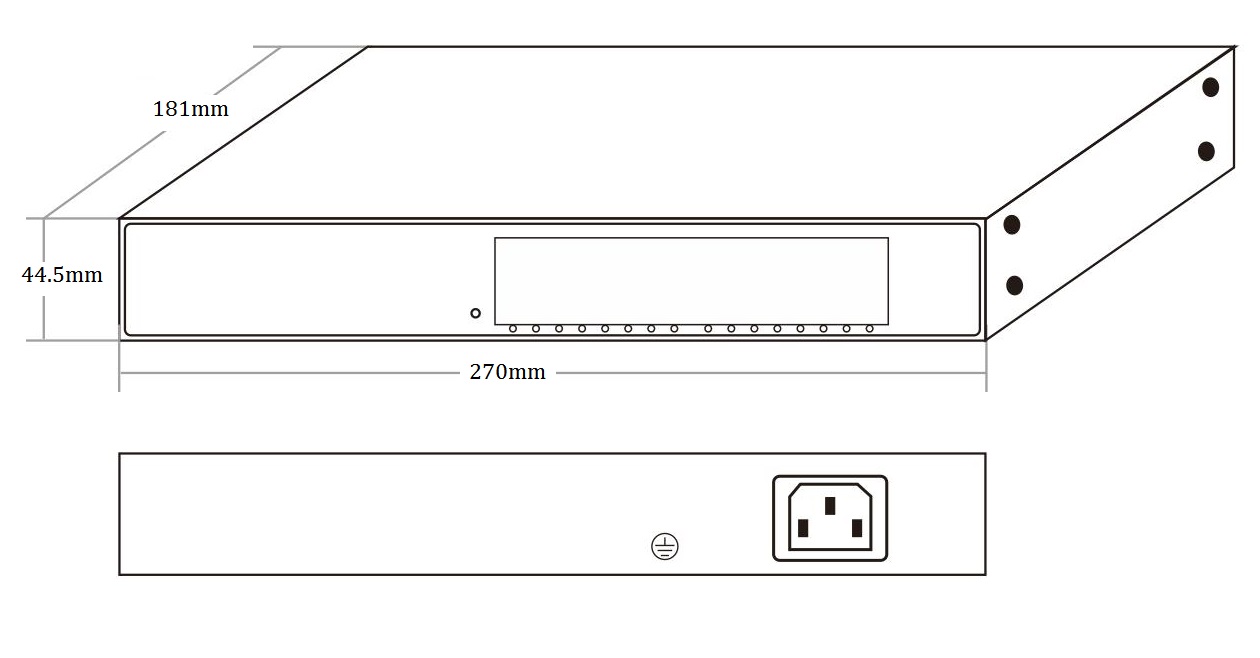

DIMENSION
ORDERING INFORMATION
|
Model |
Description |
Configure Power Supply |
|
GWS-H1016 |
Unmanaged fast Ethernet switch with 16*10/100M RJ45 ports. Built-in power supply. Support 1U/19 inch rack installation. |
20W |
|
GWS-H1024 |
Unmanaged fast Ethernet switch with 24*10/100M RJ45 ports. Built-in power supply. Support 1U/19 inch rack installation. |
PACKING LIST
|
Packing List |
Content |
Qty |
Unit |
|
16-port 10/100M Fast Ethernet Switch |
1 |
SET |
|
|
AC Power Cable |
1 |
PC |
|
|
Mounting Kits |
1 |
SET |
|
|
User Guide |
1 |
PC |
|
|
Warranty Card |
1 |
PC |
RELATED PRODUCT
|
Model |
Description |
|
GWS-H1005S |
Mini unmanaged Ethernet switch with 5*10/100M RJ45 ports. External power supply. |
|
GWS-H1008S |
Mini unmanaged Ethernet switch with 8*10/100M RJ45 ports. External power supply. |
|
GWS-H3005S |
Mini unmanaged Ethernet switch with 5*10/100/1000M RJ45 ports. External power supply. |
|
GWS-H3008S |
Mini unmanaged Ethernet switch with 8*10/100/1000M RJ45 ports. External power supply. |
|
GWS-H3016 |
Unmanaged Ethernet switch with 16*10/100/1000M RJ45 ports. Built-in power supply. Support 1U/19 inch rack installation. |
|
GWS-H3024 |
Unmanaged Ethernet switch with 24*10/100/1000M RJ45 ports. Built-in power supply. Support 1U/19 inch rack installation. |
|
Model |
GWS-H1016 |
GWS-H1024 |
|
Interface Characteristics |
||
|
Fixed Port |
16*10/100Base-TX RJ45 ports (Data) |
24*10/100Base-TX RJ45 ports (Data) |
|
Ethernet Port |
10/100Base-TX auto-sensing, full/half duplex MDI/MDI-X self-adaption |
|
|
Twisted Pair Transmission |
10BASE-T: Cat3,4,5 UTP(≤100 meters) 100BASE-TX: Cat5 or later UTP(≤100 meters) |
|
|
Chip Parameter |
||
|
Network Protocol |
IEEE802.3 10BASE-T, IEEE802.3i 10Base-T, IEEE802.3u 100Base-TX, IEEE802.3x |
|
|
Forwarding Mode |
Store and Forward(Full Wire Speed) |
|
|
Switching Capacity |
7.2Gbps (Non-blocking) |
8.8Gbps (Non-blocking) |
|
Forwarding Rate@64byte |
2.38Mpps |
3.57Mpps |
|
MAC |
16K |
|
|
Buffer Memory |
4M |
|
|
Jumbo Frame |
10K |
|
|
LED Indicator |
Power: PWR (Green), Network: Link(Green) |
|
|
Power Supply |
||
|
Total PWR / Input Voltage |
<10W/(AC100-240V) |
<15W/(AC100-240V) |
|
Power Consumption |
Standby<7W, Full Load<10W |
Standby<8W, Full Load<15W |
|

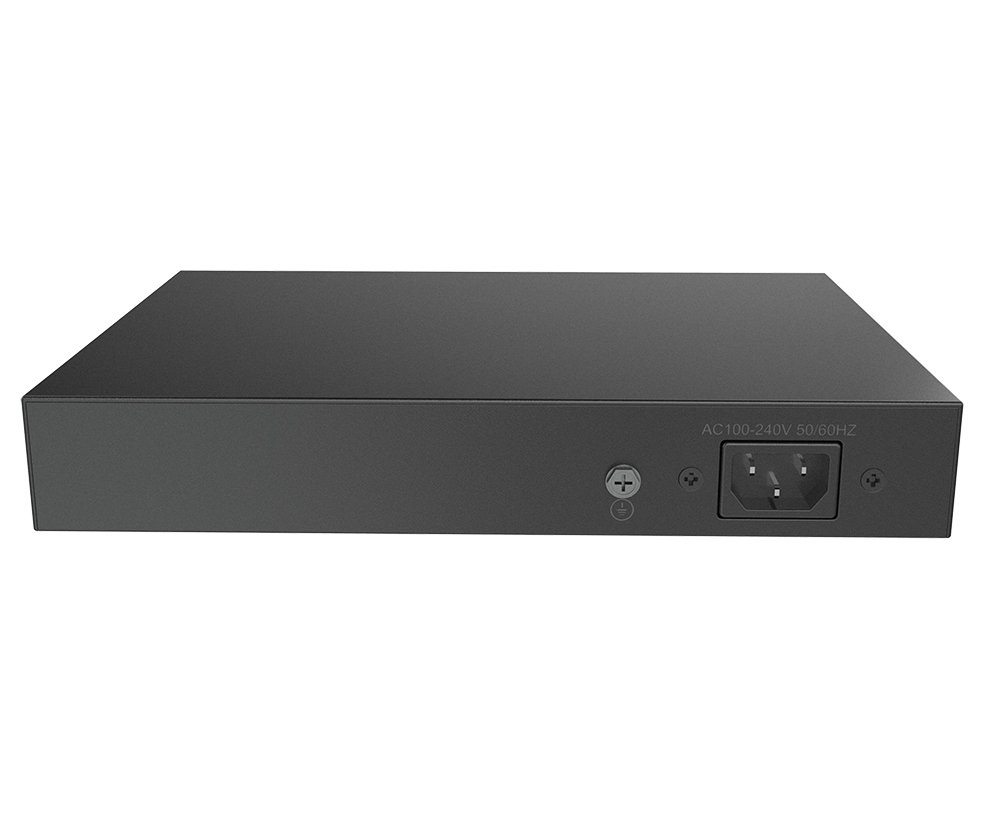

Power Supply |
Built-in power supply, AC100~240V 50-60Hz 0.56A |
|
|
Physical Parameter |
||
|
Operation TEMP/ Humidity |
0~+55°C, 5%~90% RH Non condensing |
|
|
Storage TEMP/ Humidity |
-40~+75°C, 5%~95% RH Non condensing |
|
|
Dimension (L*W*H) |
270*181*44.5mm |
|
|
Net /Gross Weight |
<1.25kg /<1.6kg |
|
|
Installation |
Desktop, Wall-mounted, 1U/19 inch |
|
|
Certification & Warranty |
||
|
Lightning Protection |
Lightning protection: 4KV 8/20us; Protection level: IP30 |
|
|
Certification |
CCC, CE mark, commercial, CE/LVD EN62368-1, FCC Part 15 Class B, RoHS |
|
|
Warranty |
1 year, lifelong maintenance. |
|
