Model

GWS-P3000-AP110-52C

Output

Group of Output

1

DC Voltage

52VDC

Output Current Range

0-2.11A

Ripple Noise

0

Voltage Regulation Accuracy

±1%

Source Adjustment

±1%

Load Regulation

±1%

Temperature Coefficient

±0.03%/℃

Output Start Time

≤3.0S (120VAC input, Full load), ≤2.0S (220VAC input, Full load)

Output Hold Time

≥10mS(120VAC input, Full load), ≥20mS(220VAC input, Full load)

Voltage Overshoot

<5.0%

Input

Input Voltage Range

90VAC-264VAC

Input Rated Voltage Range

100VAC-240VAC

Frequency Range

47Hz-63Hz

Efficiency

91%

Input Current

<2.2A

Start Inrush Current

<40A@300VAC Cold start

Leakage Current

Input to output≤0.25mA

Protection

Output Over Power

132W-165W swing

Output Over Voltage

56V-60V swing

Output Over Current

2.532A-3.165A swing

Output Short Circuit

It can be short-circuited for a long time, and it can automatically recover after eliminating the short-circuit

Operation Environment

Operation TEMP / Humidity

-20℃-65℃, 20%-90%RH No condensing

Storage TEMP / Humidity

-40℃-85℃, 10%-95%RH No condensing

Temperature Coefficient

±0.03%/℃ (0-50℃)

Vibration

Frequency range 10-500Hz, acceleration 2G, each sweep cycle 10min. 6 sweep cycles along the X, Y, and Z axes

Impact

Acceleration 20G, duration 11ms, 3 shocks along X, Y, and Z axis each

Altitude

2000m

Safety and EMC Standard

Security Standard

GB4943/EN62368-1

Dielectric Strength

Input - Output: 3KVAC/10mA, Input - Earth: 1.5KVAC/10mA,

Output- Earth: 0.5KVDC/10mA , Test time is 1min

Insulation Resistance

Input - Output: 100M ohms, Input - Case:100M ohms

Output - Case: 100M ohms

Electromagnetic Interference

EN55022 Class A

Harmonic Current

IEC61000-3-2 Class A Equipment Requirement

Electromagnetic Immunity

EN61000-4-2, 4,5,6,8,11 ENV50204, Class A heavy industry standard

Others

Certification

CCC, CE, FCC, RoHS

MTBF

100,000Hrs AT 25℃, MIL-217 Method 2 Components Stress Method

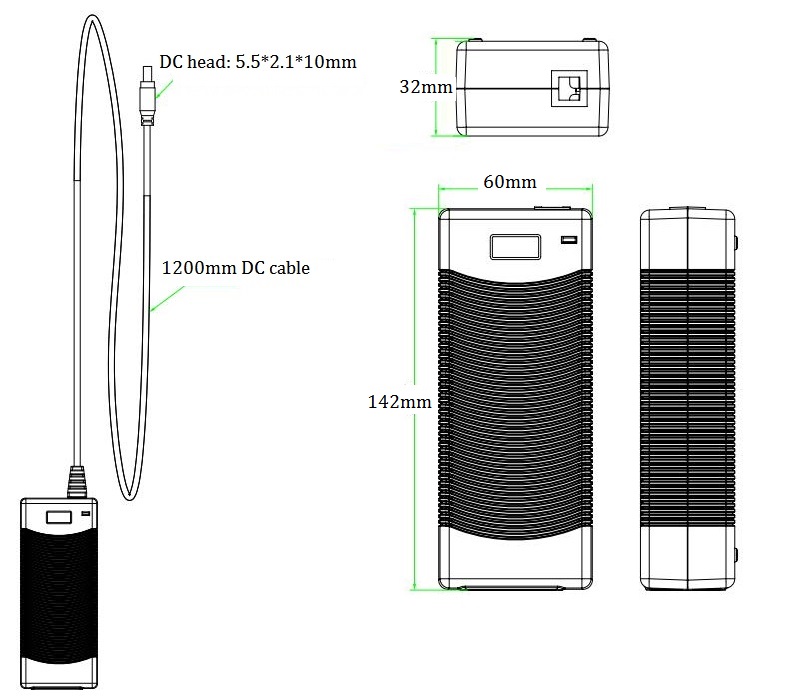

Dimension

142*60*32mm

Warranty

1 year

Notes

1. Unless otherwise specified, all specifications are rated input, rated load, and measured at an ambient temperature of 25°C.

2. Ripple noise test method: use a 12# twisted pair cable, and the terminals should be connected in parallel with 0.1uF and 10uF capacitors, and measure under the 20MHz bandwidth of the oscilloscope.

3. The power supply will be installed on the terminal equipment as a component, and the terminal equipment still needs to meet the EMC conditions.
