Overview

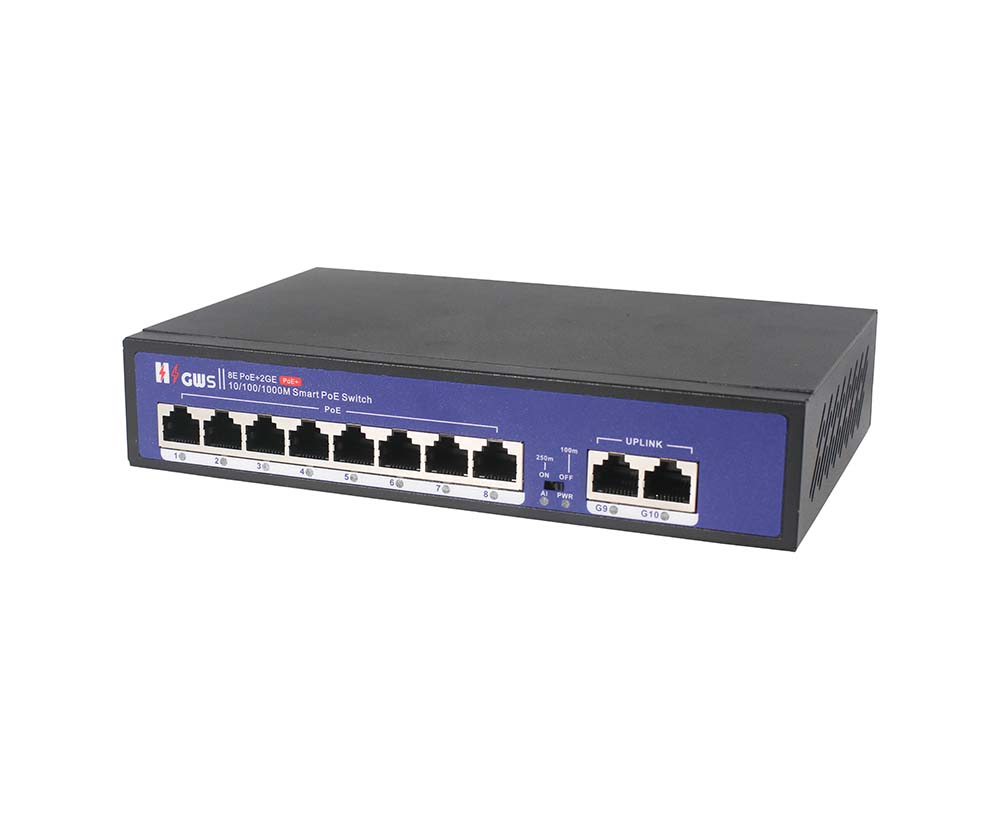

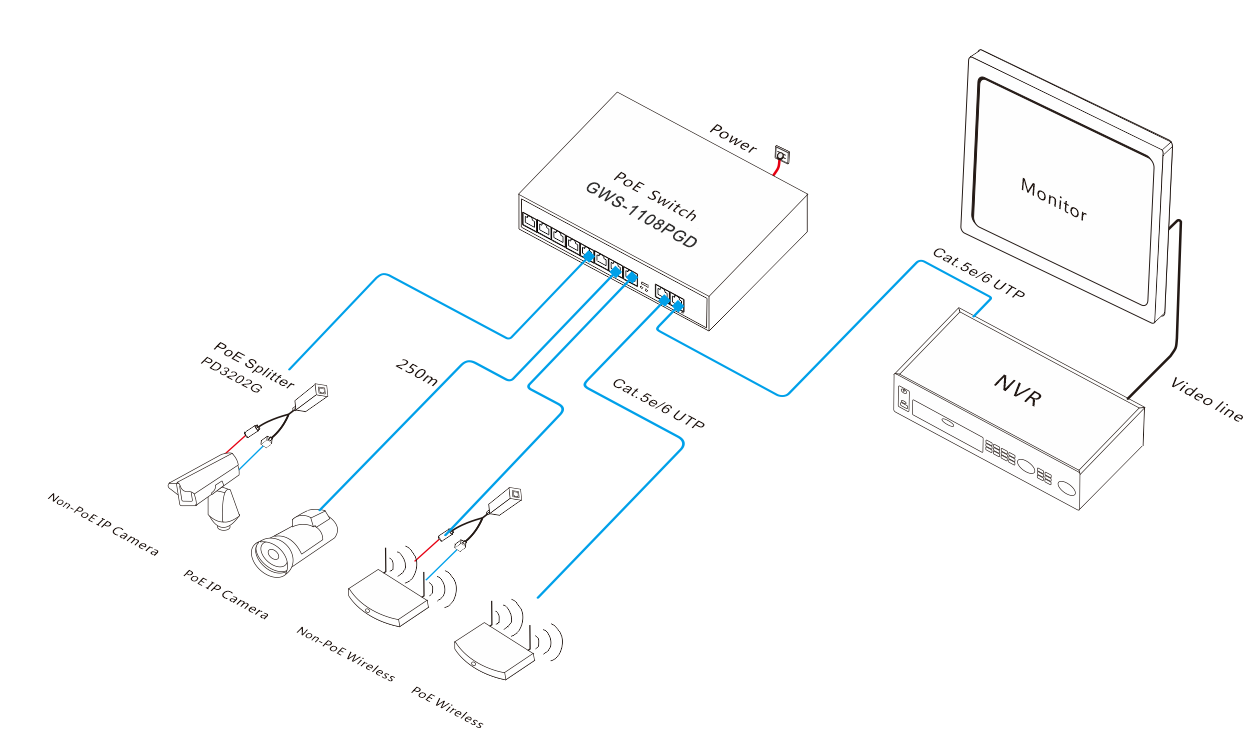

The GWS-1108PGD is an unmanaged PoE switch. It has 8*10/100Base-TX RJ45 ports and 2*10/100/1000Base-TX RJ45 ports. Port 1-8 can support IEEE 802.3 af/at PoE standard. Single port PoE power reaches 30W. As a PoE power supply device, it can automatically detect and recognize the power-receiving equipment that meets the standard and supply power through the network cable. It can supply power to POE terminal equipment such as wireless AP, IP camera, VoIP phone, and building visual access control, intercom through a network cable, to meet the network environment that needs high-density PoE power supply, suitable for hotels, campuses, parks, supermarkets, scenic spots, factory quarters and SMB small and medium-sized enterprises form a cost-effective network. Unmanaged mode, plug, and play, no configuration, easy to use.
Feature
n 10/100Mbps access, Gigabit Dual RJ45 ports uplink
◇ Support non-blocking wire-speed forwarding.
◇ Support full-duplex based on IEEE802.3x and half-duplex based on Backpressure.
◇ Provide Ethernet ports and Gigabit RJ45 ports uplink for flexible networking and meets the networking requirements of various scenarios.
n Intelligent PoE power supply
◇ 8*10/100Base-TX RJ45 ports support PoE power to meet the needs of PoE power in various scenarios in the security field.
◇ Comply with PoE+ power standard, automatically identify PoE devices for power without damaging non-PoE devices, and the single port max PoE output power is 30W.
◇ The PoE port supports the watchdog function, which automatically detects the data communication status in real-time. When the port communication fails, the corresponding port PoE will automatically restart and repair the network communication by itself.
n Innovative function
◇ PoE watchdog: The watchdog function is enabled by default for ports 1 to 8, which can automatically detect the data communication status in real-time. When the port communication fails, the corresponding port POE will automatically restart, and the network communication can be repaired by itself, eliminating manual maintenance costs.
◇ Long-distance and VLAN mode (E): switch to "ON" position (default "OFF"), the port 1 to 8 rate is 10M, and the physical VLAN isolation function is turned on at the same time to suppress broadcast storms and improve network performance. Using the existing twisted pair can break through the 100 meters transmission limit, and the transmission distance can be up to 250 meters. At the same time, it can solve the problem of poor transmission caused by aging lines.
n Stable and reliable, easy to use
◇ CCC, CE, FCC and RoHS.
◇ Plug and play, no configuration required, easy to use and maintain.

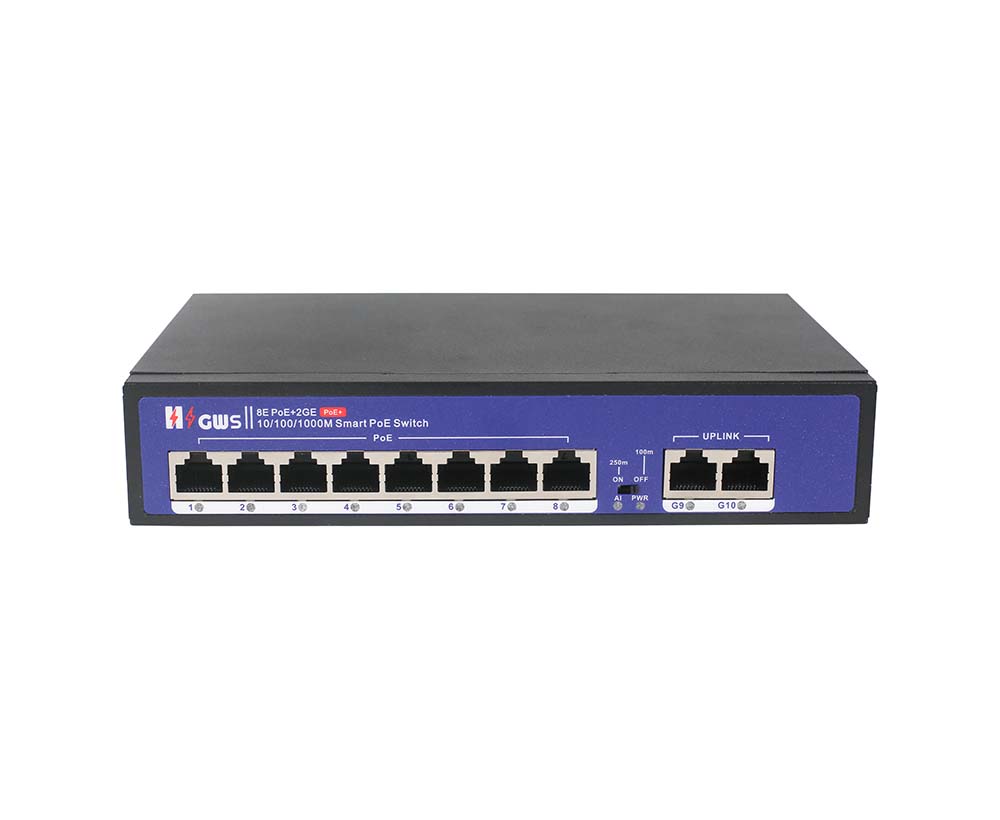

◇ The user-friendly panel, it can show the device status through the LED indicator of PWR, Link, PoE.
◇ Low power consumption, no fan, galvanized steel shell, excellent heat dissipation to ensure stable operation of the equipment.

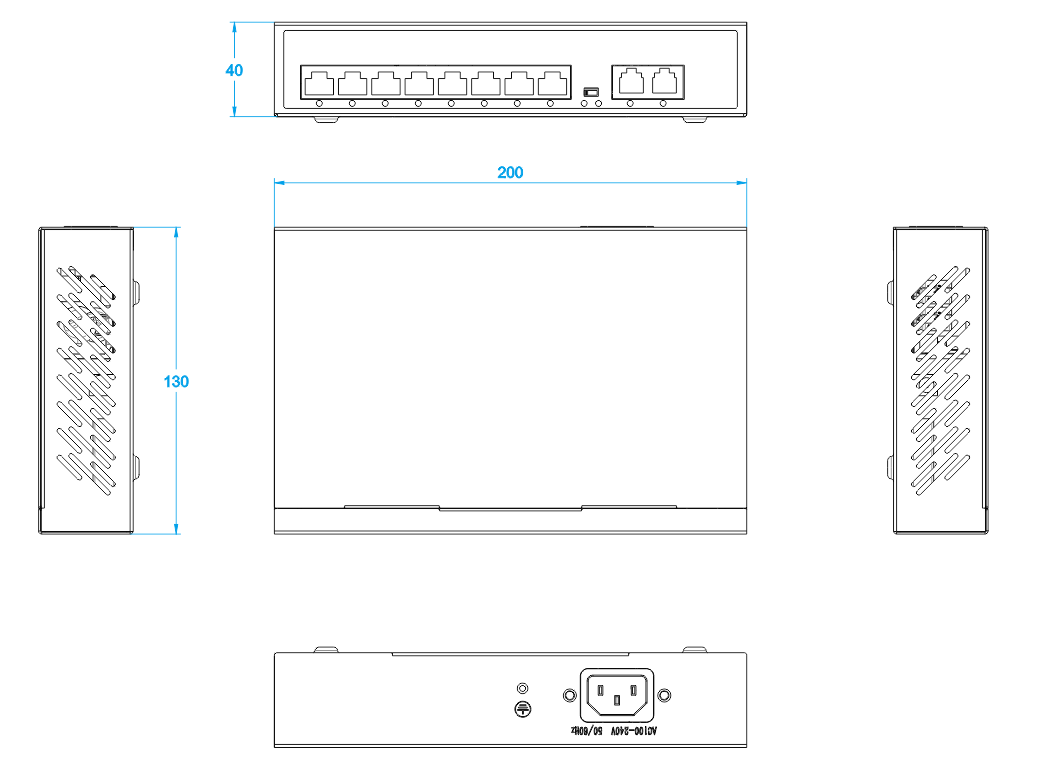

Dimension
Ordering Information
|
Model |
Description |
Built-in Power Supply |
|
GWS-1108PGD |
Unmanaged PoE switch has 8*10/100M PoE ports and 2*10/100/1000Base-T RJ45 ports.. Ports 1-8 support PoE+ standard. The POE watchdog function is turned on by default(automatically restart PoE to realize network self-healing), switch the functional switch, ports 1-8 rate is 10M/250 meters transmission and built-in power supply. |
120W/52V |
|
Note: Default wall-mounted installation does not include mounting ears. If need to configure it, need to purchase it separately. |
||
Packing List
|
Packing List |
Content |
Qty |
Unit |
|
10-port Gigabit Uplink PoE Switch |
1 |
SET |
|
|
AC Power Cable |
1 |
PC |
|
|
User Guide |
1 |
PC |
|
|
Warranty Card |
1 |
PC |
|
Model |
GWS-1108PSD |
|
Interface Characteristics |
|
|
Fixed Port |
8*10/100Base-TX PoE ports (Data/Power) 2*10/100/1000Base-T uplink RJ45 ports (Data) |
|
Ethernet Port |
Port 1-8 can support 10/100Base-T(X) and 9-10 can support 100/1000Base-T automatic detection, full/half-duplex MDI/MDI-X auto-sensing |
|
Twisted Pair Transmission |
10BASE-T: Cat3,4,5 UTP(≤250 meters) 100BASE-TX: Cat5 or later UTP(≤100 meters) 1000BASE-T：Cat5e or later UTP(≤100 meter) |
|
Functional Switch
|
E: long-distance and VLAN isolation function (Default: OFF, Use:ON), After opening, the transmission rate of ports 1-8 is 10M to achieve 250 meters transmission. |
|
Chip Parameter |
|
|
Network Protocol |
IEEE802.3 10BASE-T； IEEE802.3i 10Base-T； IEEE802.3u 100Base-TX； IEEE802.3ab 1000Base-T； IEEE802.3x |
|
Forwarding Mode |
Store and Forward(Full Wire Speed) |
|
Switching Capacity |
5.6Gbps |
|
Forwarding Rate@64byte |
4.17Mpps |
|
MAC |
2K |
|
Buffer Memory |
2M |
|
Jumbo Frame |
1536byte |
|
LED Indicator |
Power: PWR (green), Functional switch: EXTEND (Green) Network/ PoE: 1-8: (Green) |
|
PoE & Power Supply |
|
|
PoE Port |
Port 1 to 8 IEEE 802.3 af/at |
|
Power Supply Pin |
1/2(+) 3/6(-) |
|
Max Power Per Port |
30W, PoE+ |
|
Total PWR / Input Voltage |
120W (AC100-240V) |
|
Power Consumption |
Standby<5W, Full load<120W |
|
Power Supply |

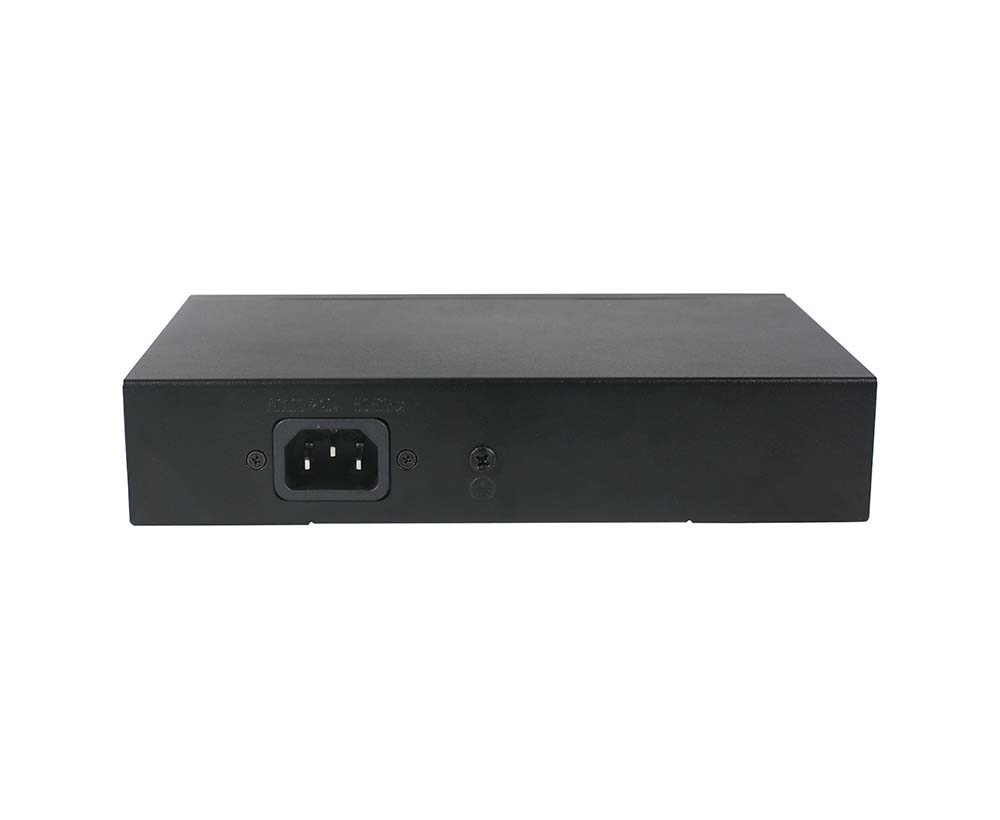

Built-in power supply, AC100-240V 50-60Hz 2.2A |
|
Physical Parameter |
|
|
Operation TEMP / Humidity |
-20~+55°C, 5%~90% RH Non condensing |
|
Storage TEMP / Humidity |
-40~+75°C, 5%~95% RH Non condensing |
|
Dimension (L*W*H) |
200*130*40mm |
|
Net /Gross Weight |
<0.8kg / <1.2kg |
|
Installation |
Desktop, Wall-mounted |
|
Certification & Warranty |
|
|
Lightning Protection |
Lightning protection: 4KV 8/20us, Protection level: IP30 |
|
Certification |
CCC, CE mark, commercial, CE/LVD EN62368-1, FCC Part 15 Class B, RoHS |
|
Warranty |
1 year, lifelong maintenance. |
