Overview

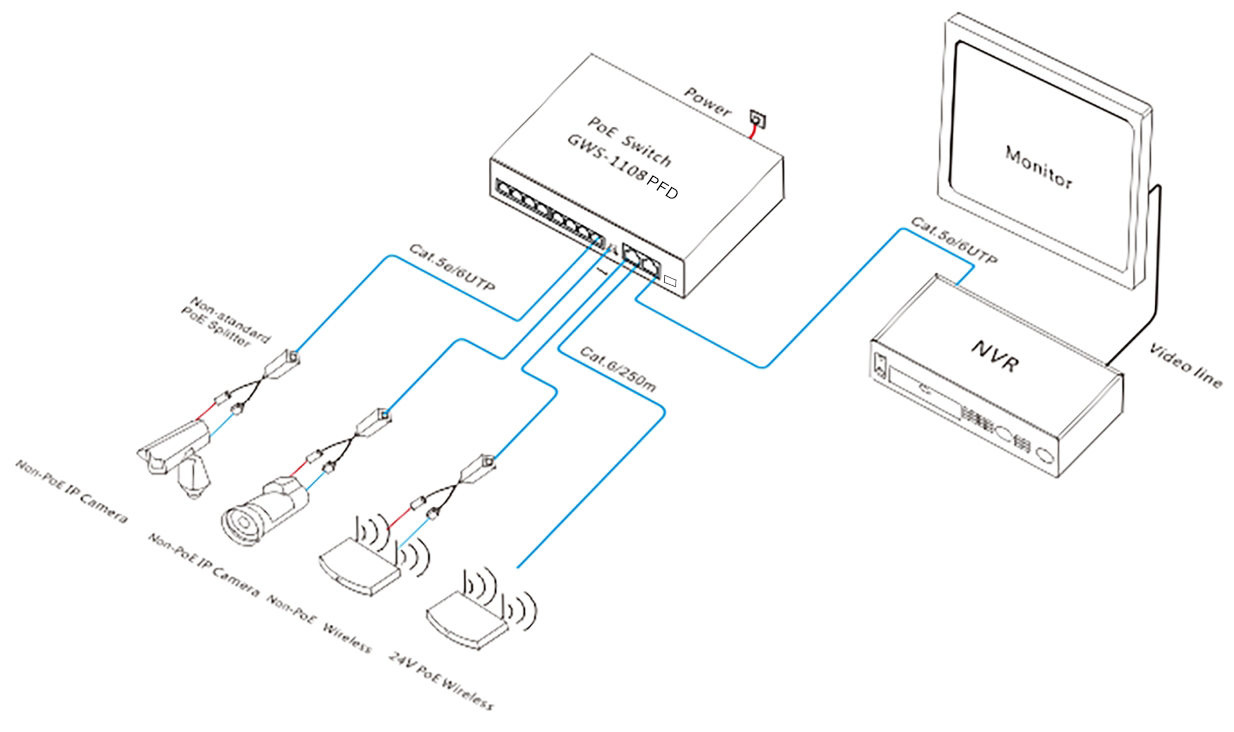

The GWS-1108PFD is an unmanaged PoE switch. It has 8*10/100M Base-T PoE ports, 2*10/100/1000M Base-T uplink RJ45 ports and 1*1000M Base-X uplink SFP ports. Port 1-8 can support IEEE 802.3 af/at PoE standard. Single port PoE power reaches 30W. The PoE port supports the watchdog function. When the port communication fails, the POE of the corresponding port will automatically restart, and the network communication will be restored by itself without affecting the normal operation of other ports, reducing manual intervention and maintenance costs. As a PoE power supply device, it can automatically detect and recognize the power-receiving equipment that meets the standard and supply power through the network cable. It can supply power to POE terminal equipment such as wireless AP, IP camera, VoIP phone, and building visual access control, intercom through a network cable, to meet the network environment that needs high-density PoE power supply, suitable for hotels, campuses, parks, supermarkets, scenic spots, factory quarters and SMB small and medium-sized enterprises form a cost-effective network.

Unmanaged model, plug and play, no configuration, easy to use.

Feature

100Mbps rate, Gigabit optical ports uplink

◇ Support non-blocking wire-speed forwarding for smoother transmission.

◇ Support IEEE 802.3x full-duplex flow control and Backpressure half-duplex flow control.

◇ Provides Ethernet ports and Gigabit SFP ports uplink for flexible networking and meets the networking requirements of various scenarios.

Intelligent PoE power supply

◇  8*10/100Base-TX RJ45 ports support PoE power to meet the needs of PoE power in various scenarios in the security field.

◇  Comply with PoE+ power standard, automatically identify PoE devices for power without damaging non-PoE devices, and the single port max PoE output power is 30W.

◇  The PoE port supports the watchdog function, which automatically detects the data communication status in real-time. When the port communication fails, the corresponding port PoE will automatically restart and repair the network communication by itself.

Stable and reliable, easy to use

◇ CCC,CE, FCC, RoHS.

◇ Plug and play, no configuration, simple and convenient.

◇ Low power consumption, galvanized steel casing, no fan.

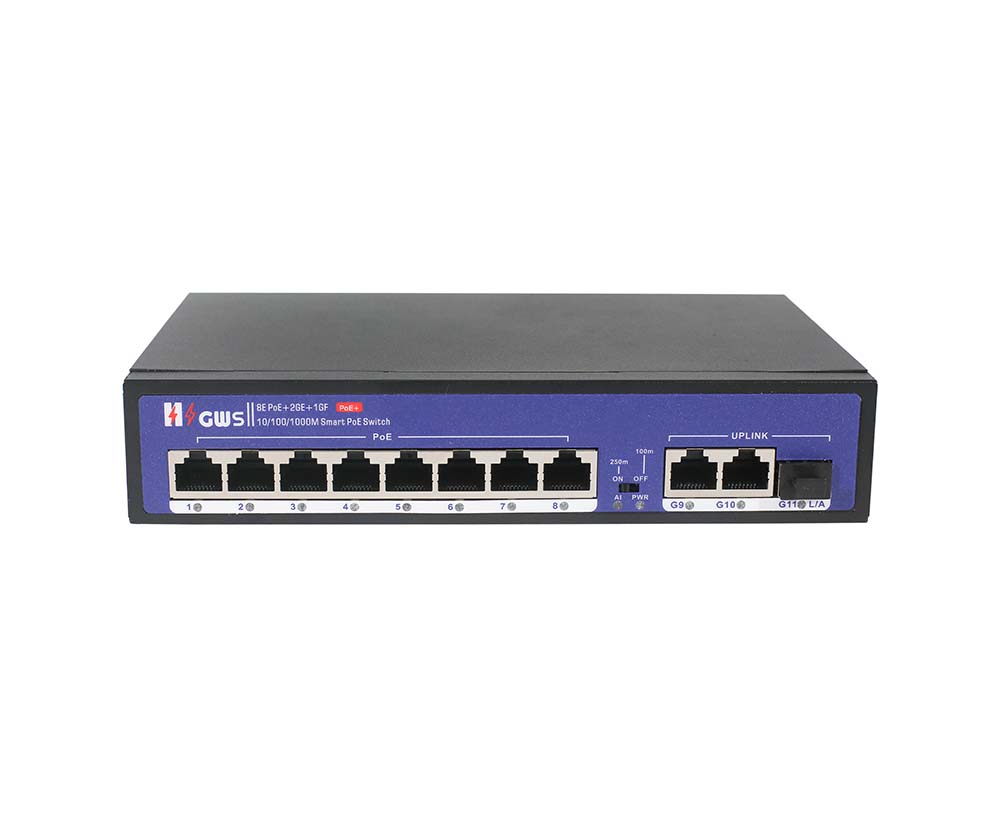

◇ The user-friendly panel can show the device status through the LED indicator of PWR, Link, PoE.

◇ Self-developed power supply, high redundancy design, providing a long term and stable PoE power output.

 Innovative function

◇  PoE watchdog: The watchdog function is enabled by default for ports 1 to 8, which can automatically detect the data communication status in real-time. When the port communication fails, the corresponding port POE will automatically restart, and the network communication can be repaired by itself, eliminating manual maintenance costs.

◇  Long-distance and VLAN mode (E): switch to "ON" position (default "OFF"), the port 1 to 8 rate is 10M, and the physical VLAN isolation function is turned on at the same time to suppress broadcast storms and improve network performance. Using the existing twisted pair can break through the 100 meters transmission limit, and the transmission distance can be up to 250 meters. At the same time, it can solve the problem of poor transmission caused by aging lines.

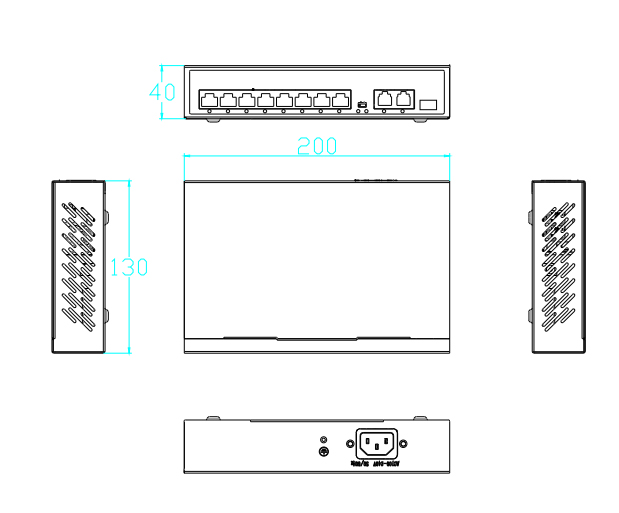

Dimension

Ordering Information

Packing List
