OVERVIEW

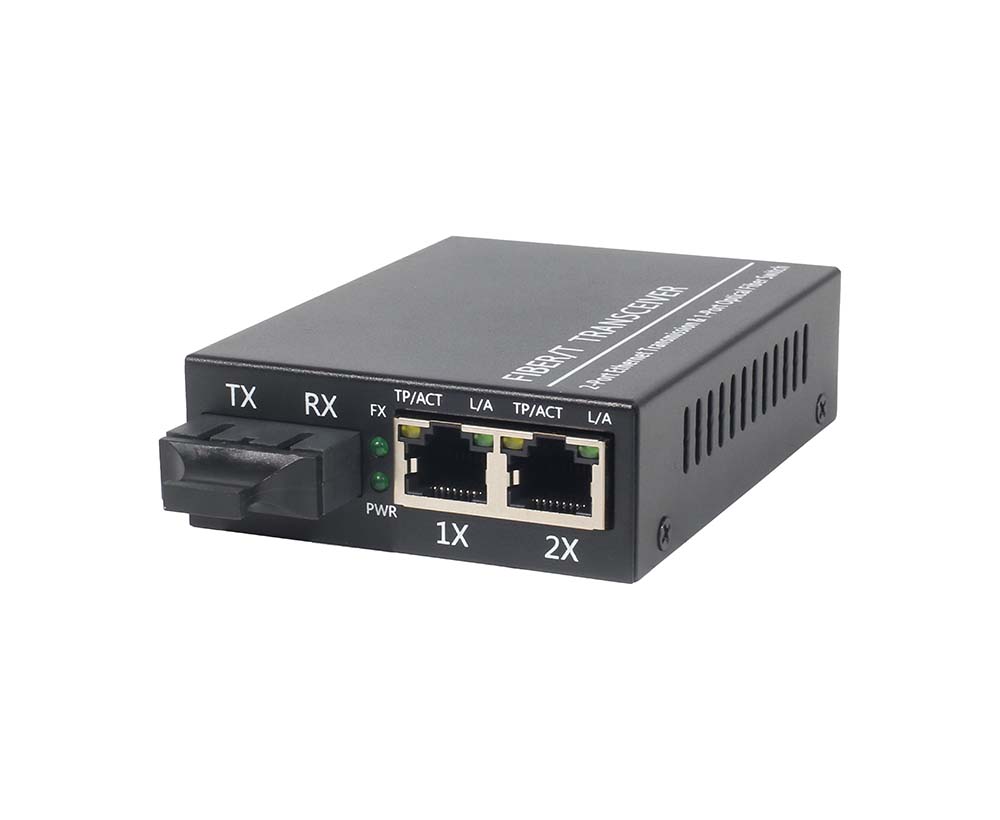

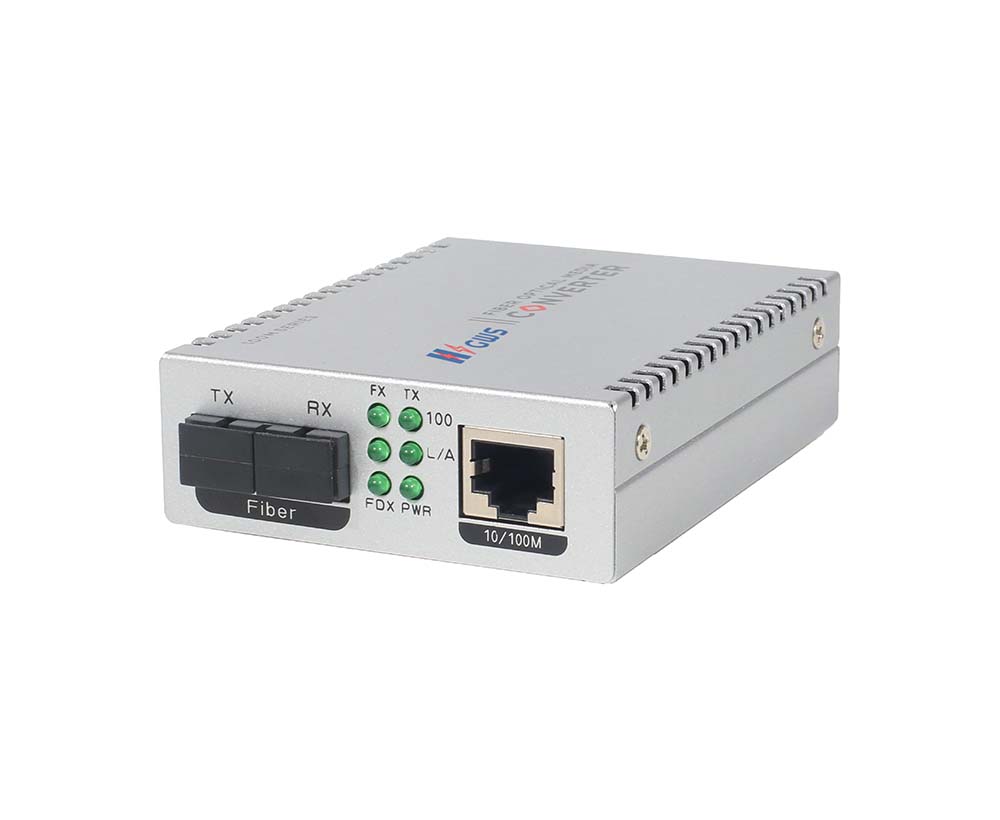

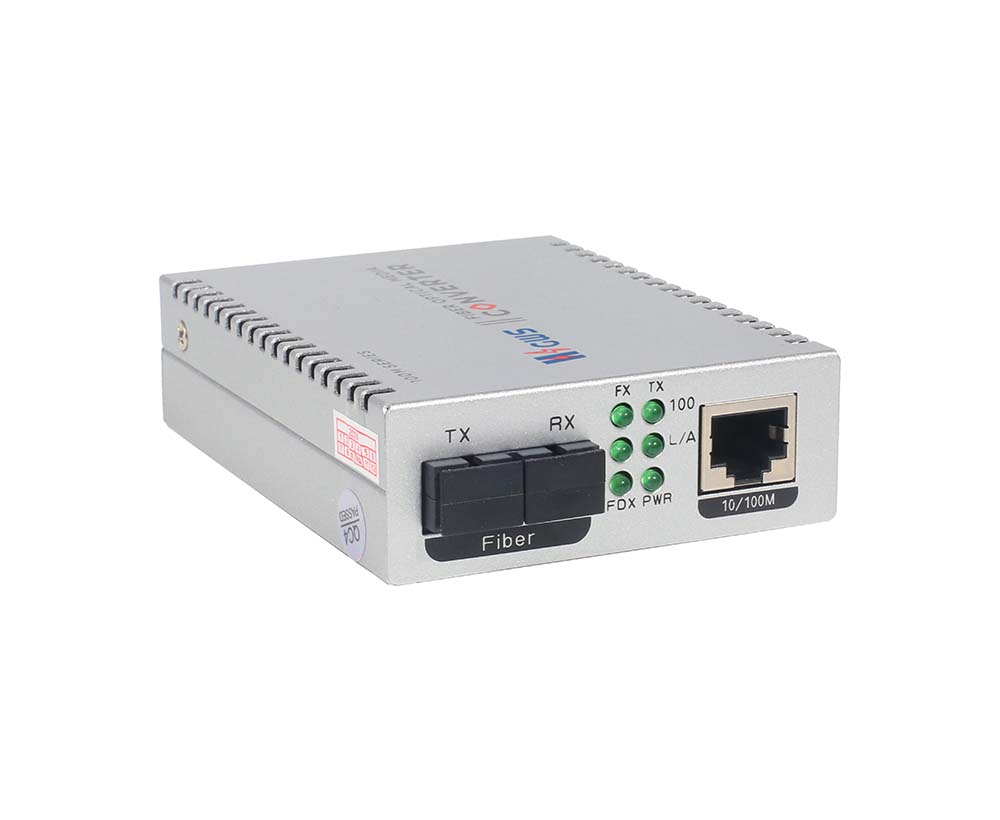

0110-SCX-O series is a 10/100M fiber media converter. It has 1* 10/100Base-TX port and 1*155M uplink SC fiber port, User can select different optical modules, such as multimode dual fiber, single-mode dual fiber, and single-mode single fiber. The media converter adopts the enterprise-class Taiwan Realtek company's carrier-grade chip solution, which has stable performance, good quality and high cost performance.It is suitable for optical fiber access application scenarios such as security monitoring, wireless coverage, intelligent transportation, and safe cities to form a cost-effective and stable communication network.
Unmanaged model, plug and play, no configuration, easy to use.
FEATURE
n 10/100M photoelectric Ethernet conversion transmission
◇ All series supports 100M RJ45 port and 155M fiber port combination, which enables users to flexibly build networking to meet the needs of various scenarios.
◇ Support non-blocking wire-speed forwarding.
◇ Support full-duplex based on IEEE802.3x and half-duplex based on backpressure.
n Easy to use and simple to maintain
◇ Compatible with IEEE802.3u 100Base-TX/FX network protocol,10/100M R45 port rate auto-negotiation
◇ Support full-duplex/half-duplex working mode with auto-negotiation function
◇ Automatic identification of twisted pair MDI/MDI-X cross lines and parallel lines
◇ Plug and play, no configuration required, centralized power supply and centralized connection management through 2U-14 slot rack
◇ LED working status indication for network diagnosis and fault checking, reducing maintenance workload.
n Stable and reliable
◇ Low power consumption, No fan , galvanized steel casing.
◇ CCC,CE, FCC, RoHS.
◇ Comply with telecommunication network access requirements, and have the telecommunications equipment network access license of the MIIT.
ORDERING INFORMATION
|
Model |
Description |
|
0110-MCX-O |
10/100M multimode dual fiber media converter with 1*10/100M RJ45 port and 1*155M SC fiber port. Total power is 3W, 850nm/1310nm, default transmission distance 0-2km. External power supply. |
|
0110-SCX-O |
10/100M single-mode dual fiber media converter with 1*10/100M RJ45 port and 1*155M SC fiber port. Total power is 3W, 1310nm, default transmission distance 0-20km. External power supply. |
|
0110S-SCX-O-A |
10/100M single-mode single fiber media converter with 1*10/100M RJ45 port and 1*155M SC fiber port. Total power is 3W, 1310nm/1550nm, default transmission distance 0-20km. External power supply. |
|
0110S-SCX-O-B |
10/100M single-mode single fiber media converter with 1*10/100M RJ45 port and 1*155M SC fiber port. Total power is 3W, 1310nm/1550nm, default transmission distance 0-20km. External power supply. |
PACKING LIST
|
PACKING LIST |
CONTENT |
QTY |
UNIT |
|
2-port 10/100M single-mode dual fiber media converter |
1 |
SET |
|
|
User Guide |
1 |
PC |
|
|
Warranty Card |
1 |
PC |
|
Model |
0110-MCX-O |
0110-SCX-O |
0110S-SCX-O-A/B |
|
Interface Characteristics |
|||
|
Interface |
1* 10/100Base-TX RJ45 port (Data) 1*155M uplink SC fiber port (Data) |
||
|
Ethernet Port |
10/100Base-TX,auto-sensing,Full/half duplex MDI/MDI-X self-adaption |
||
|
Twisted Pair Transmission |
10BASE-T: Cat3,4,5 UTP(≤100 meter) 100BASE-TX: Cat5 or later UTP(≤100 meter) |
||
|
Optical Fiber Port |
155Mbps, multimode dual fiber SC interface |
155Mbps,single-mode dual fiber SC interface |
155Mbps,single-mode single fiber SC interface |
|
Optical Cable/ Distance |
multimode: 850nm / 0 ~ 500m, 1310nm / 0 ~ 2km; single mode: 1310nm / 0 ~ 40km, 1550nm 0 ~ 120km. |
||
|
Chip Parameter |
|||
|
Network Protocol |
IEEE802.3 10BASE-T, IEEE802.3i 10Base-T IEEE802.3u 100Base-TX, IEEE802.3u 100Base-FX IEEE802.3x |
||
|
Forwarding Mode |
Store and Forward(Full Wire Speed) |
||
|
Switching Capacity |
1.0Gbps |
||
|
Forwarding Rate@64byte |
0.3Mpps |
||
|
MAC |
1K |
||
|
Buffer Memory |
768K |
||
|
Jumbo Frame |
1536byte |
||
|
LED Indicator |

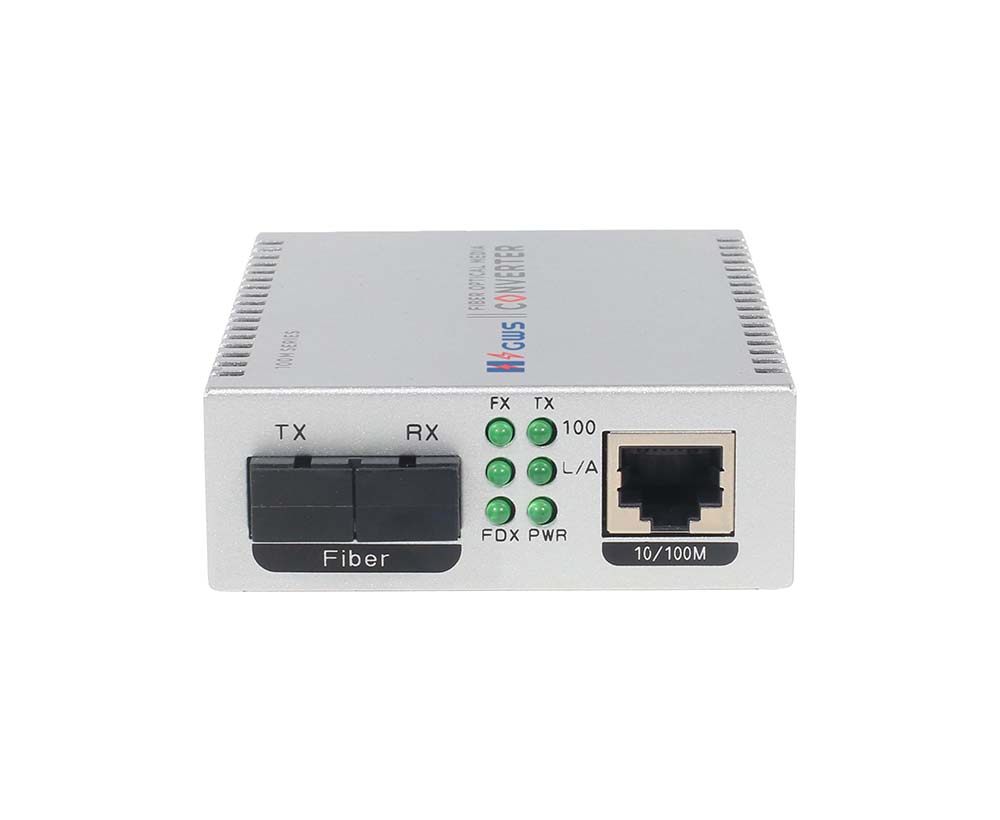

Power: PWR (green), Data: L/A (green), Single / duplex: FDX (green) , Fiber :FX(green), rate: 10/100 (green) |
||
|
Power |
|||
|
Total PWR / Input Voltage |

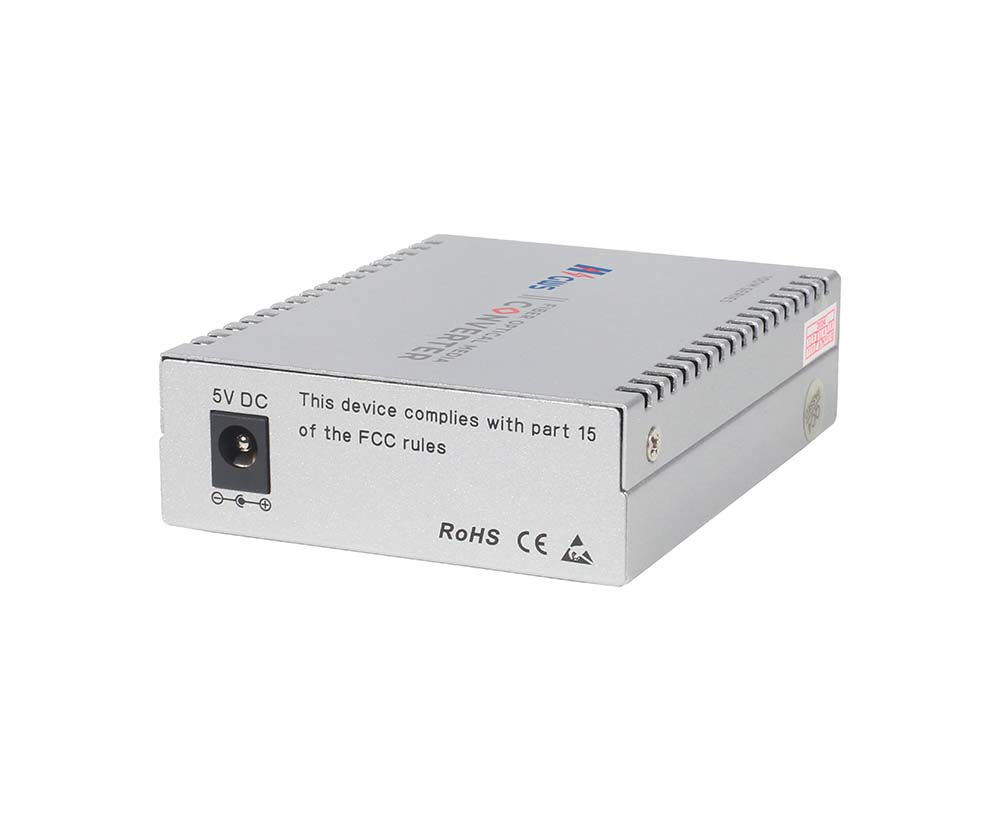

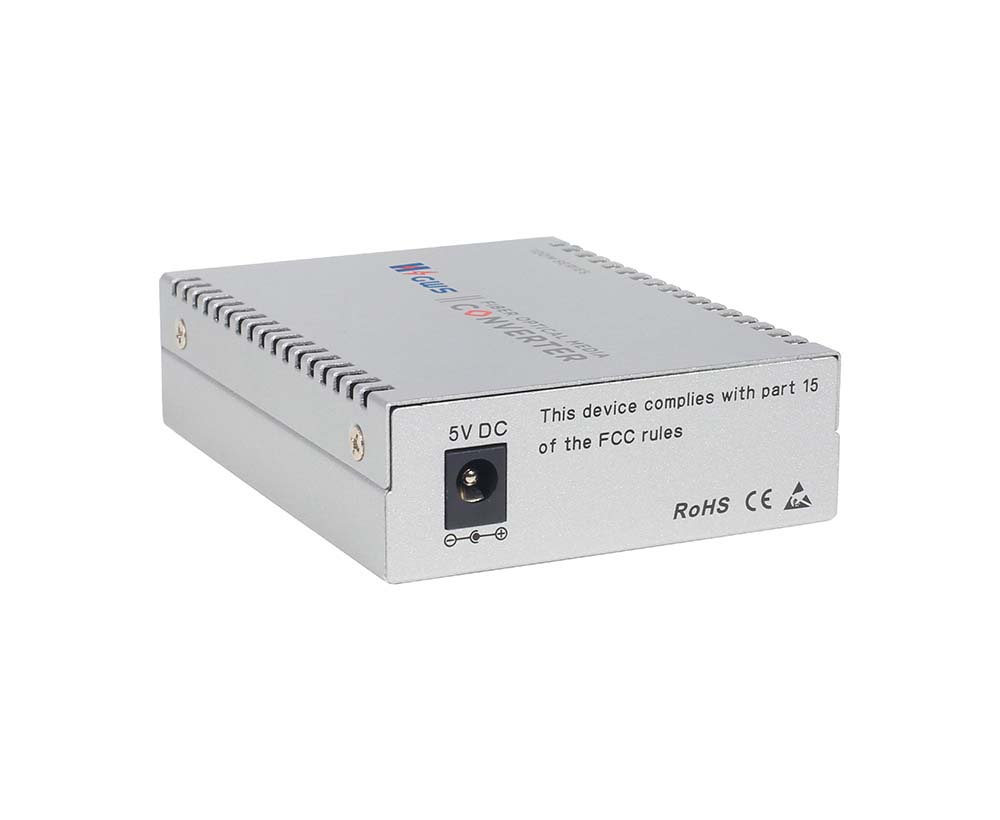

3W/ (5VDC) |
||
|
Power Consumption |
Standby<1W,Full Load<3W |
||
|
Physical Parameter |
|||
|
Operation TEMP / Humidity |
-20~+55°C;5%~90% RH Non condensing |
||
|
Storage TEMP / Humidity |
-40~+85°C;5%~95% RH Non condensing |
||
|
Dimension (L*W*H) |
94*71*26mm |
||
|
Net /Gross Weight |
<0.2kg / <0.4kg |
||
|
Installation |
Desktop, 2U-14 slot rack |
||
|
Certification & Warranty |
|||
|
Lightning protection / protection level |
Lightning protection: 4KV 8/20us, Protection level: IP30 |
||
|
Certification |
CCC;CE mark, commercial; CE/LVD EN60950;FCC Part 15 Class B; RoHS |
||
|
Warranty |
3 years, lifelong maintenance. |
||
