Overview

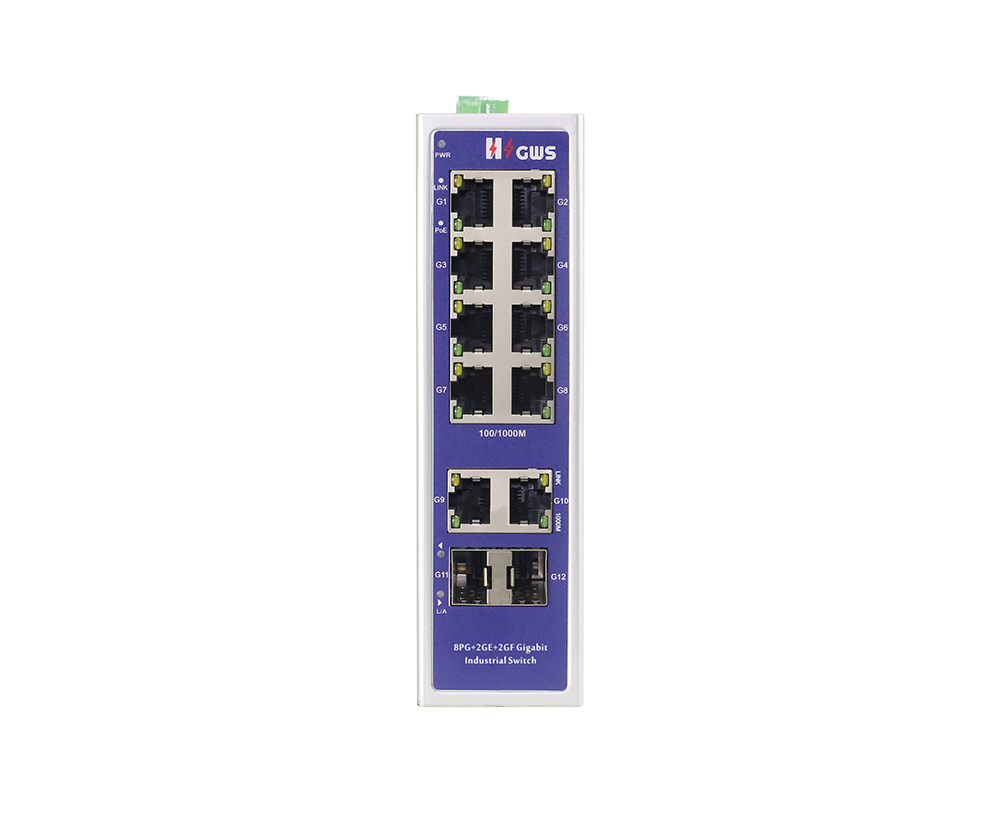

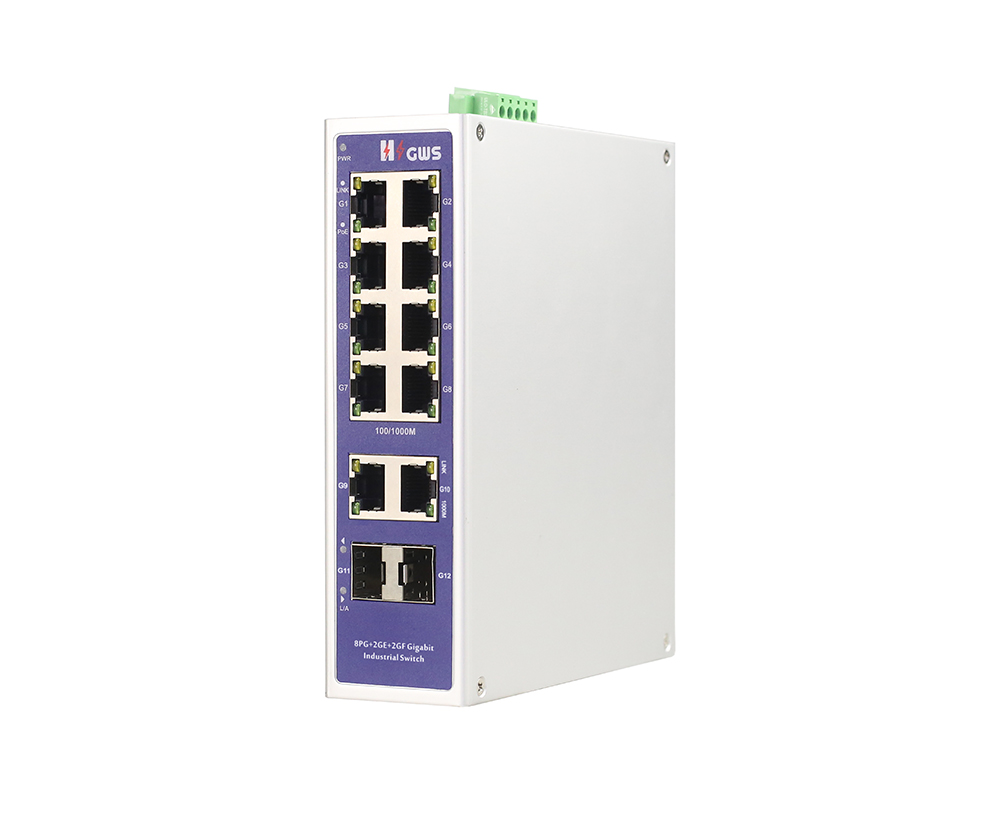

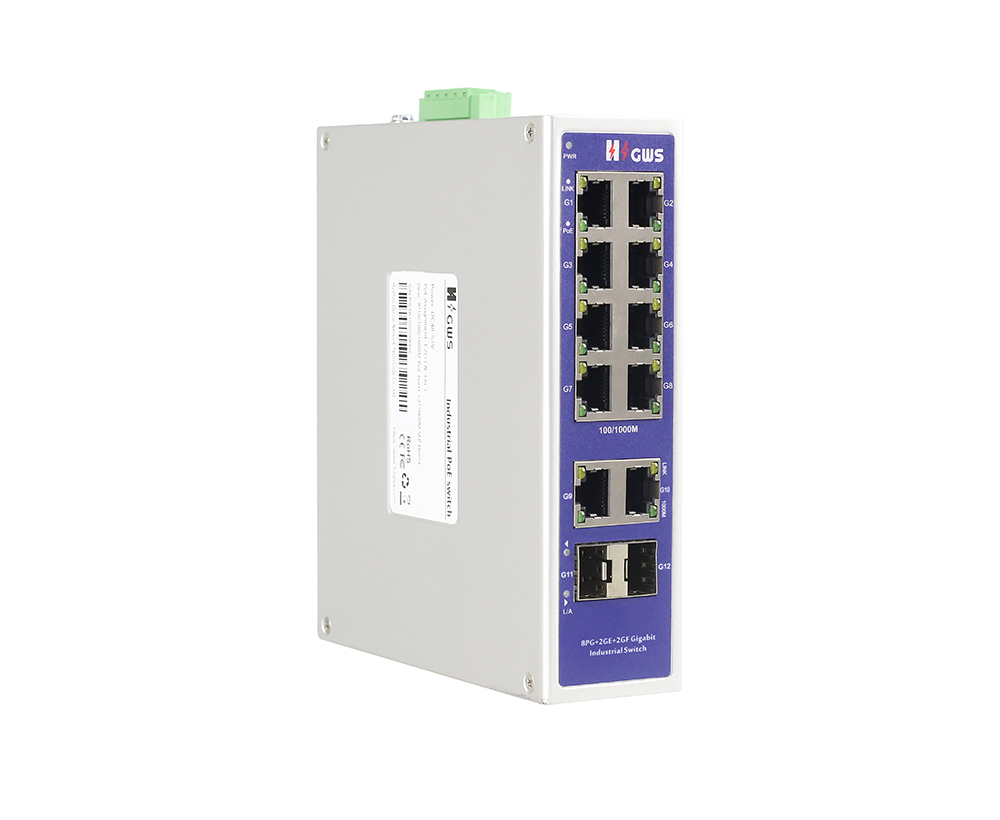

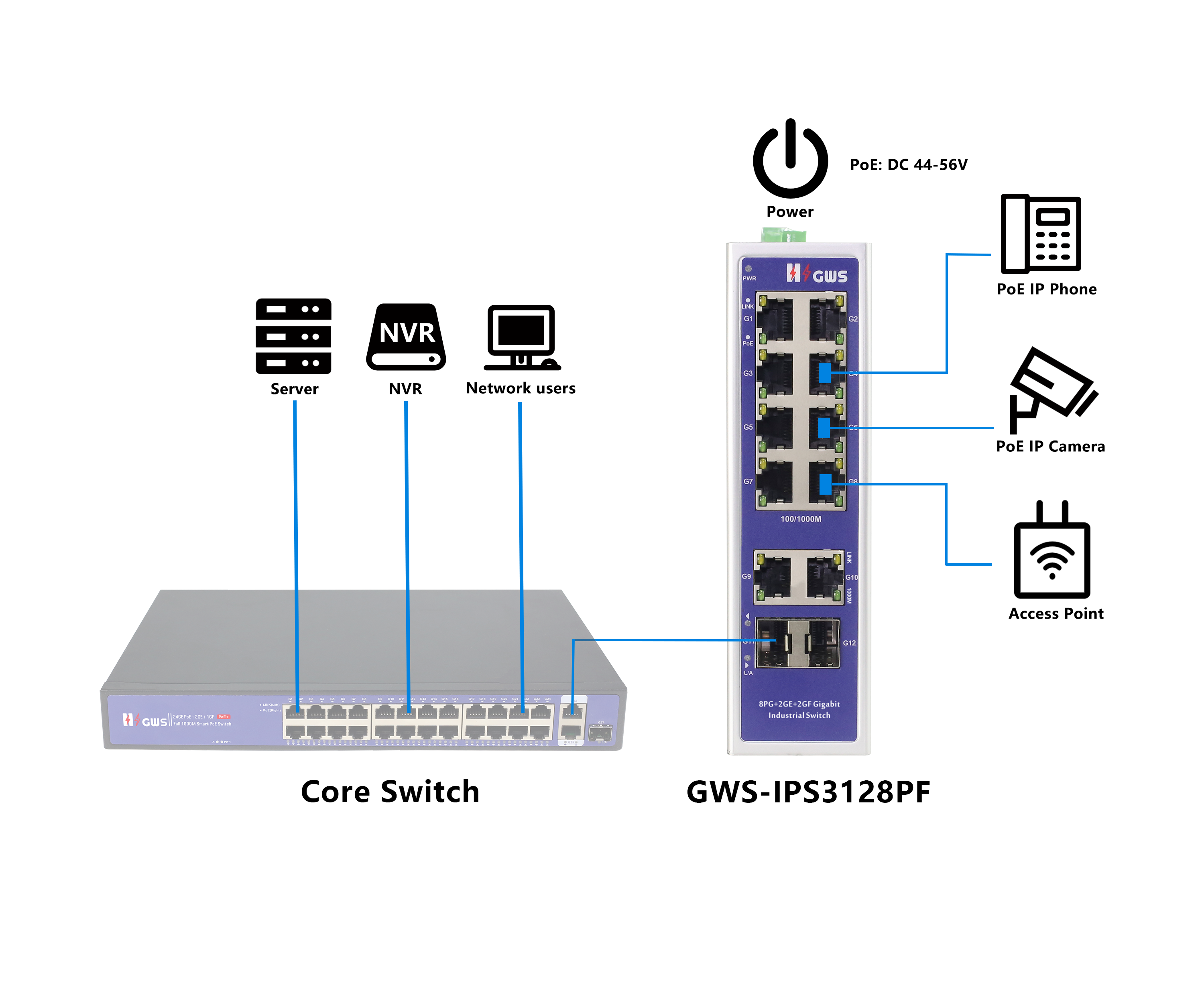

The GWS-IPS3128PF series is a full gigabit industrial PoE fiber switch. It has 10*10/100/1000Base-T RJ45 ports and 2*1000Base-X uplink SFP slot ports. Port 1-8 can support IEEE 802.3af/at PoE standard, single-port PoE power up to 30W. As a PoE power supply device, it can automatically detect and recognize the power receiving equipment that meets the standard and supply power through the network cable. It can supply power to PoE terminal device such as wireless AP, IP camera,industrial sensor through the network cable, and meet the network environment that needs high-density PoE power supply. It is suitable for intelligent transportation, rail transit, power industry, mining, petroleum, sea transportation. Industrial scenes such as metallurgy and green energy construction form a cost-effective, stable and reliable communication network.
Unmanaged mode, plug, and play, no configuration, easy to use.
Feature
n Gigabit Ethernet port access，uplink gigabit dual SFP port
◇ Uplink gigabit dual SFP fiber ports, easy to achieve high bandwidth and long-distance transmission.
◇ Dual SFP fiber ports can cascade, chain, compatible with SFP module connection.
n Intelligent PoE power supply
◇ 8*10/100/1000Base-T RJ45 ports, meeting the needs of security monitoring, teleconferencing system, wireless coverage, and other scenarios.
◇ IEEE 802.3af/at PoE standard, without damaging non-PoE devices.
◇ Priority system for PoE port, it will supply power to the high priority level port first when the power budget is insufficient and avoid overwork of the device.
n Stable and reliable
◇ Low power consumption, No fan low noise design, aluminum shell.
◇ CCC,CE, FCC, RoHS.
◇ The user-friendly panel, it can show the device status through the LED indicator of PWR,Link, L/A,PoE.

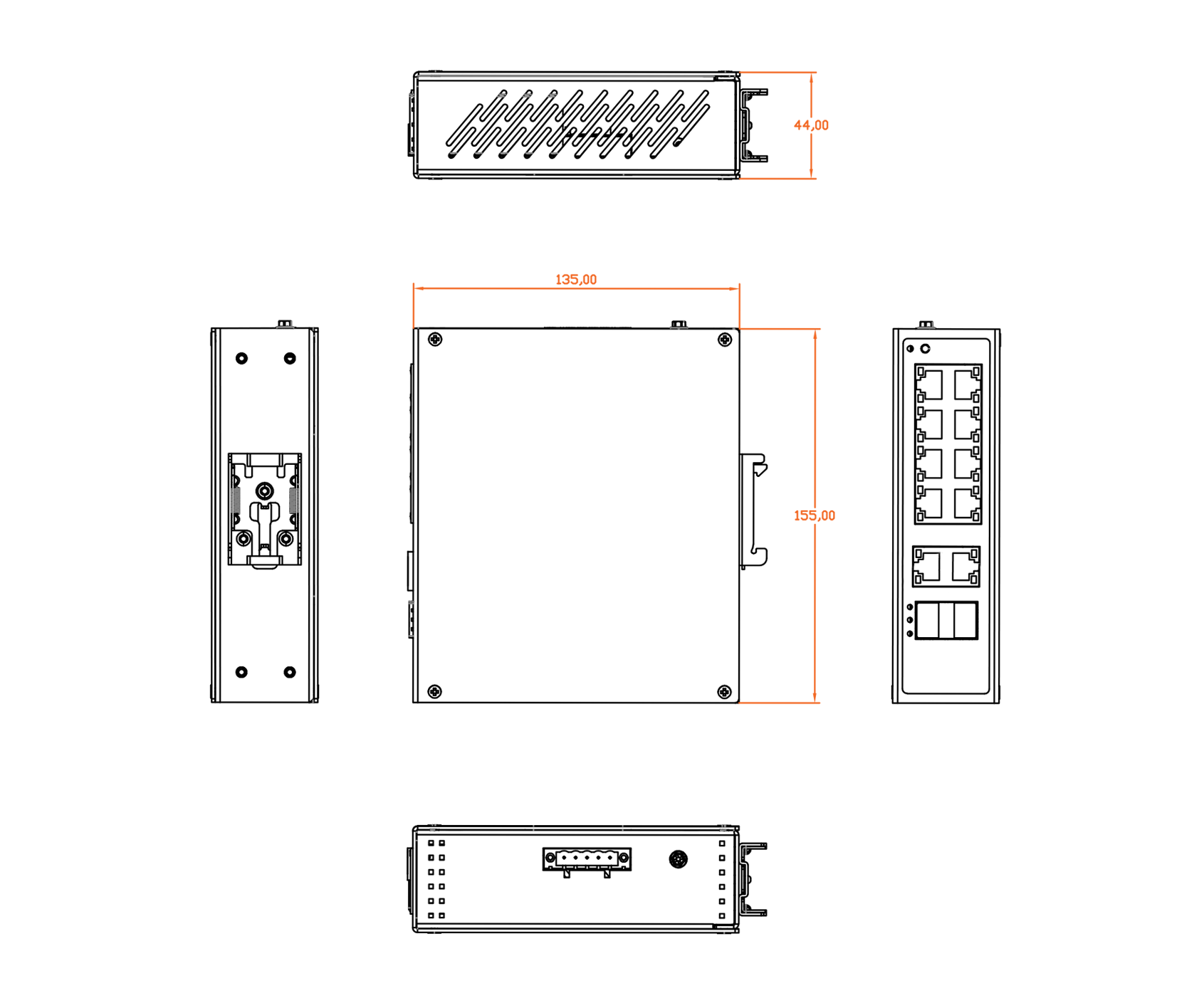

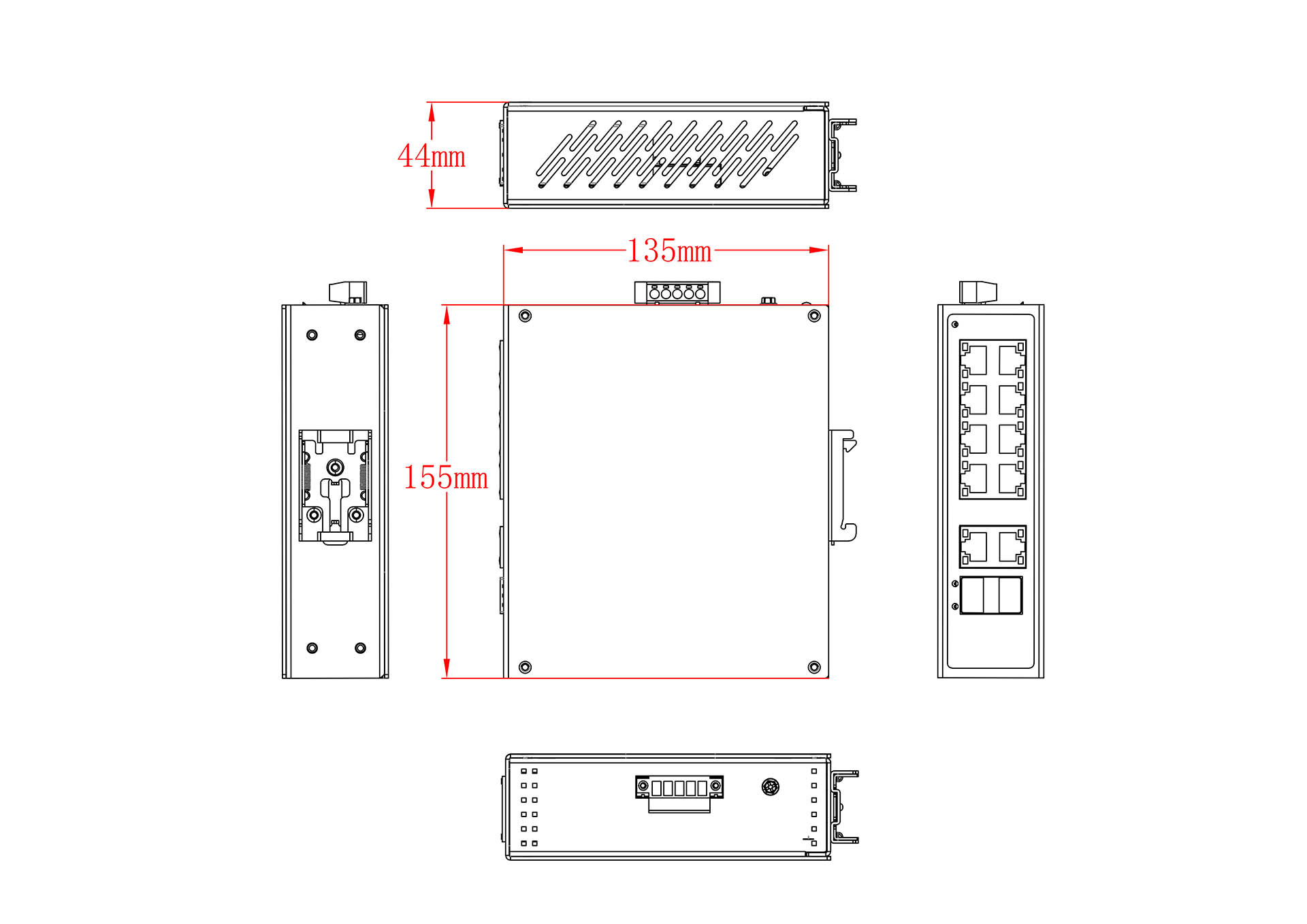

Dimension
Ordering Information
|
Model |
Description |
Recommended power supply |
|
GWS-IPS3128PF |
Unmanaged industrial PoE fiber switch with 10*10/100/1000M RJ45 ports and 2*1000M uplink SFP slot ports, Port 1-8 can support IEEE802.3af/at PoE. Support DC dual power supply input and DIN rail mounting. |
120W/240W |
|
Note: Industrial PoE switch does not match the SFP optical module and power supply. |
||
Packing List
|
PACKING LIST |
CONTENT |
QTY |
UNIT |
|
12-port full gigabit industrial PoE fiber switch |
1 |
SET |
|
|
User Guide |
1 |
PC |
|
|
Warranty Card |
1 |
PC |
Optical Module Information
|
Product |
Model |
Description |
Unit |
|
1.25G Optical Module
|
2630-G |
Industrial SFP optical module, 1.25G, multi-mode dual fiber 850nm, transmission distance: 550m, LC interface, support DDM function, support hot plug and pull. |
PC |
|
2632-G |
Industrial SFP optical module, 1.25G, single-mode dual fiber 1310nm, transmission distance: 20km, LC interface, support DDM function, support hot plug and pull. |
PC |
|
|
2612-T-G |
Industrial SFP optical module, 1.25G, single-mode single fiber TX1310nm/RX1550nm, transmission distance: 20km, LC interface, support DDM function, support hot plug and pull. |
PC |
|
|
2613-R-G |
Industrial SFP optical module, 1.25G, single-mode single fiber TX1550nm/RX1310nm, transmission distance: 20km, LC interface, support DDM function, support hot plug and pull. |
PC |
|
|
2612-T-G-SC |
Industrial SFP optical module, 1.25G, single-mode single fiber TX1310nm/RX1550nm, transmission distance: 20km, SC interface, support DDM function, support hot plug and pull. |
PC |
|
|
2613-R-G-SC |
Industrial SFP optical module, 1.25G, single-mode single fiber TX1550nm/RX1310nm, transmission distance: 20km, SC interface, support DDM function, support hot plug and pull. |
PC |
|
|
Power Module |
2633 |
1.25G SFP optical module transfers to 10/100/1000M RJ45 port. |
PC |
Power Supply
|
Product |
Model |
Description |
Unit |
|
130W Desktop Power Adaptor |
AP130-52 |
Desktop tape 130W single set of output power adapter; Input Voltage:AC 100V~240V 50-60Hz,2.3A Output Voltage:DC 52V 2.5A Operation Temperature:-20℃—+65℃ |
PC |
|
250W Desktop Power Adaptor |
AP250-52 |
Desktop tape 250W single set of output power adapter; Input Voltage:AC 100V~240V 50-60Hz,4.1A Output Voltage:DC 52V 4.8A Operation Temperature:-20℃—+65℃ |
PC |
|
120W DIN Rail Industrial Power Supply |
DP120-48 |
Din Rail type 120W single set of output power supply; Input Voltage:AC 100V~240V 50-60Hz,1.5A Output Voltage:DC 48V 2.5A Operation Temperature:-40℃—+70℃ |
PC |
|
240W DIN Rail Industrial Power Supply |
DP240-48 |
Din Rail type 240W single set of output power supply; Input Voltage:AC 100V~240V 50-60Hz,3A Output Voltage:DC 48V 5A Operation Temperature:-40℃—+70℃ |
PC |
|
Model |
GWS-IPS3128PF |
|
Interface Characteristics |
|
|
Fixed Port |

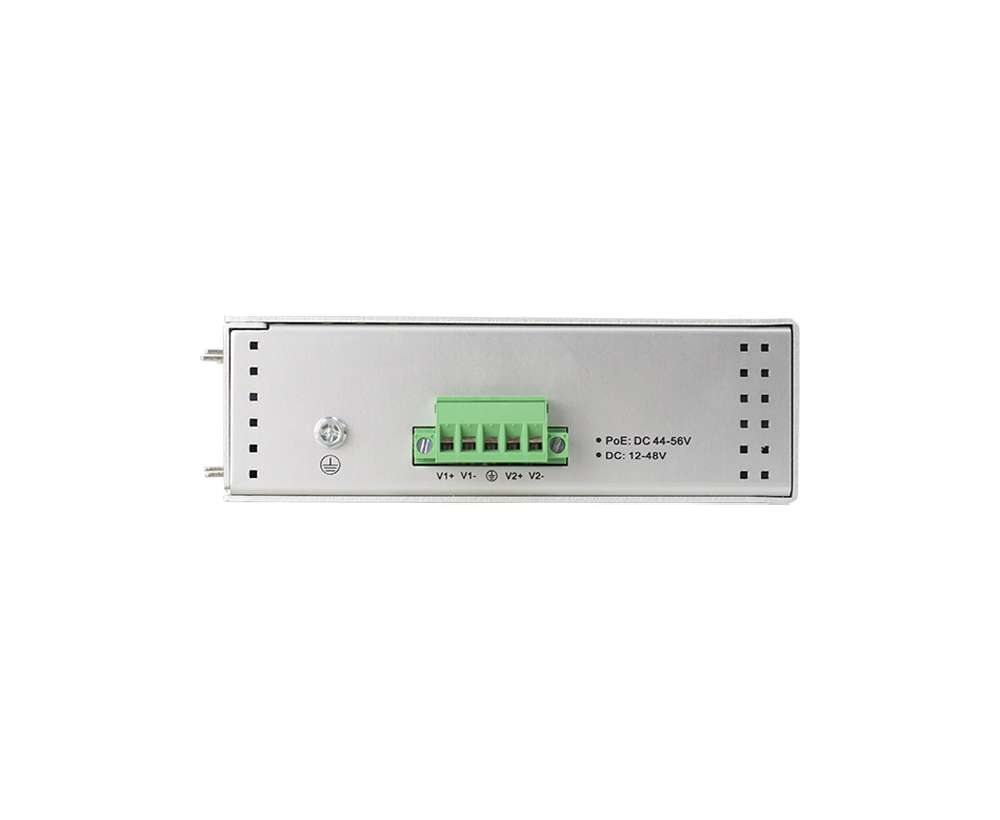

8*10/100/1000Base-T PoE ports (Data/Power) 2*10/100/1000Base-T uplink RJ45 ports (Data) 2*1000Base-X uplink SFP fiber slot ports (Data) 2 sets of V+, V- redundant DC power port (5P Phoenix terminal) |
|
Ethernet Port |
10/100/1000Base-T,Auto-sensing,Full/half duplex MDI/MDI-X self-adaption |
|
Twisted Pair Transmission |
10BASE-T: Cat3,4,5 UTP(≤100 meter) 100BASE-TX: Cat5 or later UTP(≤100 meter) 1000BASE-T: Cat5e or later UTP(≤100 meter) |
|
Fiber Port |
Gigabit SFP optical fiber port, default matching optical modules (optional order single-mode / multi-mode, single fiber / dual fiber optical module. LC) |
|
Optical Cable |
Multimode: 850nm 0 ~ 550M, singlemode: 1310nm 0 ~ 40KM, 1550nm 0 ~ 120KM. |
|
Chip Parameter |
|
|
Network Protocol |
IEEE802.3 10BASE-T, IEEE802.3i 10Base-T, IEEE802.3u 100Base-TX,IEEE802.3ab 1000Base-T, IEEE802.3z 1000Base-X,IEEE802.3x |
|
Forwarding Mode |
Store and Forward(Full Wire Speed) |
|
Switching Capacity |
24Gbps |
|
Forwarding Rate@64byte |
17.86Mpps |
|
MAC |
8K |
|
Buffer Memory |
4Mb |
|
Jumbo Frames |
9.2KB |
|
LED Indicator |
Power: PWR (green);Network :Link G1-G10 (yellow); PoE : PoE G1-G8 (green);Fiber PortL/A G11-G12(green) |
|
PoE & Power |
|
|
PoE Port |
Port 1 to 8 IEEE802.3af/at @ POE |
|
Power Supply Pin |
1/2 (+), 3/6 (-) |
|
Max Power Per Port |
30W; IEEE802.3af/at |
|
Total PWR / Input Voltage |
120W-240W/48VDC |
|
Power Consumption |
Standby:<8W;Full load:<120W/at<240W |
|
Working Voltage |
44-56VDC; 5P industrial phoenix terminal, anti-reverse protection. |
|
Power Supply |
Self-purchased, optional 48V/120W or 48V/240W industrial power supply |
|
Physical Parameter |
|
|
Operation TEMP / Humidity |
-40~+75°C;5%~90% RH Non condensing |
|
Storage TEMP / Humidity |
-40~+85°C;5%~95% RH Non condensing |
|
Dimension |
155*135*44mm |
|
Net /Gross Weight |
<0.6kg / <0.75kg |
|
Installation |

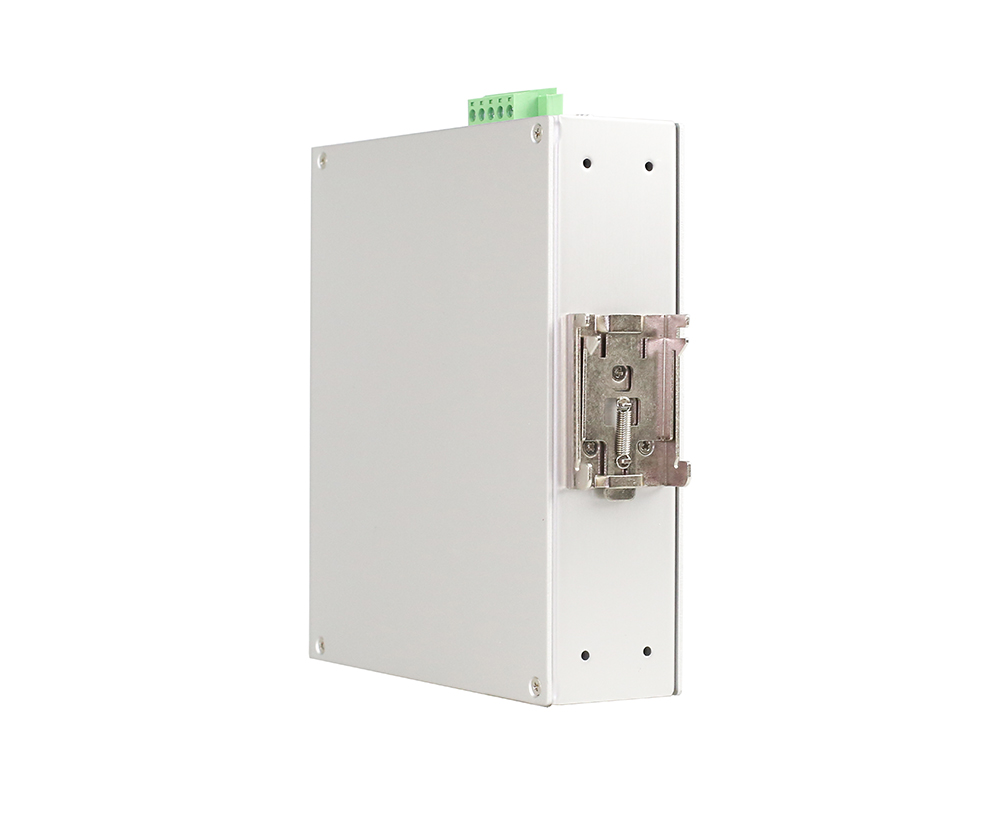

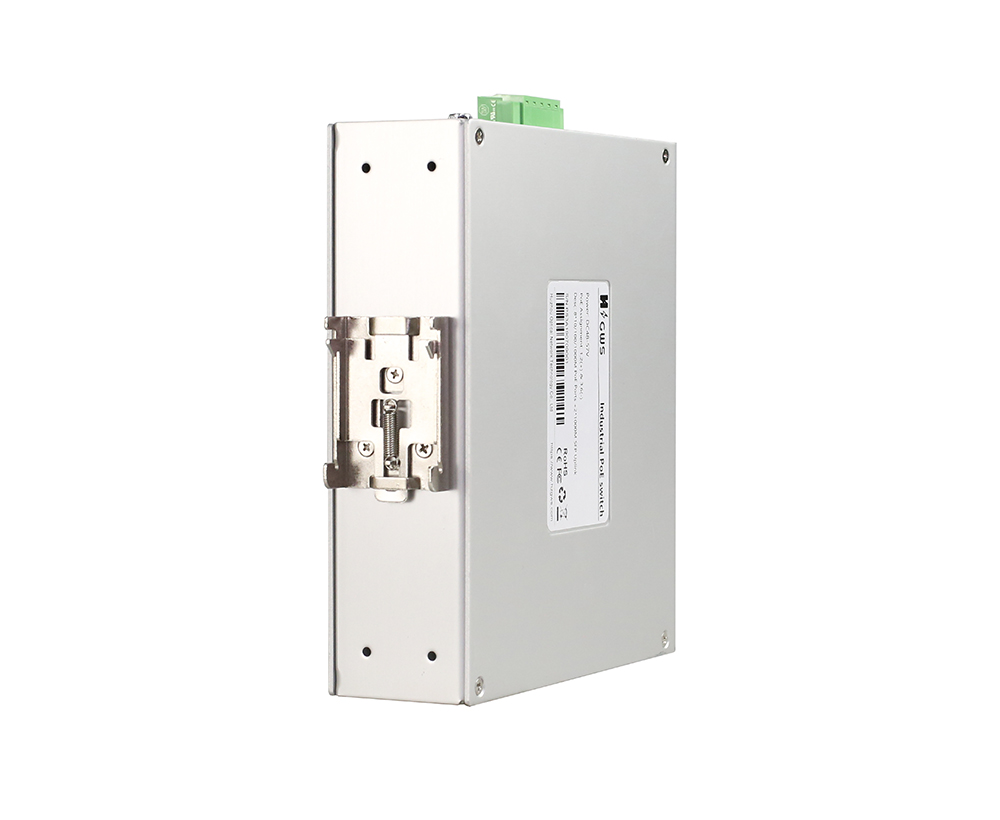

Desktop, 35mm DIN rail |
|
Certification & Warranty |
|
|
Lightning Protection / Protection Level |
Lightning protection: 6KV 8/20us;Protection level: IP30 IEC61000-4-2(ESD):±8kV contact discharge,±15kV air discharge IEC61000-4-3(RS):10V/m(80~1000MHz) IEC61000-4-4(EFT): power cable:±4kV; data cable:±2kV IEC61000-4-5(Surge):power cable:CM±4kV/DM±2kV; data cable:±4kV IEC61000-4-6(radio frequency transmission):10V(150kHz~80MHz) IEC61000-4-8(power frequency magnetic field):100A/m;1000A/m ,1s to 3s IEC61000-4-9(pulsed magnet field):1000A/m IEC61000-4-10(damped oscillation):30A/m 1MHz IEC61000-4-12/18(shockwave):CM 2.5kV,DM 1kV IEC61000-4-16(common-mode transmission):30V; 300V,1s FCC Part 15/CISPR22(EN55022):Class A IEC61000-6-2(Common Industrial Standard) |
|
Mechanical Properties |
IEC60068-2-6 (anti vibration),IEC60068-2-27 (anti shock),IEC60068-2-32 (free fall) |
|
Certification |
CCC;CE mark, commercial; CE/LVD EN62368-1;FCC Part 15 Class B;RoHS; |
|
Warranty |
5 years , lifelong maintenance. |
