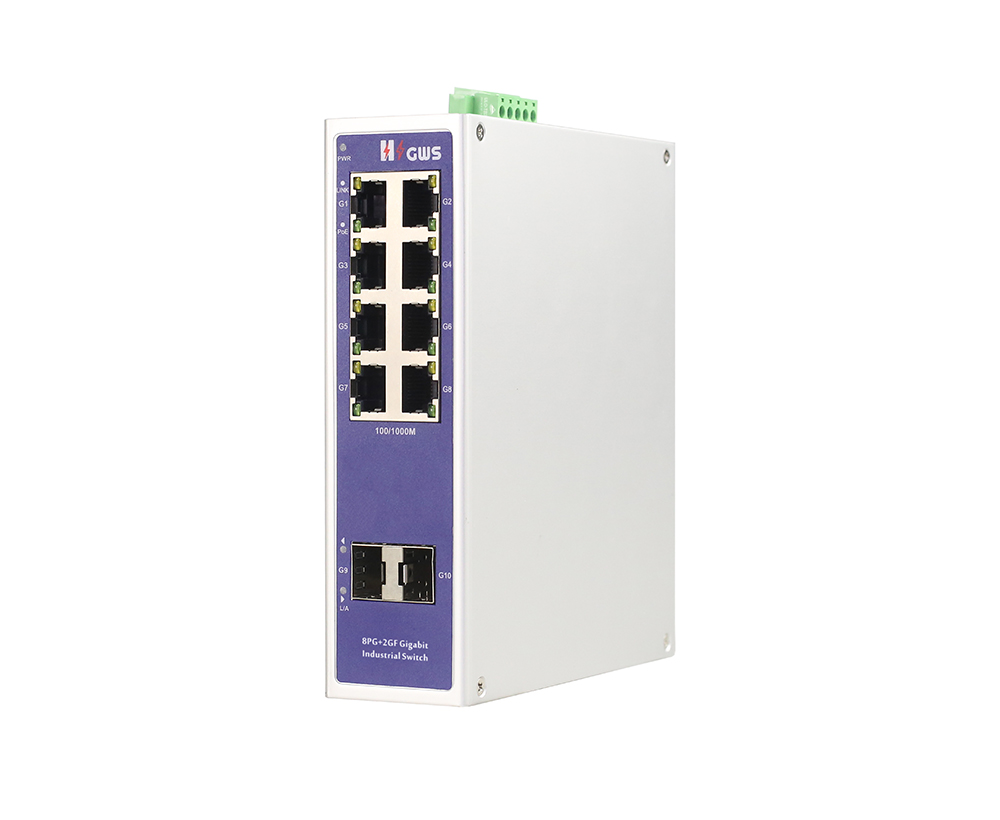

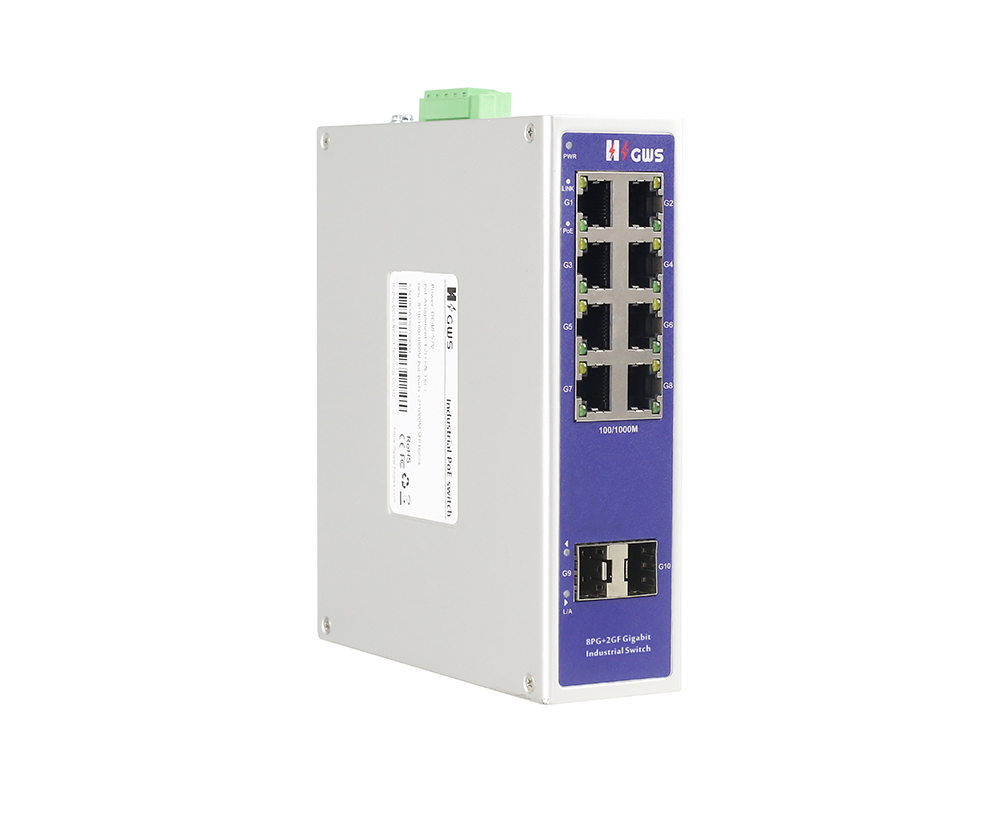

Overview
The GWS-IPS3108PF is a full gigabit industrial PoE fiber switch. It has 8*10/100/1000Base-T adaptive RJ45 ports and 2*1000Base-X uplink SFP slot ports. Port 1-8 can support IEEE802.3af/at PoE standard. Single-port PoE power up to 30W. As a PoE power supply device, it can automatically detect and recognize the power receiving equipment that meets the standard and supply power through the network cable. It can supply power to PoE terminal devices such as wireless AP, IP camera, and industrial sensors through the network cable, and meet the network environment that needs a high-density PoE power supply. It is suitable for intelligent transportation, rail transit, power industry, mining, petroleum, and sea transportation. Industrial scenes such as metallurgy and green energy, construction form a cost-effective, stable, and reliable communication network.
Feature
n Full gigabit access, SFP port uplink
◇ Support non-blocking wire-speed forwarding.
◇ Support full-duplex based on IEEE802.3x and half-duplex based on Backpressure.
◇ Supports Gigabit RJ45 port and gigabit SFP port combination, which enables users to flexibly build networking to meet the needs of various scenarios.
n Intelligent PoE power supply
◇ IEEE802.3af/at PoE standard, without damaging non-PoE devices.
◇ 8*10/100/1000Base-T RJ45 ports, meeting the needs of security monitoring, teleconferencing system, wireless coverage, and other scenarios.
◇ Priority system for PoE port, it will supply power to the high priority level port first when the power budget is insufficient and avoid overwork of the device.
n Stable and reliable
◇ CCC, CE, FCC, RoHS.
◇ Low power consumption, No fan, aluminum shell.

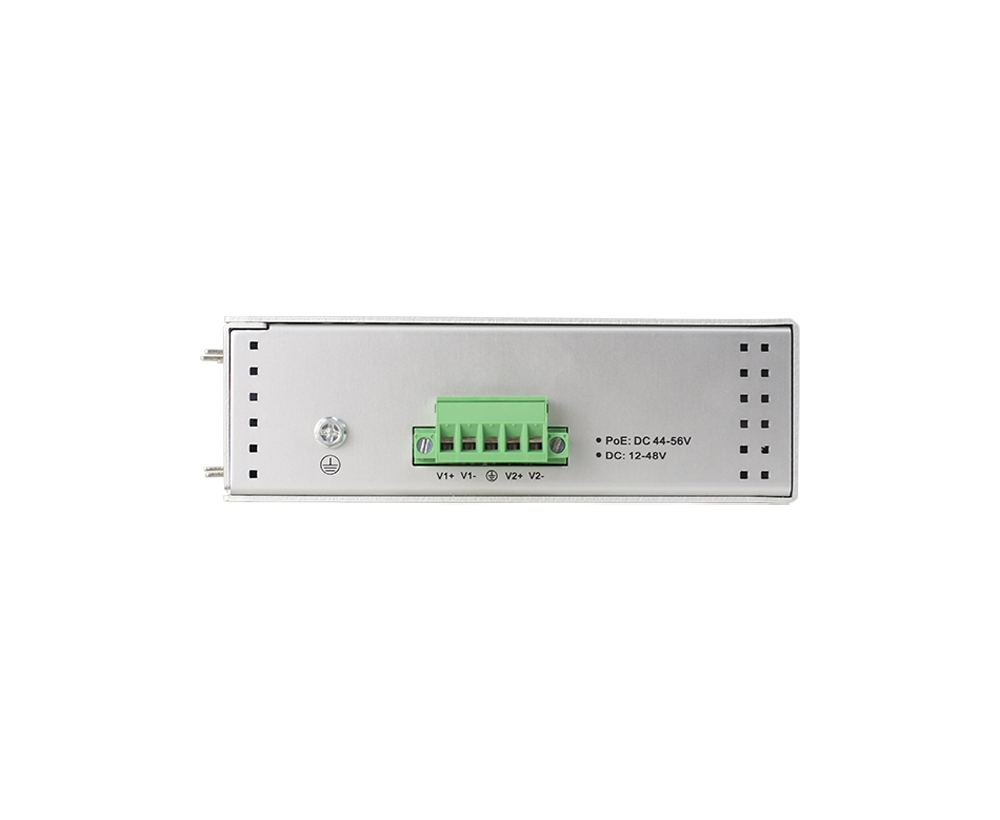

◇ The user-friendly panel can show the device status through the LED indicator of PWR, Link, PoE.

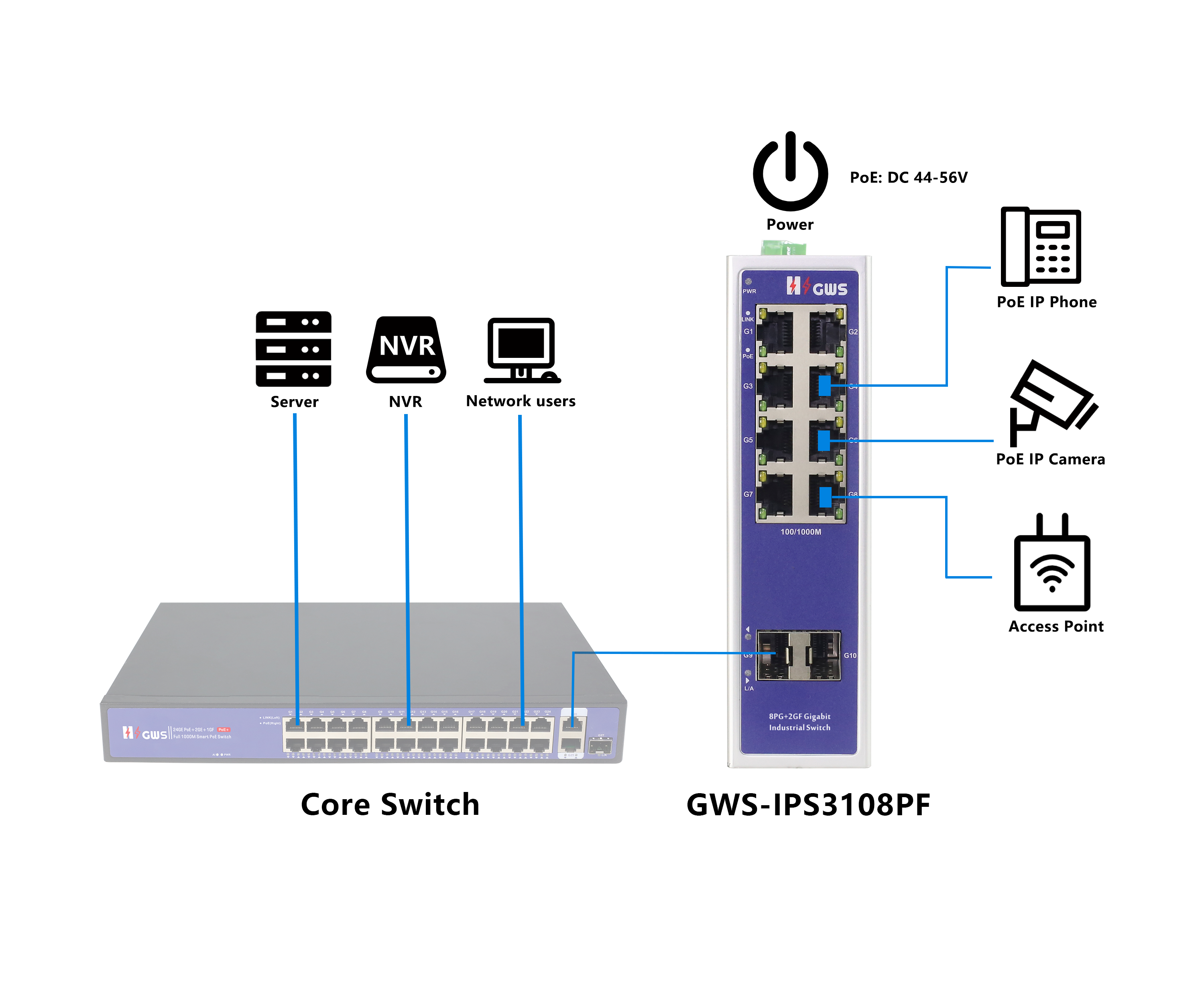

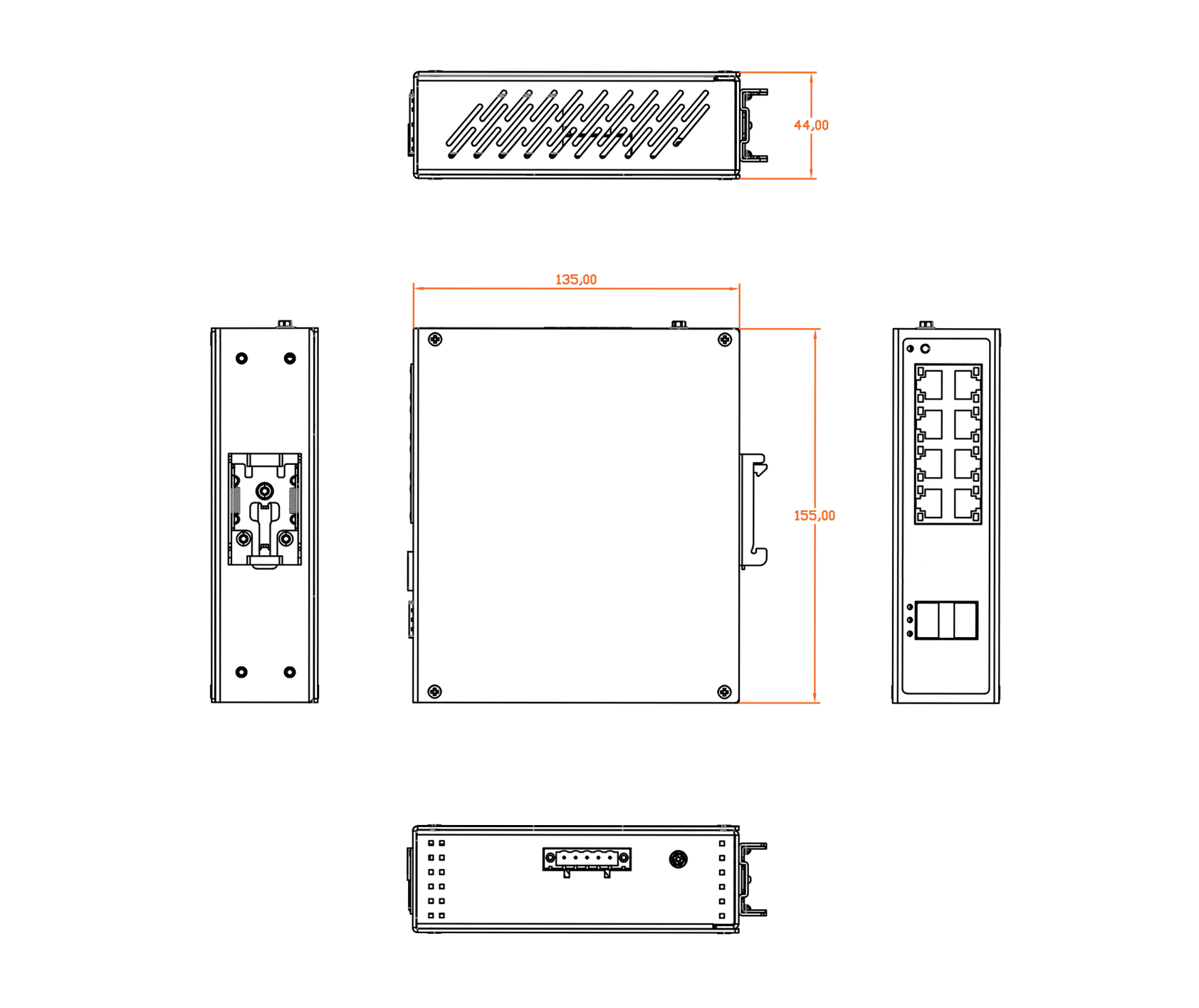

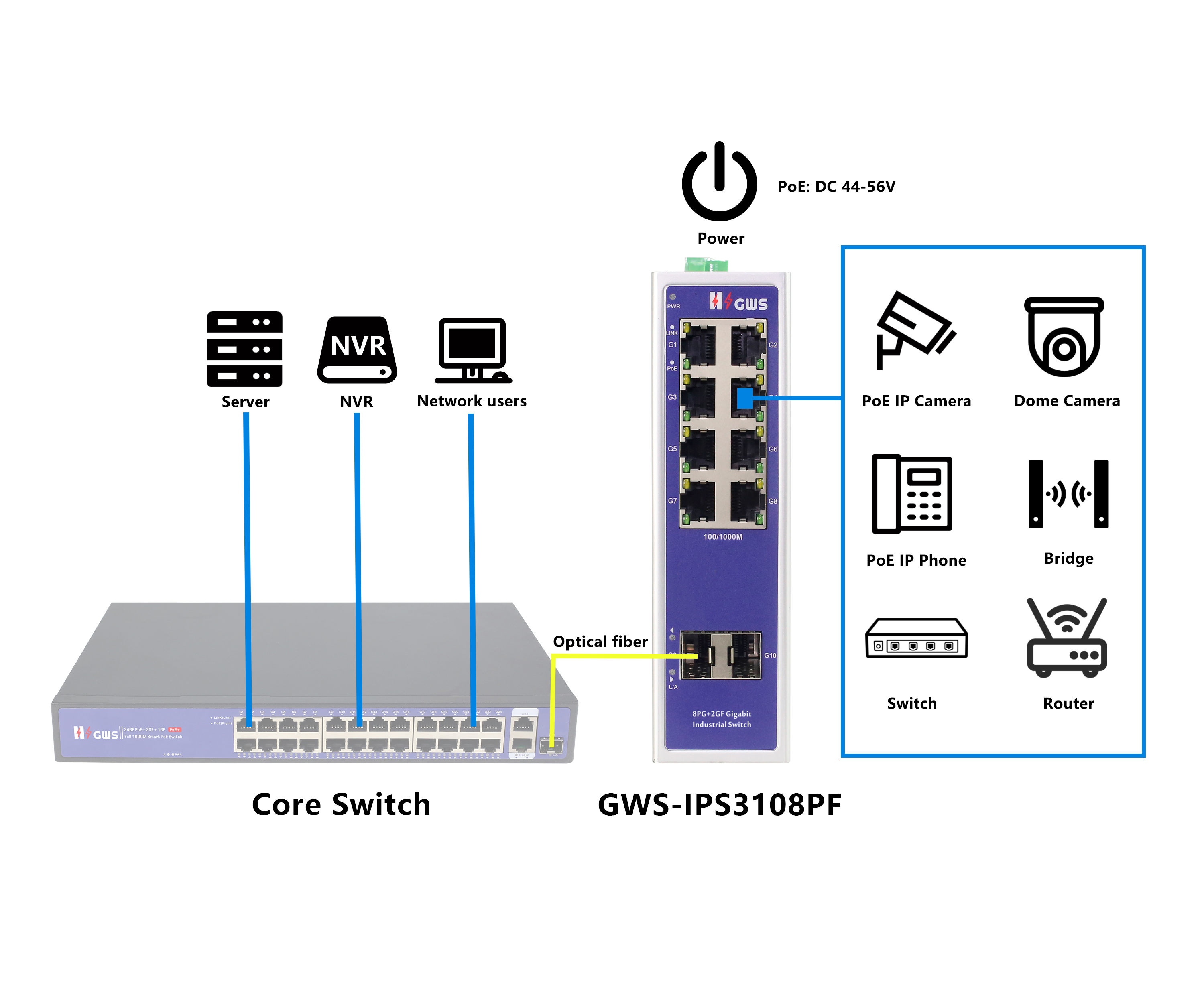

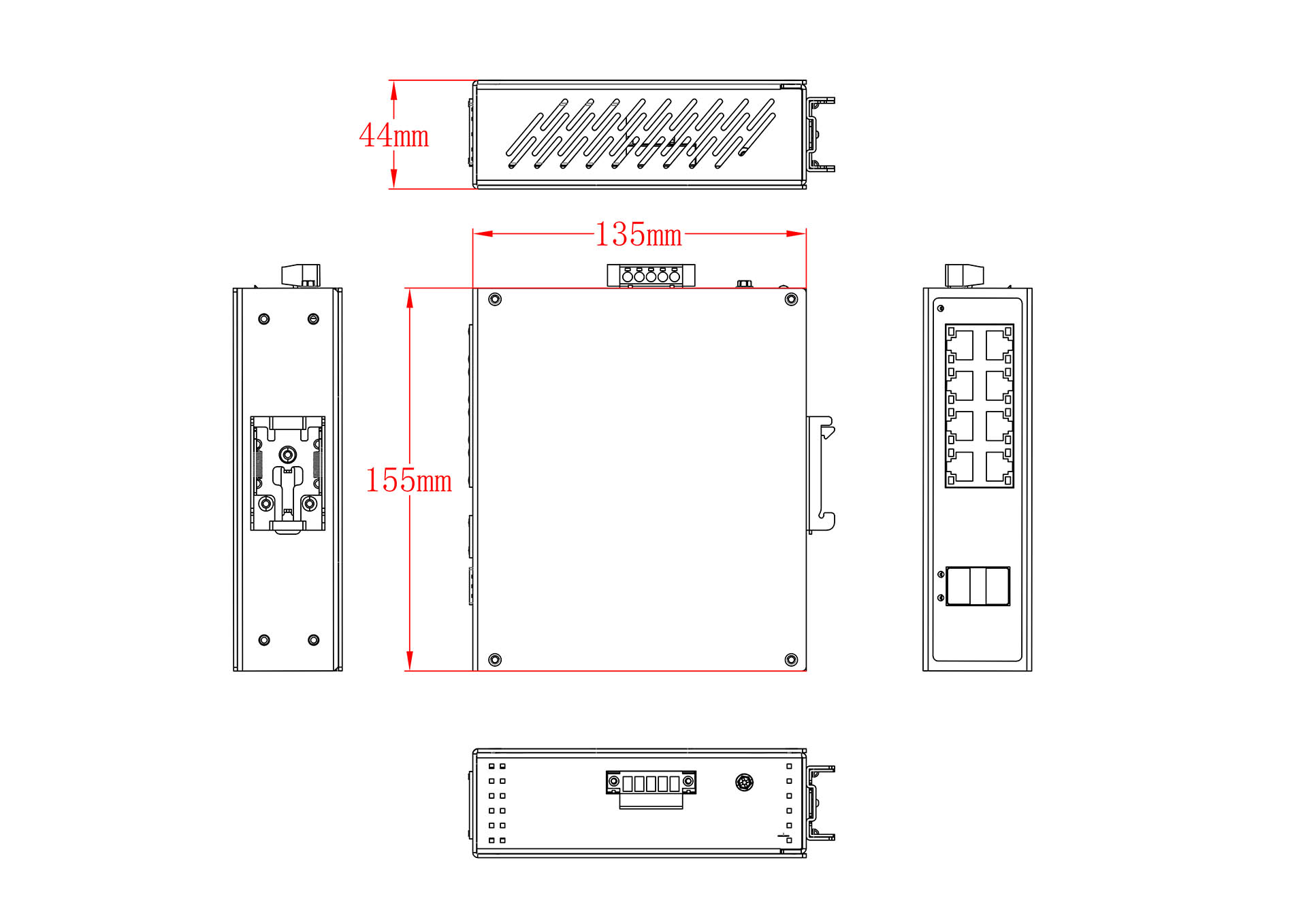

Dimension
Ordering Information
|
Model |
Description |
Recommended Power Supply |
|
GWS-IPS3108PF |
Unmanaged industrial PoE fiber switch with 8*10/100/1000M RJ45 ports and 2*1000M uplink SFP slot ports. Port 1-8 can support PoE IEEE802.3af/at. It can support DC dual redundant power input and DIN rail mounting. |
120W/240W |
|
Note: Industrial PoE switches do not include SFP optical modules and power supplies by default. |
||
Packing List
|
PACKING LIST |
CONTENT |
QTY |
UNIT |
|
10-port full gigabit industrial PoE fiber switch |
1 |
SET |
|
|
User Guide |
1 |
PC |
|
|
Warranty Card |
1 |
PC |
Optical Module
|
Product |
Model |
Description |
Unit |
|
1.25G Optical Module
|
2630-G |
Industrial SFP optical module, 1.25G, multi-mode dual fiber 850nm, transmission distance: 550m, LC interface, support DDM function, support hot plug and pull. |
PC |
|
2632-G |
Industrial SFP optical module, 1.25G, single-mode dual fiber 1310nm, transmission distance: 20km, LC interface, support DDM function, support hot plug and pull. |
PC |
|
|
2612-T-G |
Industrial SFP optical module, 1.25G, single-mode single fiber TX1310nm/RX1550nm, transmission distance: 20km, LC interface, support DDM function, support hot plug and pull. |
PC |
|
|
2613-R-G |
Industrial SFP optical module, 1.25G, single-mode single fiber TX1550nm/RX1310nm, transmission distance: 20km, LC interface, support DDM function, support hot plug and pull. |
PC |
|
|
2612-T-G-SC |
Industrial SFP optical module, 1.25G, single-mode single fiber TX1310nm/RX1550nm, transmission distance: 20km, SC interface, support DDM function, support hot plug and pull. |
PC |
|
|
2613-R-G-SC |
Industrial SFP optical module, 1.25G, single-mode single fiber TX1550nm/RX1310nm, transmission distance: 20km, SC interface, support DDM function, support hot plug and pull. |
PC |
|
|
Power Module |
2633 |
1.25G SFP optical module transfers to 10/100/1000M RJ45 port. |
PC |
Power Supply
|
Product |
Model |
Description |
Unit |
|
130W Desktop Power Aadapter |
AP130-52 |
Desktop 130W single set of output power adapter Input Voltage: AC 100V~240V 50-60Hz,2.3A Output Voltage: DC 52V 2.5A Operation Temperature: -20℃ to +65℃ |
PC |
|
250W Desktop Power Aadapter |
AP250-52 |
Desktop 250W single set of output power adapter Input Voltage: AC 100V~240V 50-60Hz,4.1A Output Voltage: DC 52V 4.8A Operation Temperature: -20℃ to +65℃ |
PC |
|
120W DIN Rail Industrial Power Supply |
DP120-48 |
Din Rail 120W single set of output power supply Input Voltage: AC 100V~240V 50-60Hz,1.5A Output Voltage: DC 48V 2.5A Operation Temperature: -40℃ to +70℃ |
PC |
|
240W DIN Rail Industrial Power Supply |
DP240-48 |
Din Rail 240W single set of output power supply Input Voltage: AC 100V~240V 50-60Hz,3.0A Output Voltage: DC 48V 5A Operation Temperature: -40℃ to +70℃ |
PC |
|
Model |
GWS-IPS3108PF |
|
Interface Characteristics |
|
|
Fixed Port |
8*10/100/1000Base-T PoE ports (Data/Power) 2*1000Base-X uplink SFP fiber slot ports (Data) 2 sets of V+, V- redundant DC power interface (5P Phoenix terminal) |
|
Ethernet Port |
Port 1-8 support 10/100/1000Base-T(X) auto-sensing, full/half duplex MDI/MDI-X self-adaption |
|
Twisted Pair Transmission |
10BASE-T: Cat3,4,5 UTP(≤100 meters) 100BASE-TX: Cat5 or later UTP(≤100 meters) 1000BASE-T: Cat5e or later UTP(≤100 meters) |
|
SFP Slot Port |
Gigabit SFP optical fiber port, default no include optical modules (optional single-mode / multi-mode, single fiber / dual fiber optical module. LC) |
|
Optical Cable/ Distance |
Multi-mode: 850nm/ 0-500M, Single-mode: 1310nm/ 0-40KM, 1550nm/ 0-120KM. |
|
Chip Parameter |
|
|
Network Protocol |
IEEE802.3 10BASE-T, IEEE802.3i 10Base-T, IEEE802.3u 100Base-TX IEEE802.3ab 1000Base-T, IEEE802.3z 1000Base-X, IEEE802.3x |
|
Forwarding Mode |
Store and Forward(Full Wire Speed) |
|
Switching Capacity |
20Gbps |
|
Forwarding Rate@64byte |
14.88Mpps |
|
MAC |
8K |
|
Buffer Memory |
4Mb |
|
Jumbo Frame |
9.2KB |
|
LED Indicator |
Power: PWR (green);Network :Link G1-G8 (yellow); PoE : PoE G1-G8 (green);Fiber PortL/A G9-G10(green) |
|
PoE & Power Supply |
|
|
PoE Port |
Port 1 to 8 IEEE802.3af/at |
|
Power Supply Pin |
1/2(+) 3/6(-) |
|
Max Power Per Port |
30W, IEEE802.3af/at |
|
Power Consumption |
Standby<10W, Full load af<120W/at<240W |
|
Working Voltage |
DC44-56V, 5 Pin industrial Phoenix terminal, support anti-reverse protection. |
|
Power Supply |
Self-purchased, optional 48V/120W or 48V/240W industrial power supply |
|
Physical Parameter |
|
|
Operation TEMP / Humidity |
-40~+75°C, 5%~90% RH Non condensing |
|
Storage TEMP / Humidity |
-40~+85°C, 5%~95% RH Non condensing |
|
Dimension (L*W*H) |
155*135*44mm |
|
Net /Gross Weight |
<0.6kg / <0.75kg |
|

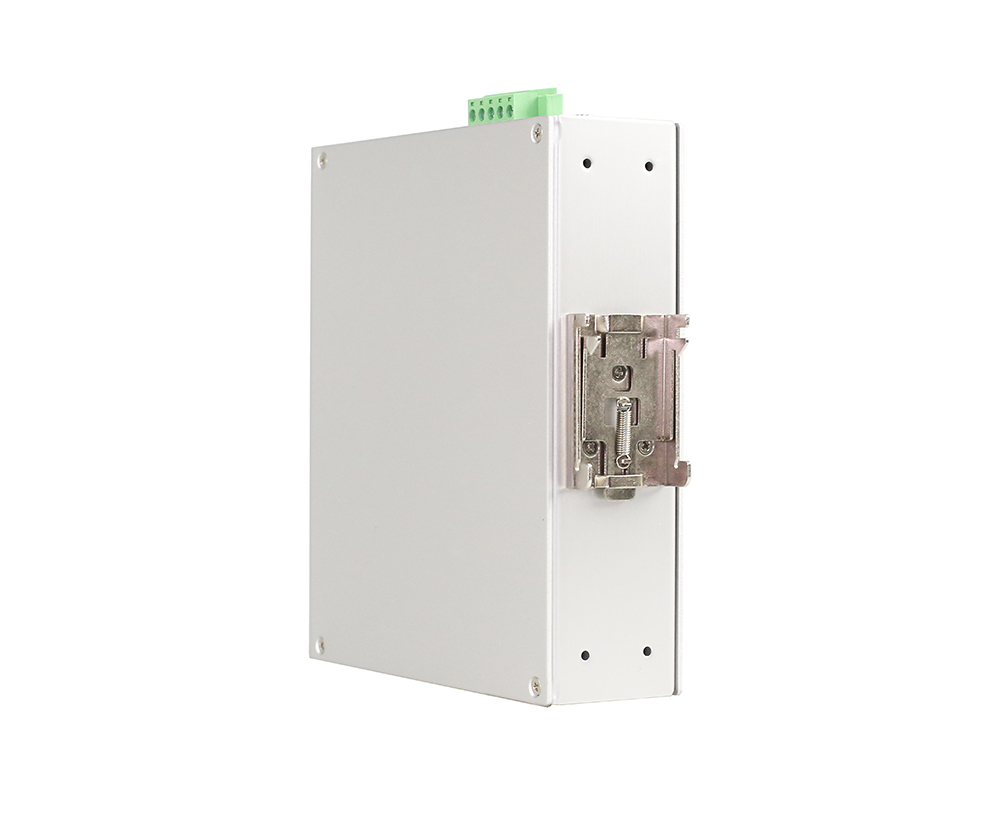

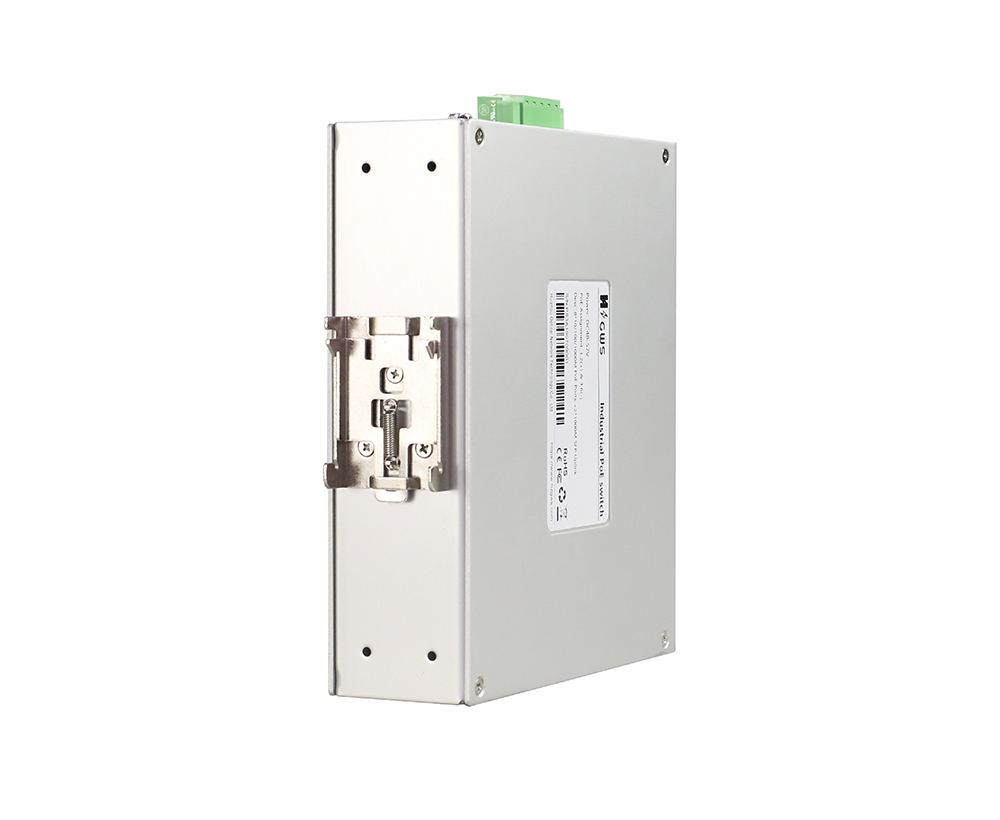

Installation |
Desktop, 35mm DIN rail |
|
Certification & Warranty |
|
|
Lightning protection |
Lightning protection: 6KV 8/20us, Protection level: IP30 IEC61000-4-2(ESD): ±8kV contact discharge, ±15kV air discharge IEC61000-4-3(RS): 10V/m(80~1000MHz) IEC61000-4-4(EFT): power cable: ±4kV; data cable: ±2kV IEC61000-4-5(Surge): power cable: CM±4kV/DM±2kV; data cable: ±4kV IEC61000-4-6(radio frequency transmission): 10V(150kHz~80MHz) IEC61000-4-8(power frequency magnetic field): 100A/m, 1000A/m ,1s to 3s IEC61000-4-9(pulsed magnet field): 1000A/m IEC61000-4-10(damped oscillation): 30A/m 1MHz IEC61000-4-12/18(shockwave): CM 2.5kV,DM 1kV IEC61000-4-16(common-mode transmission): 30V; 300V,1s FCC Part 15/CISPR22(EN55022): Class B IEC61000-6-2(Common Industrial Standard) |
|
Mechanical Properties |
IEC60068-2-27 (anti shock) IEC60068-2-32 (free fall), IEC60068-2-6 (anti vibration) |
|
Certification |
CCC, CE mark, commercial, CE/LVD EN62368-1, FCC Part 15 Class B, RoHS |
|
Warranty |
5 years, lifelong maintenance. |
