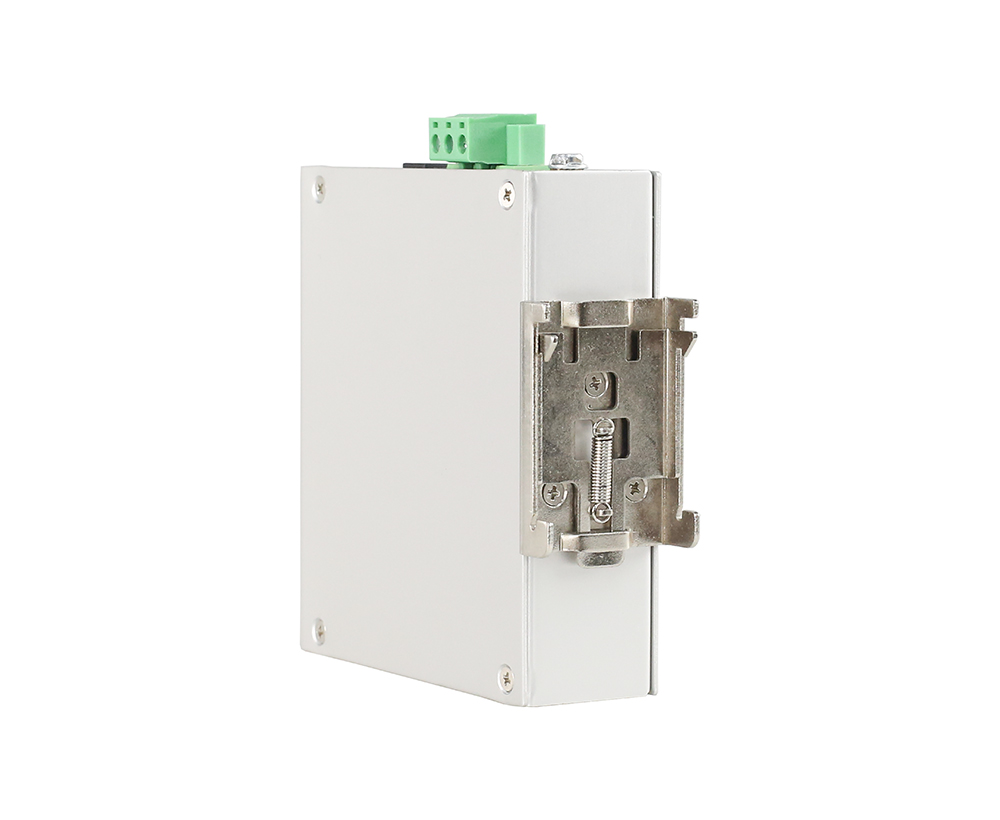

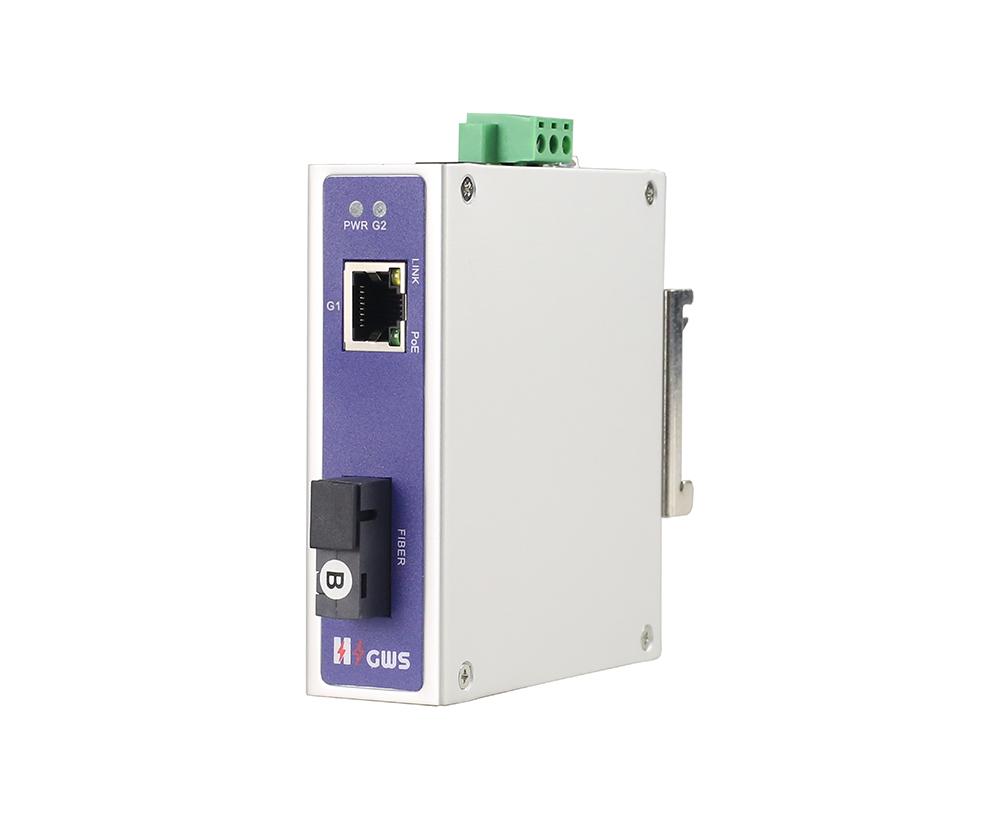

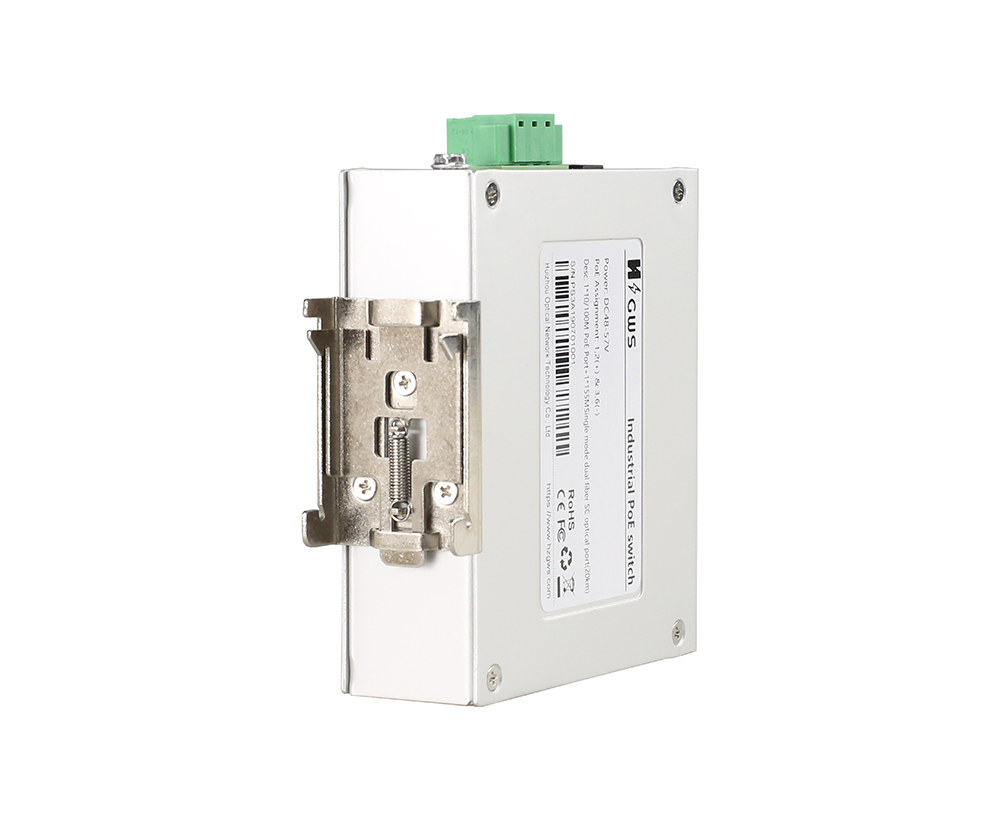

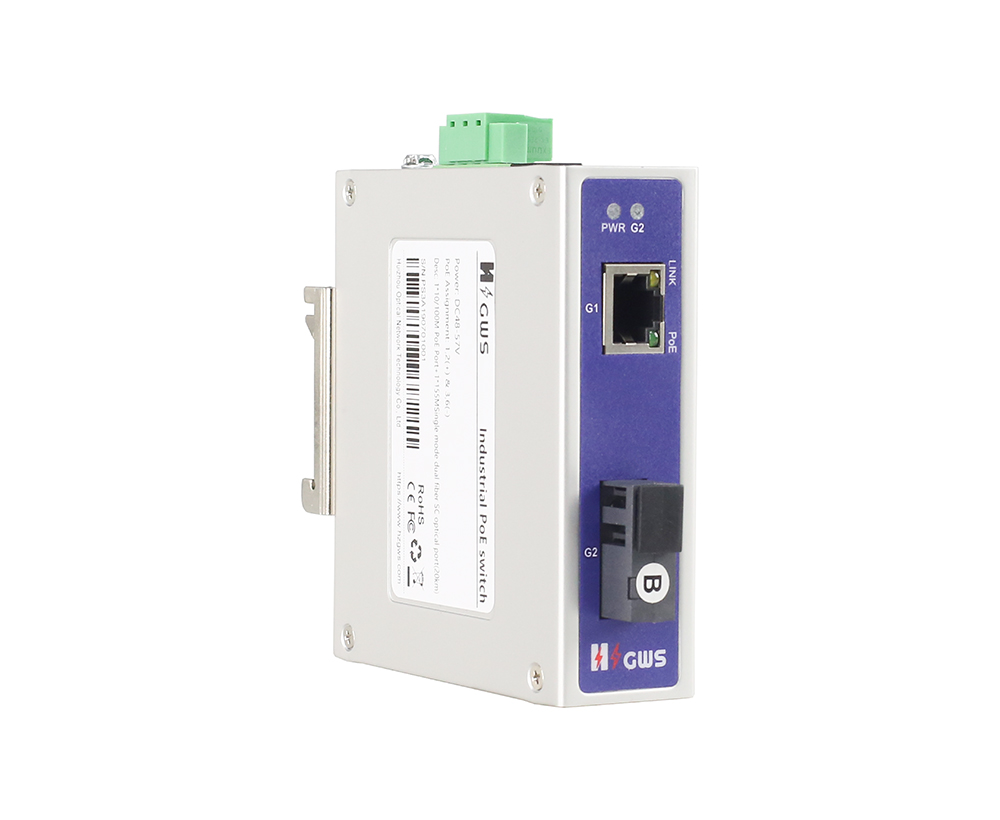

Overview
The GWS-IPS3021PF is a full gigabit industrial PoE fiber switch. It has 1*10/100/1000Base-T RJ45 ports and 1*1000Base-X SC single-mode dual fiber optical module (optional single-mode/ multi-mode, single fiber/ dual fiber optical module). Port 1 can support IEEE802.3af/at PoE standard. Single-port PoE power is 30W. As a PoE power supply device, it can automatically detect and recognize power-compliant devices that meet the standard and supply power through the network cable. It can supply power to POE terminal equipment such as wireless AP, webcam, VoIP, industrial sensor through the network cable, and meet the network environment that needs high-density PoE power supply. It is suitable for intelligent transportation, rail transit, power industry, mining, petroleum, maritime, metallurgy, and Industrial scenarios such as green energy construction build cost-effective, stable, and reliable communication networks.
Unmanaged model, plug and play, no configuration, easy to use.
Feature
n Gigabit line speed access, Gigabit optical port uplink
◇ Support non-blocking wire-speed forwarding.
◇ Support full-duplex based on IEEE802.3x and half-duplex based on Backpressure.
◇ Support Gigabit Ethernet port and Gigabit SC optical port combination, which enables users to flexibly build networking to meet the needs of various scenarios.
n Intelligent PoE power supply
◇ IEEE802.3af/at PoE standard, without damaging non-PoE devices.
◇ Priority system for PoE port, it will supply power to the high priority level port first when the power budget is insufficient and avoid overwork of the device.
◇ 1*10/100/1000Base-T RJ45 ports, meeting the needs of security monitoring, teleconferencing system, wireless coverage, and other scenarios.
n Stable and reliable
◇ CCC,CE, FCC, RoHS.
◇ Low power consumption, No fan, aluminum shell.

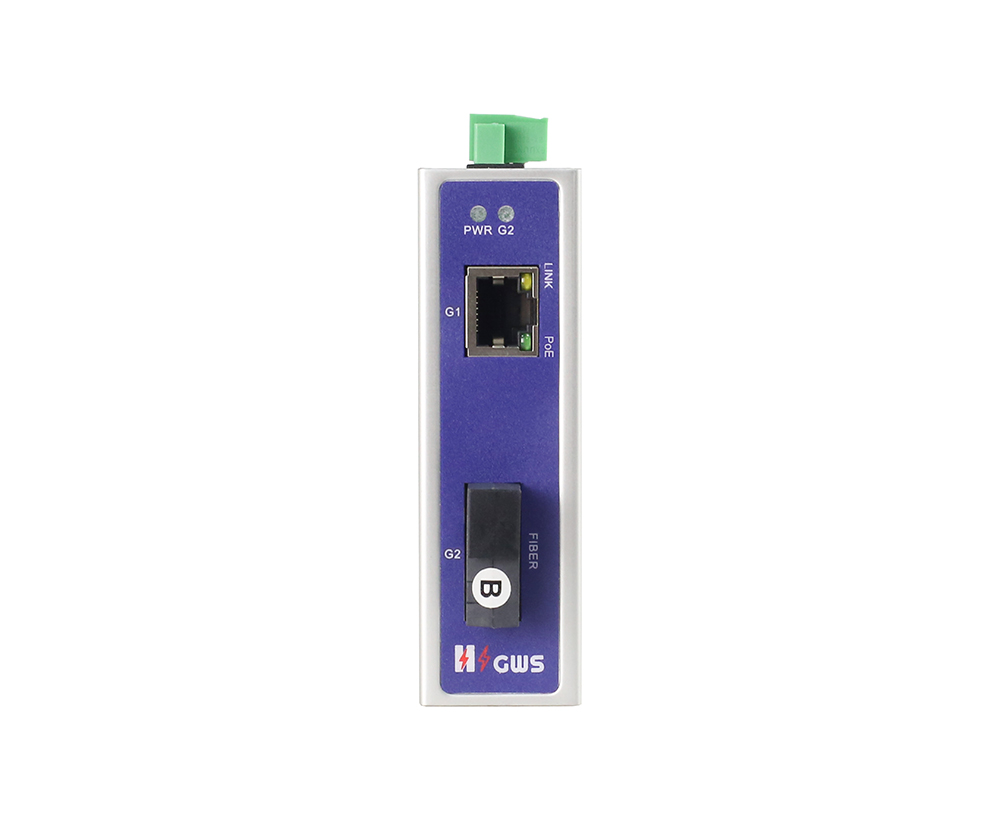

◇ The user-friendly panel can show the device status through the LED indicator of PWR, Link, PoE.

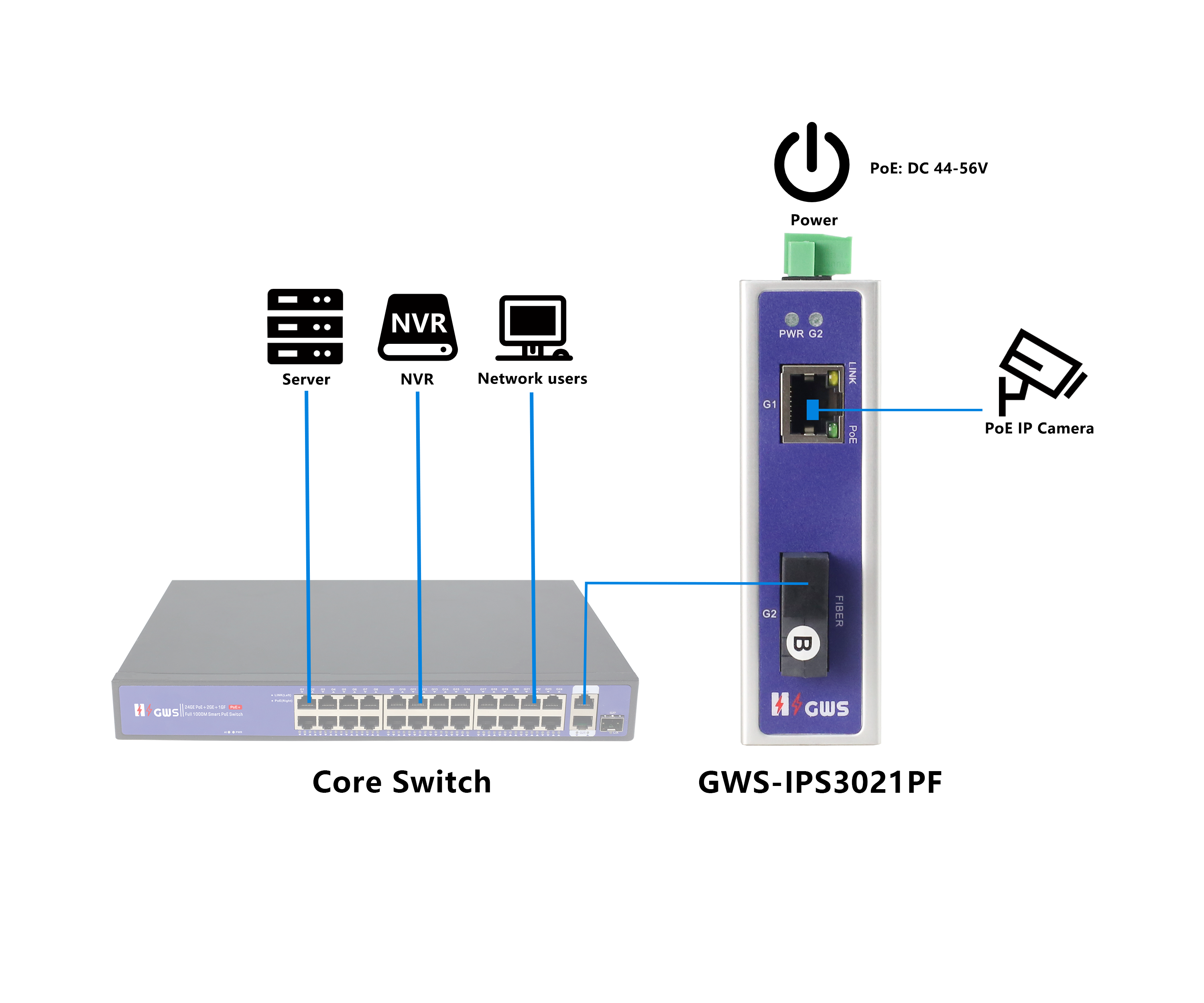

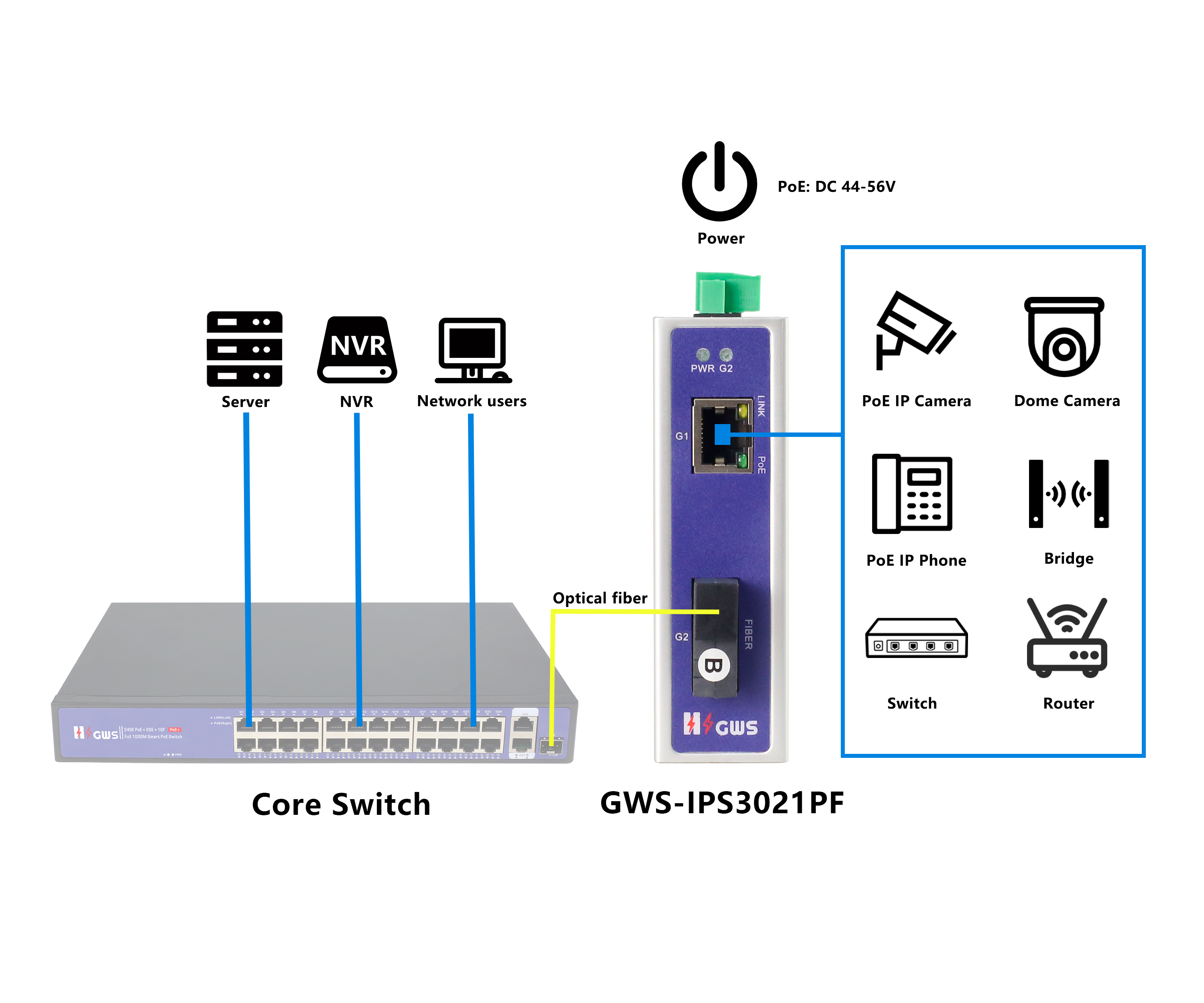

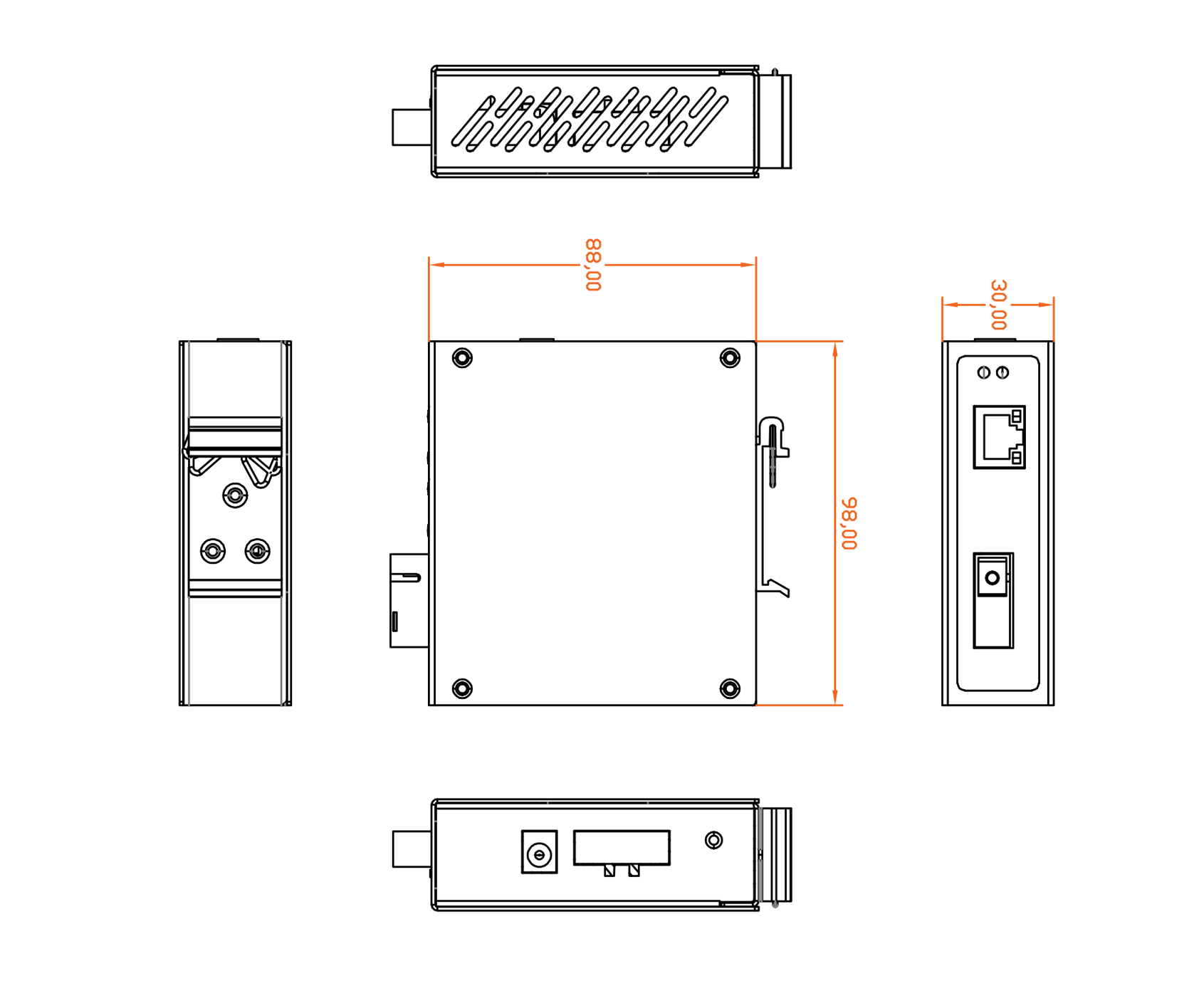

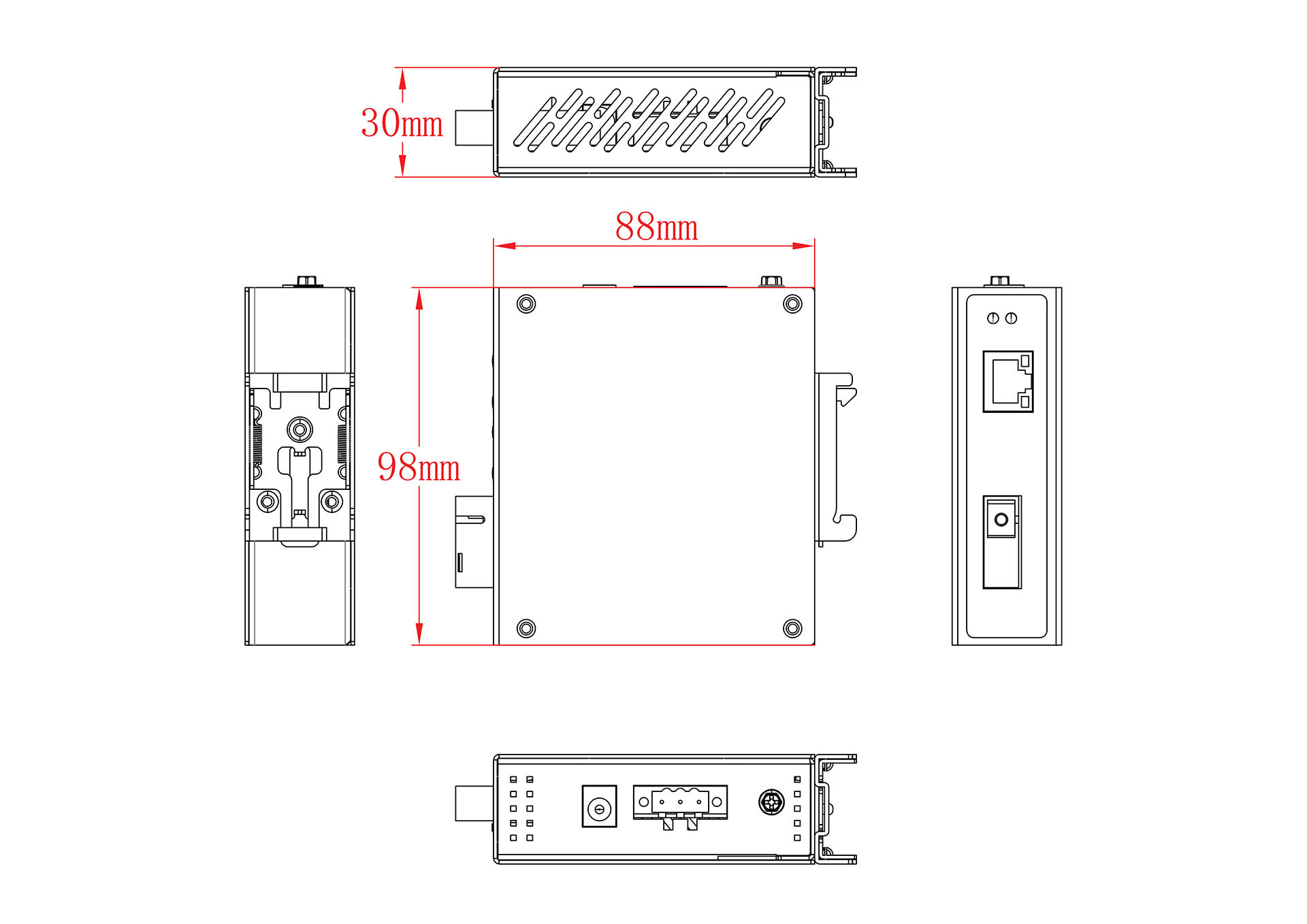

Dimension
Ordering Information
|
Model |
Description |
Power Supply |
|
GWS-IPS3021PF |
Unmanaged industrial PoE fiber switch with 1*10/100/1000M PoE ports and 1*1000M SC port, Port 1 can support PoE IEEE802.3af/at. By default, the SC port 1310mm/20km single-mode dual-fiber module is configured. It can support dual DC redundant power input (Phoenix terminal +DC Jack connection) and rail mounting. |
20W/36W |
|
GWS-IPS3021PF -M |
Unmanaged industrial PoE fiber switch with 1*10/100M PoE ports and 1*155M SC port, Port 1 can support PoE IEEE802.3af/at. By default, the SC port 850nm/0.5km or 1310nm/2km multi-mode dual fiber module is configured. It can support dual DC redundant power input (Phoenix terminal +DC Jack connection) and support rail mounting. |
20W/36W |
|
GWS-IPS3021PF -A |
Unmanaged industrial PoE fiber switch with 1*10/100M PoE ports and 1*155M uplink SC port . Port 1 can support IEEE 802.3af/at. By default, the SC port 1310nm/20km single-mode single-fiber module is configured. It can support dual DC redundant power input (Phoenix terminal +DC Jack connection) and support rail mounting. |
20W/36W |
|
GWS-IPS3021PF -B |
Unmanaged industrial PoE fiber switch with 1*10/100M PoE ports and 1*155M uplink SC port . Port 1 can support IEEE 802.3af/at. By default, the SC port 1550nm/20km single-mode single-fiber module is configured. It can support dual DC redundant power input (Phoenix terminal +DC Jack connection) and support rail mounting. |
20W/36W |
|
Note: The power supply is not included, and needs to be purchased separately |
||
Packing List
|
PACKING LIST |
CONTENT |
QTY |
UNIT |
|
2-port full gigabit industrial PoE fiber switch |
1 |
SET |
|
|
User Guide |
1 |
PC |
|
|
Warranty Card |
1 |
PC |
Power Supply
|
Product |
Model |
Description |
Unit |
|
36W Desktop Power Adaptor |
AP36-52 |
Desktop tape 36W single set of output power adapter; Input Voltage:AC 100V~240V 50-60Hz, 0.56A Output Voltage:DC 52V 0.7A Operation Temperature:-20℃—+65℃ |
PC |
|
65W Desktop Power Adaptor |
AP65-52 |
Desktop tape 65W single set of output power adapter; Input Voltage:AC 100V~240V 50-60Hz,1.1A Output Voltage:DC 52V 1.25A Operation Temperature:-20℃—+65℃ |
PC |
|
36W DIN Rail Industrial Power Supply |
DP36-48 |
Din Rail type 36W single set of output power supply; Input Voltage:AC 100V~240V 50-60Hz,0.56A Output Voltage:DC 48V 0.75A Operation Temperature:-40℃—+70℃ |
PC |
|
60W DIN Rail Industrial Power Supply |
DP60-48 |
Din Rail type 60W single set of output power supply; Input Voltage:AC 100V~240V 50-60Hz,1A Output Voltage:DC 48V 1.25A Operation Temperature:-40℃—+70℃ |
PC |
|
Model |
GWS-IPS3021PF |
|
Interface Characteristics |
|
|
Fixed Port |
1*DC5521 power socket 1*10/100/1000Base-T PoE ports (Data/Power) 1*1000Base-X single-mode dual fiber SC fiber port(Data) 2 set of V+, V- redundant DC power interface (3P Phoenix terminal+DC5521 Jack) |
|
Ethernet Port |
Port 1 support 10/100/1000Base-T(X) auto-sensing, full/half duplex MDI/MDI-X self-adaption |
|
Twisted Pair Transmission |
10BASE-T: Cat3,4,5 UTP(≤100 meter) 100BASE-TX: Cat5 or later UTP(≤100 meter) 1000BASE-T: Cat5e or later UTP(≤100 meter) |
|
Fiber Port |
Default Gigabit single-mode dual fiber SC optical module (optional single-mode single fiber/multi-mode dual fiber optical module) |
|
Optical Cable/ Distance |
Multi-mode: 850nm/ 0 ~ 500m, Single-mode: 1310nm/0 ~ 40km, 1550nm/ 0 ~ 120km. |
|
Chip Parameter |
|
|
Network Protocol |
IEEE802.3 10BASE-T, IEEE802.3i 10Base-T, IEEE802.3u 100Base-TX IEEE802.3ab 1000Base-T, IEEE802.3z 1000Base-X, IIEEE802.3x |
|
Forwarding Mode |
Store and Forward(Full Wire Speed) |
|
Switching Capacity |
12Gbps (no-blocking) |
|
Forwarding Rate@64byte |
8.93Mpps |
|
MAC |
2K |
|
Buffer Memory |
2Mb |
|
Jumbo Frame |
9216B |
|
LED Indicator |
Power: PWR (Green), Network: Link (Yellow),Fiber port:G2(Green), PoE: PoE (Green) |
|
PoE & Power Supply |
|
|
PoE Port |
Port 1, IEEE802.3af/at |
|
Power Supply Pin |
Default: 1/2 (+) 3/6 (-) |
|
Total PWR / Input Voltage |
Max 60W/48-57VDC |
|
Power Consumption |
Standby<3W, Full load<60W |
|
Operating Voltage |
DC44-56V, 3P industrial Phoenix terminal+DC5521 Jack, support anti-reverse protection. |
|
Power Supply |
Self-purchased, optional 48V/36W or 48V/60W industrial power supply |
|
Physical Parameter |
|
|
Operation TEMP / Humidity |
-40~+75°C, 5%~90% RH Non condensing |
|
Storage TEMP / Humidity |
-40~+85°C, 5%~95% RH Non condensing |
|
Dimension (L*W*H) |
98*88*30mm |
|
Net /Gross Weight |
<0.2kg / <0.3kg |
|
Installation |
Desktop, 35mm DIN rail |
|
Certification & Warranty |
|
|
Lightning Protection |
Lightning protection: 6KV 8/20us; Protection level: IP30 IEC61000-4-2(ESD):±8kV contact discharge,±15kV air discharge IEC61000-4-3(RS):10V/m(80~1000MHz) IEC61000-4-4(EFT): power cable:±4kV; data cable:±2kV IEC61000-4-5(Surge):power cable:CM±4kV/DM±2kV; data cable:±4kV IEC61000-4-6(radio frequency transmission):10V(150kHz~80MHz) IEC61000-4-8(power frequency magnetic field):100A/m;1000A/m ,1s to 3s IEC61000-4-9(pulsed magnet field):1000A/m IEC61000-4-10(damped oscillation):30A/m 1MHz IEC61000-4-12/18(Shockwave):CM 2.5kV,DM 1kV IEC61000-4-16(common-mode transmission):30V; 300V,1s FCC Part 15/CISPR22(EN55022):Class B IEC61000-6-2(Common Industrial Standard) |
|
Mechanical Properties |
IEC60068-2-6 (anti vibration) IEC60068-2-27 (anti shock) IEC60068-2-32 (free fall) |
|
Certification |
CCC, CE mark, commercial, CE/LVD EN62368-1, FCC Part 15 Class B RoHS |
|
Warranty |
5 years, lifelong maintenance. |
