Overview

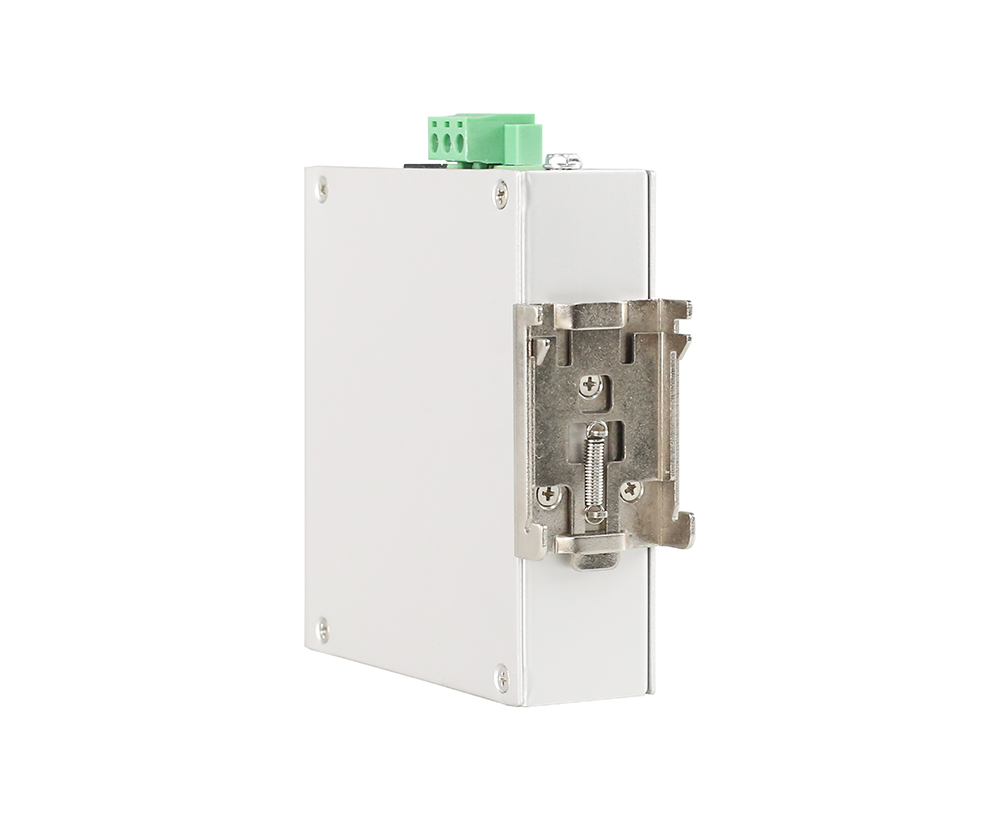

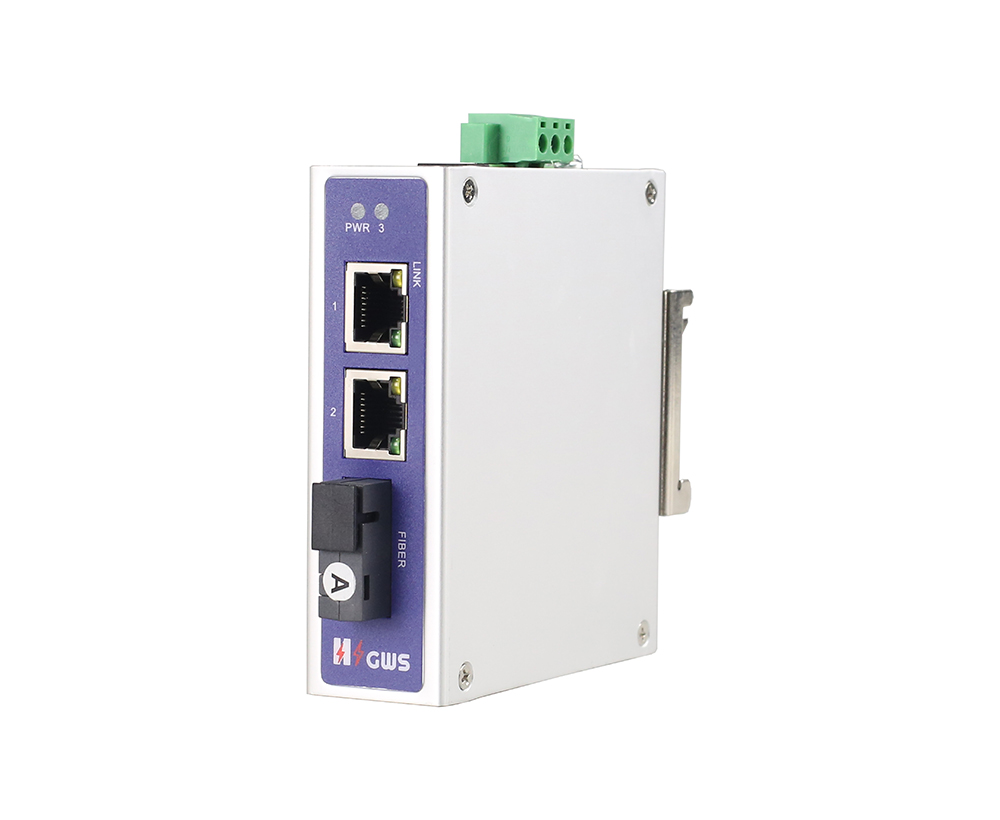

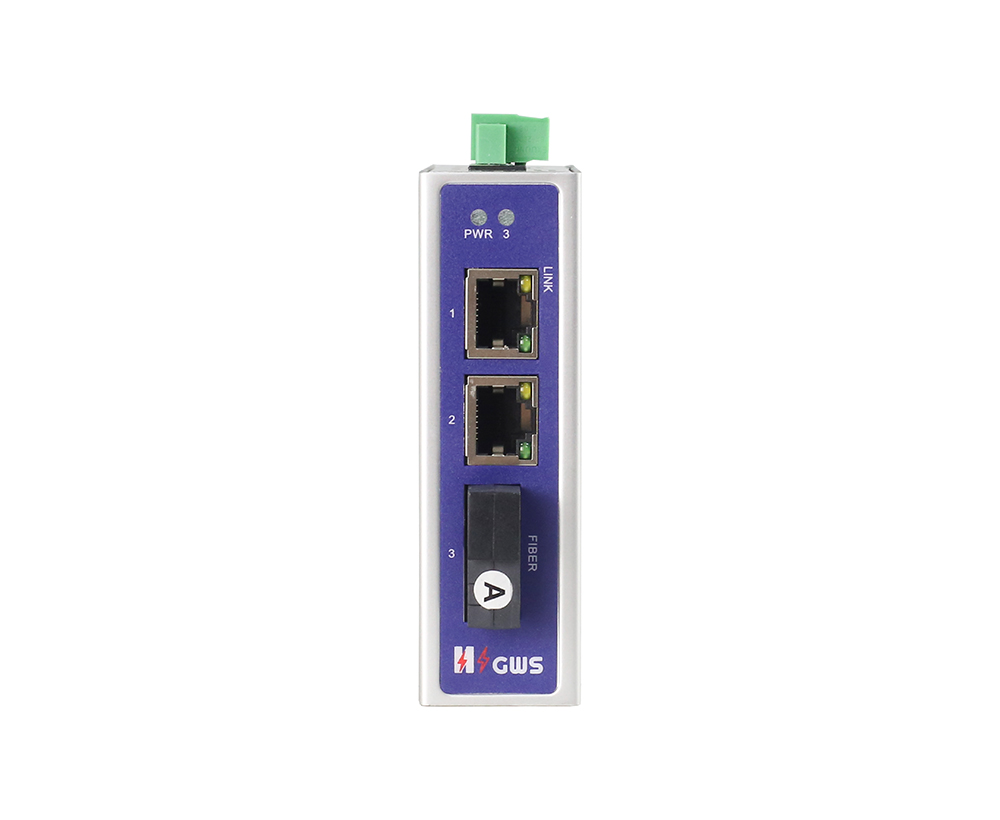

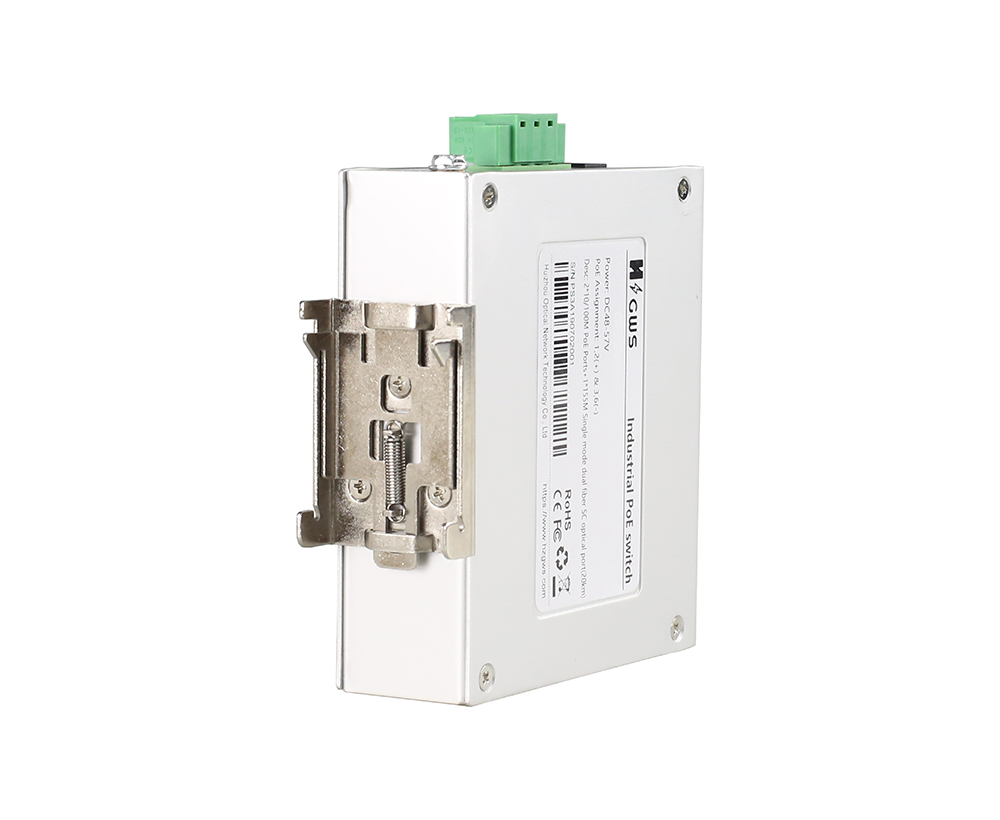

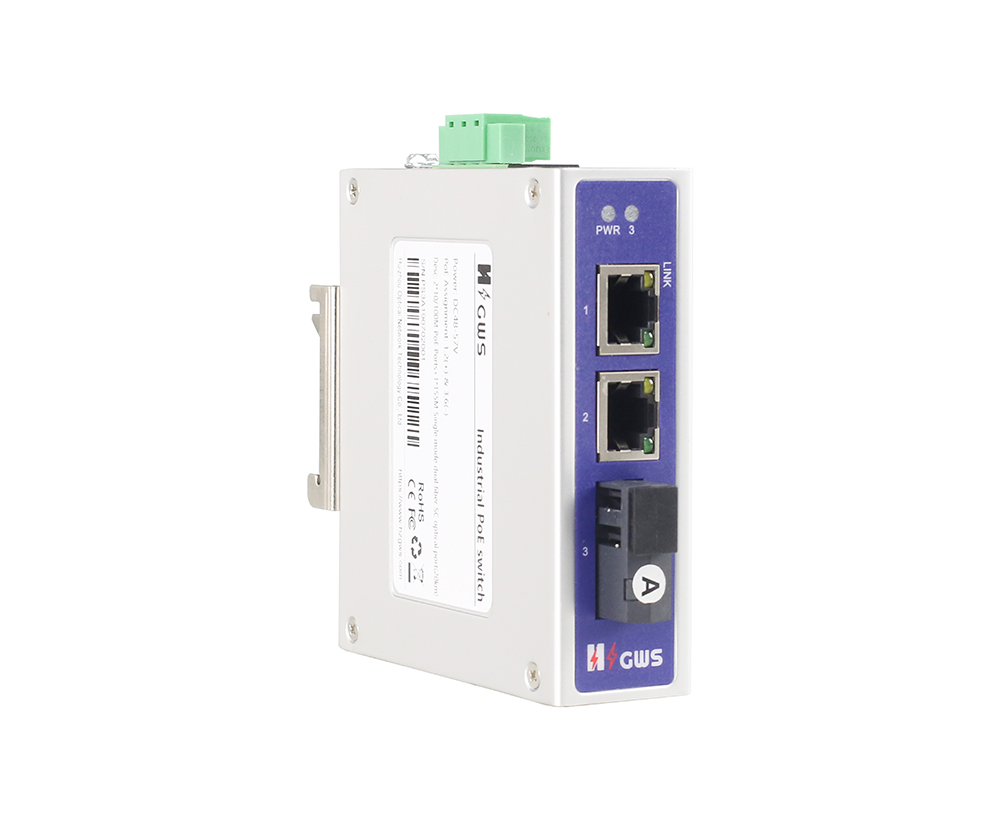

The GWS-IPS1032F is a 10/100M industrial Ethernet fiber switch. It has 2*10/100Base-TX RJ45 ports and 1*155M SC fiber port. Each port can support full line-rate forwarding.
GWS-IPS1032F industrial Ethernet switch has excellent industrial field environment adaptability (including mechanical stability, climate adaptability, electromagnetic environment adaptability, etc.), protection level up to IP30, support for dual redundant power supply, low power consumption and no fan cooling technology, MTBF average trouble-free working time up to 35 years, 5-year warranty. unmanaged models, plug and play, no configuration, easy to use. It is suitable for industrial scenes such as intelligent transportation, rail transit, electric power, mining, metallurgy and green energy construction to form a cost-effective and stable communication network.
Unmanaged model, plug and play, no configuration, easy to use.
Feature
n 10/100M access, Fast Ethernet
◇ Support non-blocking wire-speed forwarding.
◇ Support full-duplex based on IEEE802.3x and half-duplex based on Backpressure.
◇ Support 10/100M Ethernet port and 155M SC optical port combination, which enables users to flexibly build networking to meet the needs of various scenarios.
n Stable and reliable
◇ CCC,CE, FCC, RoHS.
◇ Low power consumption, No fan, aluminum shell.
◇ The user-friendly panel can show the device status through the LED indicator of PWR, Link.

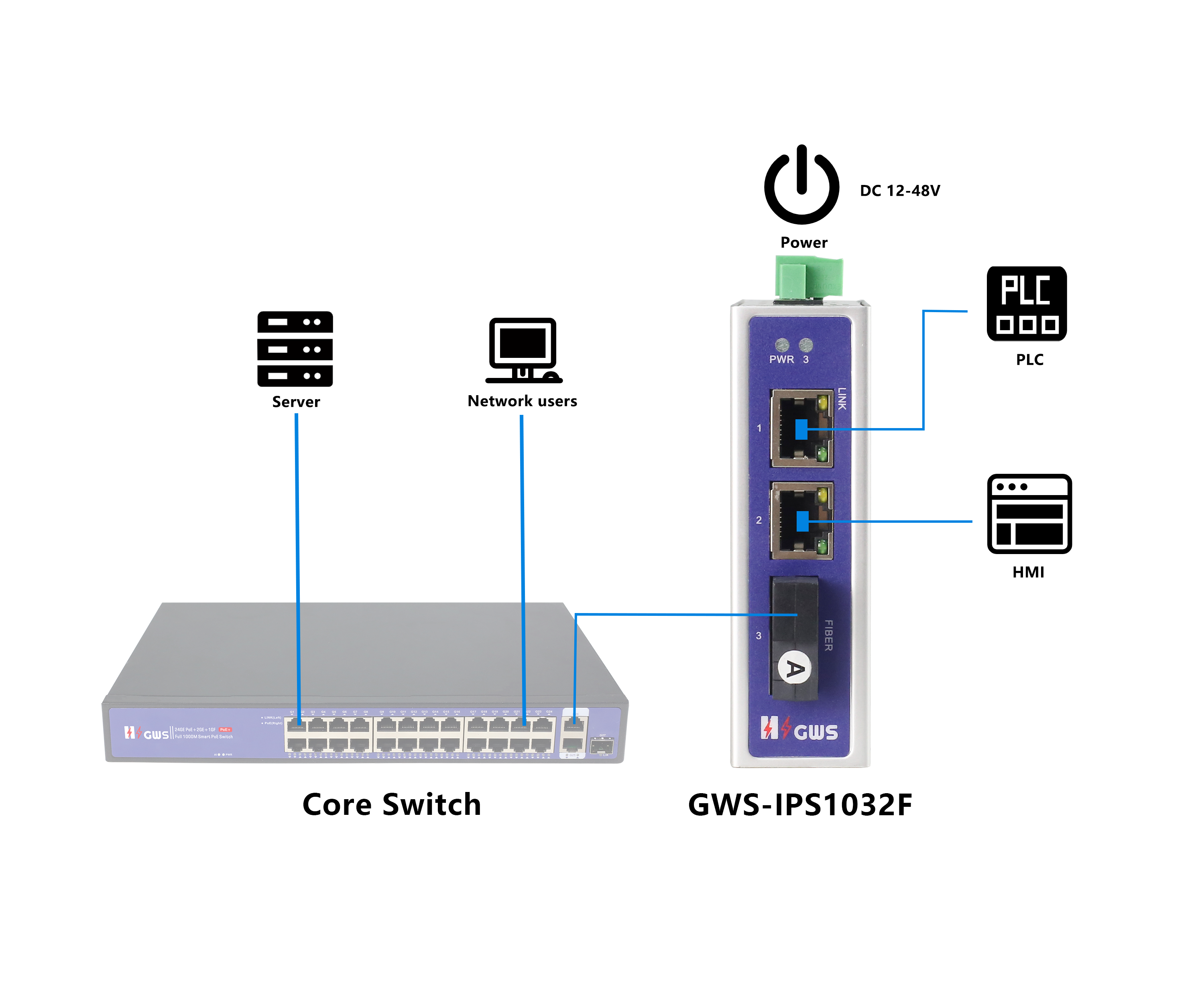

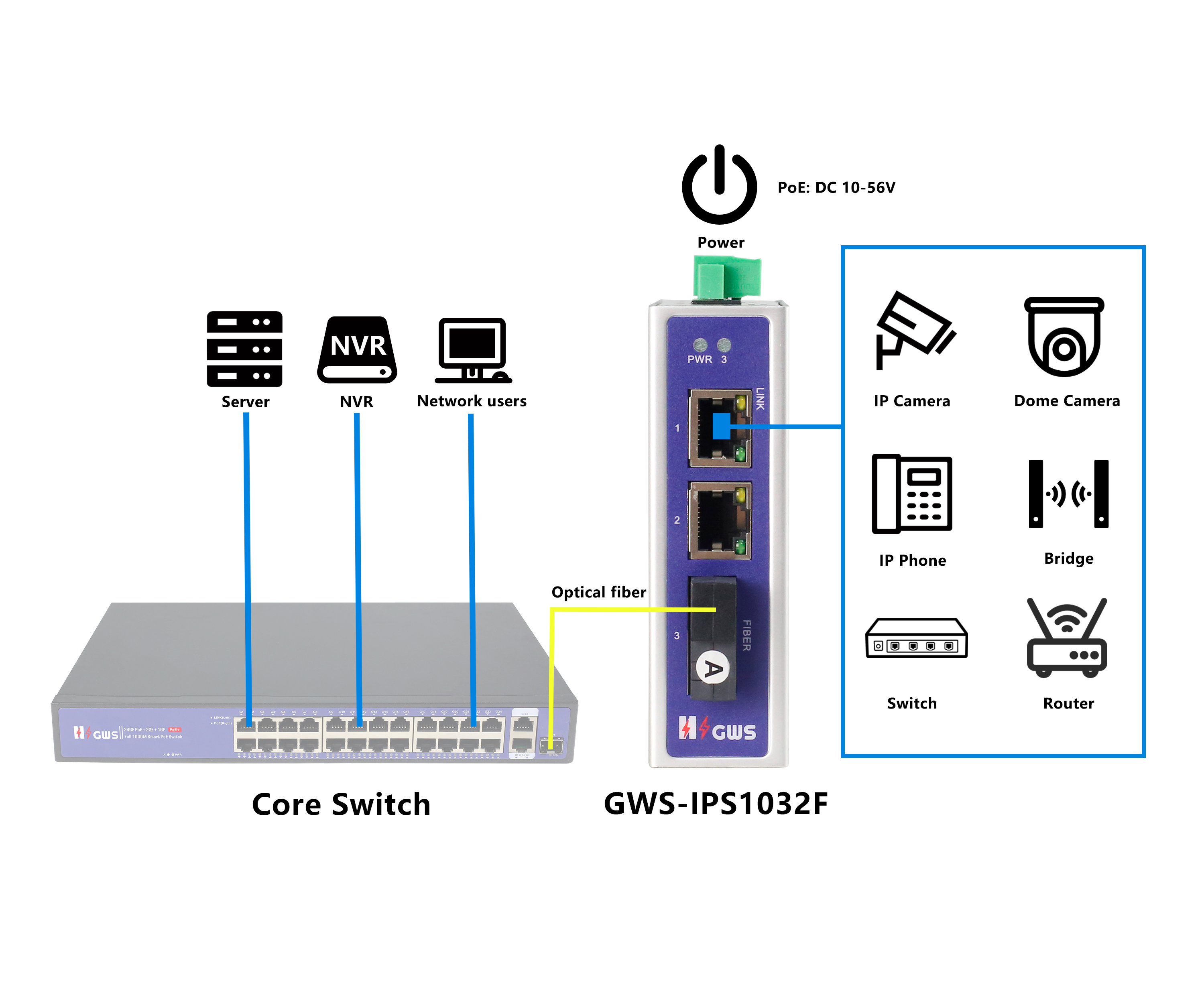

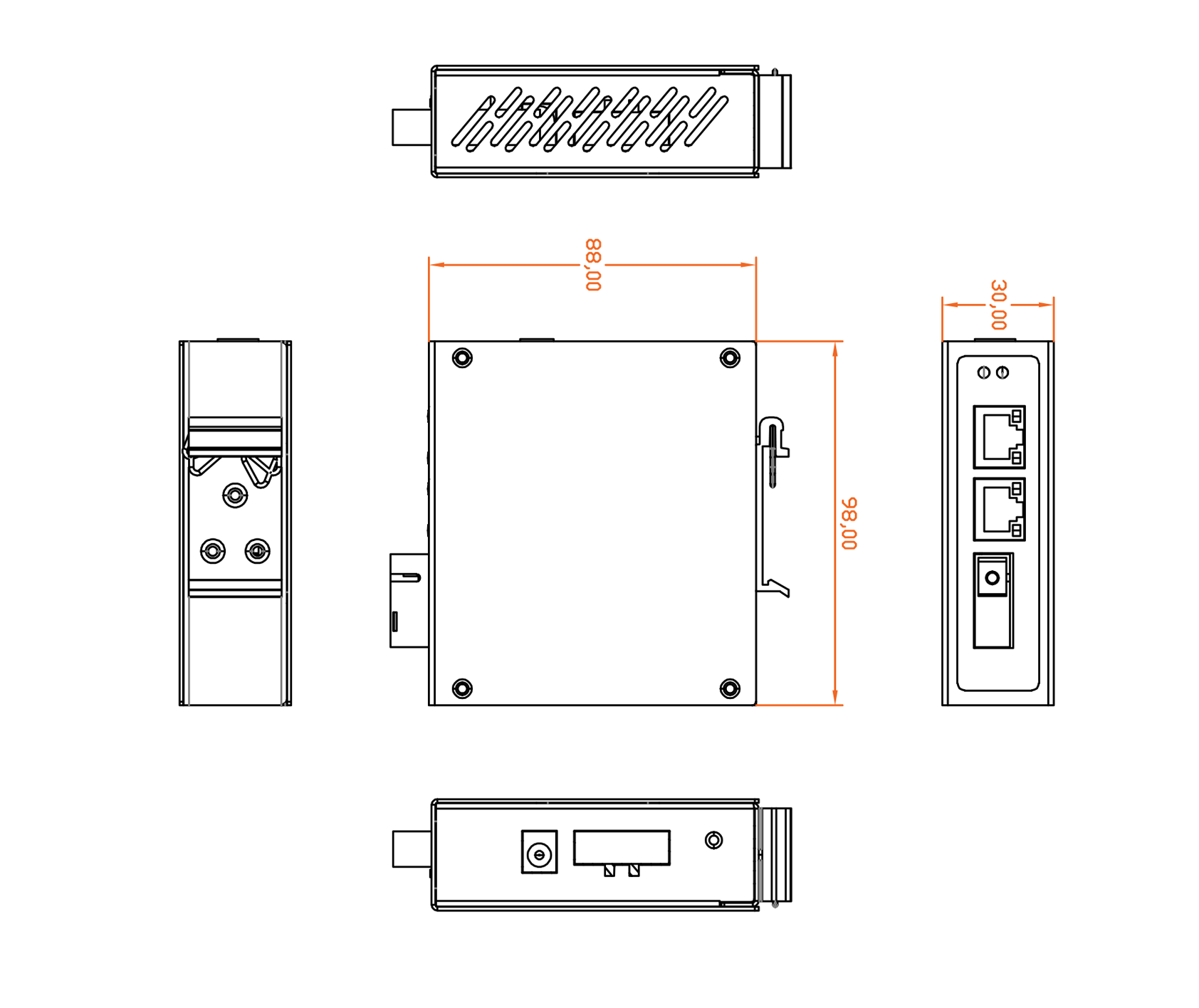

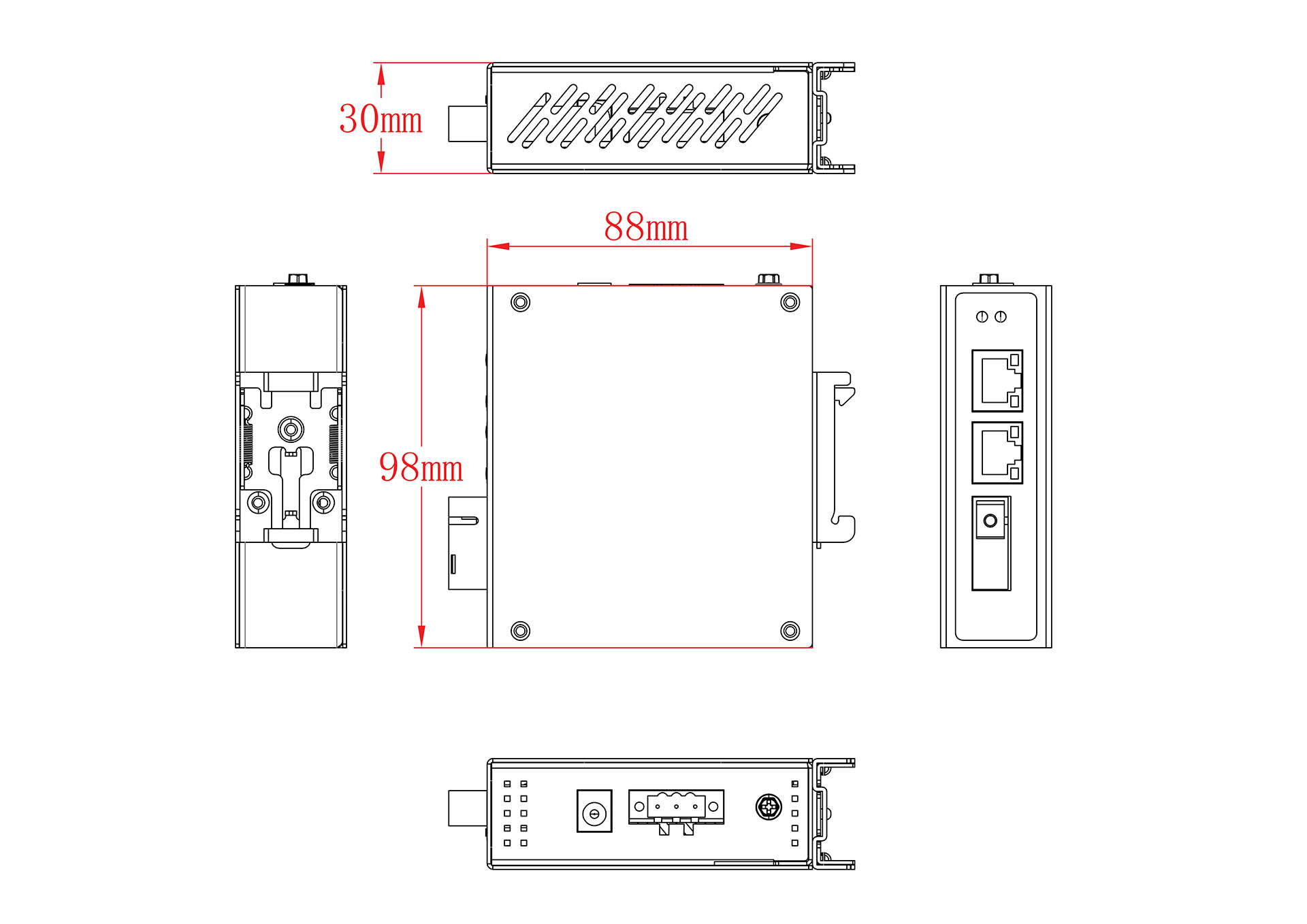

Dimension
Ordering Information
|
Model |
Description |
Recommended Power Supply |
|
GWS-IPS1032F-M |
Unmanaged industrial Ethernet fiber switch with 2*10/100M RJ45 port and 1*155M uplink SC port. By default, the SC port 850nm/0.5km or 1310nm/2km multi-mode dual fiber module. It can support dual DC redundant power input and DIN rail mounting. |
12W/24W |
|
GWS-IPS1032F |
Unmanaged industrial Ethernet fiber switch with 2*10/100M RJ45 ports and 1*155M uplink SC port. By default, the SC port 1310mm/20km single-mode dual fiber module. It can support dual DC redundant power input and DIN rail mounting. |
12W/24W |
|
GWS-IPS1032F -A |
Unmanaged industrial Ethernet fiber switch with 2*10/100M RJ45 ports and 1*155M uplink SC port. By default, the SC port 1310nm/20km single-mode single fiber module. It can support dual DC redundant power input and DIN rail mounting. |
12W/24W |
|
GWS-IPS1032F -B |
Unmanaged industrial Ethernet fiber switch with 2*10/100M RJ45 ports and 1*155M uplink SC port. By default, the SC port 1550nm/20km single-mode single fiber module . It can support dual DC redundant power input and DIN rail mounting. |
12W/24W |
|
Note: The power supply is not included, and needs to be purchased separately |
||
Packing List
|
PACKING LIST |
CONTENT |
QTY |
UNIT |
|
3-port 10/100M industrial Ethernet fiber switch |
1 |
SET |
|
|
User Guide |
1 |
PC |
|
|
Warranty Card |
1 |
PC |
Power Supply
|
Product |
Model |
Description |
Unit |
|
24W DIN Rail Industrial Power Supply |
DP24-24 |
Din Rail 24W single set of output power supply Input Voltage:AC 100V~240V 50-60Hz, 0.35A Output Voltage:DC24V 1.0A Operation Temperature:-40℃—+70℃ |
PC |
|
Model |
GWS-IPS1032F |
|
Interface Characteristics |
|
|
Fixed Port |
1*155M SC fiber port(Data) 2*10/100Base-TX RJ45 ports (Data) 2 set of V+, V- redundant DC power interface (3P Phoenix terminal+DC5521 Jack) |
|
Ethernet Port |
Port 1 to 2 support 10/100Base-TX auto-sensing, full/half duplex MDI/MDI-X self-adaption |
|
Twisted Pair Transmission |
10BASE-T: Cat3,4,5 UTP(≤100 meters) 100BASE-TX: Cat5 or later UTP(≤100 meters) |
|
Fiber Port |
Default optical module is single-mode dual-fiber 20km, SC port |
|
Optical Cable/ Distance |
Multi-mode: 850nm / 0-550M, 1310nm / 0~2KM Single-mode: 1310nm / 0-40KM, 1550nm / 0-120KM |
|
Chip Parameter |
|
|
Network Protocol |
IEEE802.3 10BASE-T, IEEE802.3i 10Base-T, IEEE802.3u 100Base-TX IEEE802.3x |
|
Forwarding Mode |
Store and Forward(Full Wire Speed) |
|
Switching Capacity |
1.0Gbps (no-blocking) |
|
Forwarding Rate@64byte |
0.45Mpps |
|
MAC |
2K |
|
Buffer Memory |
512Kb |
|
Jumbo Frame |
2048B |
|
LED Indicator |
Power: PWR (Green), Network: Link1-2 (Yellow),Fiber port :3 (green) |
|
Power Supply |
|
|
Power Consumption |
Standby<3W, Full load<5W |
|
Operating Voltage |
DC12-48V, 3P industrial Phoenix terminal+DC5521 Jack, support anti-reverse protection. |
|
Power Supply |
Self-purchased, optional 24V/24W industrial power supply |
|
Physical Parameter |
|
|
Operation TEMP / Humidity |
-40~+75°C, 5%~90% RH Non condensing |
|
Storage TEMP / Humidity |
-40~+85°C, 5%~95% RH Non condensing |
|
Dimension (L*W*H) |
98*88*30mm |
|
Net /Gross Weight |
<0.2kg / <0.3kg |
|
Installation |
Desktop, 35mm DIN rail |
|
Certification & Warranty |
|
|
Lightning Protection |
Lightning protection: 6KV 8/20us, Protection level: IP30 IEC61000-4-2(ESD):±8kV contact discharge,±15kV air discharge IEC61000-4-3(RS):10V/m(80~1000MHz) IEC61000-4-4(EFT): power cable:±4kV; data cable:±2kV IEC61000-4-5(Surge):power cable:CM±4kV/DM±2kV; data cable:±4kV IEC61000-4-6(radio frequency transmission):10V(150kHz~80MHz) IEC61000-4-8(power frequency magnetic field):100A/m;1000A/m ,1s to 3s IEC61000-4-9(pulsed magnet field):1000A/m IEC61000-4-10(damped oscillation):30A/m 1MHz IEC61000-4-12/18(Shockwave):CM 2.5kV,DM 1kV IEC61000-4-16(common-mode transmission):30V; 300V,1s FCC Part 15/CISPR22(EN55022):Class B IEC61000-6-2(Common Industrial Standard) |
|
Mechanical Properties |
IEC60068-2-6 (anti vibration) IEC60068-2-27 (anti shock) IEC60068-2-32 (free fall) |
|
Certification |
CCC, CE mark, commercial, CE/LVD EN62368-1, FCC Part 15 Class B RoHS |
|
Warranty |
5 years, lifelong maintenance. |
