Overview

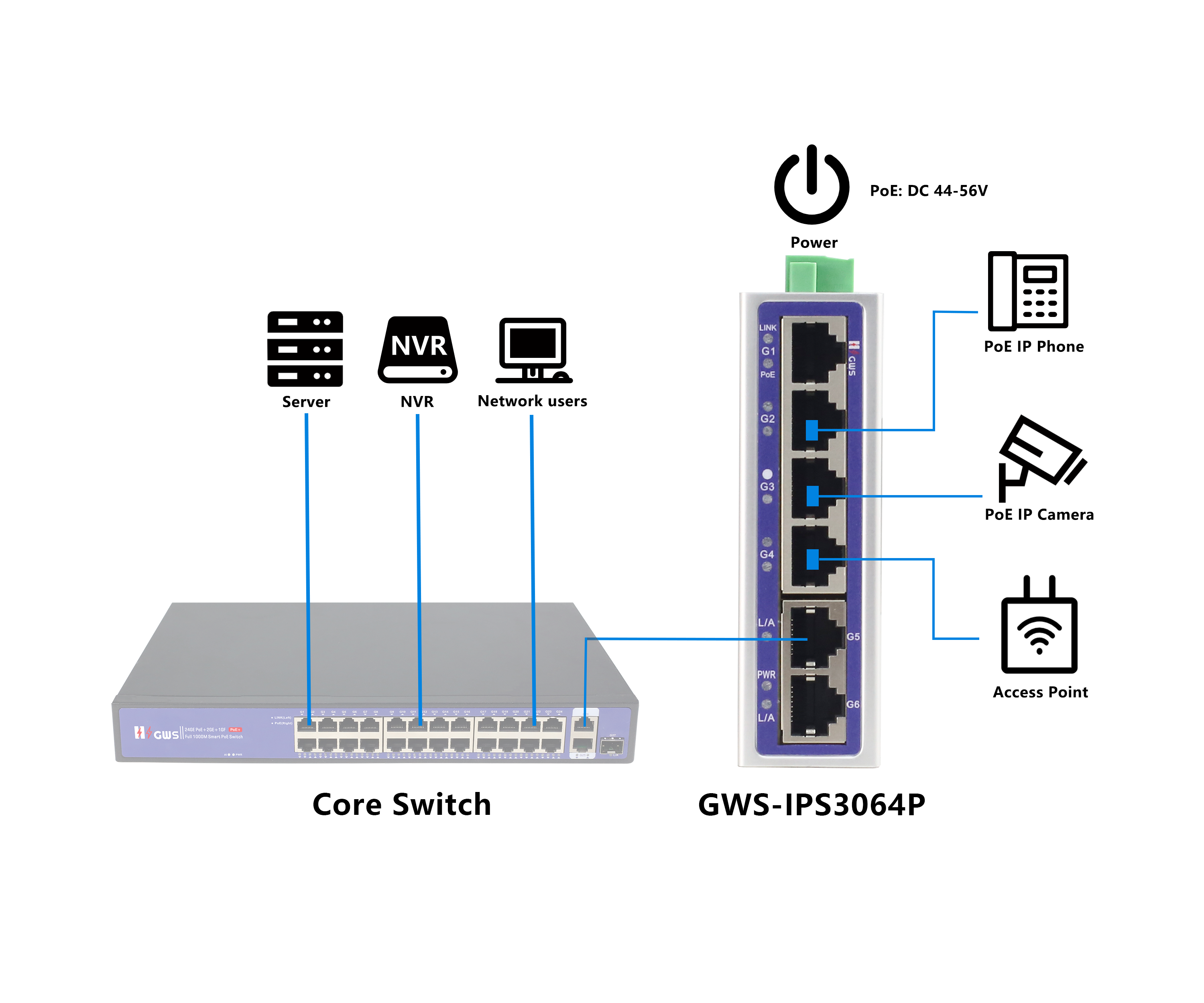

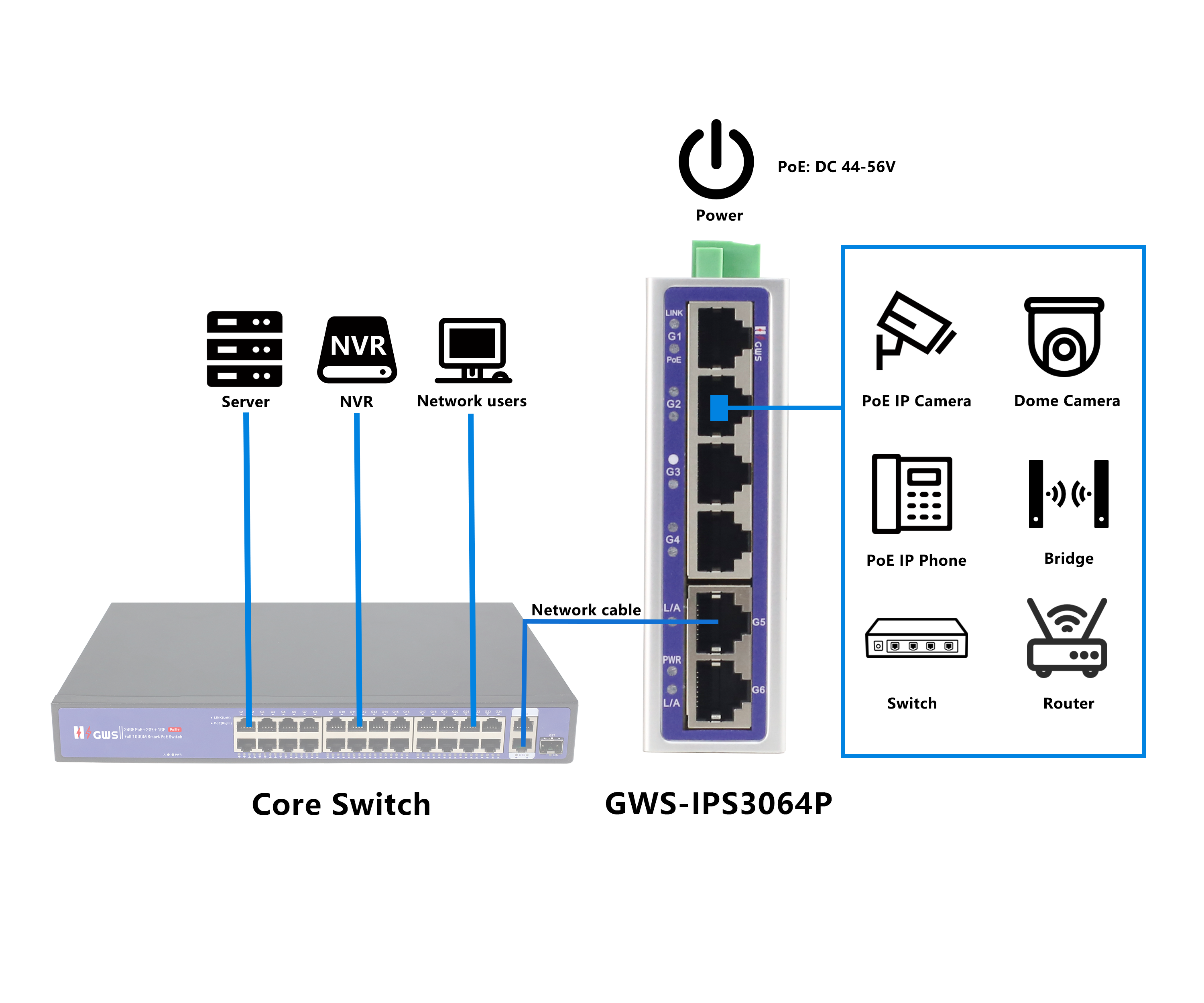

The GWS-IPS3064P is a full Gigabit industrial PoE switch. It has 6*10/100/1000M adaptive RJ45 ports. Ports 1-4 support IEEE802.3af/at PoE standard, and the single-port PoE power reaches 30W. As a PoE power supply device, it can automatically detect and identify standard powered devices and supply power to them through network cables. It can supply power to POE terminal equipment such as wireless AP, IP camera, industrial sensor, etc. through the network cable. It meets the network environment that requires high-density PoE power supply. The switch is suitable for intelligent transportation, rail transit, power industry, mining, petroleum, shipping, metallurgy and Industrial scenarios such as green energy construction build cost-effective, stable, and reliable communication networks.
Unmanaged model, plug and play, no need to configure, easy to use.
Feature
n Gigabit wire speed forwarding
◇ Support non-blocking wire-speed forwarding.
◇ Support full-duplex based on IEEE802.3x and half-duplex based on backpressure.
◇ Support full gigabit Ethernet ports, high speed and high bandwidth connection to meet the needs of various scenarios.
n Intelligent PoE power supply
◇ IEEE802.3af/at PoE standard, without damaging non-PoE devices.
◇ 4*10/100/1000Base-T RJ45 ports, meeting the needs of security monitoring, teleconferencing system, wireless coverage, and other scenarios.
◇ Priority system for PoE port, it will supply power to the high priority level port first when the power budget is insufficient and avoid overwork of the device.
n Stable and reliable
◇ CCC, CE, FCC, RoHS.
◇ Low power consumption, No fan, aluminum casing.
◇ The user-friendly panel can show the device status through the LED indicator of PWR, Link, L/A, PoE.

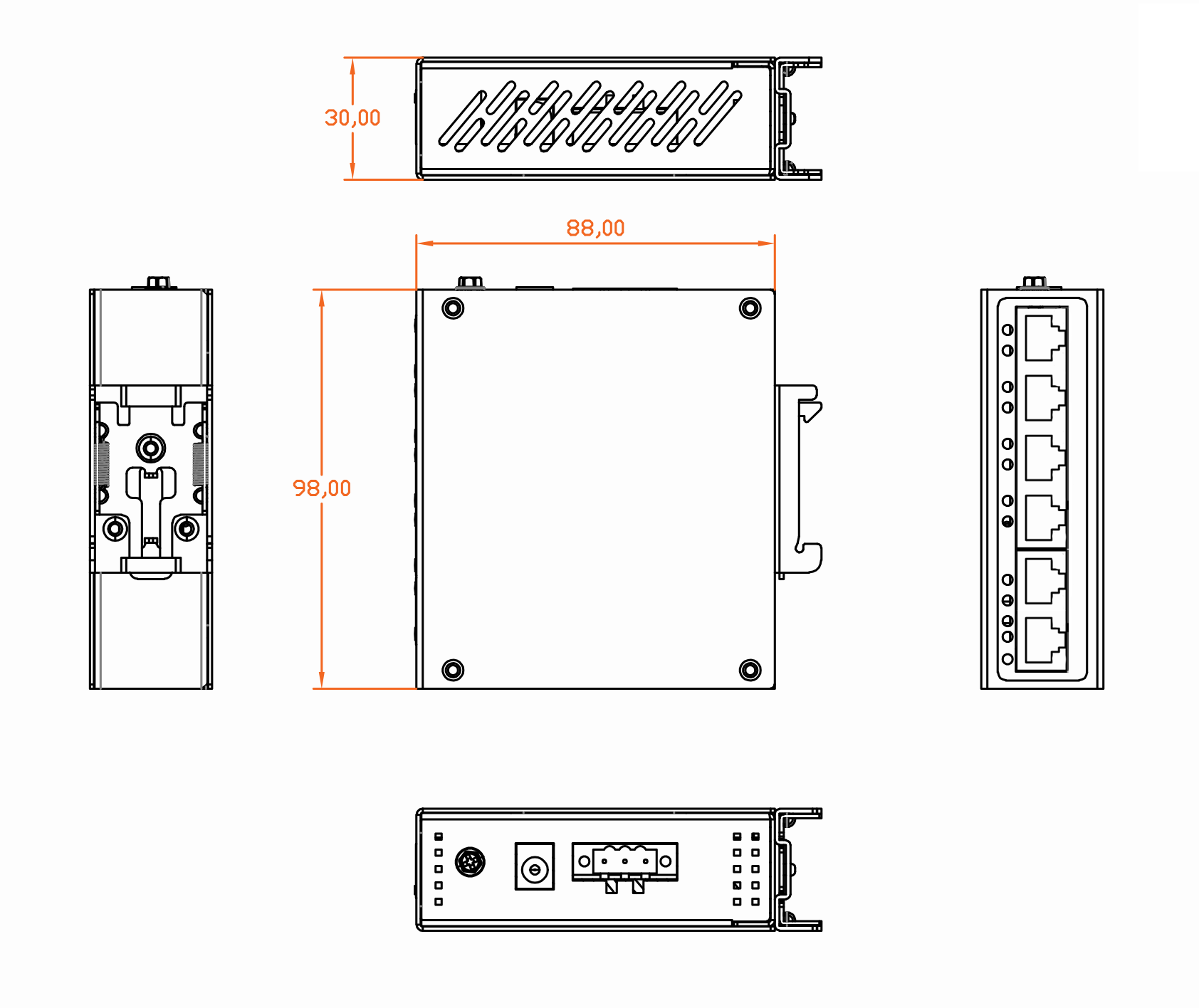

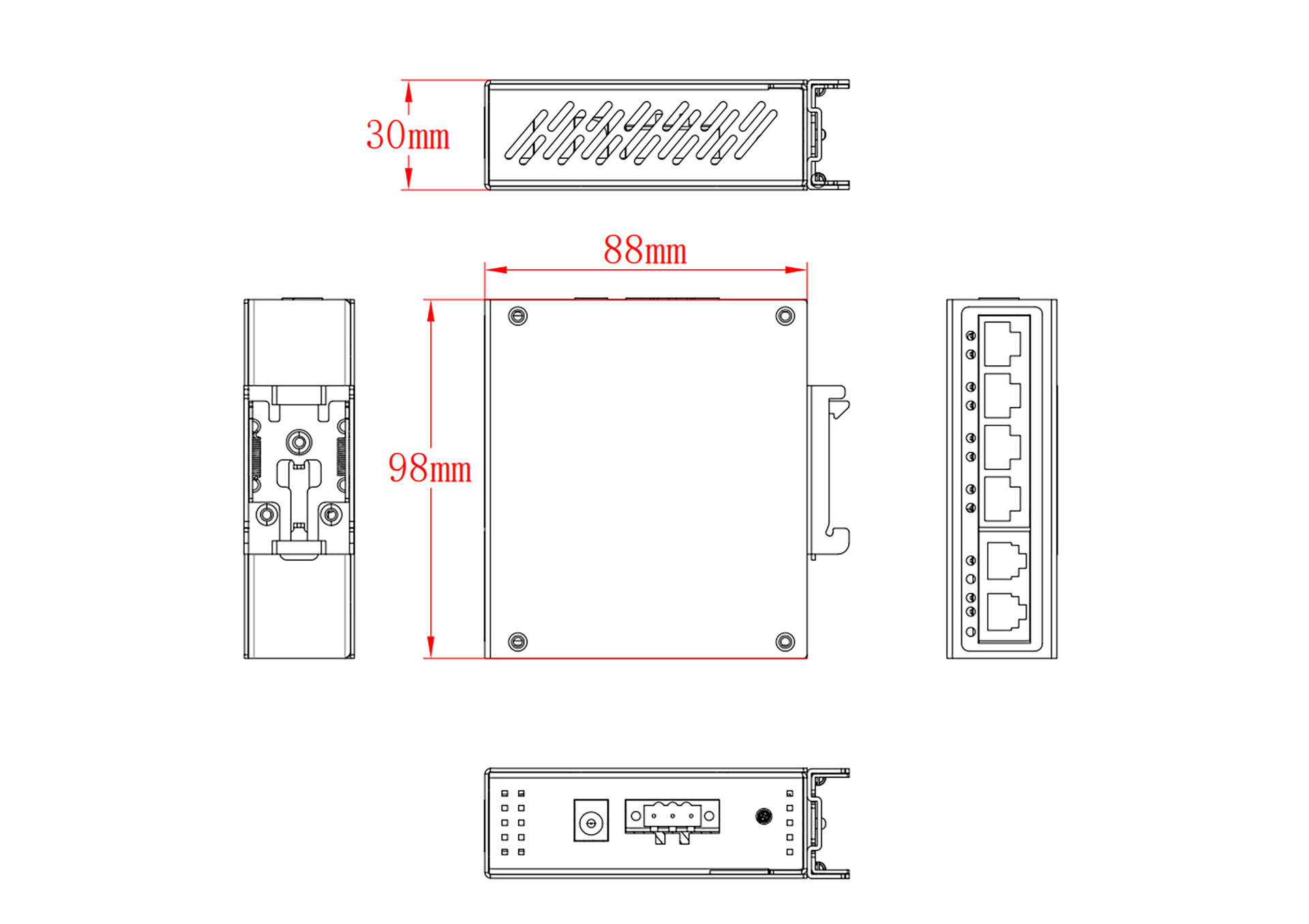

Dimension
Ordering Information
|
Model |
Description |
Recommended Power Supply |
|
GWS-IPS3064P |
Unmanaged industrial PoE switch with 6*10/100/1000M RJ45 ports. Port 1-4 can support IEEE802.3af/at PoE standard. It can support dual DC power input and DIN rail mounting. |
60W/120W |
|
Note: Industrial PoE switch do not include power supply by default. |
||
Packing List
|
Packing List |
Content |
Qty |
Unit |
|
6-port full gigabit industrial PoE switch |
1 |
SET |
|
|
User Guide |
1 |
PC |
|
|
Warranty Card |
1 |
PC |
Power Supply
|
Product |
Model |
Description |
Unit |
|
65W Desktop Power Adapter |
AP65-52 |
Desktop 65W single set of output power adapter Input Voltage: AC100V~240V 50-60Hz, 1.1A Output Voltage: DC52V 1.25A Operation Temperature: -20℃ to +65℃ |
PC |
|
110W Desktop Power Adapter |
AP110-52 |
Desktop 110W single set of output power adapter Input Voltage: AC100V~240V 50-60Hz, 2.0A Output Voltage: DC52V 2.0A Operation Temperature: -20℃ to +65℃ |
PC |
|
60W DIN Rail Industrial Power Supply |
DP60-48 |
Din Rail 60W single set of output power supply Input Voltage: AC100V~240V 50-60Hz,1.0A Output Voltage: DC48V 1.25A Operation Temperature:-40℃ to +70℃ |
PC |
|
120W DIN Rail Industrial Power Supply |
DP120-48 |
Din Rail 120W single set of output power supply Input Voltage:AC100V~240V 50-60Hz,1.5A Output Voltage: DC48V 2.5A Operation Temperature:-40℃ to +70℃ |
PC |
|
Model |
GWS-IPS3064P |
|
Interface Characteristics |
|
|
Fixed Port |

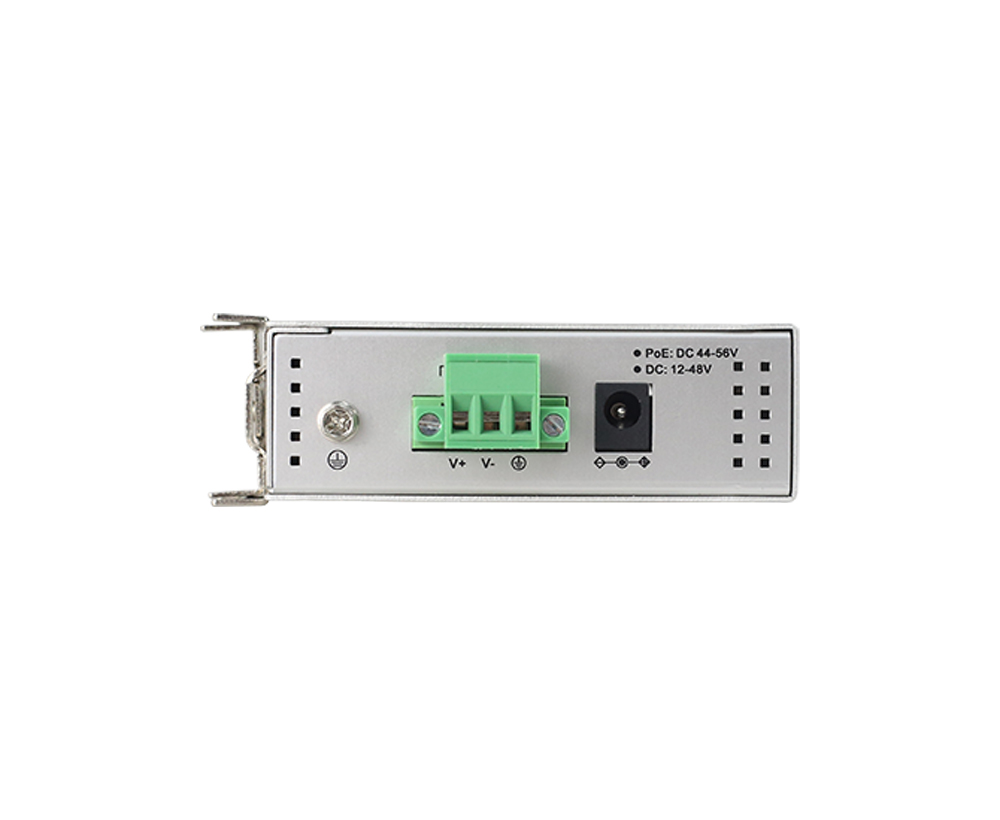

4*10/100/1000Base-T PoE ports (Data/Power) 2*10/100/1000Base-T uplink RJ45 ports(Data) 2 set of V+, V- redundant DC power interface (3P Phoenix terminal+DC5521 Jack) |
|
Ethernet Port |
Port 1-6 support 10/100/1000Base-T auto-sensing, full/half duplex MDI/MDI-X self-adaption |
|
Twisted Pair Transmission |
10BASE-T: Cat3,4,5 UTP(≤100 meters) 100BASE-TX: Cat5 or later UTP(≤100 meters) 1000BASE-T: Cat5e or later UTP(≤100 meters) |
|
Chip Parameter |
|
|
Network Protocol |
IEEE802.3 10BASE-T, IEEE802.3i 10Base-T IEEE802.3u 100Base-TX, IEEE802.3ab 1000Base-T, IEEE802.3x |
|
Forwarding Mode |
Store and Forward(Full Wire Speed) |
|
Switching Capacity |
16Gbps |
|
Forwarding Rate@64byte |
8.93Mpps |
|
MAC |
8K |
|
Buffer Memory |
2Mb |
|
Jumbo Frame |
9.2KB |
|
LED Indicator |
Power: PWR (Green), Network: Link G1-G6(Green), POE: PoE G1-G4(Green), |
|
PoE & Power Supply |
|
|
PoE Port |
Port 1 to 4 IEEE802.3af/at |
|
Power Supply Pin |
1/2(+) 3/6 (-) |
|
Max Power Per Port |
30W, IEEE802.3af/at |
|
Power Consumption |
Standby:<5W, Full load:af<60W/ at<120W |
|
Power Supply |
Self-purchased, optional 48V/60W or 48V/120W industrial power supply |
|
Working Voltage |
DC44-56V, 3P industrial Phoenix terminal+DC5521 Jack, support anti-reverse protection. |
|
Physical Parameter |
|
|
Operation TEMP/ Humidity |
-40~+75°C, 5%~90% RH Non condensing |
|
Storage TEMP/ Humidity |
-40~+85°C, 5%~95% RH Non condensing |
|
Dimension |
98*88*30mm |
|
Net /Gross Weight |
<0.2kg / <0.3 kg |
|
Installation |
Desktop, DIN rail |
|
Certification & Warranty |
|
|
Lightning Protection |
Lightning protection: 6KV 8/20us; Protection level: IP30 IEC61000-4-2(ESD): ±8kV contact discharge,±15kV air discharge IEC61000-4-3(RS):10V/m(80~1000MHz) IEC61000-4-4(EFT): power cable:±4kV; data cable: ±2kV IEC61000-4-5(Surge): power cable:CM±4kV/DM±2kV; data cable: ±4kV IEC61000-4-6(radio frequency transmission):10V(150kHz~80MHz) IEC61000-4-8(power frequency magnetic field):100A/m;1000A/m ,1s to 3s IEC61000-4-9(pulsed magnet field): 1000A/m IEC61000-4-10(damped oscillation): 30A/m 1MHz IEC61000-4-12/18(shockwave):CM 2.5kV, DM 1kV IEC61000-4-16(common-mode transmission) :30V; 300V,1s FCC Part 15/CISPR22(EN55022): Class B IEC61000-6-2(Common Industrial Standard) |
|
Mechanical Properties |
IEC60068-2-32 (free fall) IEC60068-2-27 (anti shock) IEC60068-2-6 (anti vibration) |
|
Certification |
CCC, CE mark, commercial, CE/LVD EN62368-1, FCC Part 15 Class B, RoHS |
|
Warranty |
5 years, lifelong maintenance. |
