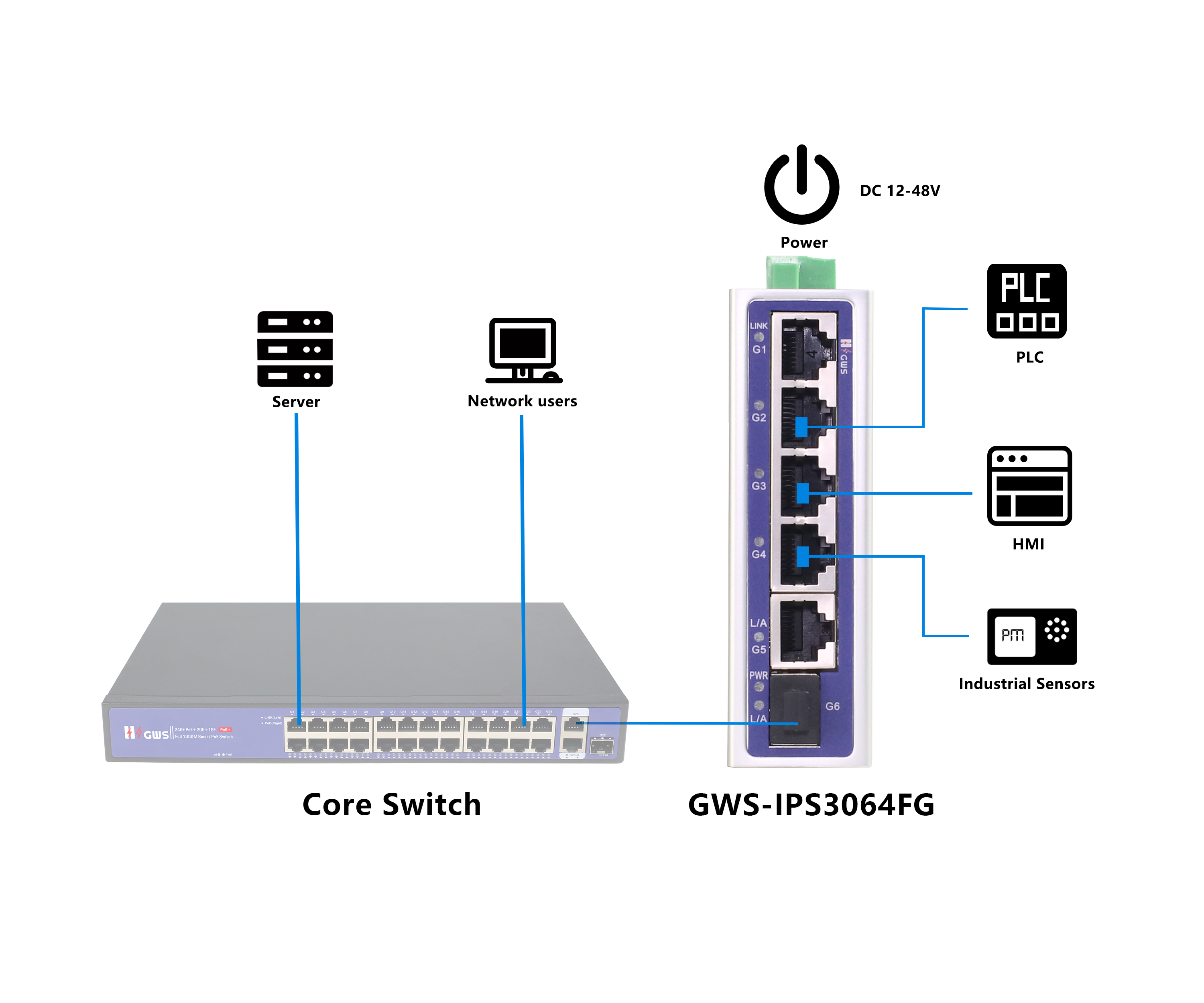

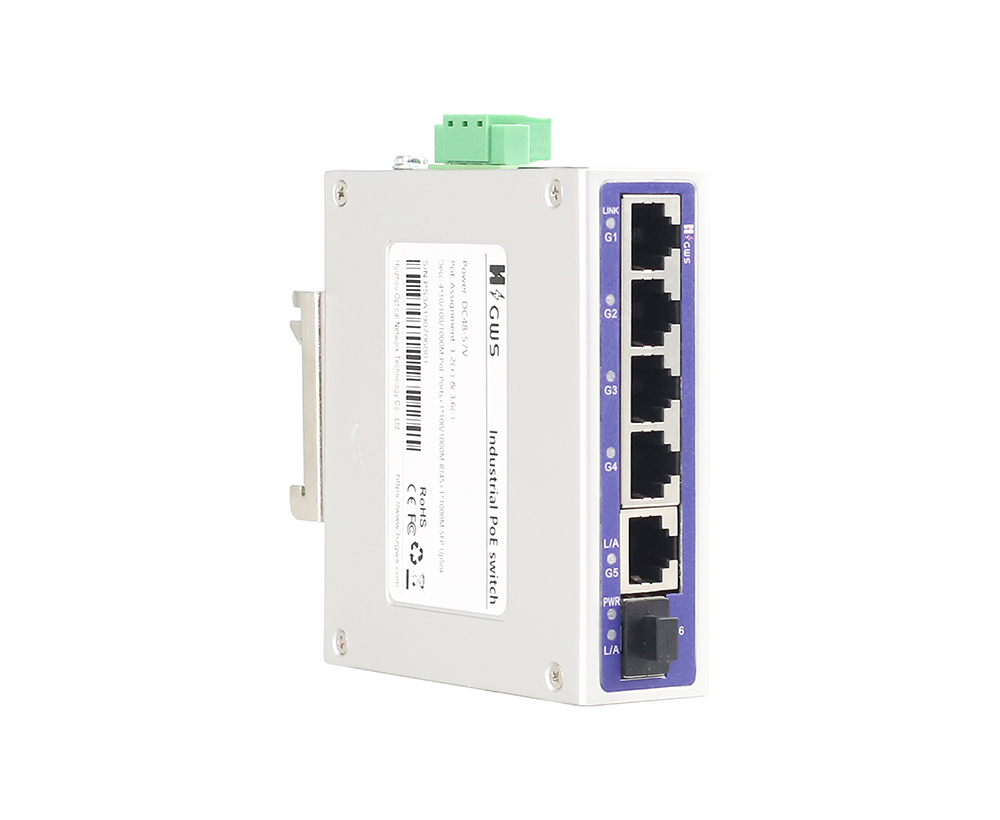

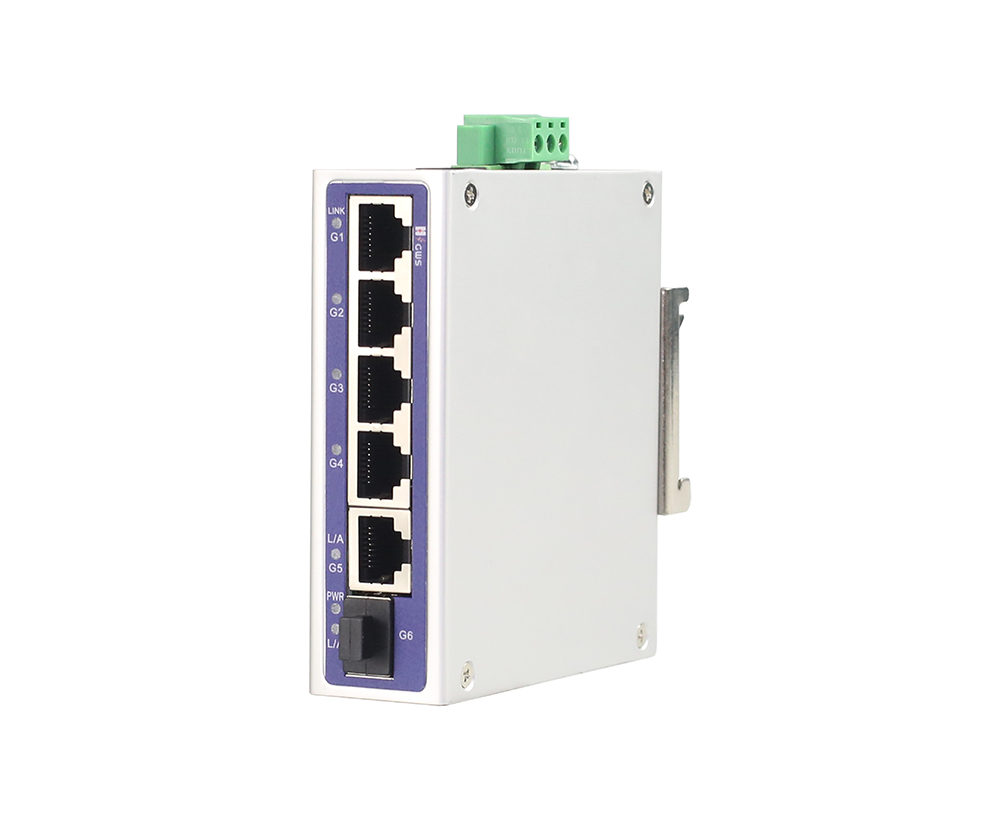

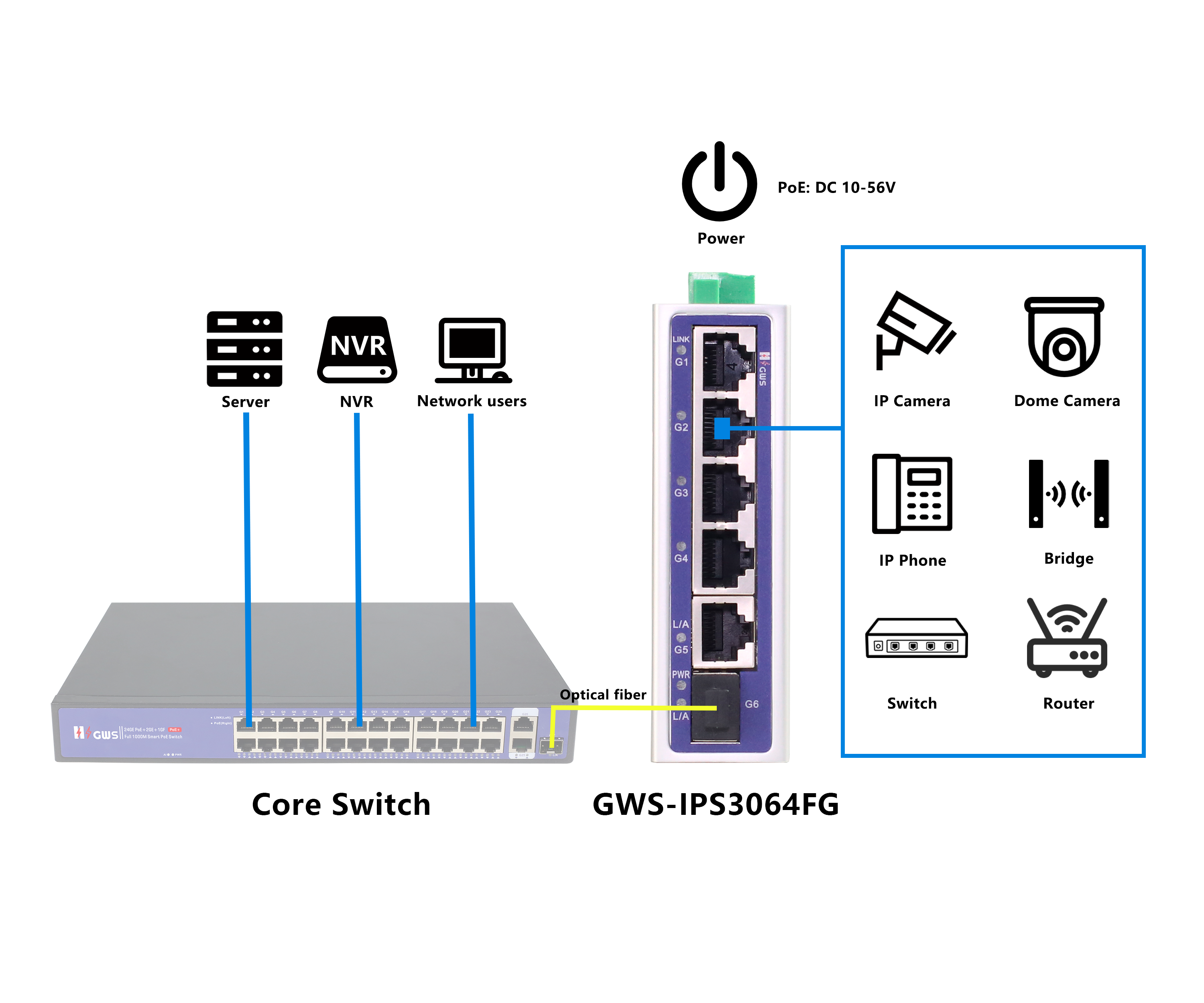

The GWS-IPS3064FG is a full gigabit industrial Ethernet fiber switch. It is designed to meet industrial fields and systems and can operate stably for a long time in harsh environments. The GWS-IPS3064FG has 5*10/100/1000M adaptive RJ45 ports and 1*1000M SFP fiber slot port, Each port can support full line-rate forwarding.
GWS-IPS3064FG industrial Ethernet switch has excellent industrial field environment adaptability (including mechanical stability, climate adaptability, electromagnetic environment adaptability, etc.), protection level up to IP30, support for dual redundant power supply, low power consumption and fanless cooling technology, MTBF average trouble-free working time up to 35 years, 5-year warranty, unmanaged models, plug and play, no configuration, easy to use. It is suitable for industrial scenes such as intelligent transportation, rail transit, electric power, mining, metallurgy and green energy construction to form a cost-effective and stable communication network.
◇ A combination of Gigabit Ethernet port and Gigabit SFP port to meet the networking requirements of various scenarios.
◇ Support non-blocking wire-speed forwarding.
◇ Support full-duplex based on IEEE802.3x and half-duplex based on backpressure.
n Stable and reliable
◇ Low power consumption, no fan, aluminum shell.
◇ CCC,CE, FCC, RoHS.
◇ The user-friendly panel, it can show the device status through the LED indicator of PWR, Link.
|
Model |
Description |
Recommended Power Supply |
|
GWS-IPS3064FG |
Unmanaged industrial Ethernet switch with 5*10/100/1000M RJ45 ports and 1*1000M SFP fiber slot port, Support DC redundant power supply connection .Support DIN rail mounting . |
12/24W |
|
Note: Industrial Ethernet switch does not match the power supply and SFP module. |
||
|
PACKING LIST |
CONTENT |
QTY |
UNIT |
|
6-port full gigabit industrial Ethernet switch |
1 |
SET |
|
|
User Guide |
1 |
PC |
|
|
Warranty Card |
1 |
PC |
|
Product |
Model |
Description |
Unit |
|
1.25G Optical Module
|
2630-G |
Industrial SFP optical module, 1.25G, multi-mode dual fiber 850nm, transmission distance: 550m, LC interface, support DDM function, support hot plug and pull. |
PC |
|
2632-G |
Industrial SFP optical module, 1.25G, single-mode dual fiber 1310nm, transmission distance: 20km, LC interface, support DDM function, support hot plug and pull. |
PC |
|
|
2612-T-G |
Industrial SFP optical module, 1.25G, single-mode single fiber TX1310nm/RX1550nm, transmission distance: 20km, LC interface, support DDM function, support hot plug and pull. |
PC |
|
|
2613-R-G |
Industrial SFP optical module, 1.25G, single-mode single fiber TX1550nm/RX1310nm, transmission distance: 20km, LC interface, support DDM function, support hot plug and pull. |
PC |
|
|
2612-T-G-SC |
Industrial SFP optical module, 1.25G, single-mode single fiber TX1310nm/RX1550nm, transmission distance: 20km, SC interface, support DDM function, support hot plug and pull. |
PC |
|
|
2613-R-G-SC |
Industrial SFP optical module, 1.25G, single-mode single fiber TX1550nm/RX1310nm, transmission distance: 20km, SC interface, support DDM function, support hot plug and pull. |
PC |
|
Product |
Model |
Description |
Unit |
|
12W DIN Rail Industrial Power Supply |
DP12-24 |
Din Rail type 12W single set of output power supply; Input Voltage:AC 100V~240V 50-60H,0.35A Output Voltage:DC 24V 0.5A Operation Temperature:-40℃—+70℃ |
PC |
|
Model |
GWS-IPS3064FG |
|
Interface Characteristics |
|
|
Fixed Port |
5*10/100/1000Base-T RJ45 ports (Data) 1*1000Base-X uplink SFP fiber slot port(Data) 2 groups V+, V- redundant DC power interface (3P phoenix terminal+DC5521 Jack) |
|
Ethernet Port |
Port 1-5 support 10/100/1000Base-T auto-sensing, full/half duplex MDI/MDI-X self-adaption |
|
Twisted Pair Transmission |
10BASE-T: Cat3,4,5 UTP(≤100 meter) 100BASE-TX: Cat5 or later UTP(≤100 meter) 1000BASE-T: Cat5e or later UTP(≤100 meter) |
|
SFP Slot Port |
Gigabit SFP optical fiber interface, default matching optical modules (optional order single-mode / multi-mode, single fiber / dual fiber optical module. LC) |
|
Optical Cable/ Distance |
Multi mode: 850nm 0 - 550M, single mode: 1310nm 0 - 40KM, 1550nm 0- 120KM. |
|
Chip Parameter |
|
|
Network Protocol |
IEEE802.3 10BASE-T, IEEE802.3i 10Base-T IEEE802.3u 100Base-TX, IEEE802.3ab 1000Base-TX IEEE802.3z 1000Base-X, IEEE802.3x |
|
Forwarding Mode |
Store and Forward(Full Wire Speed) |
|
Switching Capacity |
12Gbps |
|
Forwarding Rate@64byte |
8.93Mpps |
|
MAC |
8K |
|
Buffer Memory |
2Mb |
|
Jumbo Frame |
9.2KB |
|

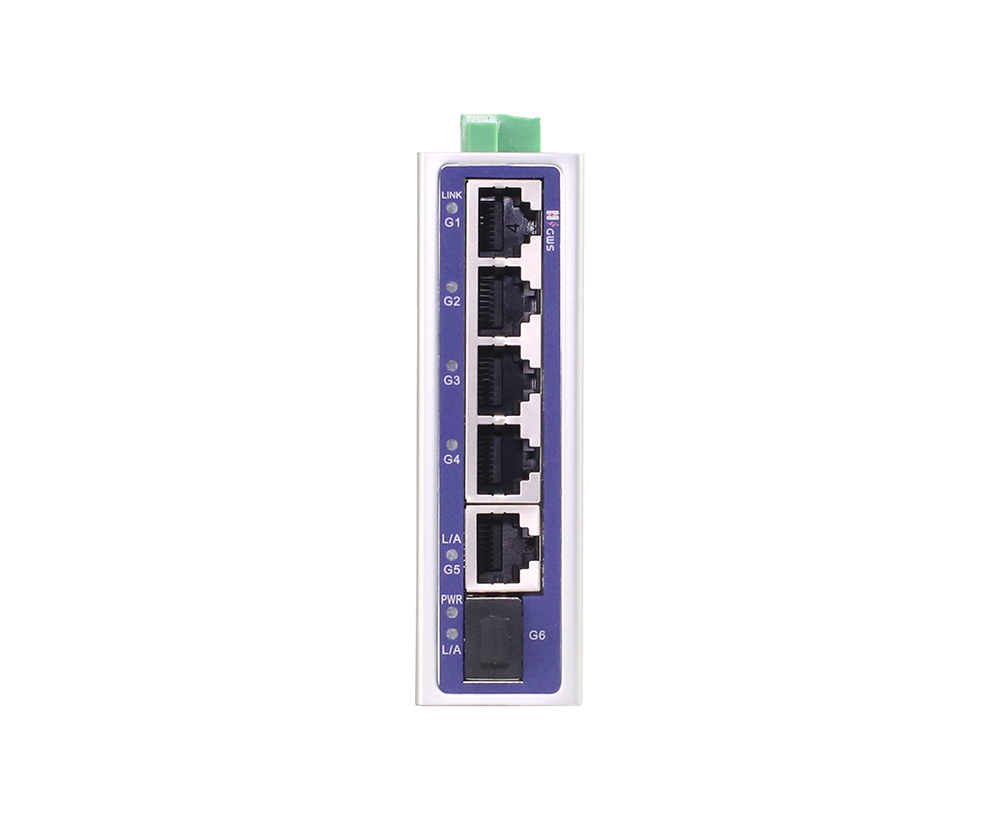

LED Indicator |
Power:PWR (green), network: Link G1-G5, Fiber port: L/A G6 (Green) |
|
Power |
|
|
Power Consumption |
Standby<3W, Full load<8W |
|
Power Supply |
Self-purchased, optional 24V/24W industrial power supply |
|
Working Voltage |
12-48VDC; 3P industrial Phoenix terminal+DC5521 Jack, support anti-reverse protection. |
|
Physical Parameter |
|
|
Operation TEMP / Humidity |
-40~+75°C;5%~90% RH Non condensing |
|
Storage TEMP / Humidity |
-40~+85°C;5%~95% RH Non condensing |
|
Dimension (L*W*H) |

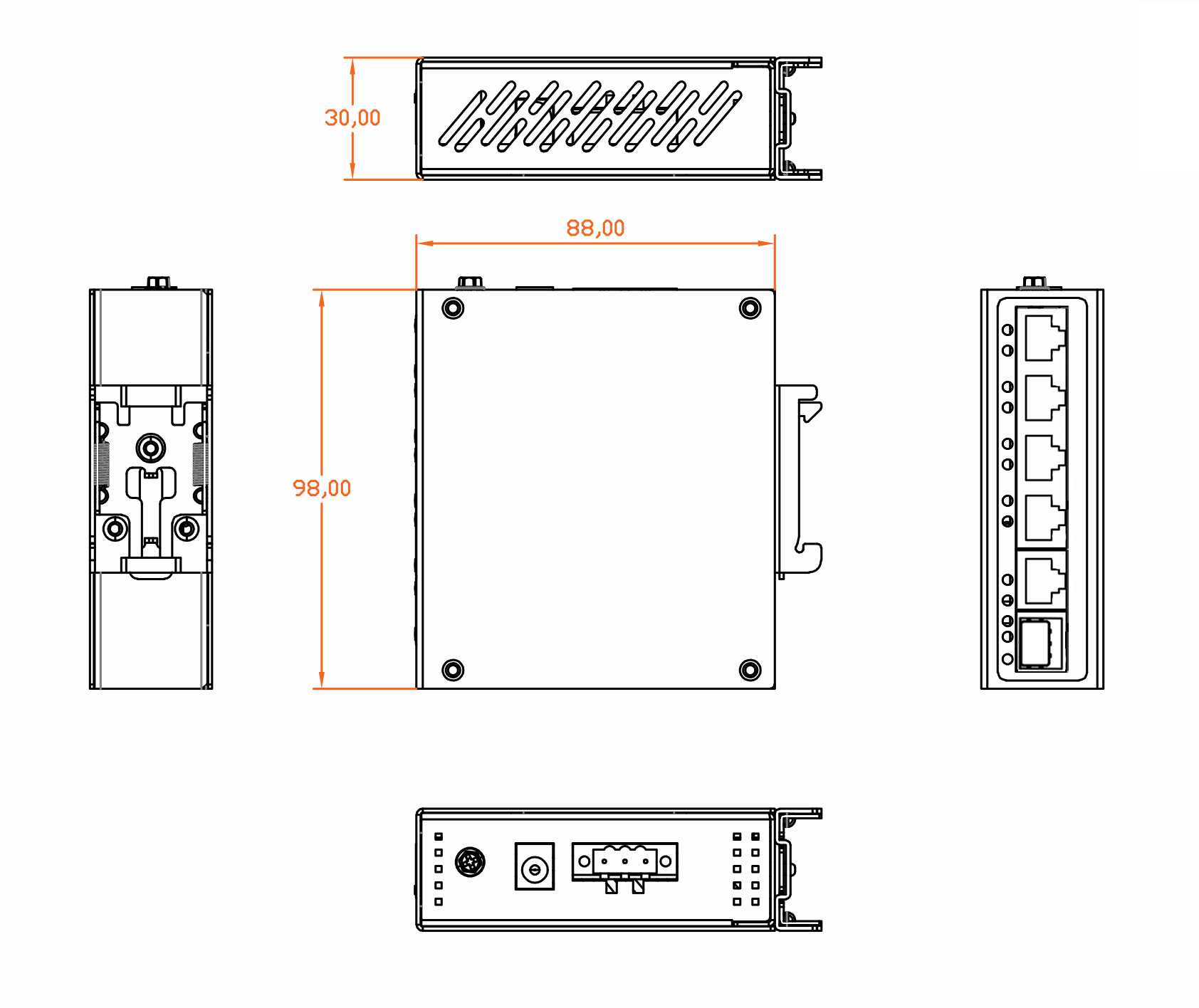

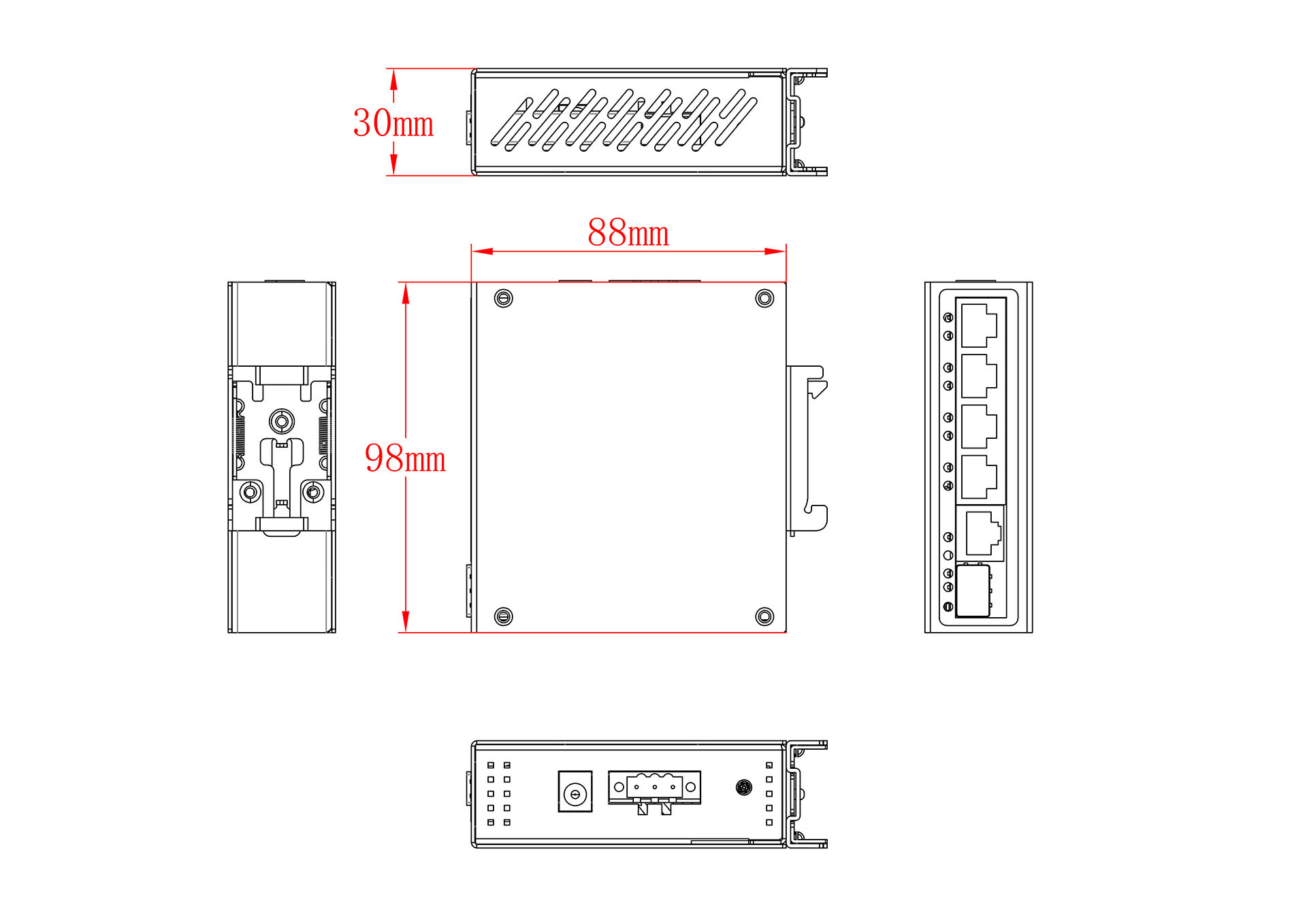

98*88*30mm |
|
Net /Gross Weight |
<0.2kg / <0.3kg |
|

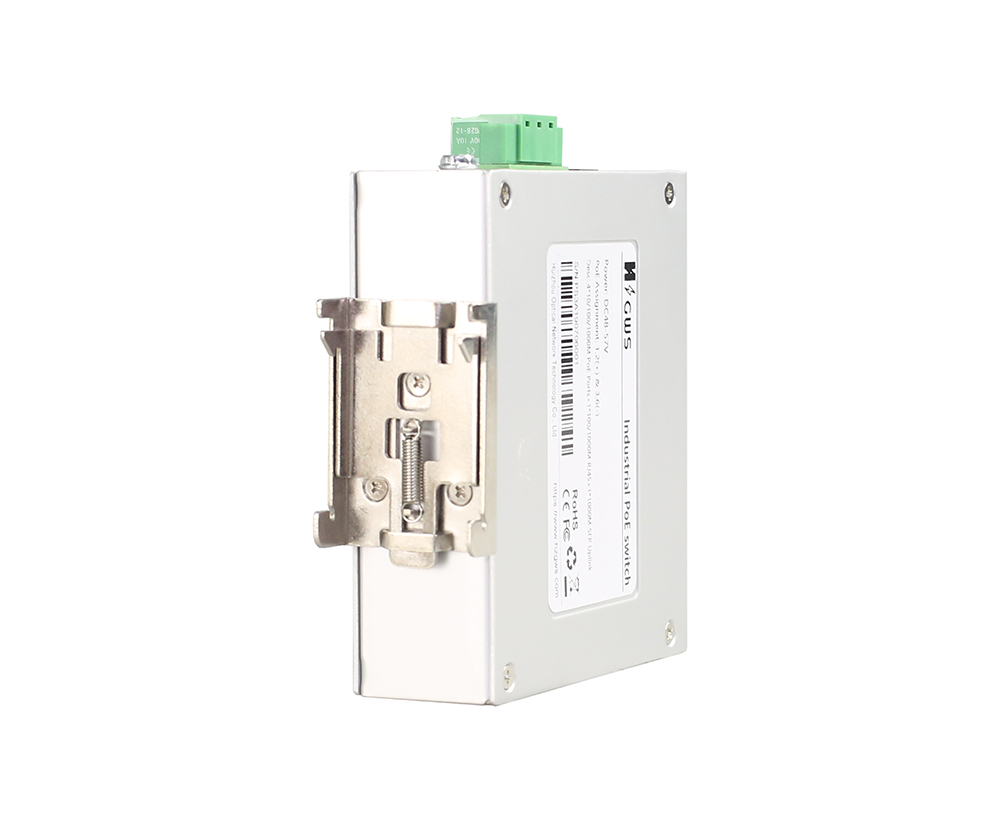

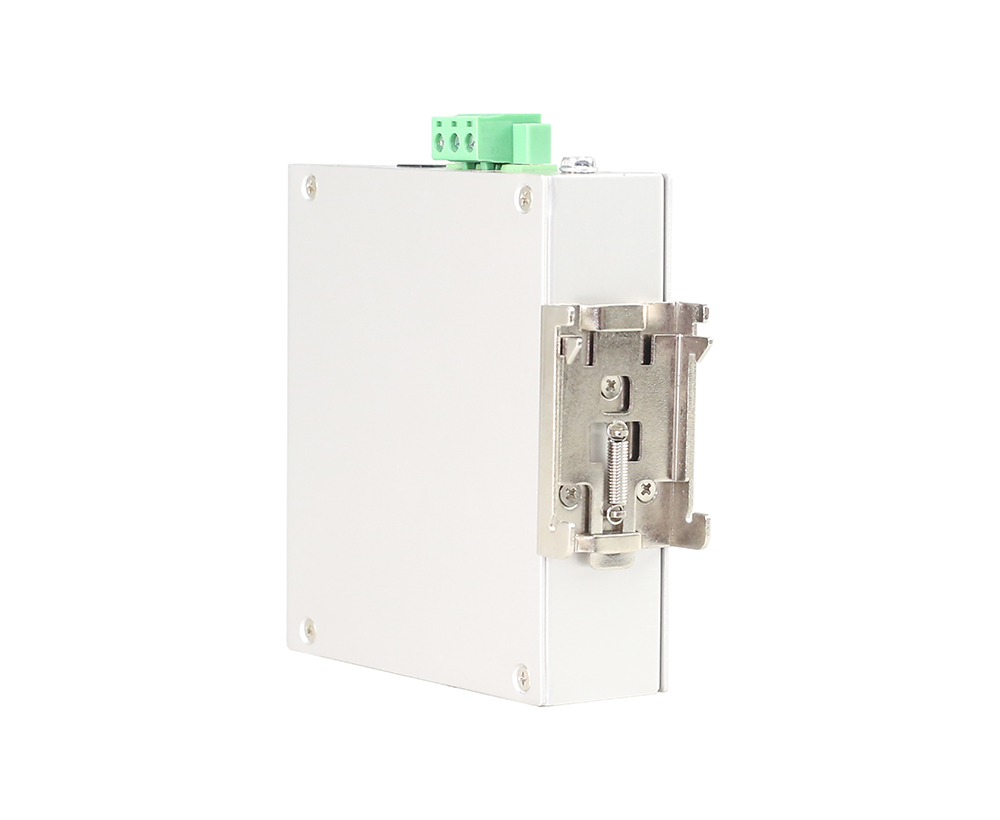

Installation |
Desktop, DIN rail |
|
Certification & Warranty |
|
|
Lightning protection / protection level |
Lightning protection: 6KV 8/20us; Protection level: IP30 IEC61000-4-2(ESD):±8kV contact discharge,±15kV air discharge IEC61000-4-3(RS):10V/m(80~1000MHz) IEC61000-4-4(EFT): power cable:±4kV; data cable:±2kV IEC61000-4-5(Surge):power cable:CM±4kV/DM±2kV; data cable:±4kV IEC61000-4-6(radio frequency transmission):10V(150kHz~80MHz) IEC61000-4-8(power frequency magnetic field):100A/m;1000A/m ,1s to 3s IEC61000-4-9(pulsed magnet field):1000A/m IEC61000-4-10(damped oscillation):30A/m 1MHz IEC61000-4-12/18(shockwave):CM 2.5kV,DM 1kV IEC61000-4-16(common-mode transmission):30V; 300V,1s FCC Part 15/CISPR22(EN55022):Class A IEC61000-6-2(Common Industrial Standard) |
|
Mechanical Properties |
IEC60068-2-6 (anti vibration) IEC60068-2-27 (anti shock) IEC60068-2-32 (free fall) |
|
Certification |
CCC;CE mark, commercial; CE/LVD EN62368-1;FCC Part 15 Class B; RoHS; |
|
Warranty |
5 years, lifelong maintenance. |
