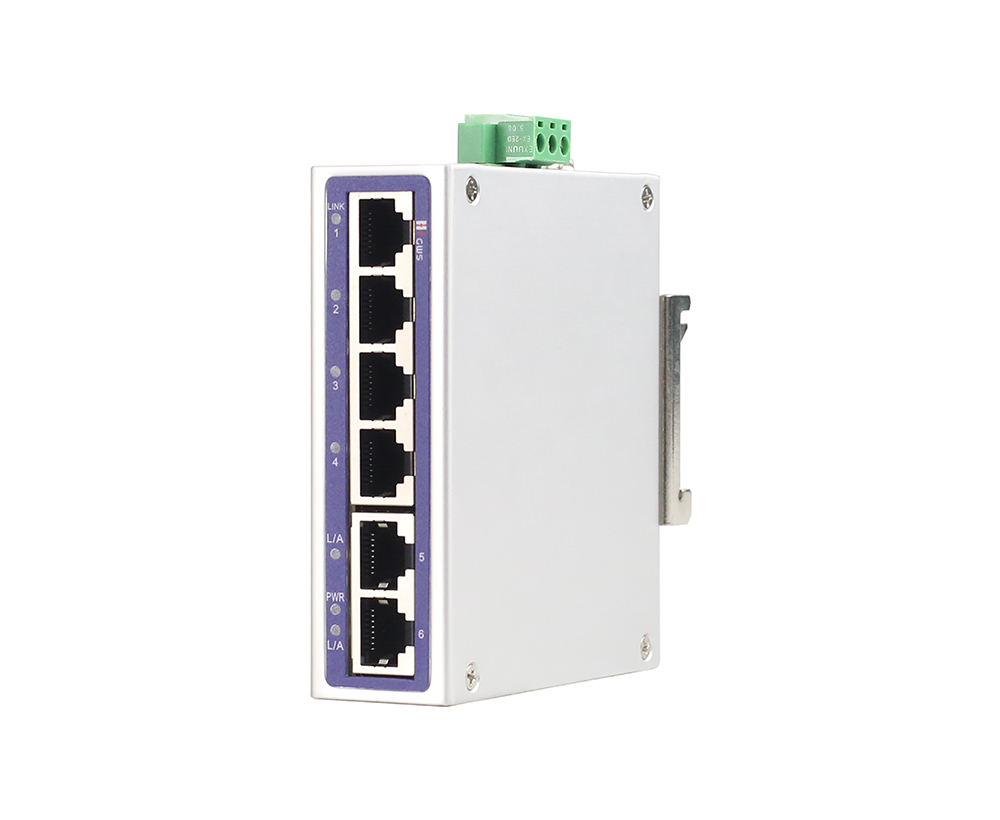

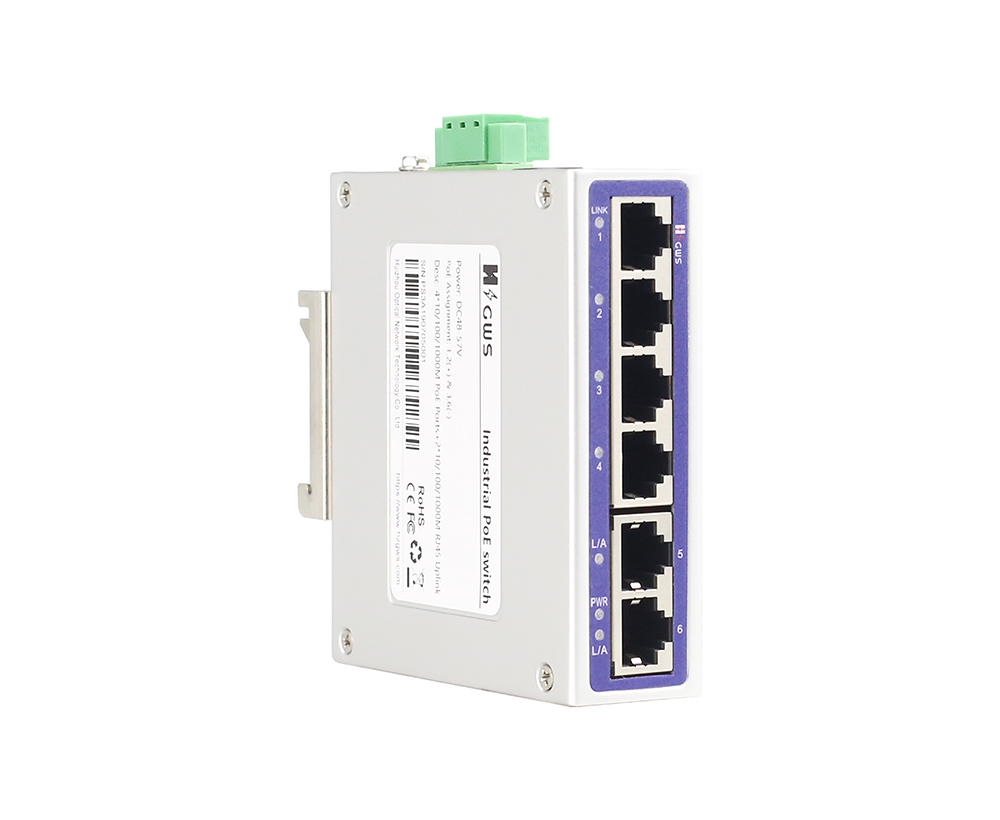

The GWS-IPS1064 is a 10/100M industrial Ethernet switch. It is designed to meet industrial fields and systems and can operate stably for a long time in harsh environments. It has 6*10/100M RJ45 ports. Each port can support full line-rate forwarding.
GWS-IPS1064 industrial Ethernet switch has excellent industrial field environment adaptability (including mechanical stability, climate adaptability, electromagnetic environment adaptability, etc.), protection level up to IP30, It can support dual redundant power supply, low power consumption and no fan cooling technology, MTBF average trouble-free working time up to 35 years, 5-year warranty. It is suitable for industrial scenes such as intelligent transportation, rail transit, electric power, mining, metallurgy and green energy construction to form a cost-effective and stable communication network.
n 100M Ethernet access, full wire transmission

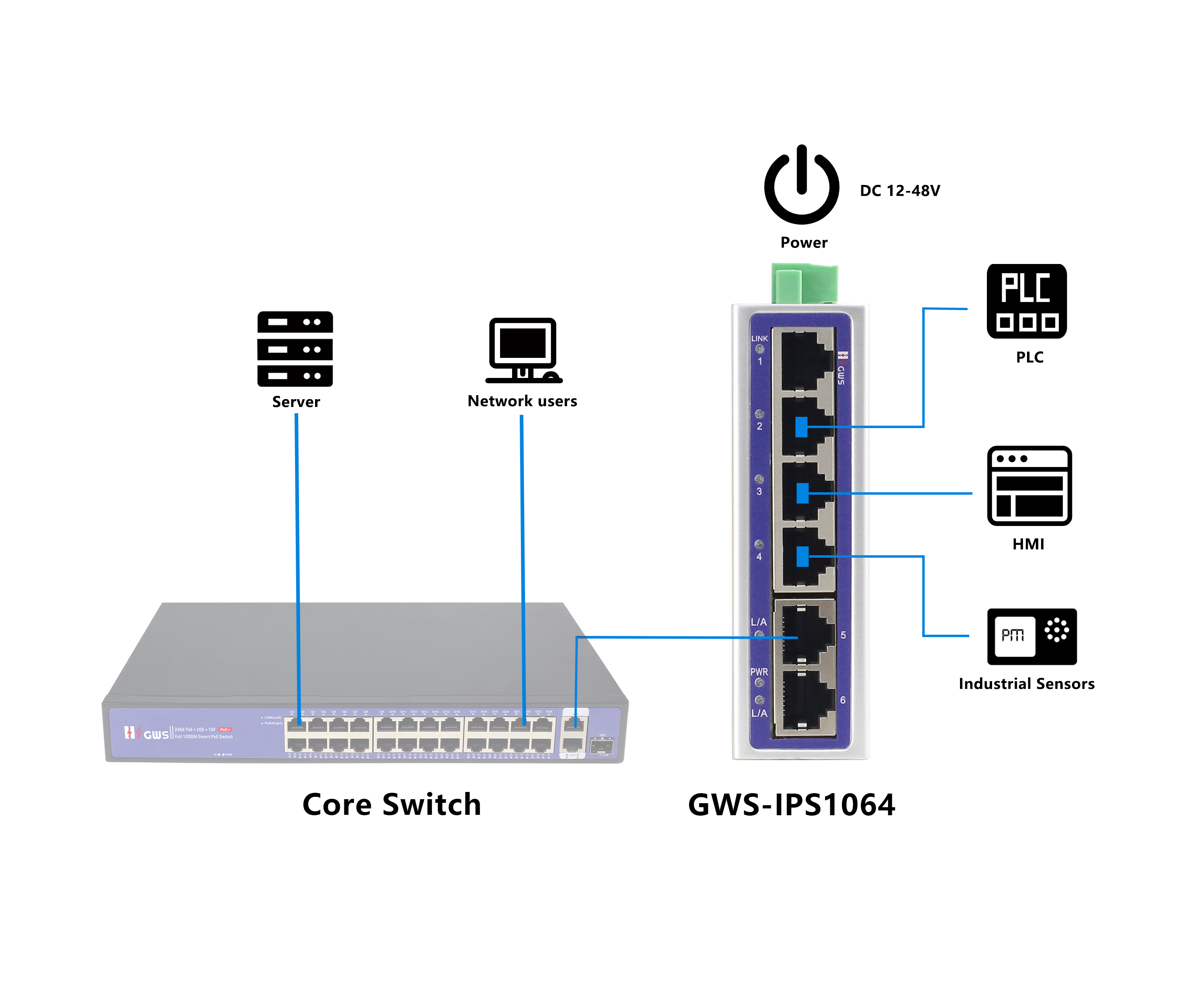

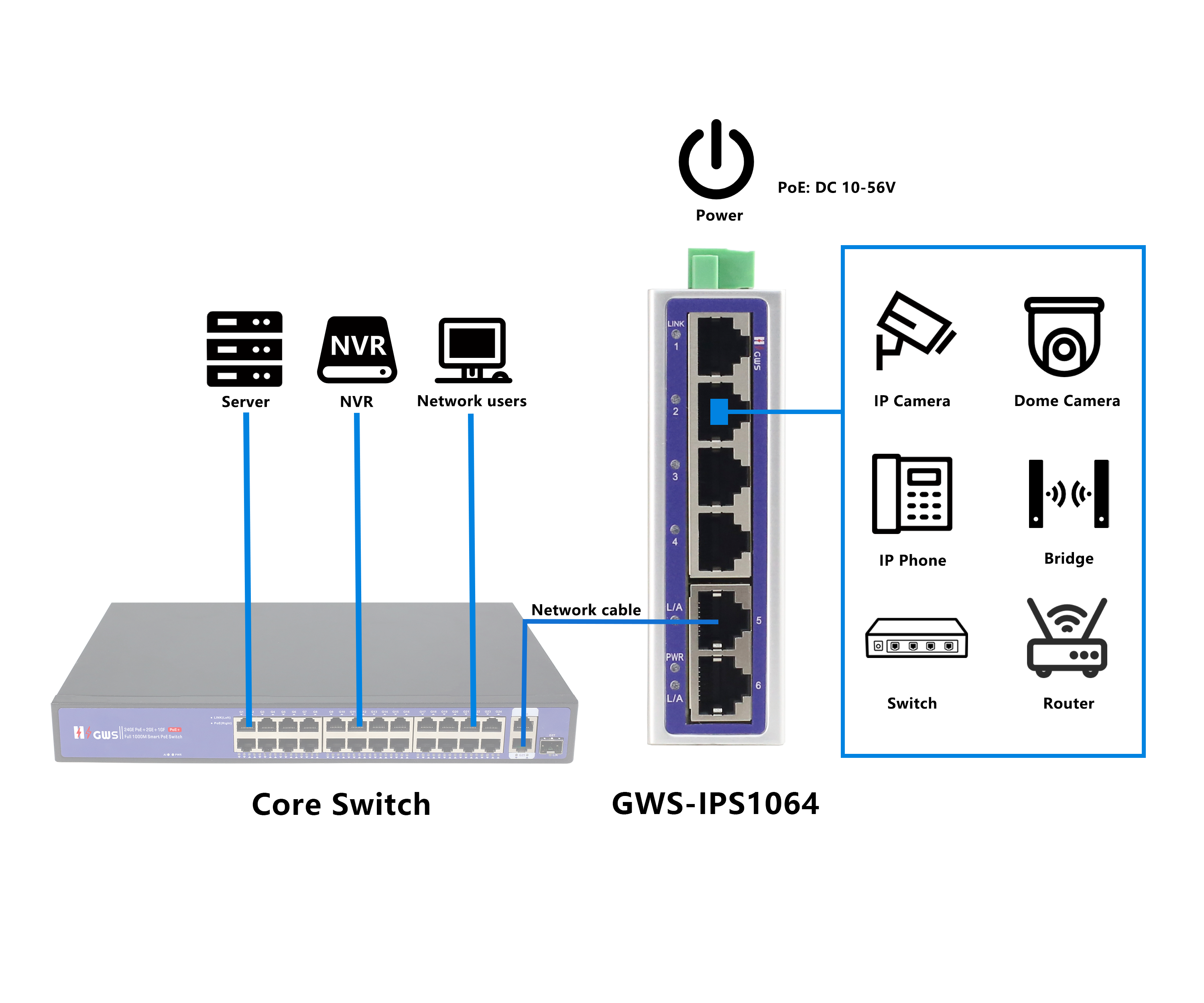

◇ Supports 10/100M RJ45 port and dual uplink RJ45 port combination, which enables users to flexibly build networking to meet the needs of various scenarios.
◇ Support non-blocking wire-speed forwarding.
◇ Support full-duplex based on IEEE802.3x and half-duplex based on backpressure.
n Stable and reliable
◇ CE, FCC, RoHS.
◇ Low power consumption, No fan, aluminum shell.

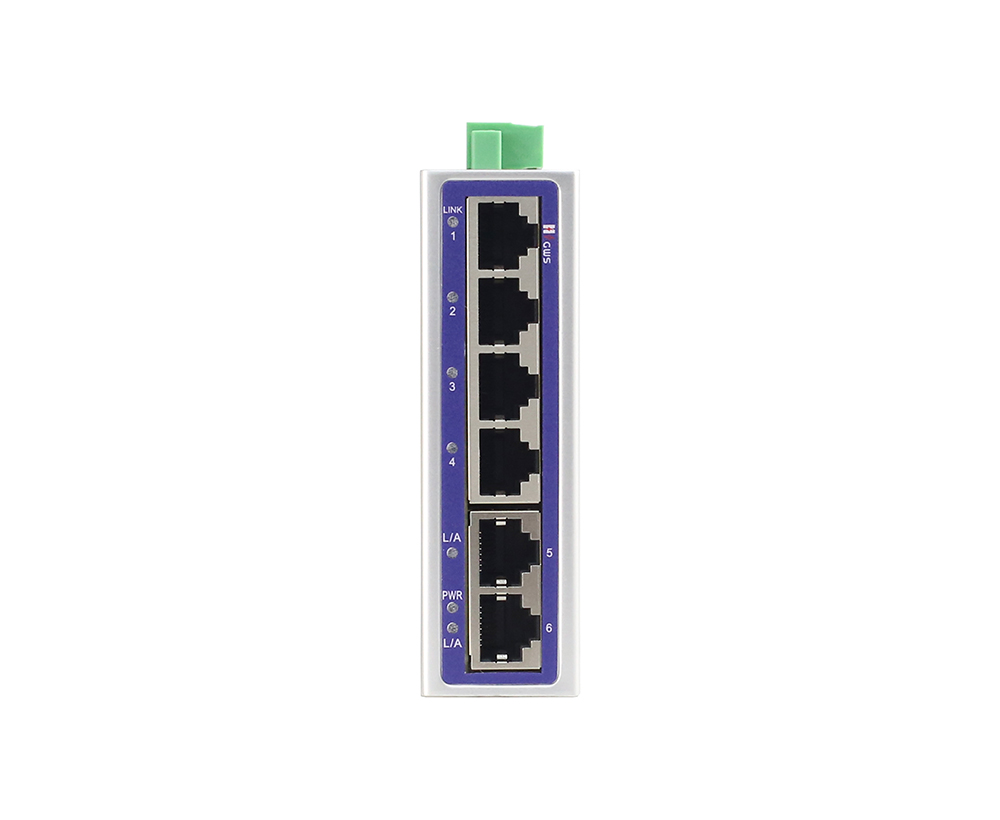

◇ The user-friendly panel can show the device status through the LED indicator of PWR, Link.
|
Model |
Description |
Recommended Power Supply |
|
GWS-IPS1064 |
Unmanaged industrial Ethernet switch with 6*10/100M RJ45 ports. It can support dual DC redundant power input and DIN rail mounting. |
24V/24W |
|
Note: The power supply is not included, and needs to be purchased separately |
||
|
PACKING LIST |
CONTENT |
QTY |
UNIT |
|
6-port 10/100M industrial Ethernet switch |
1 |
SET |
|
|
User Guide |
1 |
PC |
|
|
Warranty Card |
1 |
PC |
|
Product |
Model |
Description |
Unit |
|
24W DIN Rail Industrial Power Supply |
DP24-24 |
Din Rail type 24W single set of output power supply; Input Voltage:AC 100V~240V 50-60H,0.35A Output Voltage:DC 24V 1.0A Operation Temperature：-40℃—+70℃ |
PC |
|
Model |
GWS-IPS1064 |
|
Interface Characteristics |
|
|
Fixed Port |
6*10/100Base-TX RJ45 ports (Data) 2 set of V+, V- redundant DC power ports (3 Pin Phoenix terminal+DC5521 Jack) |
|
Twisted Pair Transmission |
10BASE-T: Cat3,4,5 UTP(≤100 meter) 100BASE-T: Cat5e or later UTP(≤100 meter) |
|
Ethernet Port |
10/100Base-TX, auto-sensing, Full/half duplex MDI/MDI-X self-adaption |
|
Chip Parameter |
|
|
Network Protocol |
IEEE802.3 10BASE-T, IEEE802.3i 10Base-T, IEEE802.3u 100Base-TX, IEEE802.3u 100Base-FX, IEEE802.3x |
|
Forwarding Mode |
Store and Forward(Full Wire Speed) |
|
Switching Capacity |
1.6Gbps (no-blocking) |
|
Forwarding Rate@64byte |
0.89Mpps |
|
MAC |
2K |
|
Buffer Memory |
768Kb |
|
Jumbo Frame |
2048B |
|
LED Indicator |
Power: PWR (green), network: Link1-6 (yellow) |
|
Power |
|
|
Working Voltage |
12-48VDC; 3 Pin industrial Phoenix terminal+DC5521 Jack, support anti-reverse protection. |
|
Power Consumption |
Standby<3W, Full load<5W |
|
Power Supply |
Self-purchased, optional 24V/24W industrial power supply |
|
Physical Parameter |
|
|
Operation TEMP / Humidity |
-40~+75°C;5%~90% RH Non condensing |
|
Storage TEMP / Humidity |
-40~+85°C;5%~95% RH Non condensing |
|

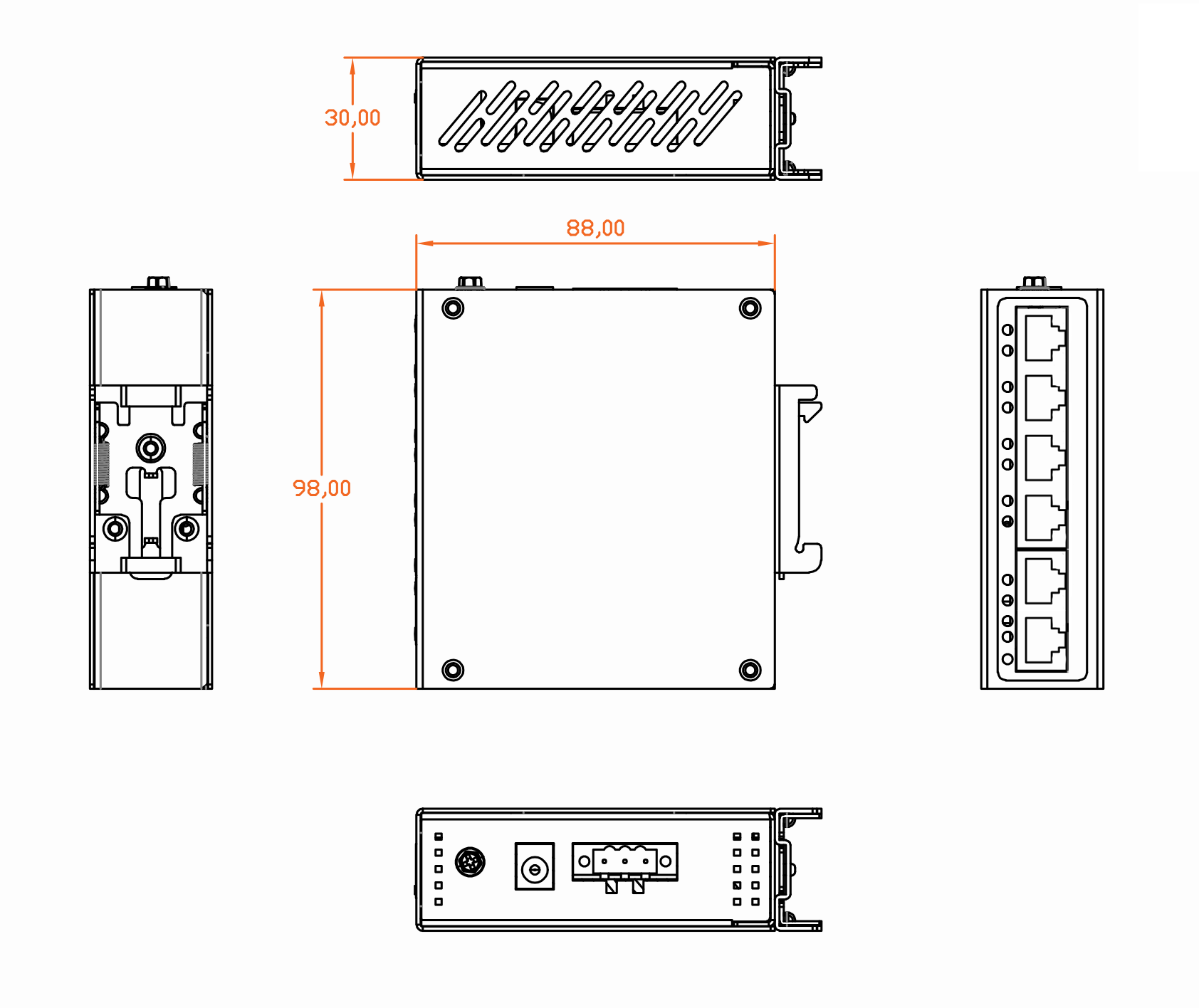

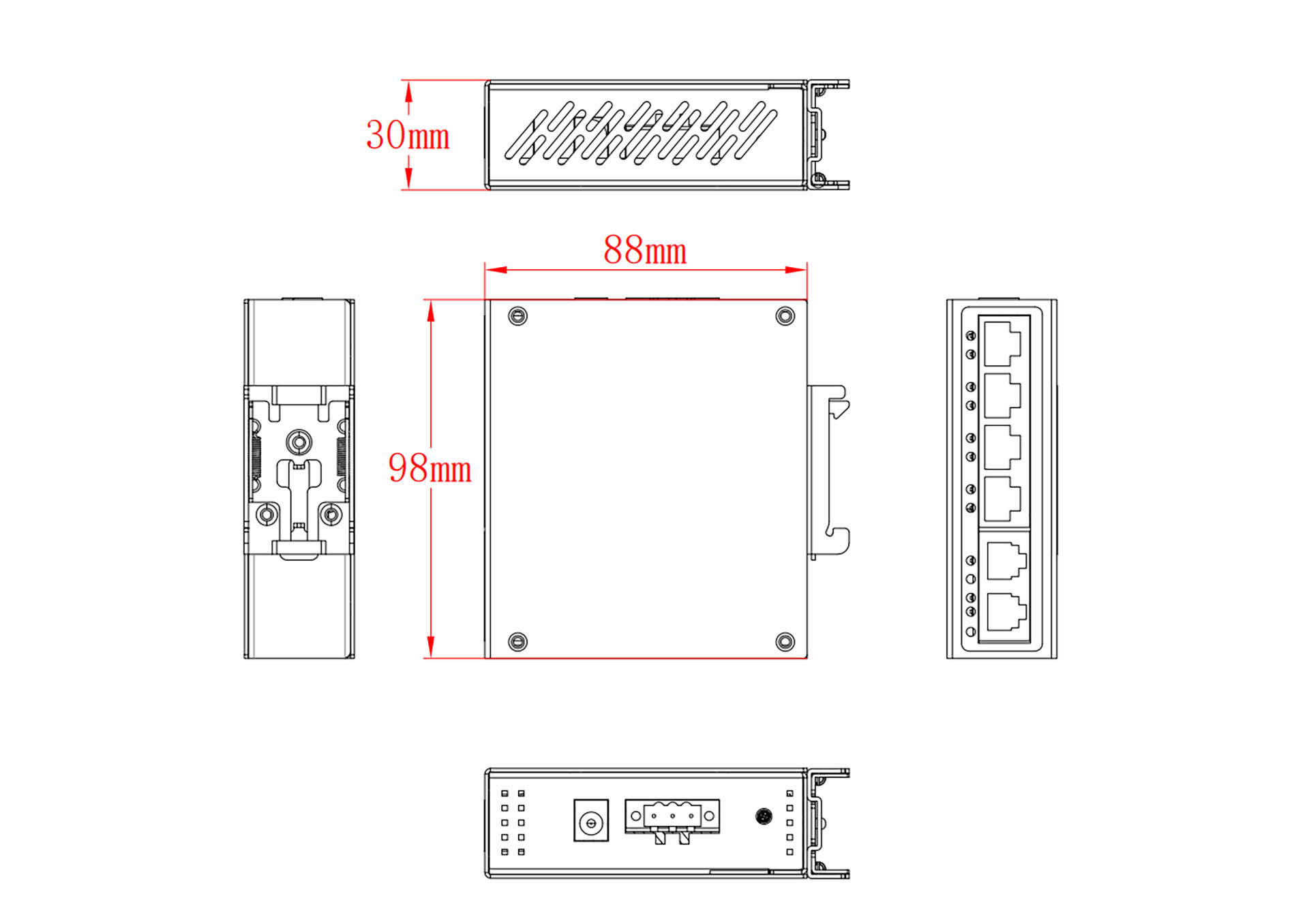

Dimension (L*W*H) |
98*88*30mm |
|
Net /Gross Weight |
<0.2 kg / <0.3kg |
|

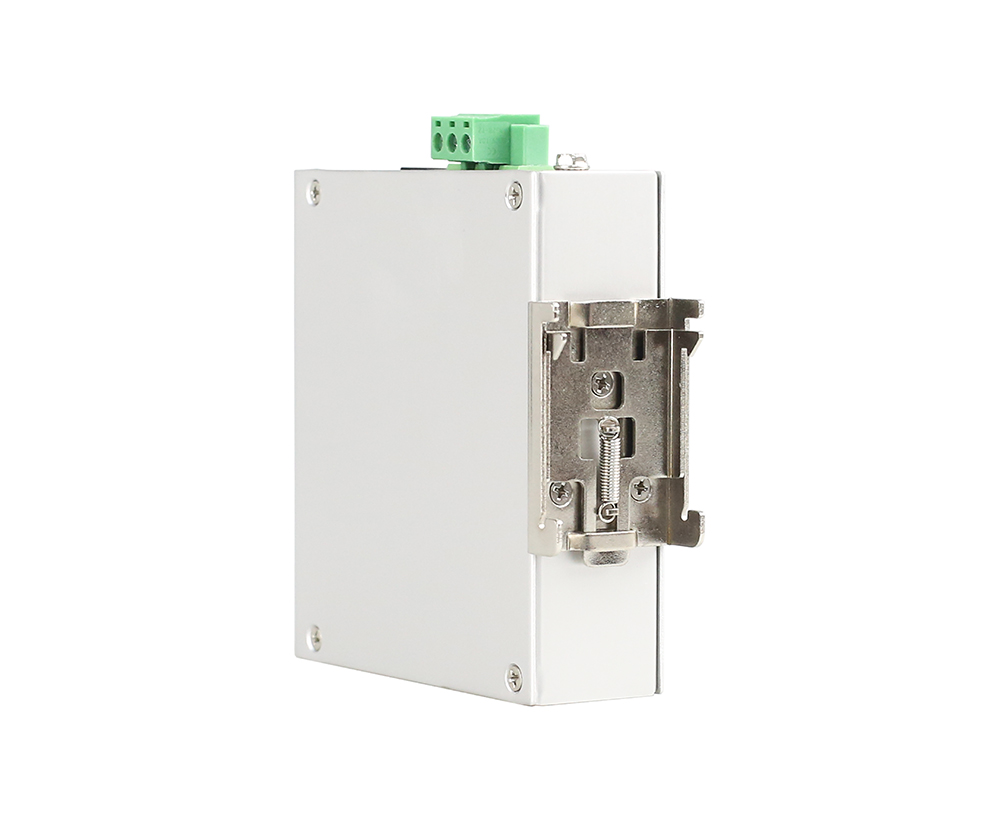

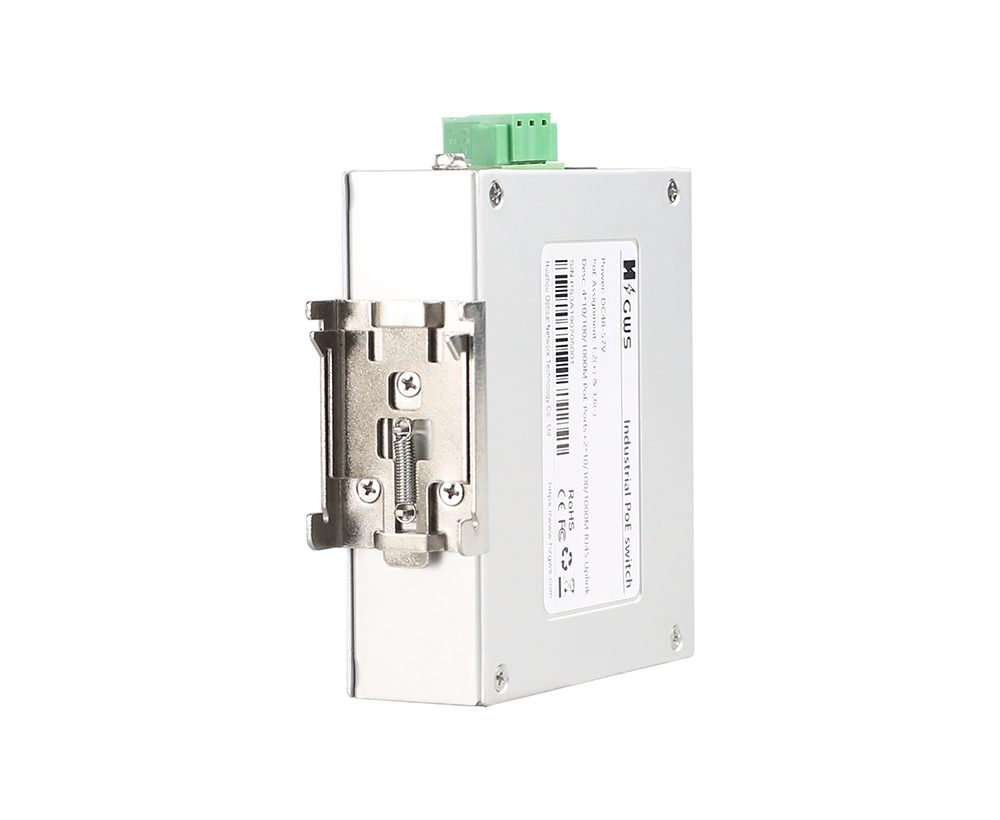

Installation |
Desktop, DIN rail |
|
Certification & Warranty |
|
|
Lightning Protection / Protection Level |
Lightning protection: 6KV 8/20us; Protection level: IP30 IEC61000-4-2(ESD):±8kV contact discharge,±15kV air discharge IEC61000-4-3(RS):10V/m(80~1000MHz) IEC61000-4-4(EFT): power cable:±4kV; data cable:±2kV IEC61000-4-5(Surge):power cable:CM±4kV/DM±2kV; data cable:±4kV IEC61000-4-6(radio frequency transmission):10V(150kHz~80MHz) IEC61000-4-8(power frequency magnetic field):100A/m;1000A/m ,1s to 3s IEC61000-4-9(pulsed magnet field):1000A/m IEC61000-4-10(damped oscillation):30A/m 1MHz IEC61000-4-12/18(shockwave):CM 2.5kV,DM 1kV IEC61000-4-16(common-mode transmission):30V; 300V,1s FCC Part 15/CISPR22(EN55022):Class b IEC61000-6-2(Common Industrial Standard) |
|
Mechanical Properties |
IEC60068-2-6 (anti vibration), IEC60068-2-27 (anti shock) IEC60068-2-32 (free fall) |
|
Certification |
CCC;CE mark, commercial; CE/LVD EN62368-1;FCC Part 15 Class B; RoHS |
|
Warranty |
5 years, lifelong maintenance. |
