Overview

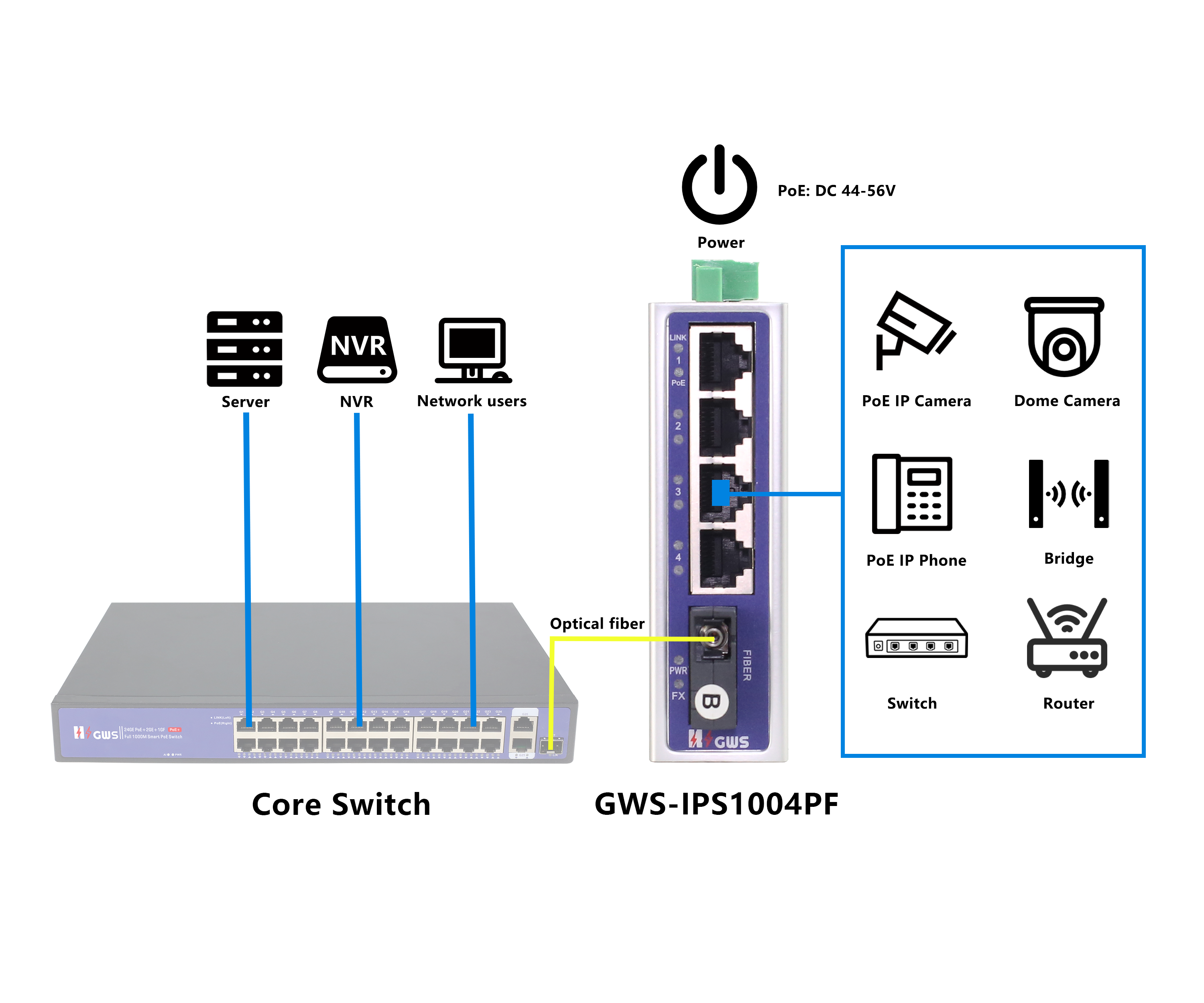

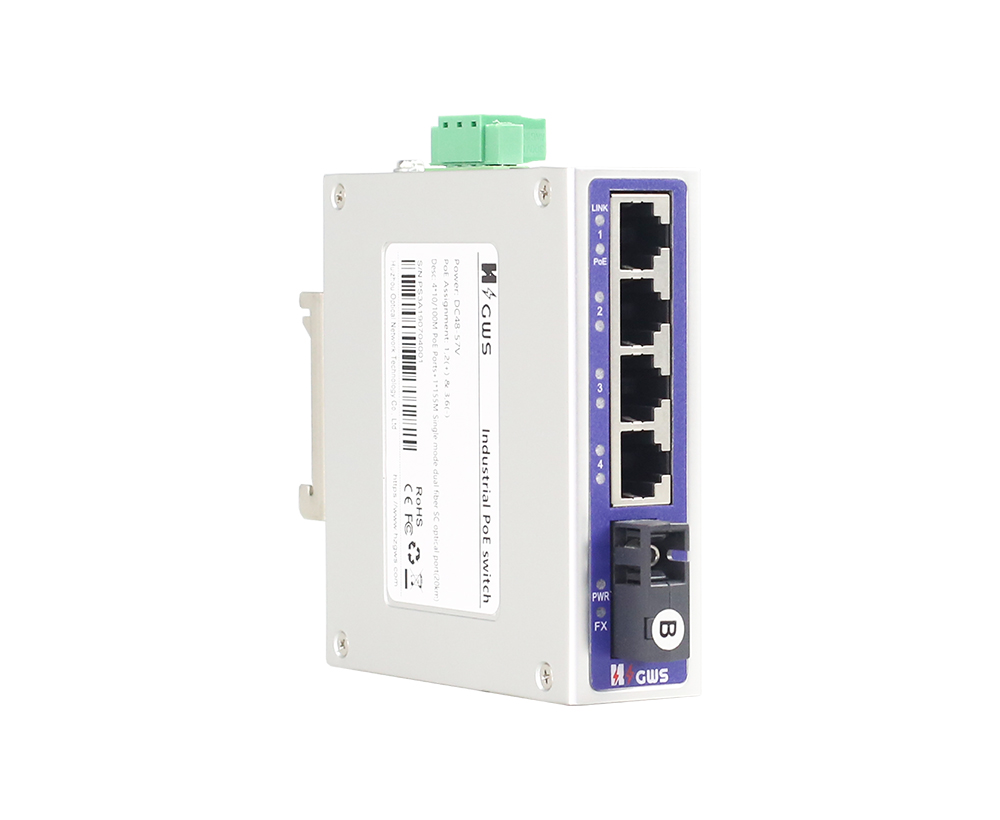

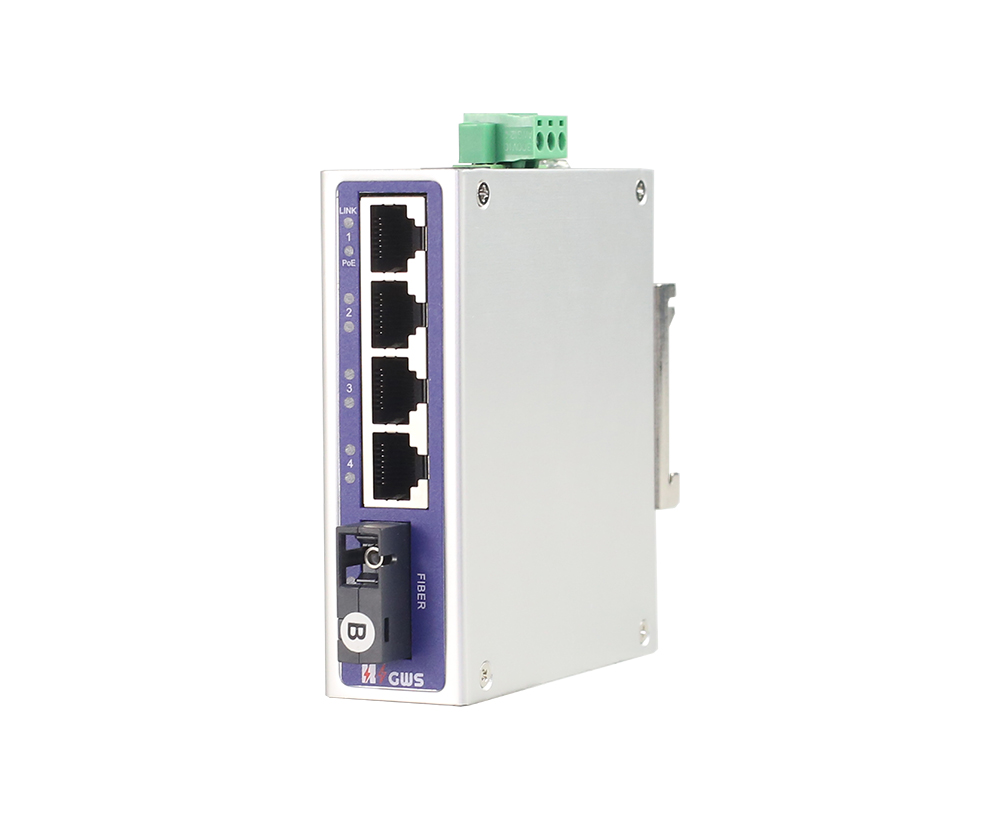

The GWS-IPS1004PF series is a 10/100M industrial PoE fiber switch. It has 4*10/100M PoE ports and 1*155M SC slot port, Port 1-4 can support IEEE 802.3af/at PoE standard,single port PoE power up to 30W, As a PoE power supply device, it can automatically detect and recognize the power receiving equipment that meets the standard and supply power through the network cable. It can supply power to POE terminal equipment such as wireless AP, web camera, VoIP phone, industrial sensor through network cable, and meet the network environment that needs high-density PoE power supply. It is suitable for intelligent transportation, rail transit, electric power, mining, metallurgy and green energy. Industrial scenes such as construction set up a cost-effective and stable communication network.
Unmanaged model, plug and play, no configuration, easy to use.
Feature
n 10/100M TP/SC port, fast Ethernet
◇ All series supports "10/100M RJ45 port and 155M SC fiber port" combination, which enables users to flexibly build networking to meet the needs of various scenarios.
◇ Support non-blocking wire speed forwarding
◇ Support full duplex based on IEEE802.3x and half duplex based on Backpressure
n Smart PoE power supply function
◇ 4*10/100Base-TX RJ45 ports, meeting the needs of security monitoring, teleconferencing system, wireless coverage, and other scenarios.
◇ IEEE 802.3af/at PoE standard, without damaging non-PoE devices.
n Stable and reliable
◇ Low power consumption, no fan low noise design, aluminum shell.
◇ CCC,CE, FCC, RoHS.

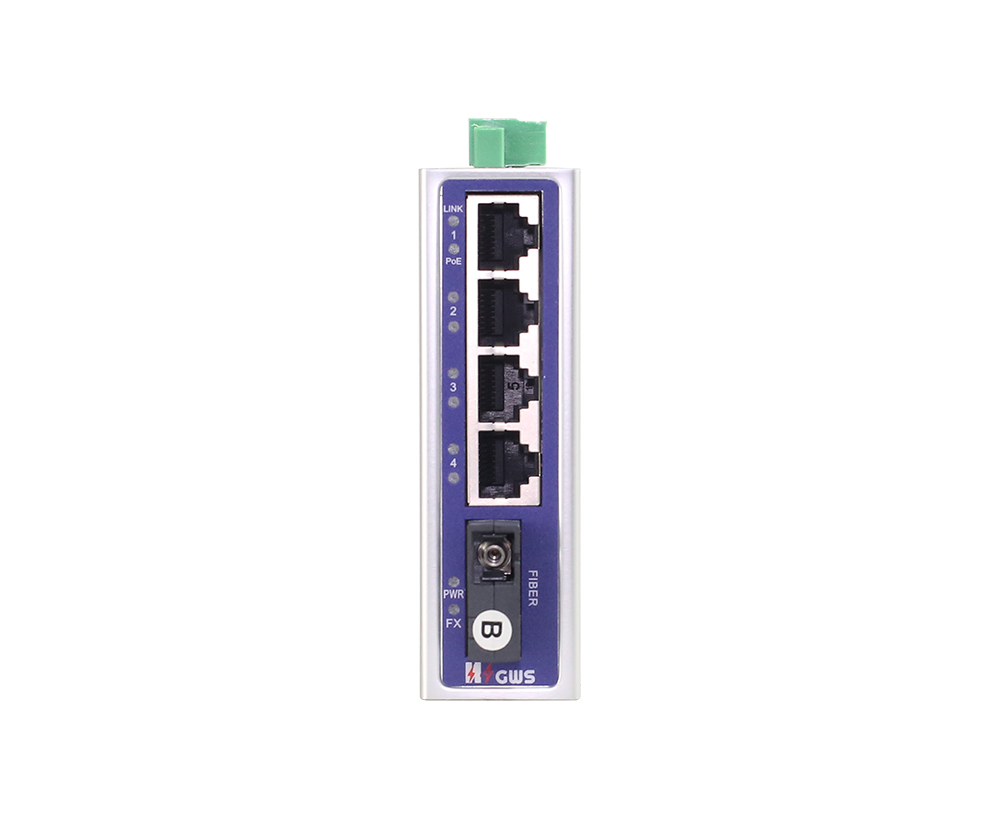

◇ The user-friendly panel, it can show the device status through the LED indicator of PWR, Link, PoE.

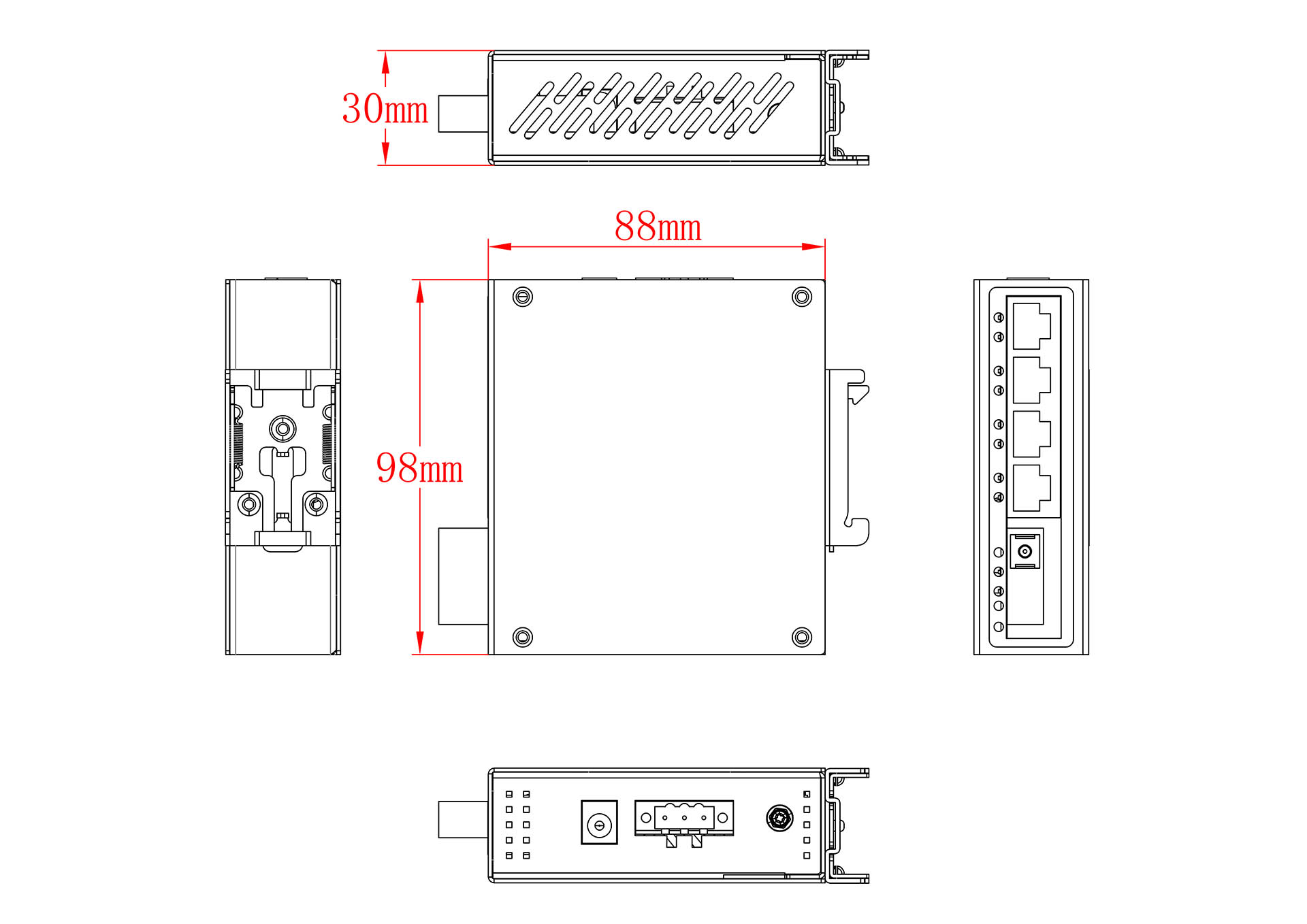

Dimension
Ordering Information
|
Model |
Description |
Power Supply |
|
GWS-IPS1004PF |
Unmanaged industrial PoE fiber switch with 4*10/100M PoE ports and 1*155M SC port, Port 1-4 can support PoE IEEE802.3af/at. By default, the SC port 1310mm/20km single-mode dual-fiber module is configured. It can support dual DC redundant power input (Phoenix terminal +DC Jack connection) and rail mounting. |
60W/120W |
|
GWS-IPS1004PF -M |
Unmanaged industrial PoE fiber switch with 4*10/100M PoE ports and 1*155M SC port, Port 1-4 can support PoE IEEE802.3af/at. By default, the SC port 850nm/0.5km or 1310nm/2km multi-mode dual fiber module is configured. It can support dual DC redundant power input (Phoenix terminal +DC Jack connection) and support rail mounting. |
60W/120W |
|
GWS-IPS1004PF -A |
Unmanaged industrial PoE fiber switch with 4*10/100M PoE ports and 1*155M uplink SC port . Port 1-4 can support IEEE 802.3af/at. By default, the SC port 1310nm/20km single-mode single-fiber module is configured. It can support dual DC redundant power input (Phoenix terminal +DC Jack connection) and support rail mounting. |
60W/120W |
|
GWS-IPS1004PF -B |
Unmanaged industrial PoE fiber switch with 4*10/100M PoE ports and 1*155M uplink SC port . Port 1-4 can support IEEE 802.3af/at. By default, the SC port 1550nm/20km single-mode single-fiber module is configured. It can support dual DC redundant power input (Phoenix terminal +DC Jack connection) and support rail mounting. |
60W/120W |
|
Note: The power supply is not included, and needs to be purchased separately |
||
Packing List
|
PACKING LIST |
CONTENT |
QTY |
UNIT |
|
5-port 10/100M industrial PoE fiber switch |
1 |
SET |
|
|
User Guide |
1 |
PC |
|
|
Warranty Card |
1 |
PC |
Power Supply
|
Product |
Model |
Description |
Unit |
|
65W Desktop Power Adaptor |
AP65-52 |
Desktop tape 65W single set of output power adapter; Input Voltage:AC 100V~240V 50-60Hz,1.1A Output Voltage:DC 52V 1.25A Operation Temperature:-20℃—+65℃ |
PC |
|
110W Desktop Power Adaptor |
AP110-52 |
Desktop tape 110W single set of output power adapter; Input Voltage:AC 100V~240V 50-60Hz,2.0A Output Voltage:DC 52V 2.0A Operation Temperature:-20℃—+65℃ |
PC |
|
60W DIN Rail Industrial Power Supply |
DP60-48 |
Din Rail type 60W single set of output power supply; Input Voltage:AC 100V~240V 50-60Hz,1A Output Voltage:DC 48V 1.25A Operation Temperature:-40℃—+70℃ |
PC |
|
120W DIN Rail Industrial Power Supply |
DP120-48 |
Din Rail type 120W single set of output power supply; Input Voltage:AC 100V~240V 50-60Hz,1.5A Output Voltage:DC 48V 2.5A Operation Temperature:-40℃—+70℃ |
PC |
|
Model |
GWS-IPS1004PF |
|
Interface Characteristics |
|
|
Fixed Port |
4*10/100Base-T PoE ports (Data /Power) 1*155M uplink SC port (Data) 2 groud of V+, V- redundant DC power interface (3P Phoenix terminal+DC5521 Jack) |
|
Ethernet Port |
10/100Base-TX auto-sensing, full/half duplex MDI/MDI-X self-adaption |
|
Twisted Pair Transmission |
10BASE-T: Cat3,4,5 UTP(≤100 meter) 100BASE-TX: Cat5e or later UTP(≤100 meter) |
|
Fiber Port |
The default optical module is single-mode dual-fiber 20km, SC interface; Multi-mode dual fiber and single-mode single fiber see product selection table |
|
Optical Cable |
Multimode: 850nm 0 ~ 550M, 1310nm 0 ~ 2KM, singlemode: 1310nm 0 ~ 40KM, 1550nm 0 ~ 120KM. |
|
Chip Parameter |
|
|
Network Protocol |
IEEE802.3 10BASE-T; IEEE802.3i 10Base-T; IEEE802.3u 100Base-TX;IEEE802.3u 100Base-FX; IEEE802.3x |
|
Forwarding Mode |
Store and Forward(Full Wire Speed) |
|
Switching Capacity |
1.0Gbps (no-blocking) |
|
Forwarding Rate@64byte |
0.744Mpps |
|
MAC |
2K |
|
Buffer Memory |
512Kb |
|
Jumbo Frame |
2048B |
|
LED Indicator |
Power: PWR (green), Network :Link1-4, (green); fiber port :FX (green) |
|
PoE & Power Supply |
|
|
PoE Port |
Port 1 to 4 IEEE 802.3 af/at @POE |
|
Power Supply Pin |
Default 1/2 (+), 3/6 (-) , optional 4/5 (+), 7/8 (-) |
|
Max Power Per Port |
30W, IEEE802.3af/at |
|
Total PWR / Input Voltage |
60W/48VDC |
|
Power Consumption |
Standby<3W, Full load<60W |
|
Working Voltage |
44-56VDC; 3P industrial phoenix terminal+DC5521 Jakc, anti-reverse protection. |
|
Power Supply |
Self-purchased, optional 48V/60W or 48V/120W industrial power supply |
|
Physical Parameter |
|
|
Operation TEMP / Humidity |
-40~+75°C;5%~90% RH Non condensing |
|
Storage TEMP / Humidity |
-40~+85°C;5%~95% RH Non condensing |
|
Dimension (L*W*H) |
98*88*30mm |
|
Net /Gross Weight |
<0.2kg / <0.3kg |
|
Installation |

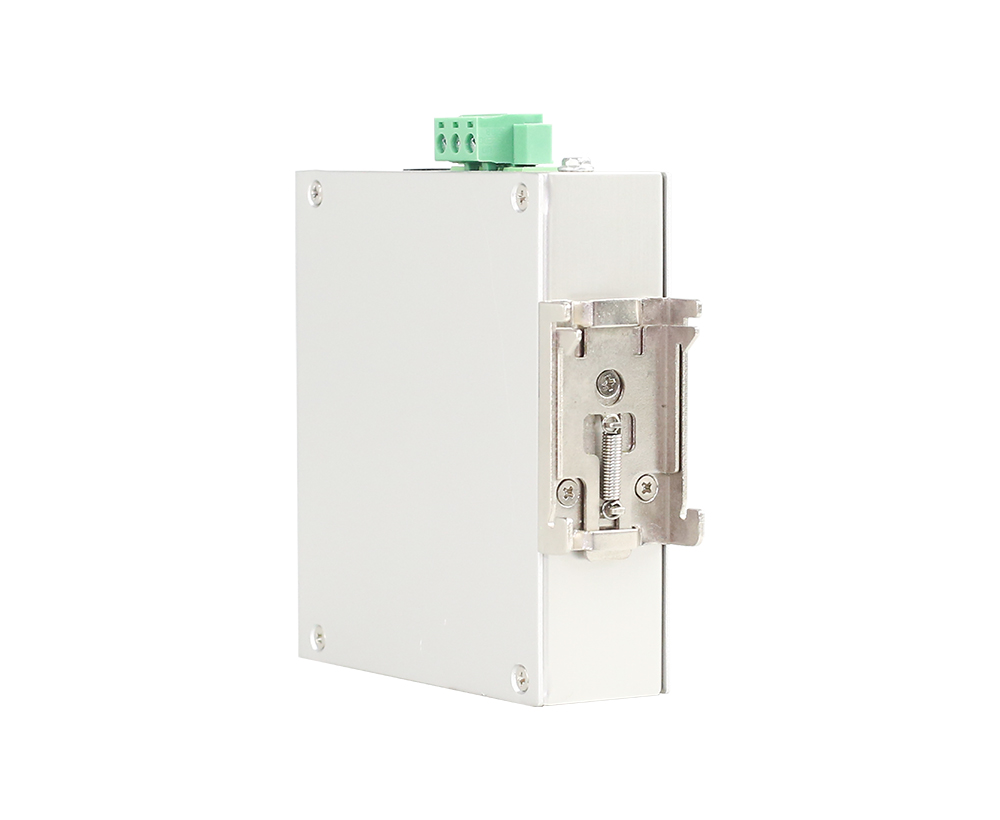

Desktop, 35mm DIN rail |
|
Certification & Warranty |
|
|
Lightning Protection / Protection Level |
Lightning protection: 6KV 8/20us;Protection level: IP30 IEC61000-4-2(ESD):±8kV contact discharge,±15kV air discharge IEC61000-4-3(RS):10V/m(80~1000MHz) IEC61000-4-4(EFT): power cable:±4kV; data cable:±2kV IEC61000-4-5(Surge):power cable:CM±4kV/DM±2kV; data cable:±4kV IEC61000-4-6(radio frequency transmission):10V(150kHz~80MHz) IEC61000-4-8(power frequency magnetic field):100A/m;1000A/m ,1s to 3s IEC61000-4-9(pulsed magnet field):1000A/m IEC61000-4-10(damped oscillation):30A/m 1MHz IEC61000-4-12/18(shockwave):CM 2.5kV,DM 1kV IEC61000-4-16(common-mode transmission):30V; 300V,1s FCC Part 15/CISPR22(EN55022):Class A IEC61000-6-2(Common Industrial Standard) |
|
Mechanical Properties |
IEC60068-2-6 (anti vibration), IEC60068-2-27 (anti shock), IEC60068-2-32 (free fall) |
|
Certification |
CCC;CE mark, commercial; CE/LVD EN62368-1;FCC Part 15 Class B;RoHS; |
|
Warranty |
5 years , lifelong maintenance. |
