Overview

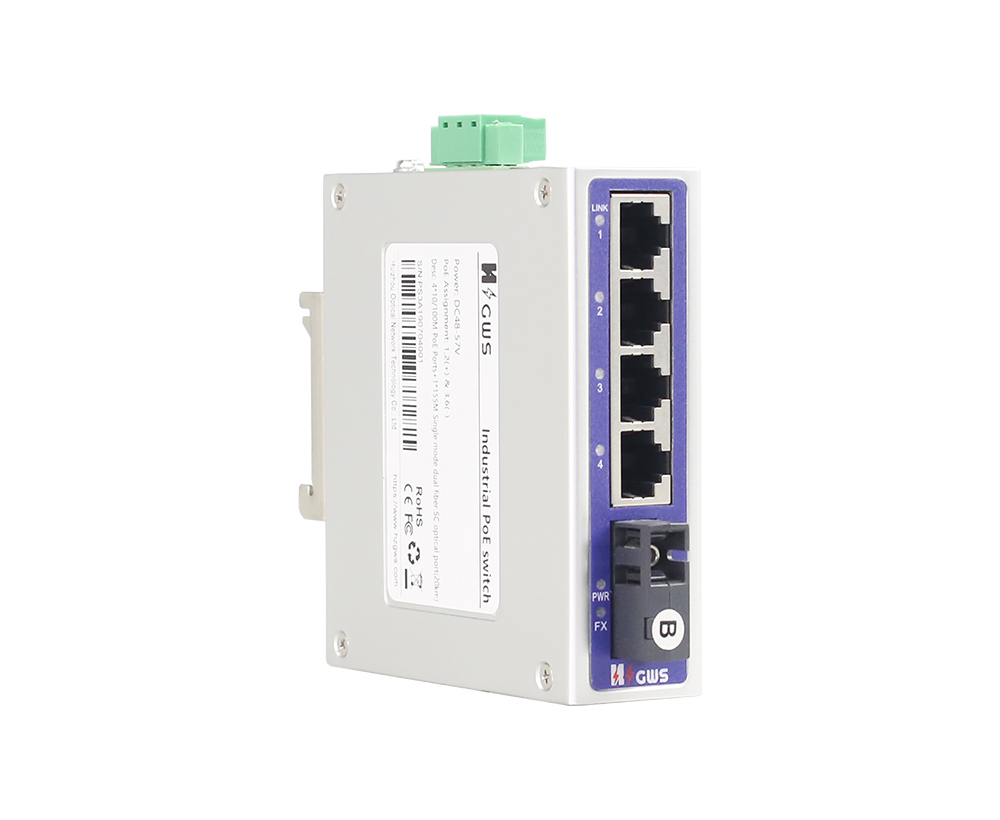

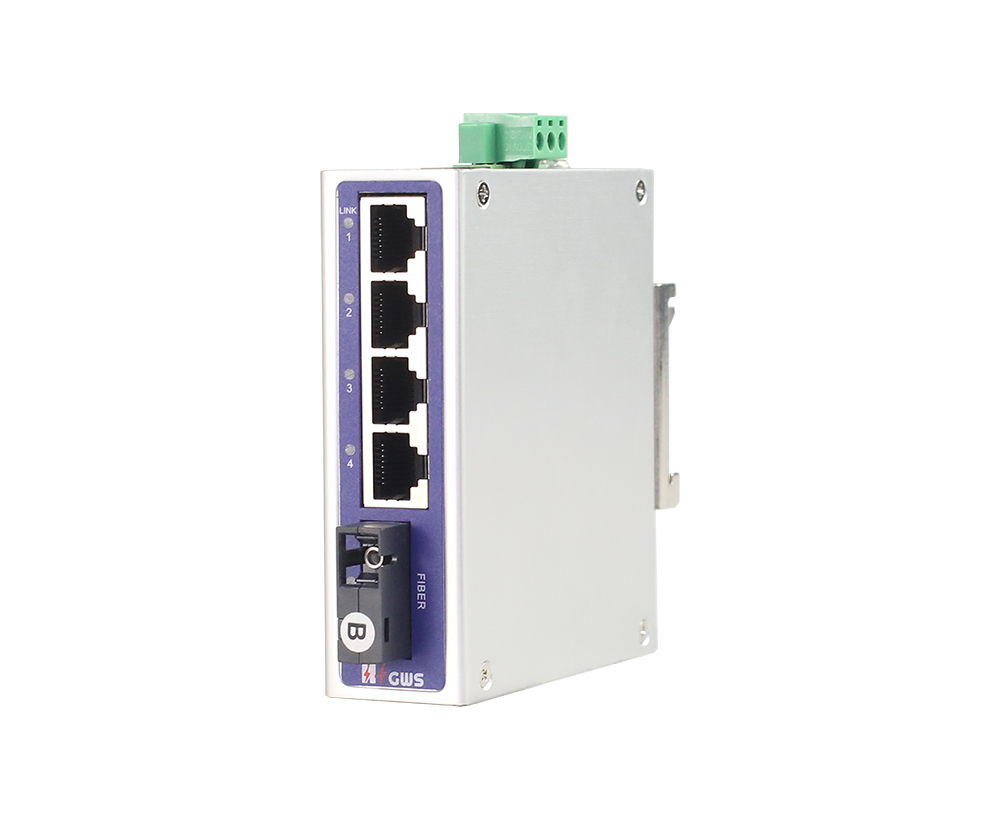

The GWS-IPS1004F is a 10/100M Industrial Ethernet fiber switch. It has 4 *10/100M RJ45 ports and 1*155M SC fiber port, and each port can support full line-rate forwarding.

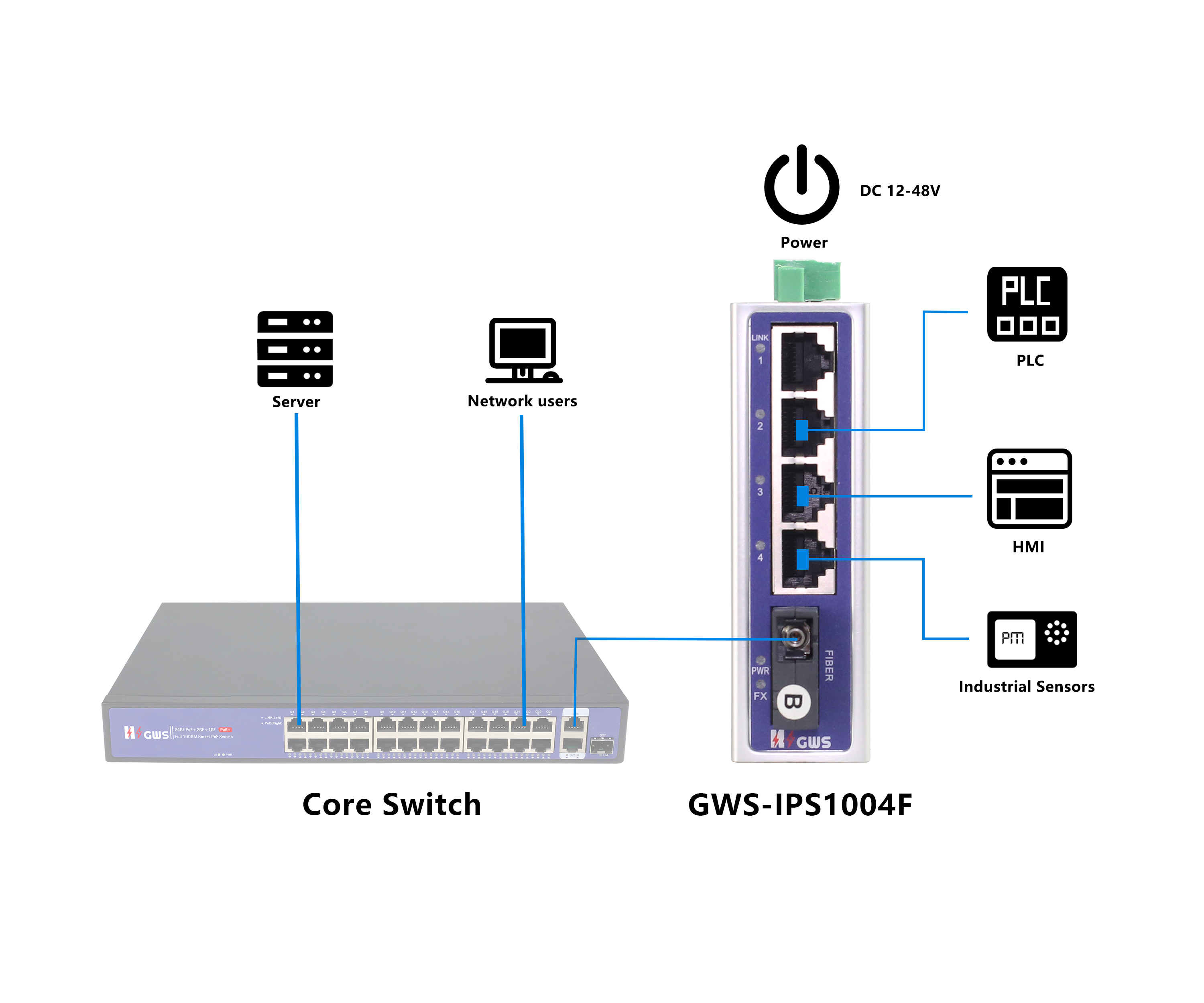

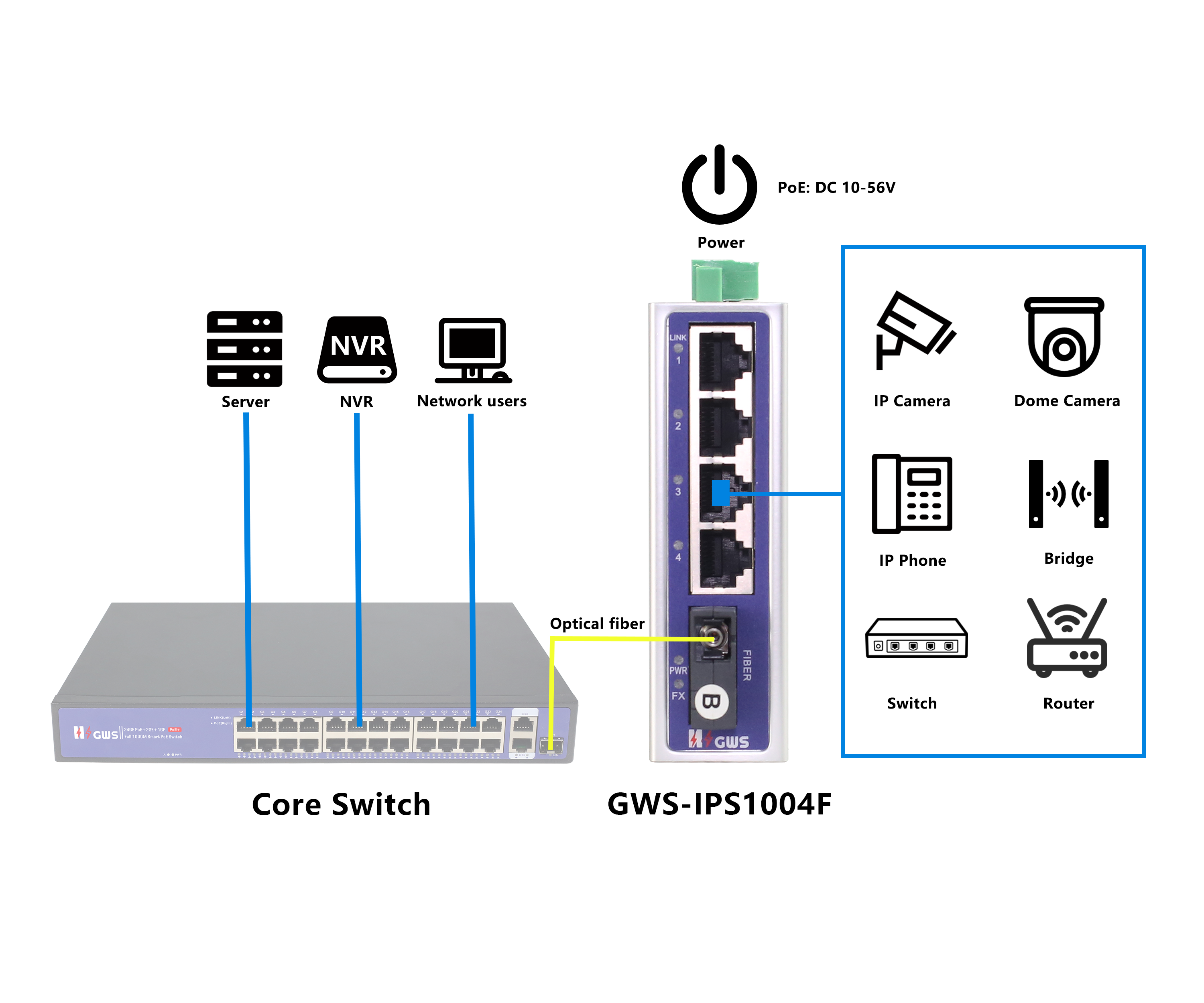

The GWS-IPS1004F industrial Ethernet switch has excellent industrial field environment adaptability (mechanical stability, climate adaptability, electromagnetic environment adaptability, etc.), protection level is IP30, it support for dual power supply, low power consumption, no fan cooling technology, MTBF is 35 years, 5 years warranty, unmanaged models, plug and play, no configuration, easy to use. It is suitable for industrial scenes such as intelligent transportation, rail transit, power industry, mining, petroleum, shipping, metallurgy and green energy construction to form a cost-effective, stable and reliable communication network.
Unmanaged model, plug and play, no configuration, easy to use.
Feature
n 10/100M TP/SC port, fast Ethernet
◇ All series support "10/100M RJ45 port and 155M SC fiber port" combination, which enables users to flexibly build networking to meet the needs of various scenarios.
◇ Support non-blocking wire-speed forwarding.
◇ Support full-duplex based on IEEE802.3x and half-duplex based on backpressure.
n Stable and reliable
◇ Low power consumption, no fan , aluminum casing.
◇ CCC,CE, FCC, RoHS.

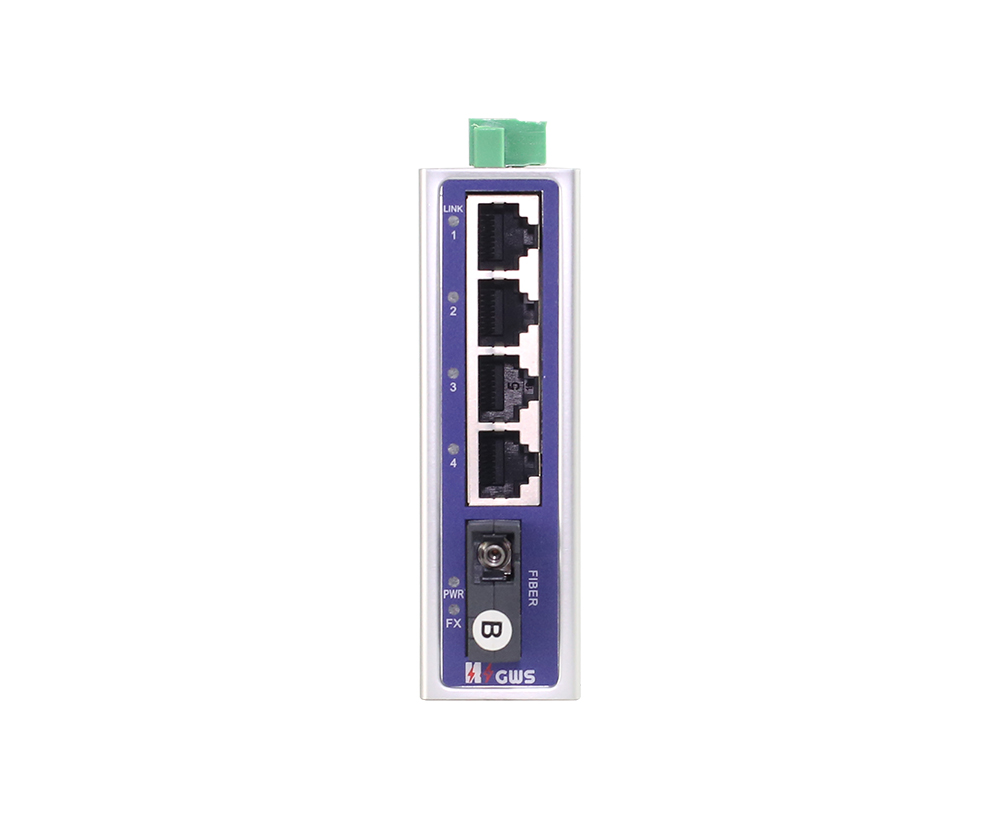

◇ The user-friendly panel, it can show the device status through the LED indicator of PWR, Link .

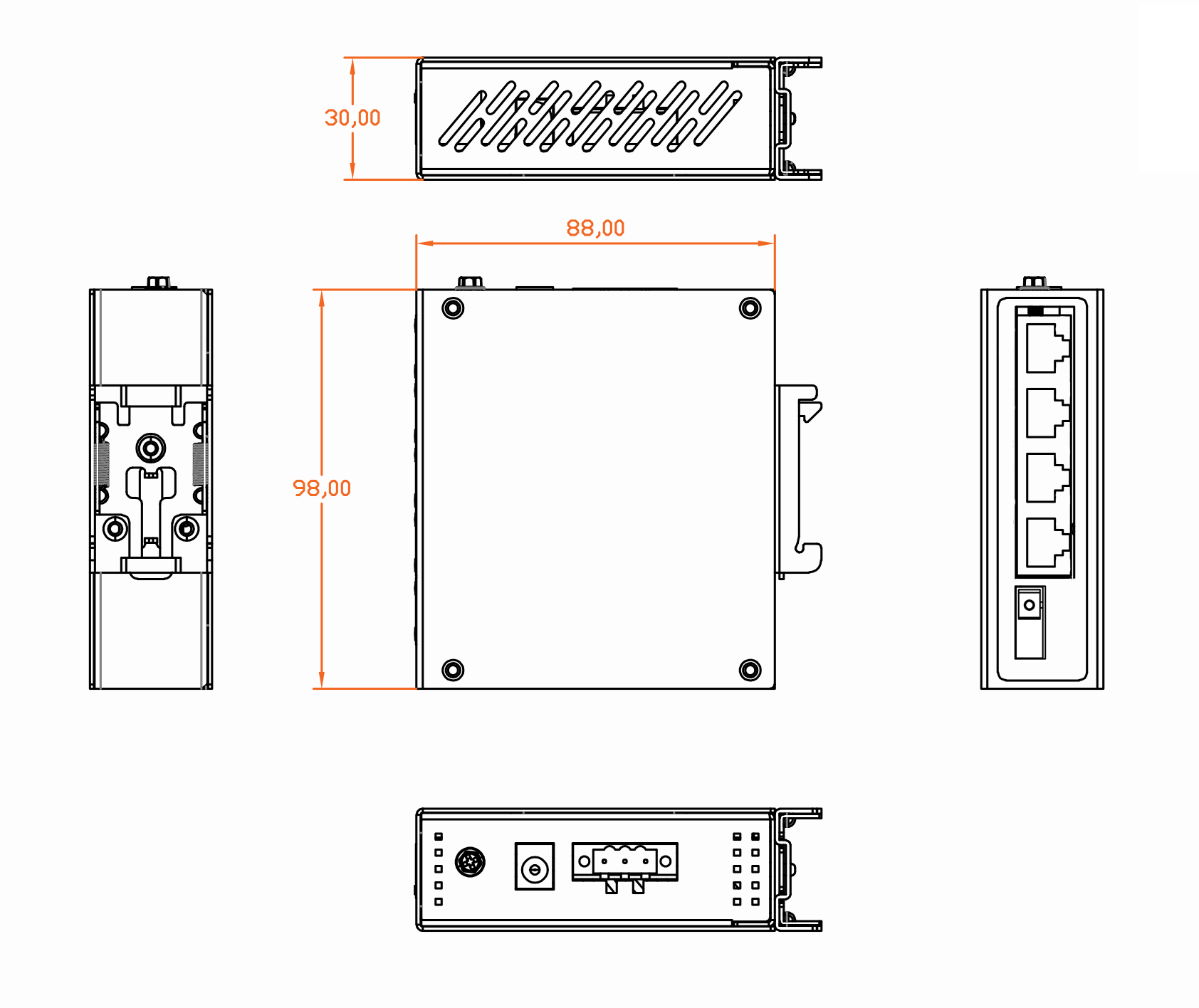

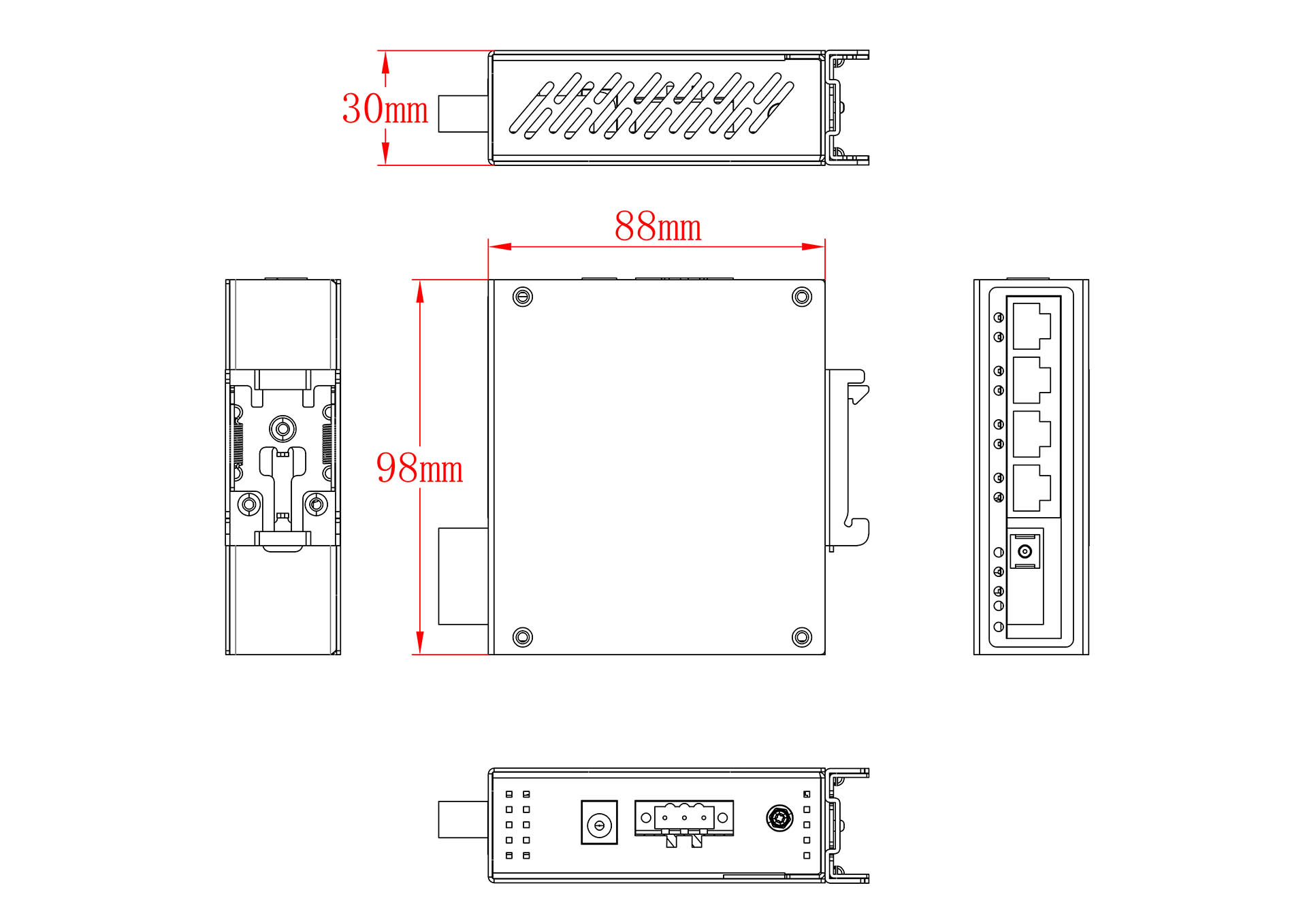

Dimension
Ordering Information
|
Model |
Description |
Recommended Power Supply |
|
GWS-IPS1004F |
Unmanaged industrial Ethernet fiber switch with 4*10/100M RJ45 ports and 1*155M SC port. By default, the SC port 1310mm/20km single-mode dual-fiber module. It can support DC dual redundant power input and DIN rail mounting. |
12W/24W |
|
GWS-IPS1004F-M |
Unmanaged industrial Ethernet fiber switch with 4*10/100M RJ45 ports and 1*155M SC port. By default, the SC port 850nm/0.5km or 1310nm/2km multi-mode dual fiber module. It can support DC dual redundant power input and DIN rail mounting. |
12W/24W |
|
GWS-IPS1004F-A |
Unmanaged industrial Ethernet fiber switch with 4*10/100M RJ45 ports and 1*155M SC port. By default, the SC port 1310nm/20km single-mode single-fiber module. It can support DC dual redundant power input and DIN rail mounting. |
12W/24W |
|
GWS-IPS1004F-B |
Unmanaged industrial Ethernet fiber switch with 4*10/100M RJ45 ports and 1*155M SC port. By default, the SC port 1550nm/20km single-mode single-fiber module .It can support DC dual redundant power input and DIN rail mounting. |
12W/24W |
|
Note: The power supply is not included, and needs to be purchased separately |
||
Packing List
|
PACKING LIST |
CONTENT |
QTY |
UNIT |
|
5-port 10/100M industrial Ethernet fiber switch |
1 |
SET |
|
|
User Guide |
1 |
PC |
|
|
Warranty Card |
1 |
PC |
Power Supply
|
Product |
Model |
Description |
Unit |
|
12W DIN Rail Industrial Power Supply |
DP12-24 |
Din Rail type 12W single set of output power supply; Input Voltage:AC 100V~240V 50-60H,0.35A Output Voltage:DC 24V 0.5A Operation Temperature:-40℃—+70℃ |
PC |
|
Model |
GWS-IPS1004F |
|
Interface Characteristics |
|
|
Fixed Port |
4*10/100Base-TX RJ45 ports(Data) 1*155M uplink SC slot port(Data) 2 set of V+, V- redundant DC power interface (3P Phoenix terminal+DC5521 Jack) |
|
Ethernet Port |
Port 1-4 support 10/100Base-TX,auto-sensing, Full/half duplex MDI/MDI-X self-adaption |
|
Twisted Pair Transmission |
10BASE-T: Cat3,4,5 UTP(≤100 meter) 1000BASE-T: Cat5e or later UTP(≤100 meter) |
|
SC Slot Port |
Default optical module is single-mode dual-fiber 20km, SC interface |
|
Optical Cable/ Distance |
Multi mode: 850nm ,0 ~ 550M, 1310nm,0~2km single mode: 1310nm 0 ~ 40KM, 1550nm 0 ~ 120KM. |
|
Chip Parameter |
|
|
Network Protocol |
IEEE802.3 10BASE-T, IEEE802.3i 10Base-T, IEEE802.3u 100Base-TX,IEEE802.3u 100Base-FX IIEEE802.3x |
|
Forwarding Mode |
Store and Forward(Full Wire Speed) |
|
Switching Capacity |
1.0Gbps (no-blocking) |
|
Forwarding Rate@64byte |
0.744Mpps |
|
MAC |
2K |
|
Buffer Memory |
512Kb |
|
Jumbo Frame |
2048B |
|
LED Indicator |
Power:PWR(green), network:Link 1-4,(green), Fiber port :FX (green) |
|
Power |
|
|
Power Consumption |
Standby<3W, Full load<5W |
|
Power Supply |
Self-purchased, optional 24V24W industrial power supply |
|
Working Voltage |
12-48VDC; 3P industrial Phoenix terminal+DC5521 Jack Input, support anti-reverse protection. |
|
Physical Parameter |
|
|
Operation TEMP / Humidity |
-40~+75°C;5%~90% RH Non condensing |
|
Storage TEMP / Humidity |
-40~+85°C;5%~95% RH Non condensing |
|
Dimension (L*W*H) |
98*88*30mm |
|
Net /Gross Weight |
<0.2kg / <0.3kg |
|

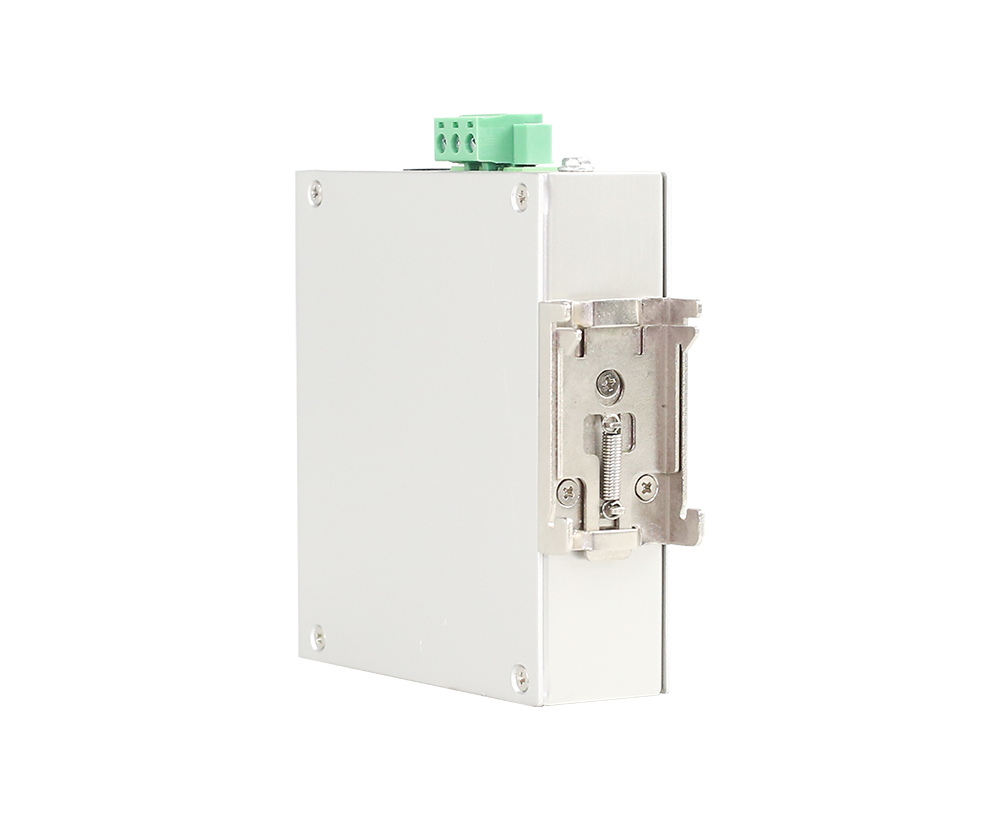

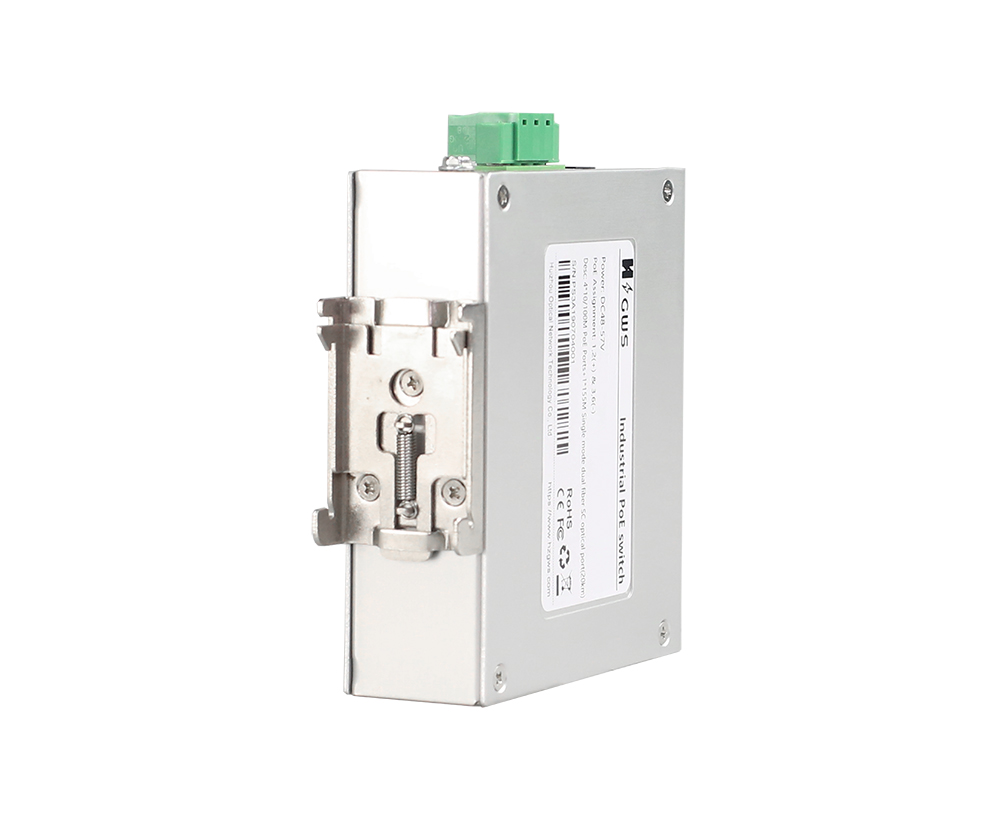

Installation |
Desktop, DIN rail |
|
Certification & Warranty |
|
|
Lightning protection / protection level |
Lightning protection: 6KV 8/20us; Protection level: IP30 IEC61000-4-2(ESD):±8kV contact discharge,±15kV air discharge IEC61000-4-3(RS):10V/m(80~1000MHz) IEC61000-4-4(EFT): power cable:±4kV; data cable:±2kV IEC61000-4-5(Surge):power cable:CM±4kV/DM±2kV; data cable:±4kV IEC61000-4-6(radio frequency transmission):10V(150kHz~80MHz) IEC61000-4-8(power frequency magnetic field):100A/m;1000A/m ,1s to 3s IEC61000-4-9(pulsed magnet field):1000A/m IEC61000-4-10(damped oscillation):30A/m 1MHz IEC61000-4-12/18(shockwave):CM 2.5kV,DM 1kV IEC61000-4-16(common-mode transmission):30V; 300V,1s FCC Part 15/CISPR22(EN55022):Class A IEC61000-6-2(Common Industrial Standard) |
|
Mechanical Properties |
IEC60068-2-6 (anti vibration) IEC60068-2-27 (anti shock) IEC60068-2-32 (free fall) |
|
Certification |
CCC;CE mark, commercial; CE/LVD EN60950;FCC Part 15 Class B; RoHS; |
|
Warranty |
5 years, lifelong maintenance. |
